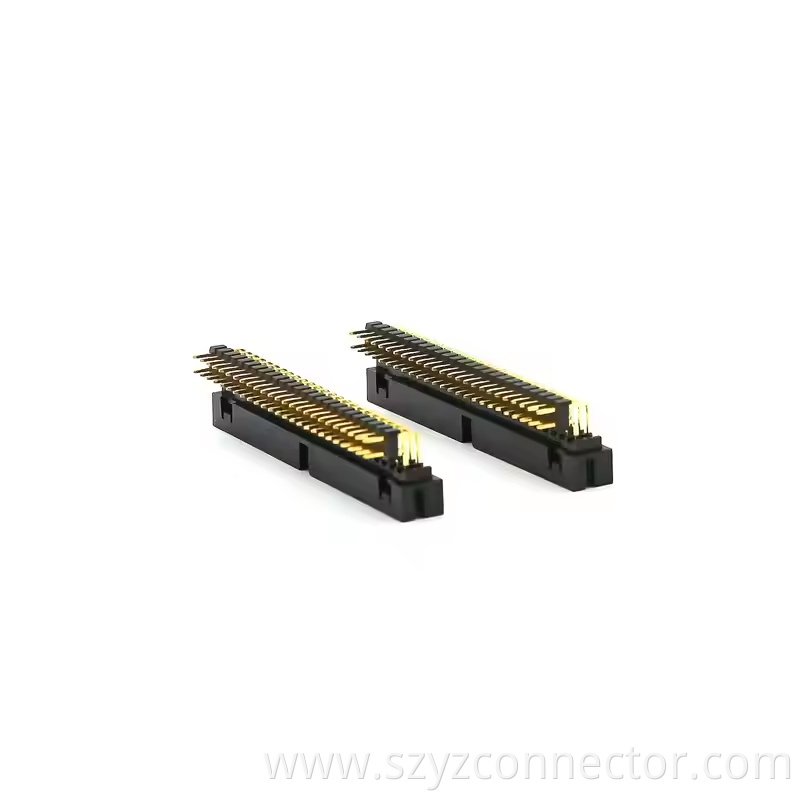

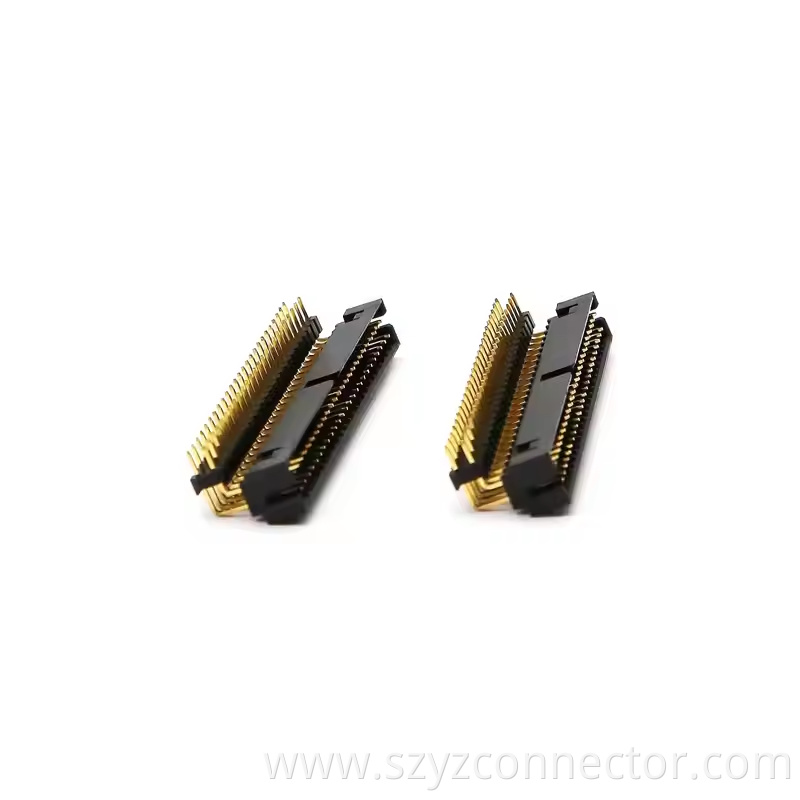

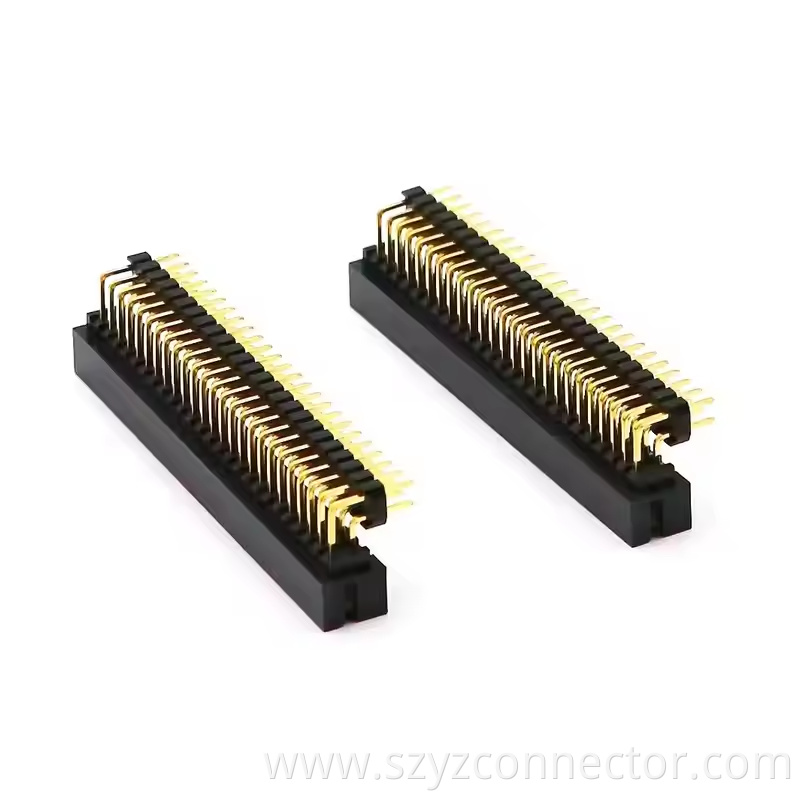

2.0mm Pitch Box Header Right Angle Add

yztech’s 2.0mm Pitch box header Right Angle Add is an innovative solution for complex circuit layouts and space limitations. As a versatile model in the box header series, its standard 2.0mm pitch and right-angle add-pin design precisely meet the three-dimensional cross-wiring needs of PCB boards, standing out in the 2.0mm box header category for its flexible structure and stable signal transmission.



Featuring phosphor bronze terminals (gold plating thickness ≥50u") and chemically resistant PBT (UL94V-0) housings, the connector stabilizes 3A/pin current in -40°C to +105°C environments with contact resistance ≤20mΩ. The unique Right Angle Box Header structure supports 90° right-angle wiring, effectively saving space and avoiding signal interference while being compatible with diverse expansion needs of idc box header connector. The 10-50 PIN modular add-pin configuration can be flexibly adjusted according to project requirements, widely used in drone motherboards, medical device control modules, etc. Certified to IPC-A-610 and RoHS-compliant, anti-static carrier tape packaging supports customized angle forming services, providing 2mm Box Header Connector solutions with both process precision and reliability for smt box header supporting needs and independent projects.
