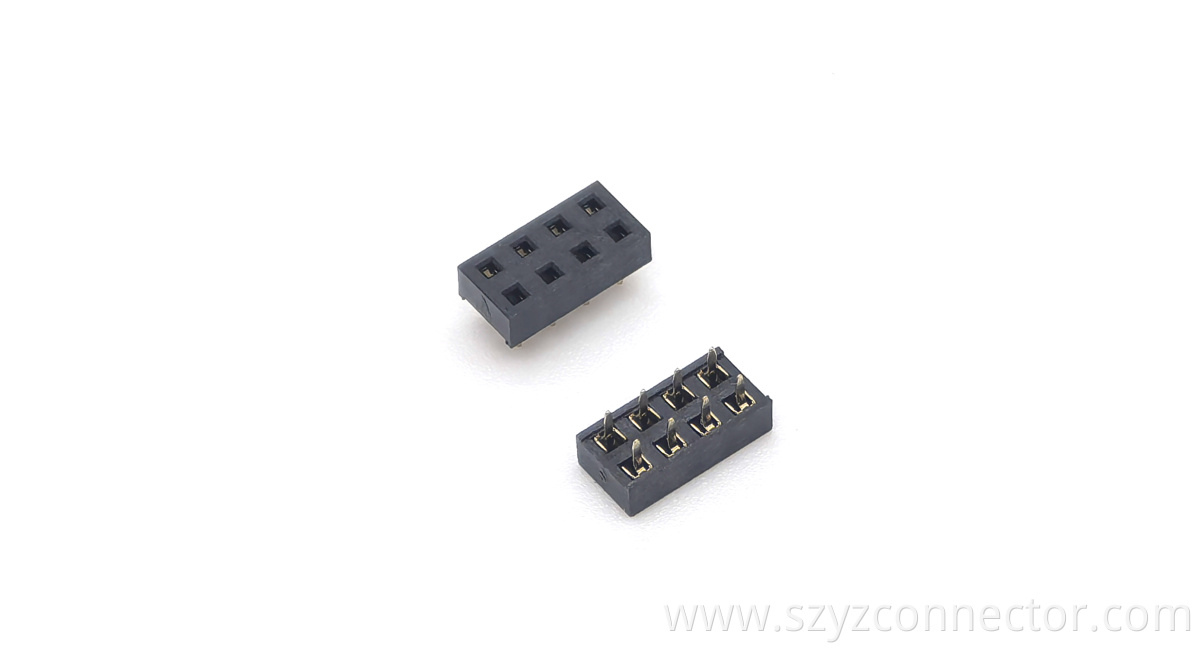

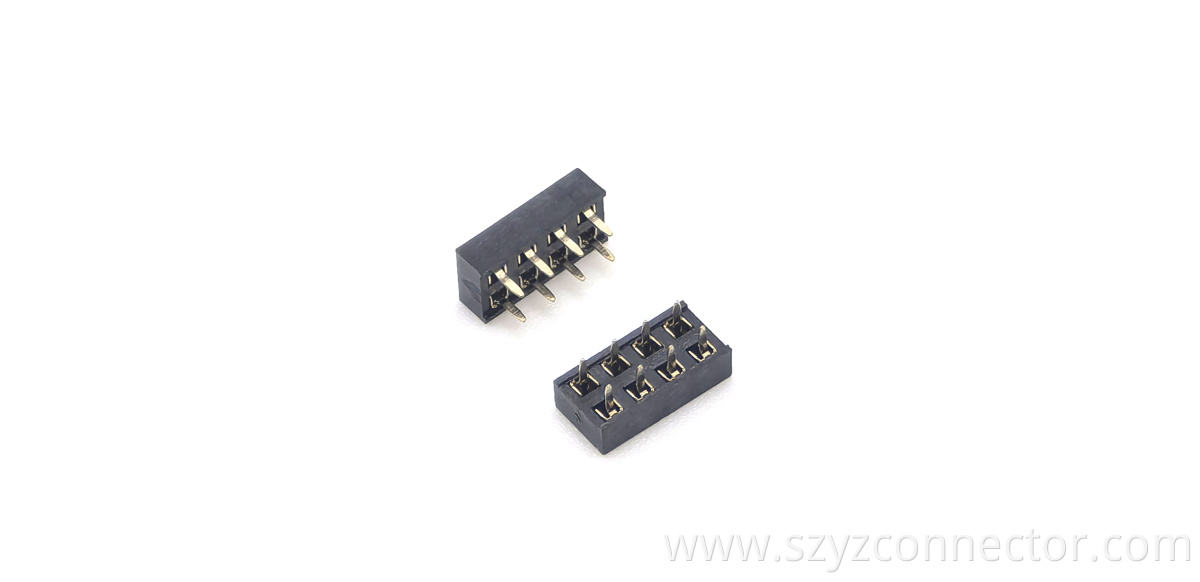

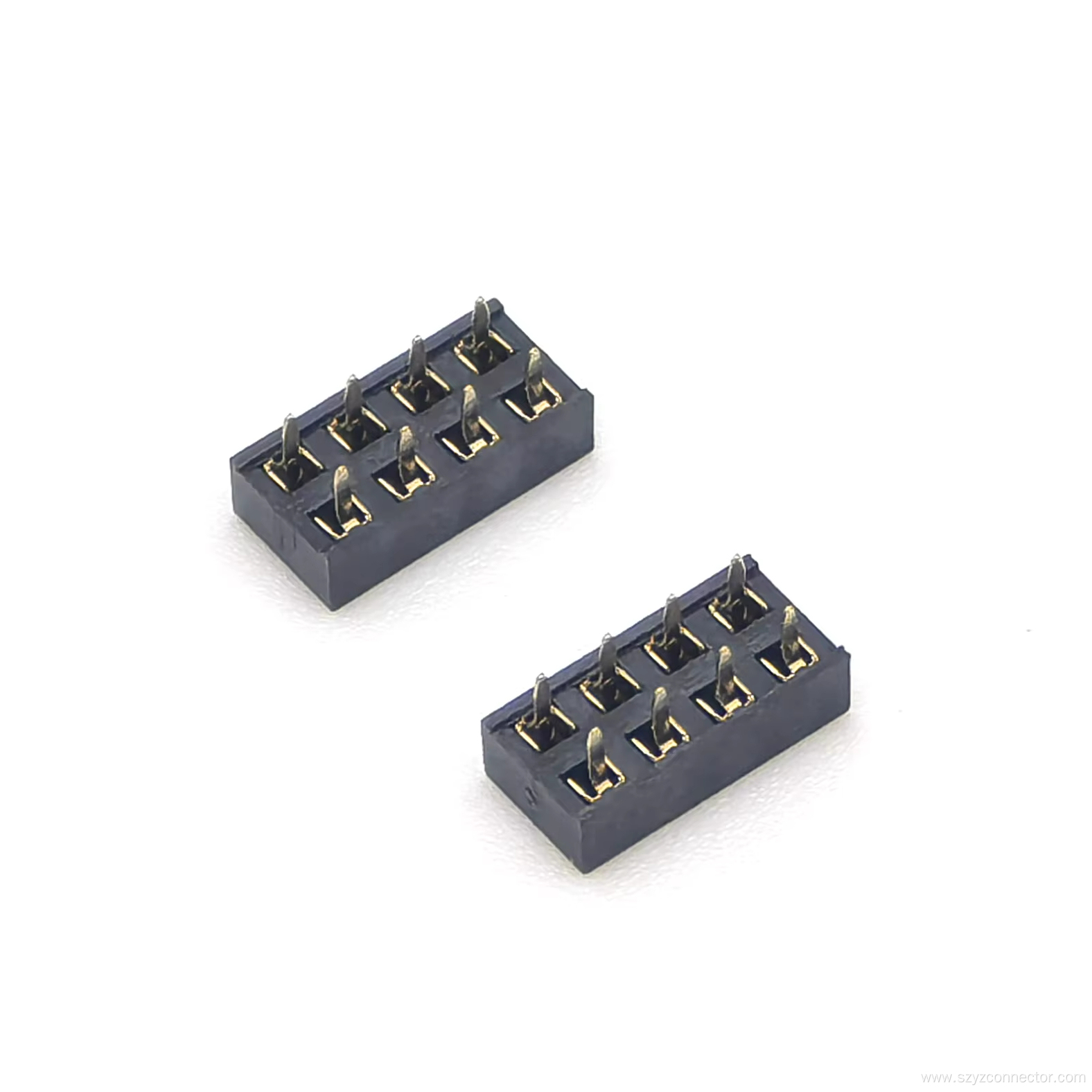

2.0mm Female header Dual Row Straight 8P

Engineered for reliable board-to-board connections,the YZTECH 2.0mm pitch female header connector features a dual-row,2x4P configuration in a straight insertion orientation.Its rectangular,space-saving profile suits densely packed PCBs where efficient signal routing is critical.Built to DIN form factor standards,this header connector serves industrial control units,instrumentation,and automation equipment.The housing is molded from high-temperature PA6T material,providing excellent dimensional stability and resistance to flux and solvents.With a broad operating range of -40℃to +105℃,it performs consistently under thermal stress.The straight-through pin layout simplifies automated assembly and ensures secure mechanical retention on the board.You could find it in the 2.0mm Female Header of the catalog.

Each contact is stamped from brass and finished with a half-gold/tin plating-gold on the mating area for low contact resistance and corrosion protection,tin on the termination area for reliable soldering.Rated at 2A per contact and 500V,the Connector handles moderate power and control signals safely.The maximum welding temperature reaches 260℃for 10 seconds,compatible with lead-free reflow soldering processes without housing deformation.Whether used in power distribution or data transmission,the dual-wipe contact design ensures repeated plugging cycles with stable insertion force.Delivered in tube-and-box packaging,the YZTECH Female Header arrives organized for pick-and-place machines or hand assembly.
