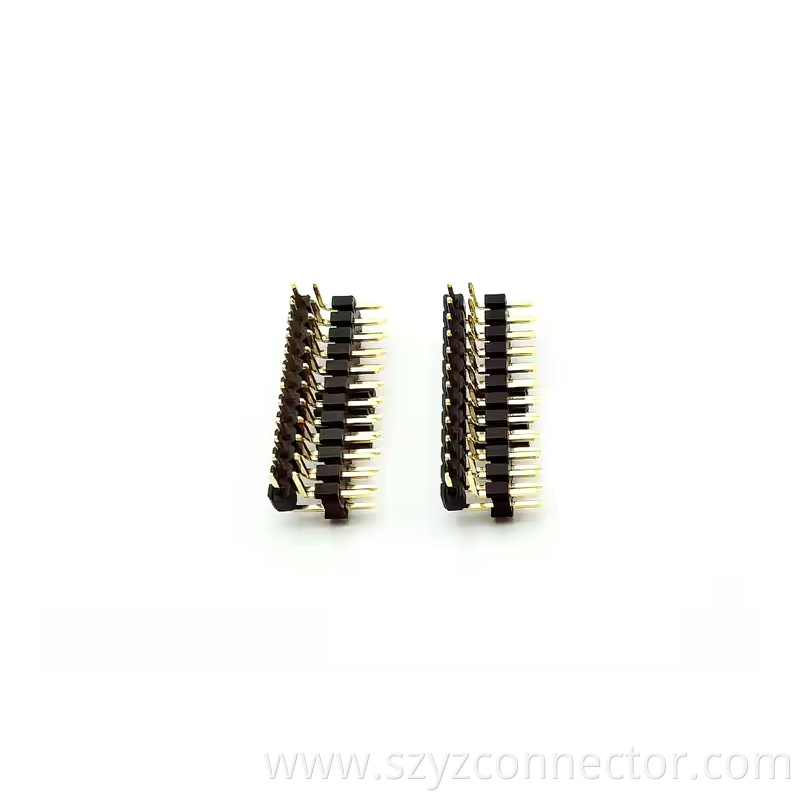

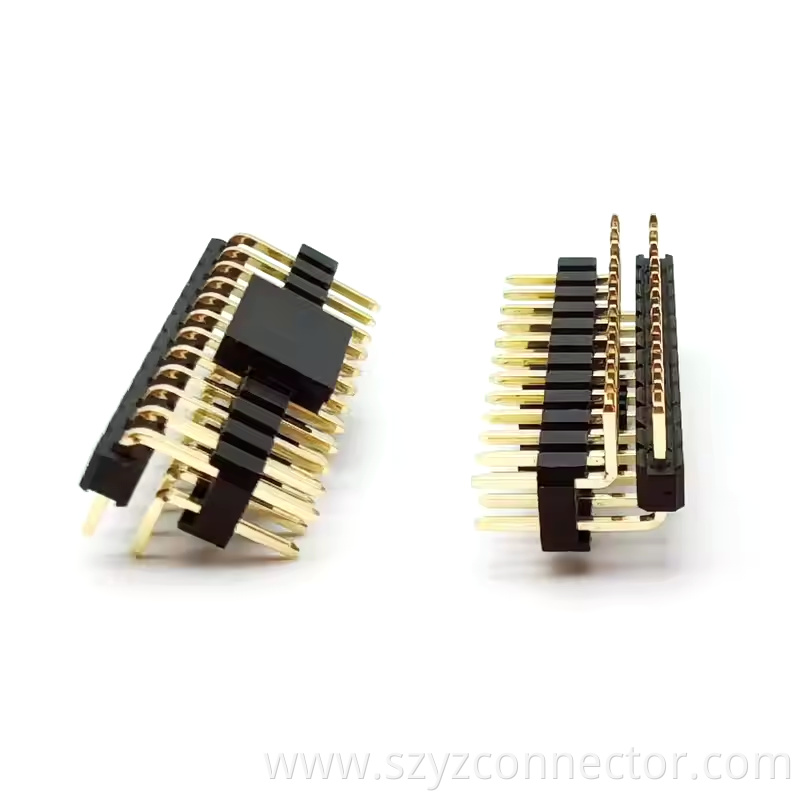

2.54mm Pitch Pin Header Dual Row

yztech’s meticulously crafted 2.54mm Pitch Pin Header Dual Row is a core component for achieving efficient and stable connections in electronic devices. As a classic product in the box header series, its standard 2.54mm pitch and dual-row design precisely meet the wiring specifications of various PCB boards, becoming the first choice for engineers in the 2.54mm box header category due to its excellent electrical performance and structural strength.



This pin header features high-purity phosphor bronze terminals (gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulators, stably carrying 5A current in extreme environments ranging from -40°C to +125°C, with a contact resistance as low as 12mΩ. The dual-row layout effectively increases pin density, allowing for flexible combination with Right Angle Box Header to meet the three-dimensional wiring requirements of complex circuits and is compatible with idc box header connector, widely used in industrial control motherboards, communication devices, smart homes, etc. The diverse 10 - 80 PIN configuration adapts to the connection needs of different functional modules. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging supports customized cutting services. It provides reliable 2.54mm Box Header Connector solutions for both the supporting use of smt box header and the special specification requirements of independent projects.
