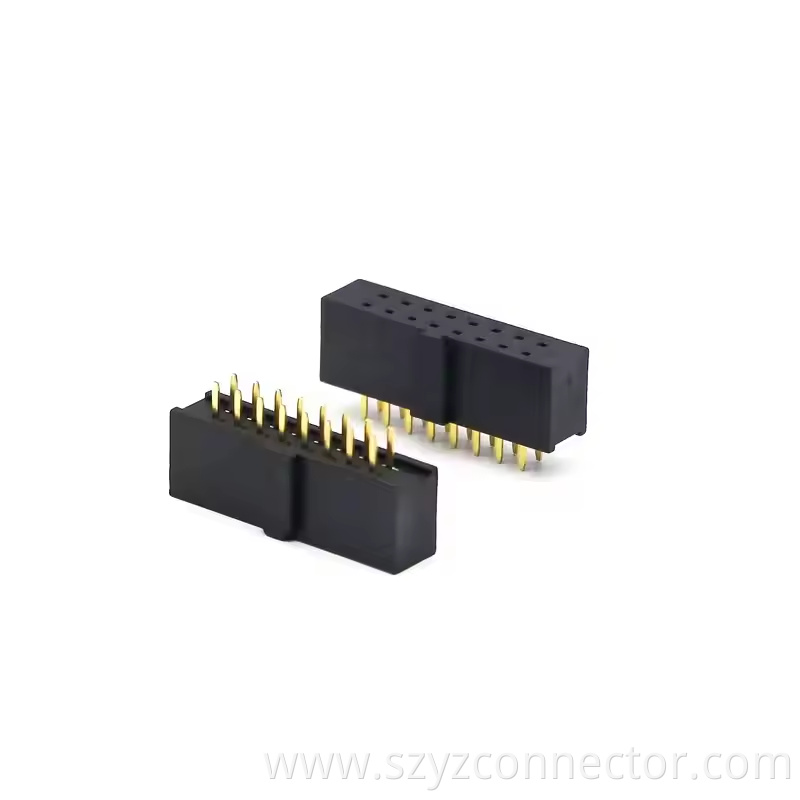

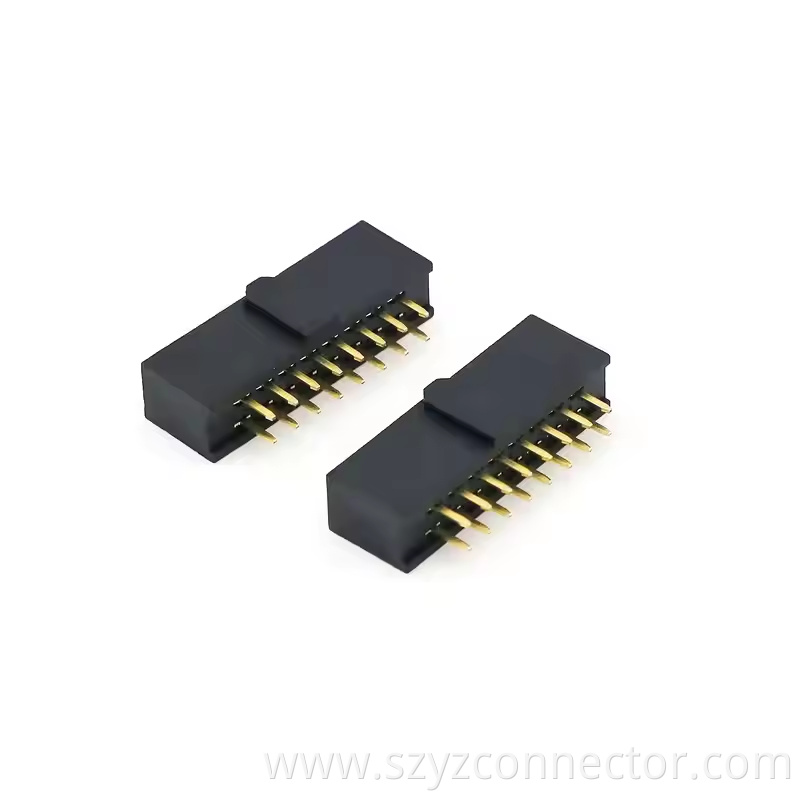

2.54mm Pitch Female Header Dual Row 22P

yztech’s meticulously developed 2.54mm Pitch Female Header Dual Row 22P is designed to meet the high-density connection and efficient signal transmission requirements of electronic devices. As a core product in the 2.54 mm pitch female header series, its standard 2.54mm pitch and dual-row layout design precisely adapt to the complex wiring scenarios of PCB boards, standing out in the 2.54 mm header category for its excellent pin density and stable performance.



This female header features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant PBT (UL94V - 0) insulation materials, stably carrying 4A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 12mΩ. The 22-pin dual-row structure significantly increases the number of pins, supporting parallel transmission of multiple signals. Whether quickly docking with female header or used in conjunction with male female Pin Header, it enables efficient interconnection. Additionally, it supports 2.54 right angle installation, providing more flexibility for compact circuit layouts. Customization services are available to adjust pin specifications and functions according to customer needs. Widely used in communication base stations, server motherboards, etc., certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering solid and reliable support for various electronic connection projects.
