2.54mm Pitch Female header Dual Rows SMT

2.54mm Pitch Female header Dual Rows SMT

Name: 2.54mm Pitch Female header Connector Dual Rows SMT H8.5mm 2*4P
Uploaded: 2025-08-23T03:45:19+08:00
Description: YZTECH's 2.54mm Pitch SMT Female Header provides compact, high-strength interconnection for modern PCBs. This dual-row,

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Contact Now

Product Description

Product Attributes

Model No.: 071096

Brand: YZTECH

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

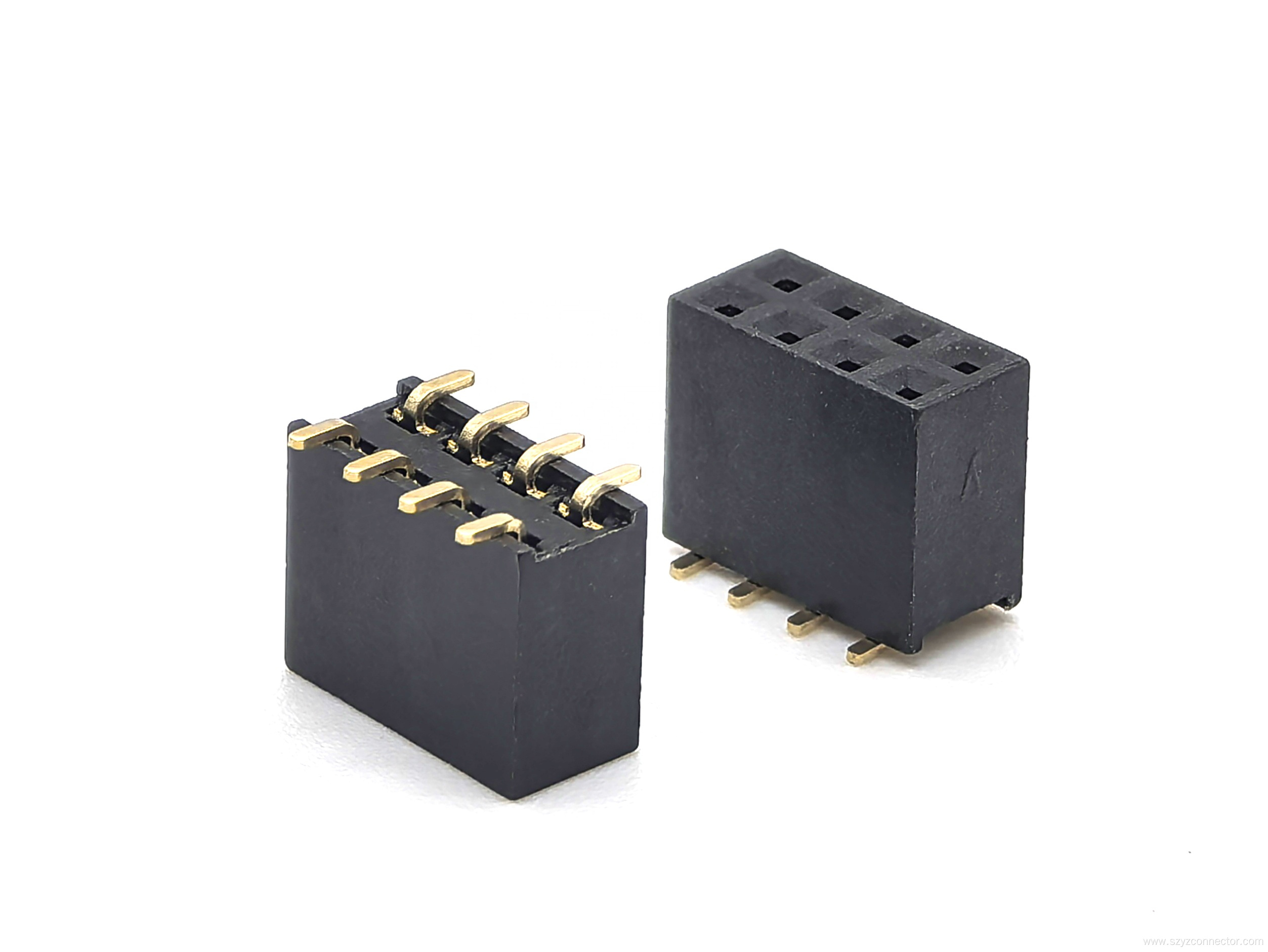

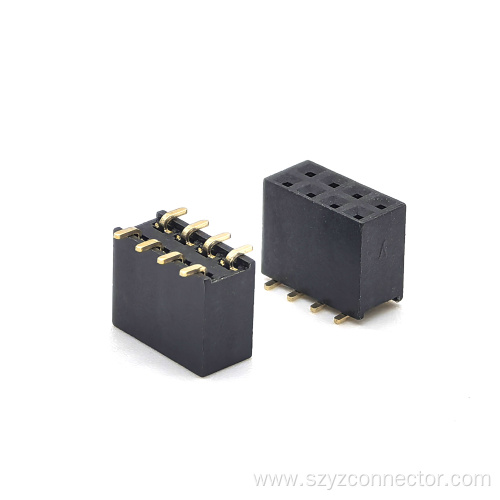

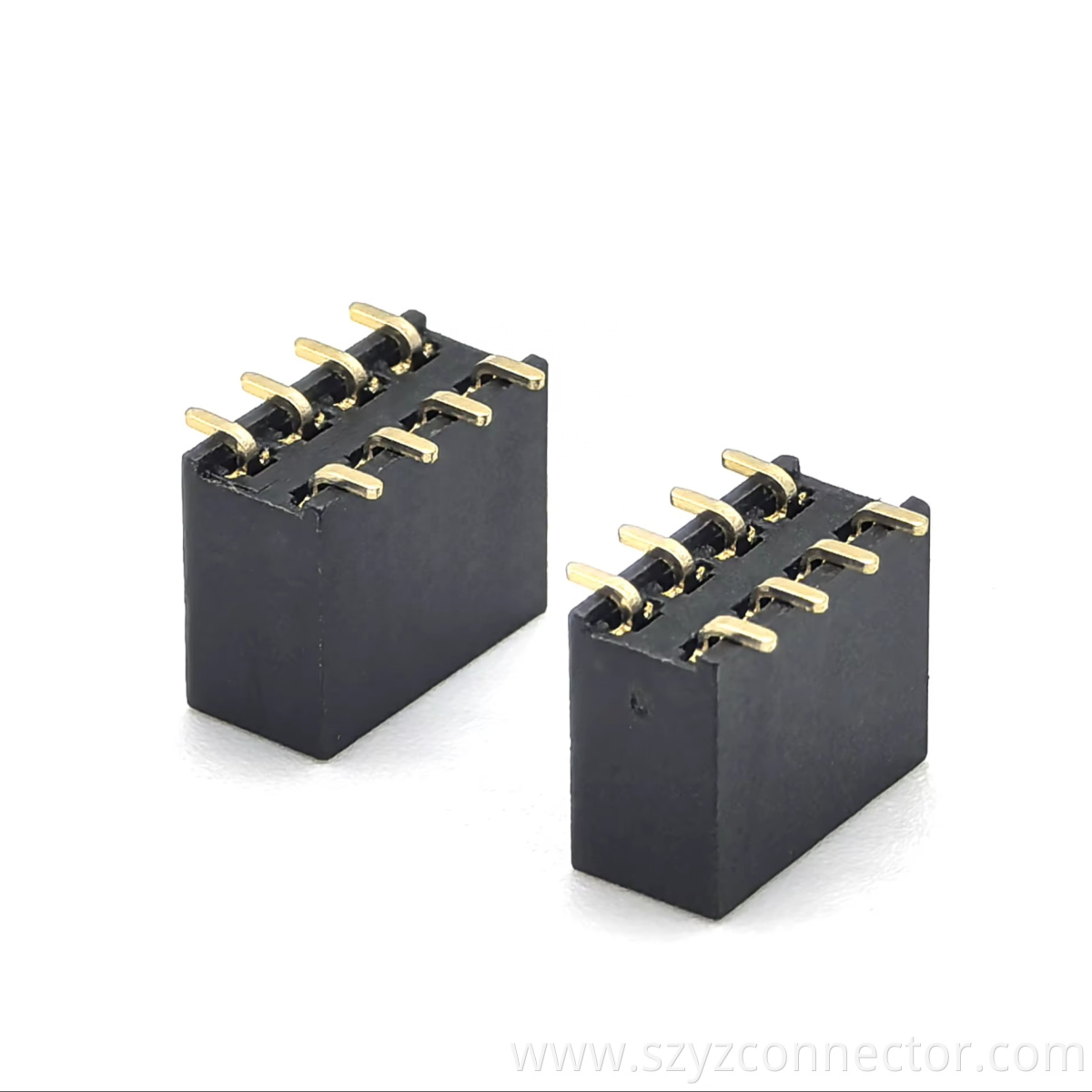

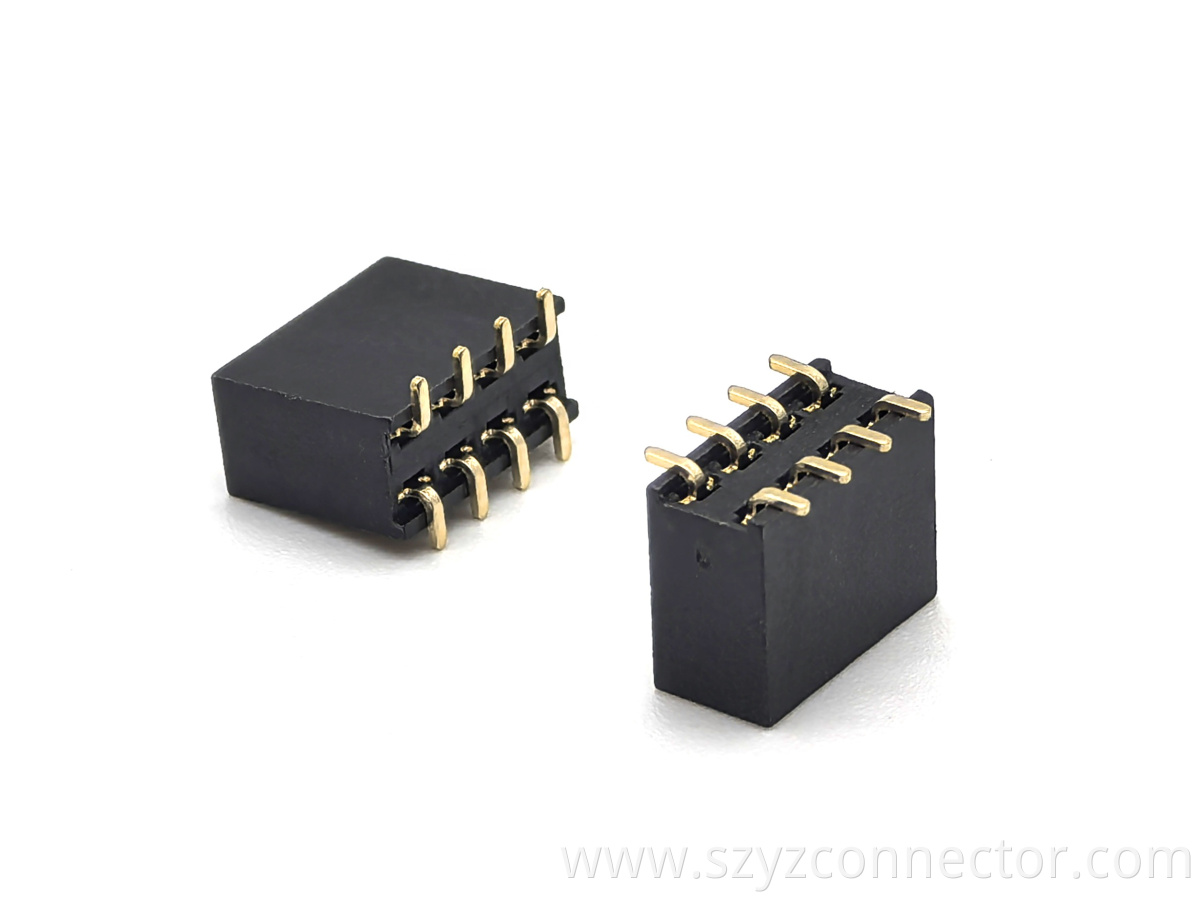

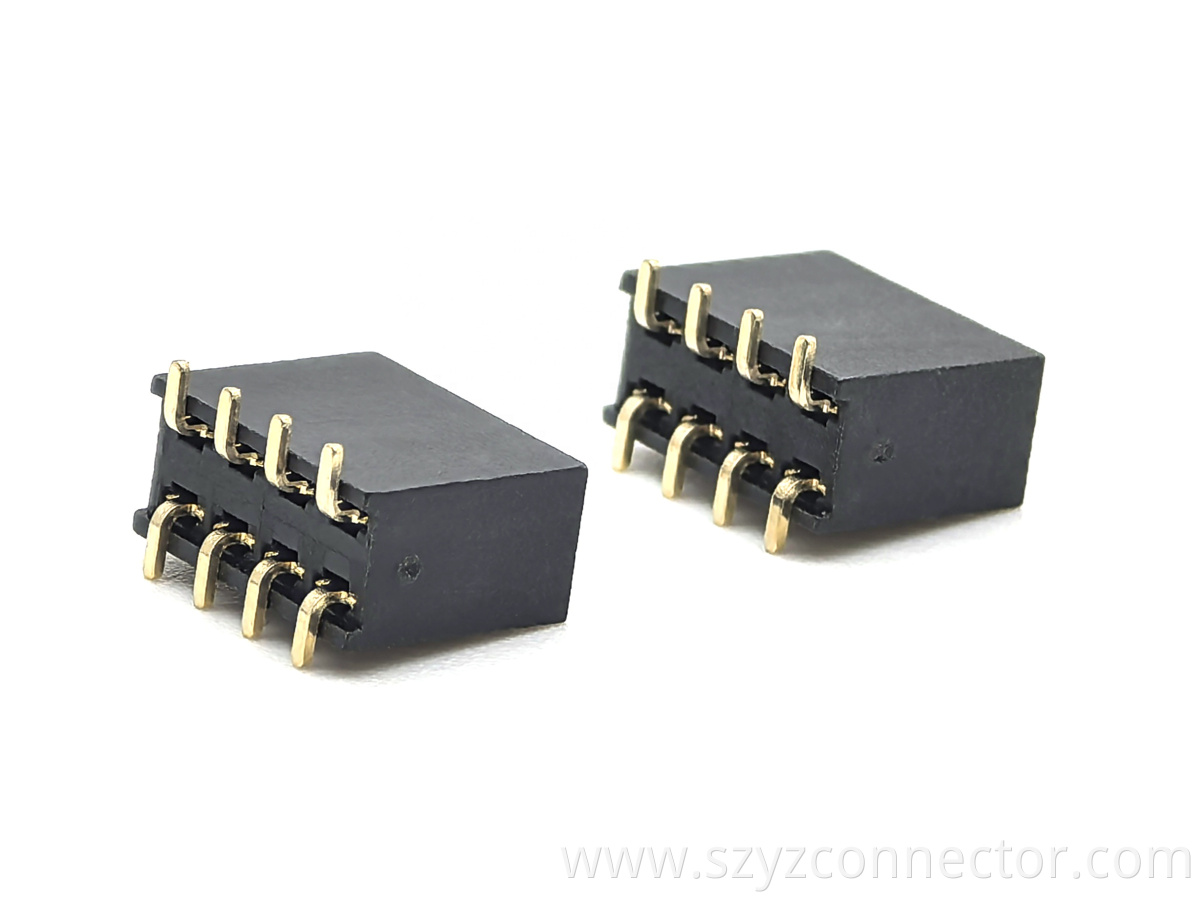

2.54mm Pitch Female header Connector Dual Rows SMT H8.5mm 2*4P



Product Description

YZTECH's 2.54mm Pitch SMT Female Header provides compact, high-strength interconnection for modern PCBs. This dual-row, vertically mounted header connector is designed for automated surface-mount assembly, saving space and streamlining production. Ideal for industrial and communication equipment, it ensures consistent mating and reliable performance under demanding conditions.

Built to last, the female header features gold-plated brass contacts for excellent conductivity and corrosion resistance. It supports up to 3A current and 600V voltage, with an operating temperature range from -40°C to 105°C. The housing withstands soldering temperatures up to 220°C for 10 seconds, ensuring stability throughout the manufacturing process.

Supplied in protective tubes for safe shipping and handling, this 2.54mm Female Header meets rigorous quality requirements. This header is a testament to that commitment, providing a critical connectivity solution that meets the stringent demands of global electronic design and production.
