2.54mm Pin header Single Row Right Angle

2.54mm Pin header Single Row Right Angle

Name: 2.54mm Pitch Pin header Connector Single Row Right Angle SQ0.64mm H:2.5mm 1*30P
Uploaded: 2025-08-23T06:21:05+08:00
Description: YZTECH’s 2.54mm single-row right-angle pin header delivers reliable connectivity in a space-saving design. Its

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Contact Now

Product Description

Product Attributes

Model No.: 1101R.1*30P-0134-F-04

Brand: YZTECH

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

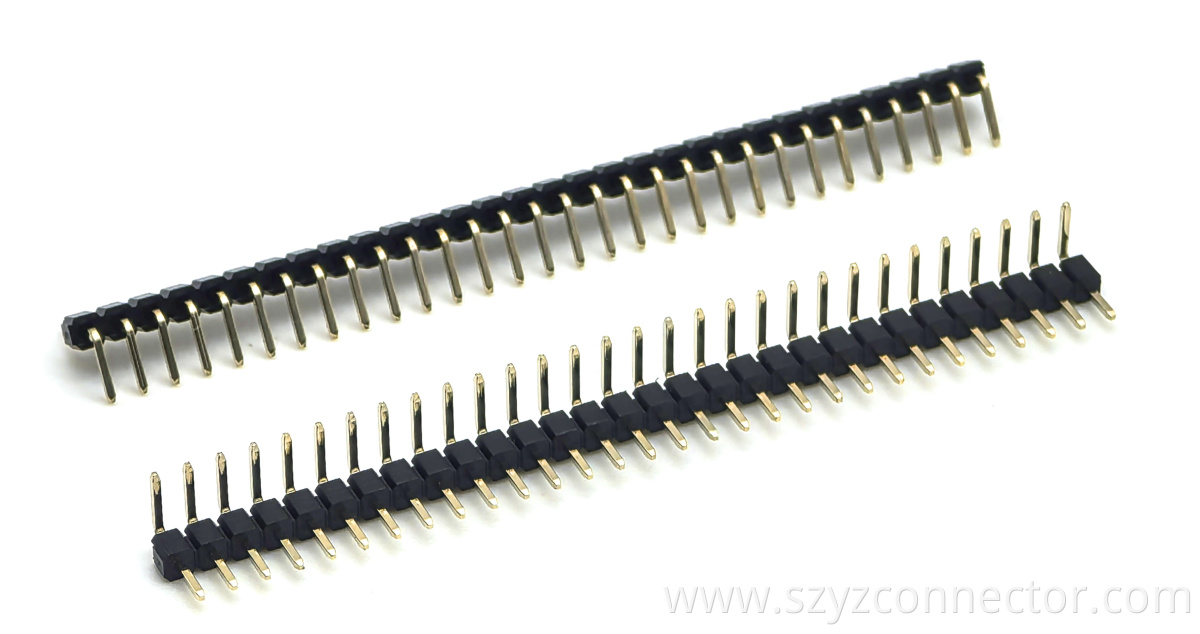

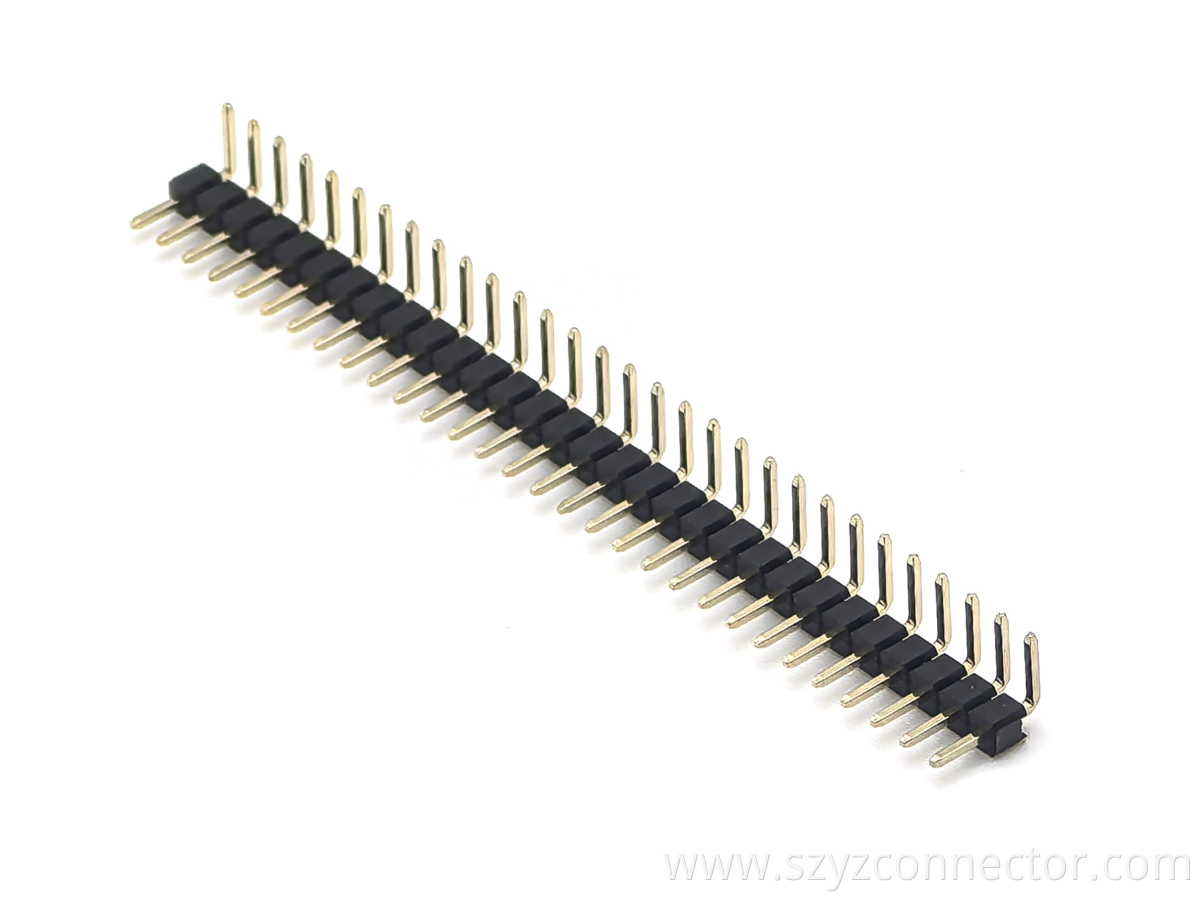

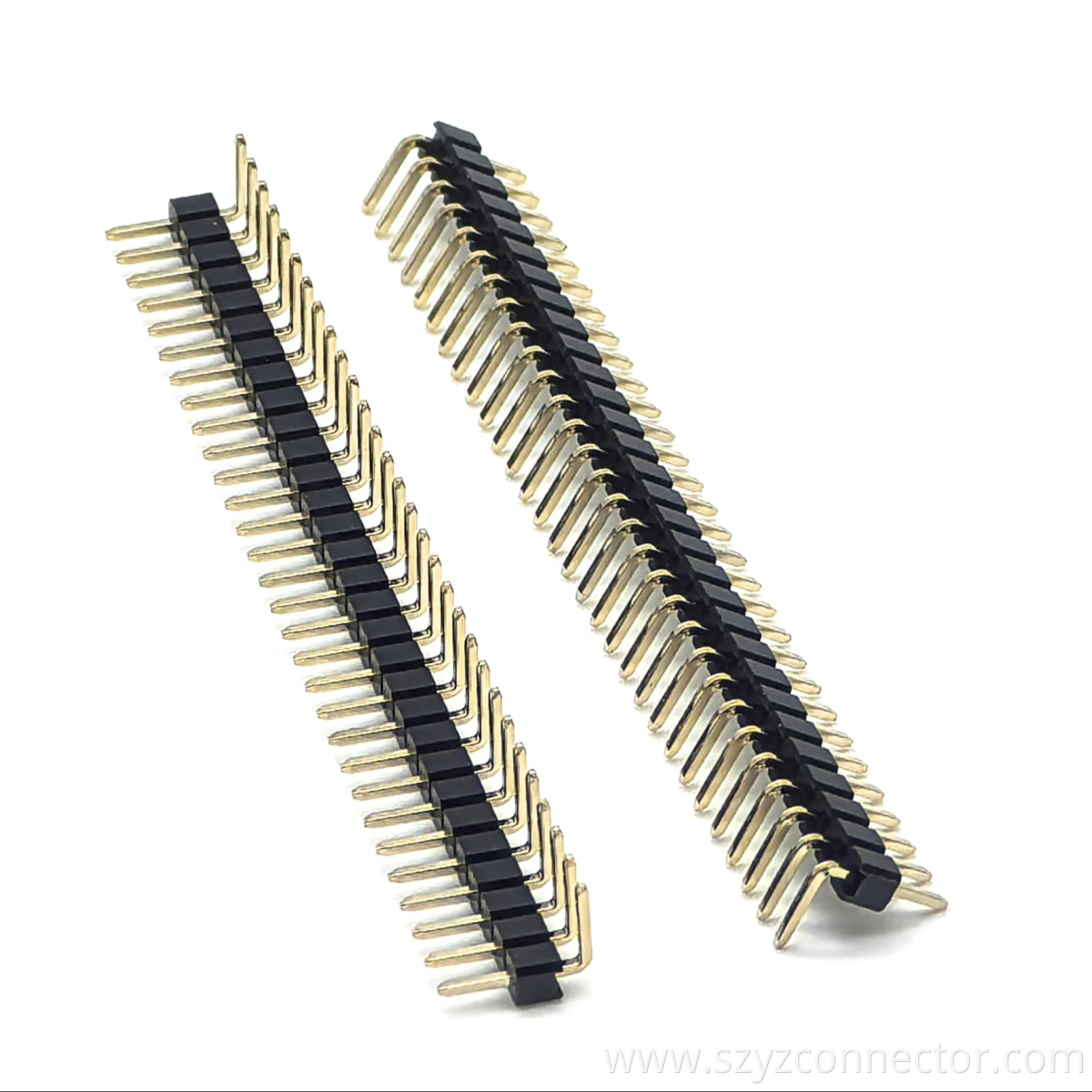

2.54mm Pitch Pin header Connector Single Row Right Angle SQ0.64mm H:2.5mm 1*30P



Product Description

YZTECH’s 2.54mm single-row right-angle Pin Header delivers reliable connectivity in a space-saving design. Its 30-pin male configuration, with a durable right-angle bend, enables smooth PCB integration and efficient use of board layout. Rated for 3A and 600V, this pin header connector ensures stable performance in a variety of electronic applications. The bending plug structure offers flexibility for both horizontal and vertical mounting orientations.

Built with a brass contact material and gold-plated coating, the header provides excellent conductivity and corrosion resistance. It operates reliably in temperatures from -40°C to +105°C, making it suited for industrial, automotive, and communication devices. The housing withstands soldering temperatures up to 220°C for 10 seconds, ensuring compatibility with standard assembly processes.

Packaged in protective bags, this DIN-standard component supports automated installation and reduces production downtime. Its rectangular shape and single-row right-angle form make it an ideal choice for dense circuit designs where precision and durability are essential.
