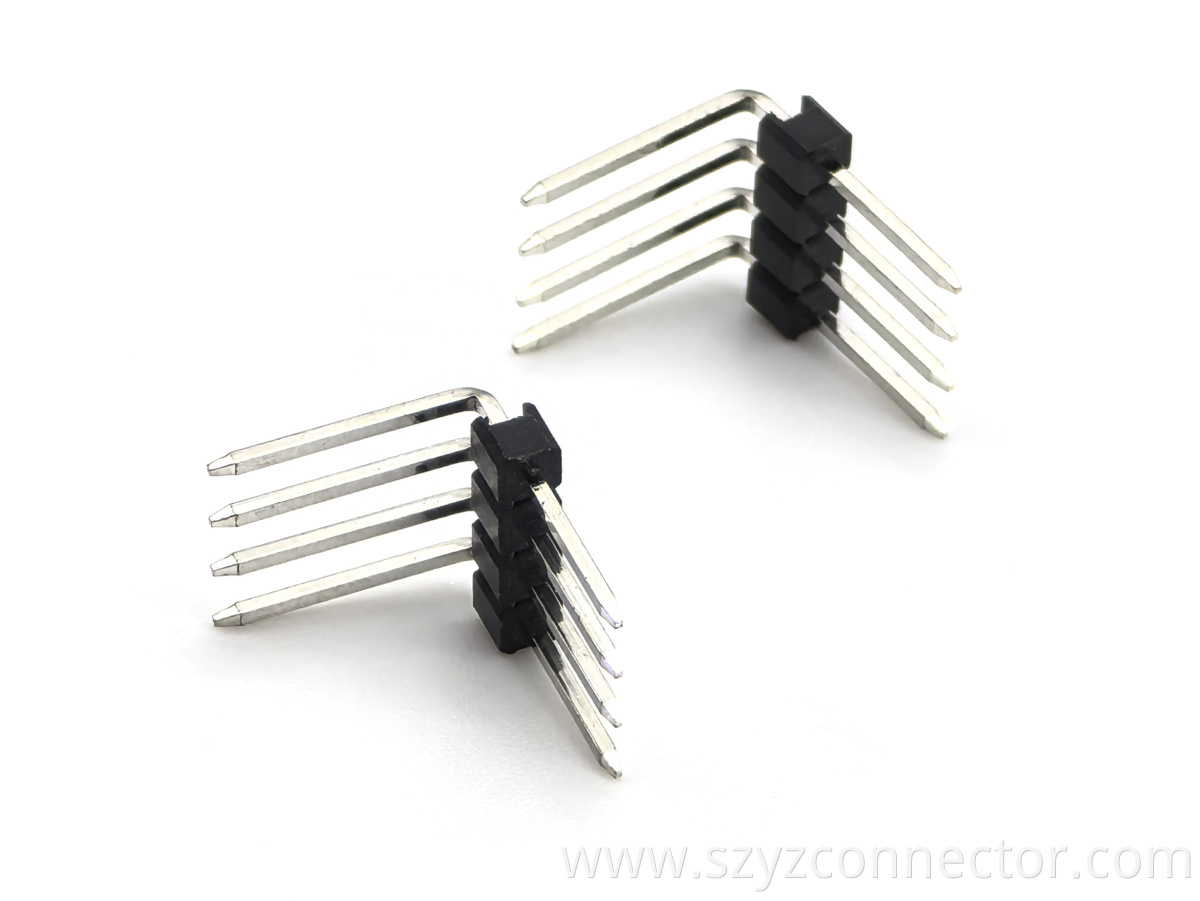

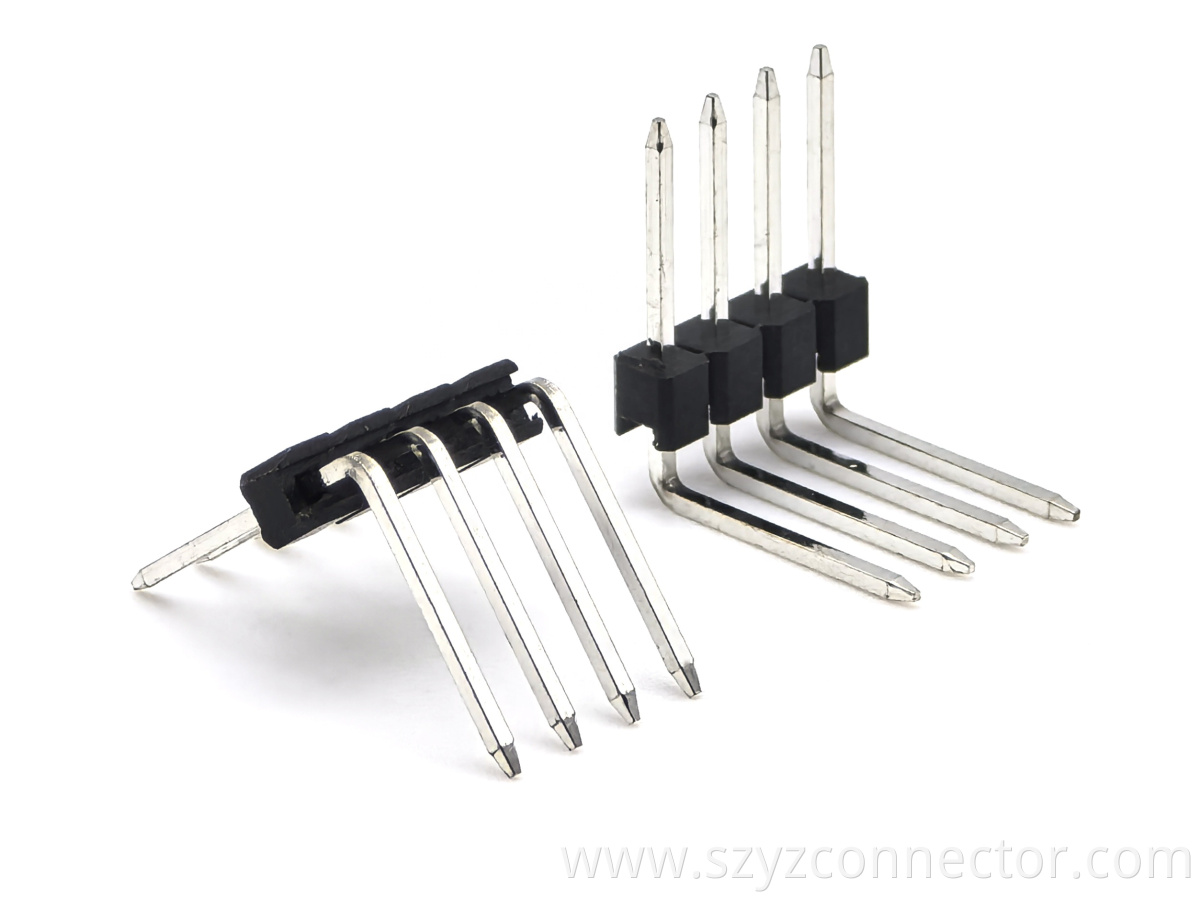

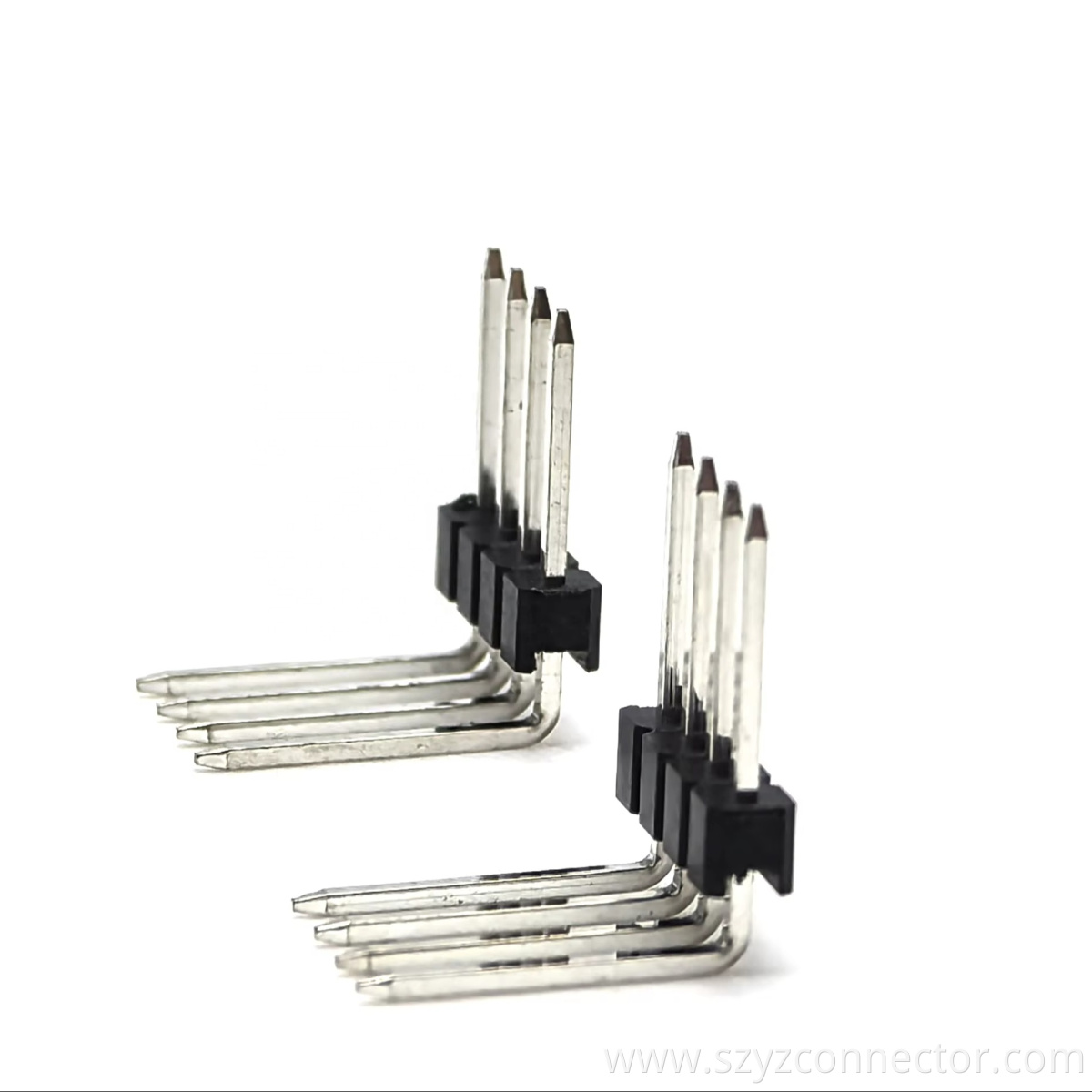

2.54mm Pin header Single Row Right Angle 4P

YZTECH 2.54mm single-row right-angle pin header connector, 4-position, delivers board-to-board and wire-to-board versatility in a footprint.Milled brass pins, selectively tin-plated 3 µm min., carry 3A per contact at 600V while keeping contact resistance below 10 mΩ.The high-flow PA6T insulator withstands 200 °C for 10 s during lead-free wave or selective soldering, and remains mechanically stable from –40 °C to +105 °C, making the header connector equally at home in reflow, wave or hand-solder processes.Supplied in anti-static boxes, parts are pick-and-place compatible and ready for immediate high-volume assembly.



Target markets span industrial drives,building automation,smart-metering,security controls,12V/24V automotive peripherals, battery-management systems, and cost-sensitive consumer white goods.The 90° structure keeps cable bundles flat against the PCB, saving vertical space inside drones, robotic arms, dashboard clusters and IoT gateways.Positive locking headers mate with shrouded or unshrouded receptacles, enabling field-replaceable sensor harnesses, LED strip interlinks, programmer ports and modular power rails without tooling.



With DIN footprint compliance and UL94V-0 flammability rating,the YZTECH 2.54mm Pin Header simplifies global BOM approval.Engineers gain a future-proof interconnect that scales from prototype to mass production, shortens assembly time and drives down total installed cost.Choose this 4-pin right-angle solution for reliable, maintenance-free connections that keep tomorrow’s compact, power-efficient designs running at peak performance.
