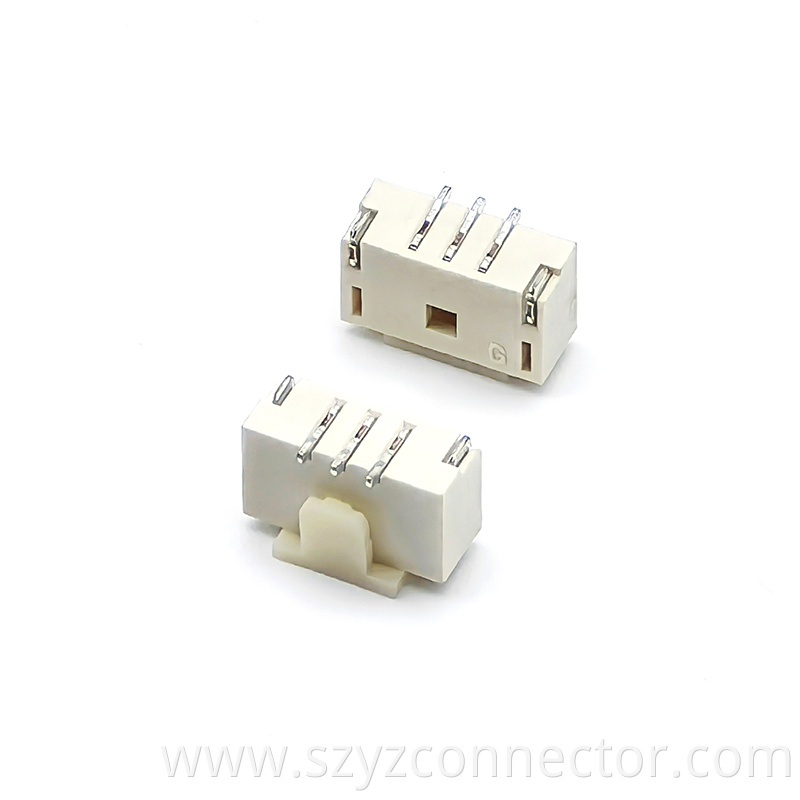

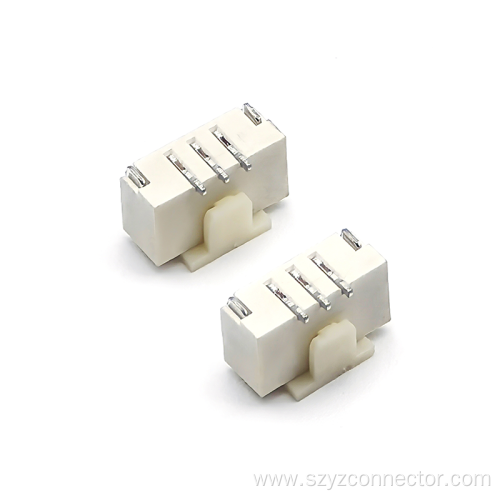

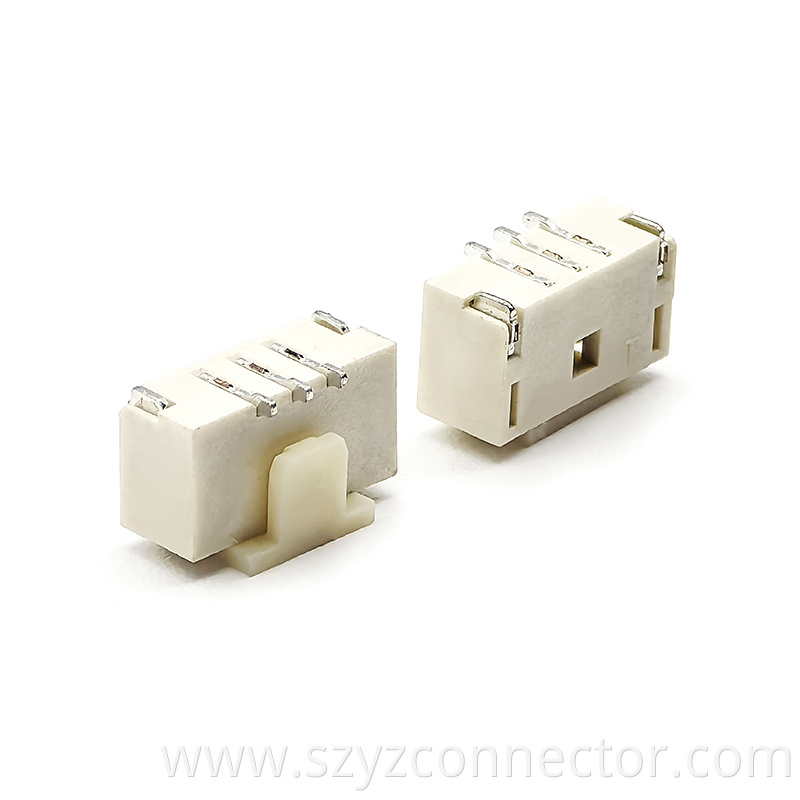

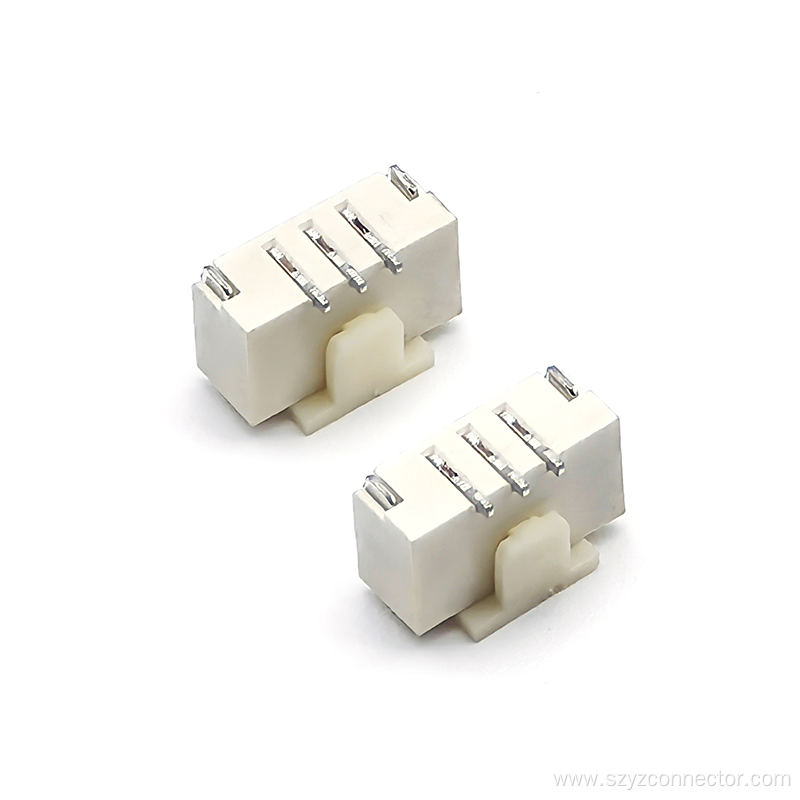

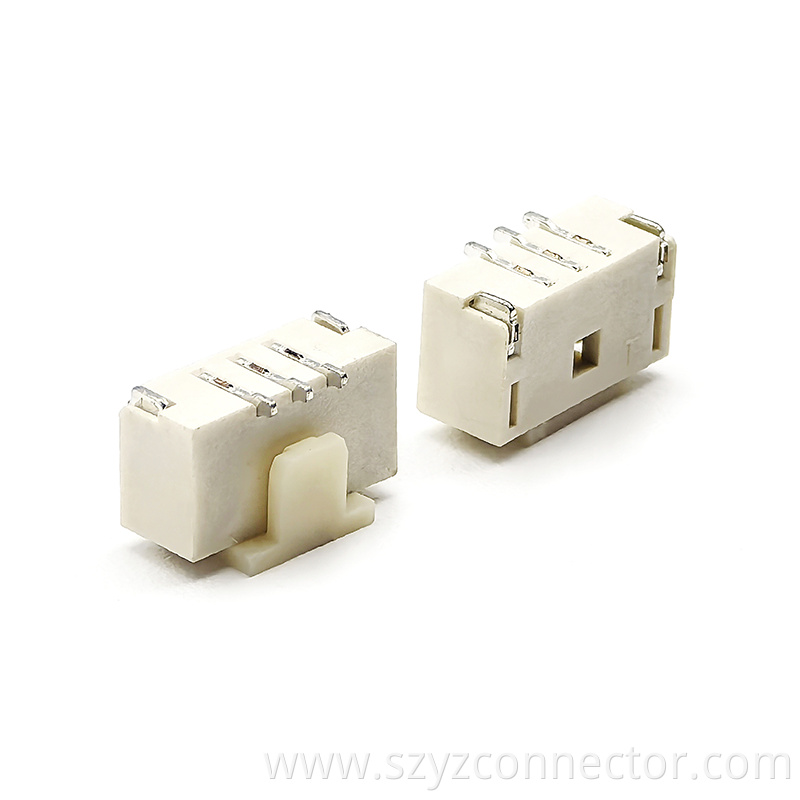

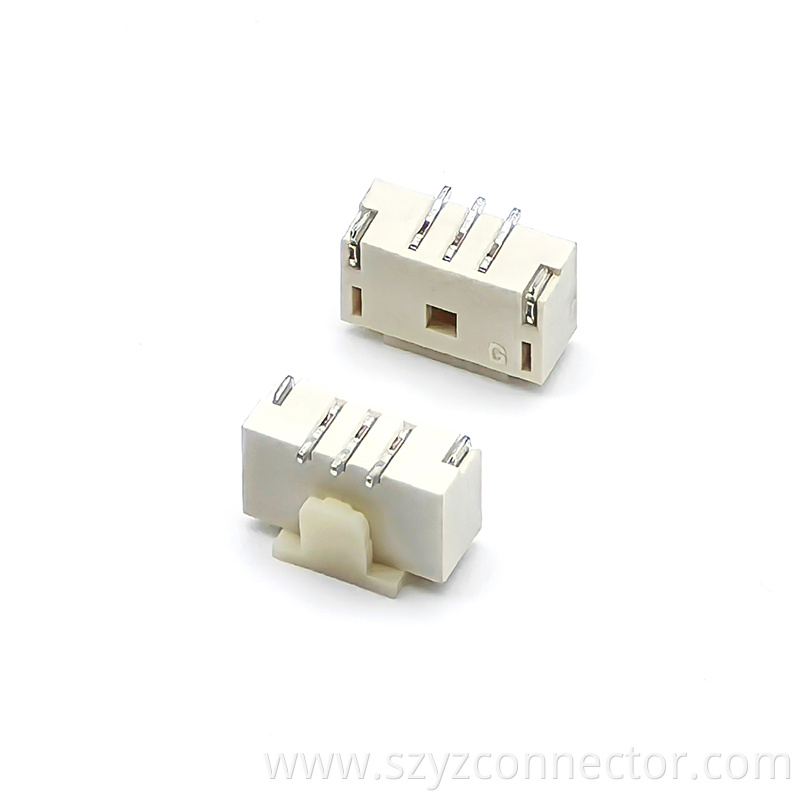

12509 Vertical Pin Seat Connector

The 12509 Vertical Pin Seat Connector launched by yztech is a reliable component for stable connections in LED devices and electronic modules. Its design accurately meets the connection needs of LED Connector, widely used in LED panel lights, medium-sized lighting control modules and other scenarios. As a product complying with Standard LED Connector specifications, it can be flexibly matched with 2Pin LED Connector and 3Pin LED Connector to meet the power supply and signal transmission needs of different power LED devices.​



The connector shell is made of high-quality insulating material with good heat resistance, and can work stably in the environment of -40℃ to 105℃. When used with Wire-to-Board LED Connector, it can realize reliable docking between wires and PCB boards, and is also an ideal partner of LED Module Connector to help build medium-sized modular lighting systems. Different from the sealing characteristics of Waterproof LED Connector, this product focuses more on connection stability and easy installation, suitable for indoor dry environments, and can also be combined with Wire-to-Wire LED Connector to expand connection methods. The internal pins are made of high-conductivity material, with a contact resistance as low as 7mΩ and a plug-in life of more than 1000 times, ensuring long-term stable current transmission. Whether building the line network of medium-sized LED lighting or realizing inter-board connections of electronic devices, this 12509 vertical pin seat connector stands out as a preferred choice with stable performance and wide adaptability.
