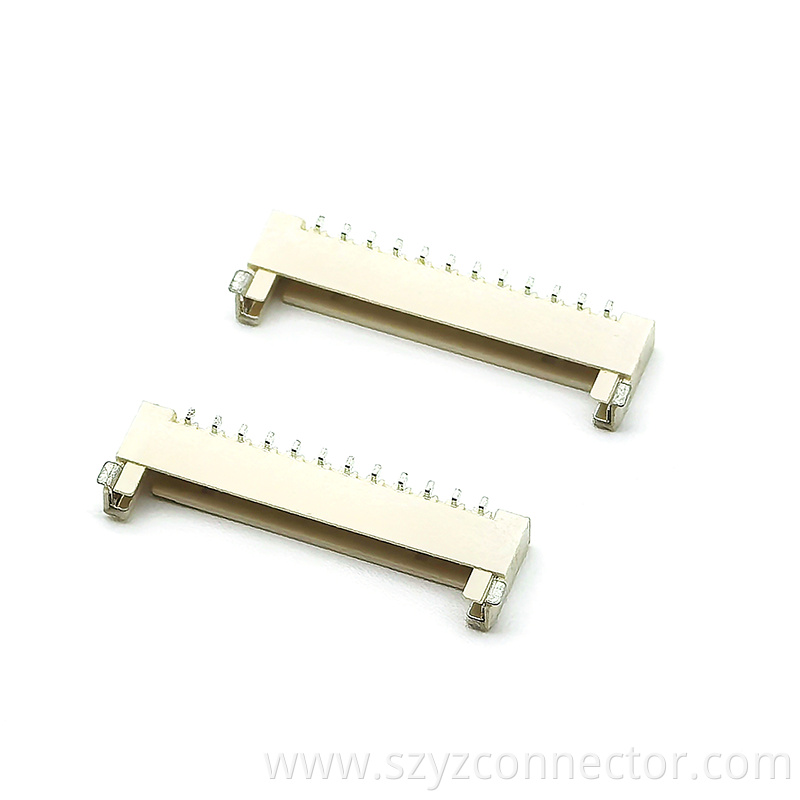

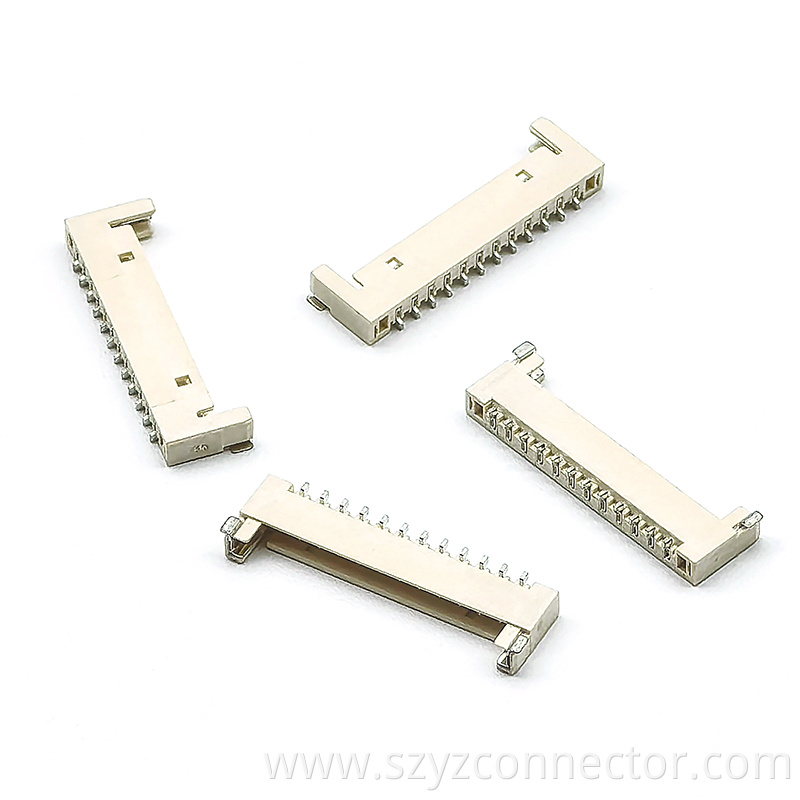

15005 Flat LED Pin Seat Connector

The 15005 Flat LED Pin Seat Connector by yztech, featuring a flat pin design, is a preferred component for stable connections in thin LED devices. Its unique structure precisely meets the thinness requirements of LED Connector, widely used in ultra-thin LED panels and micro-display backlight modules. As a product complying with Standard LED Connector specifications, it can flexibly match 2Pin LED Connector and 3Pin LED Connector to meet power and signal transmission needs of various LED devices.​



The connector shell, made of high-strength insulating material with excellent heat resistance, works stably at -40℃ to 105℃. When used with Wire-to-Board LED Connector, it enables reliable wire-PCB docking and acts as an ideal partner for LED Module Connector to facilitate thin LED modular system construction. Unlike the sealed design of Waterproof LED Connector, it focuses on connection stability in a flat structure, suitable for indoor dry environments, and can combine with Wire-to-Wire LED Connector to expand connection methods. Internal pins, made of high-conductivity material, have a contact resistance of 6mΩ and over 1000 insertion cycles, ensuring stable current transmission. It is preferred for thin LED lighting networks and precision electronic device interconnections due to unique structural advantages and reliability.
