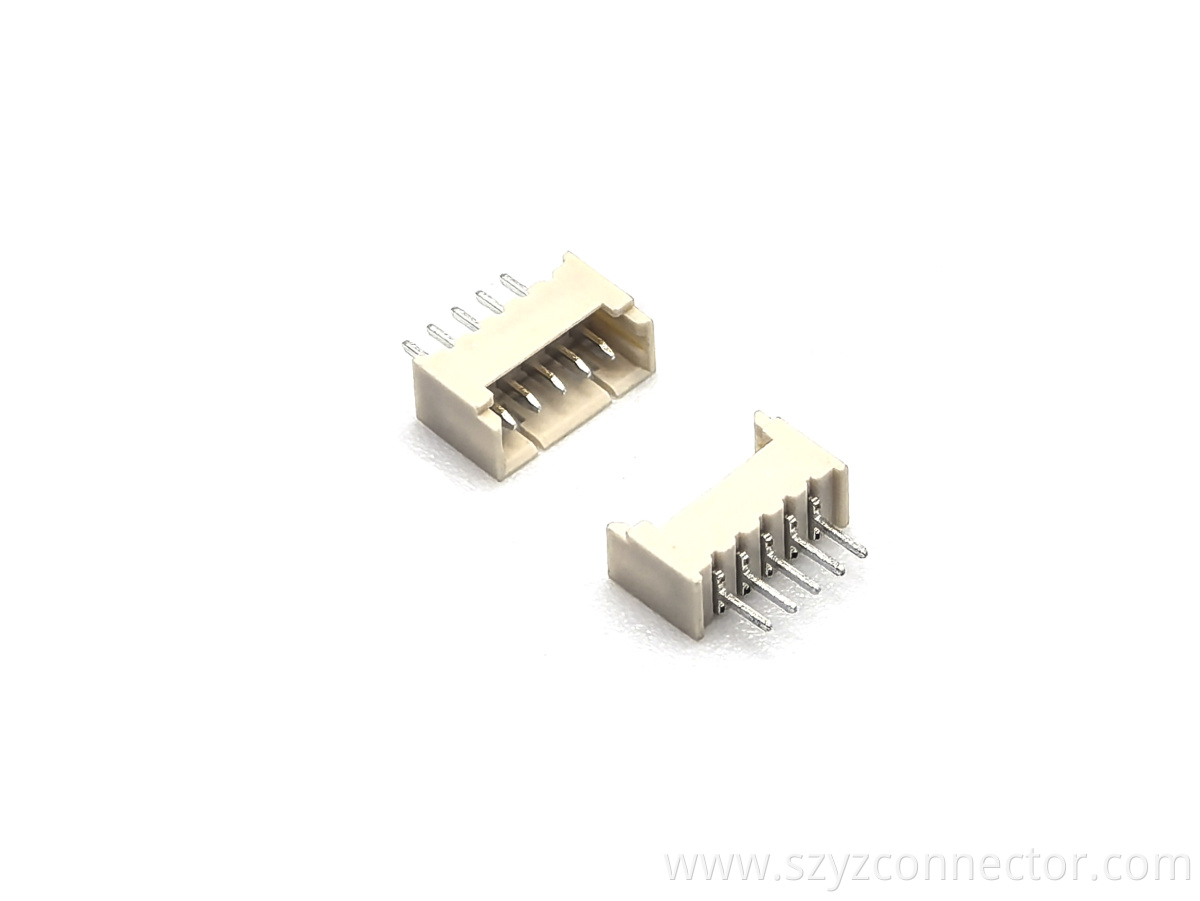

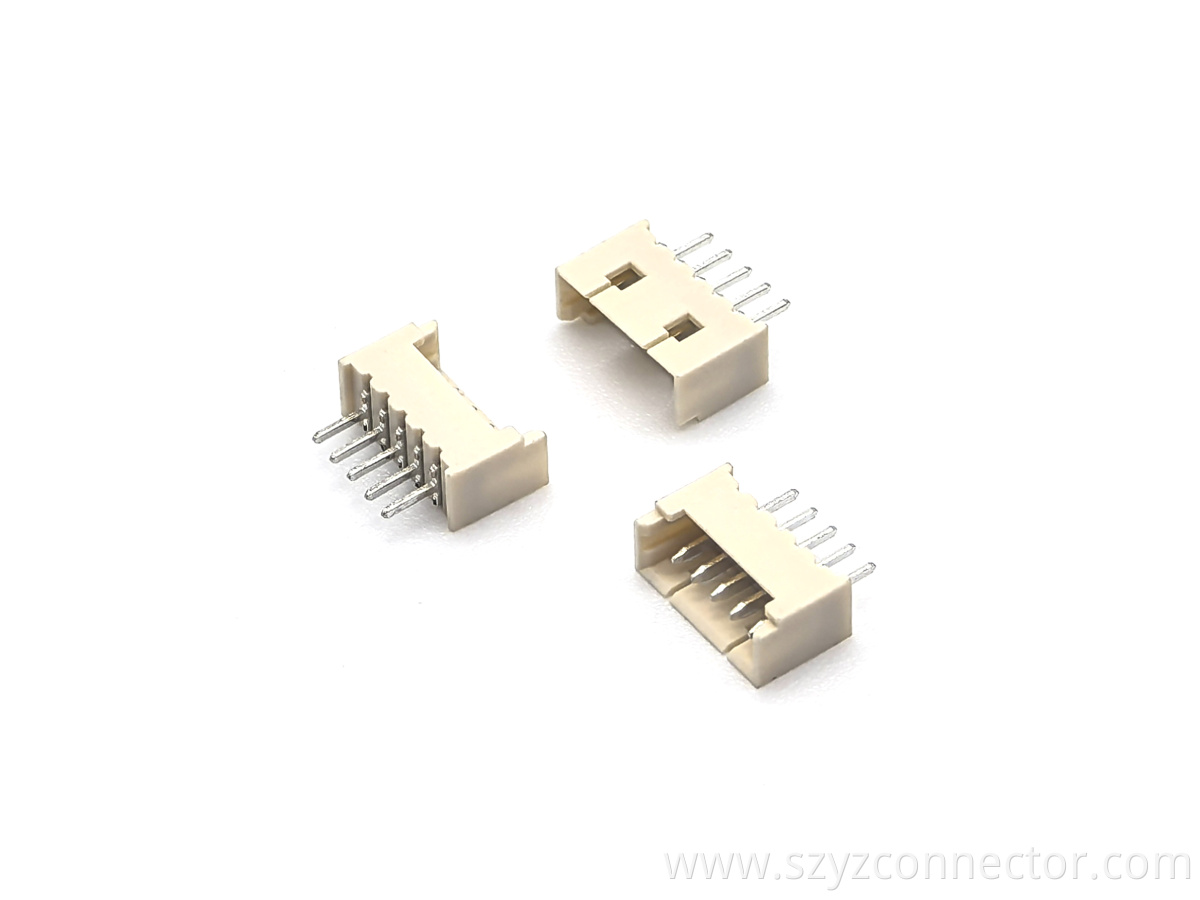

Wafer MLX1.25mm Pin header Single Row Straight

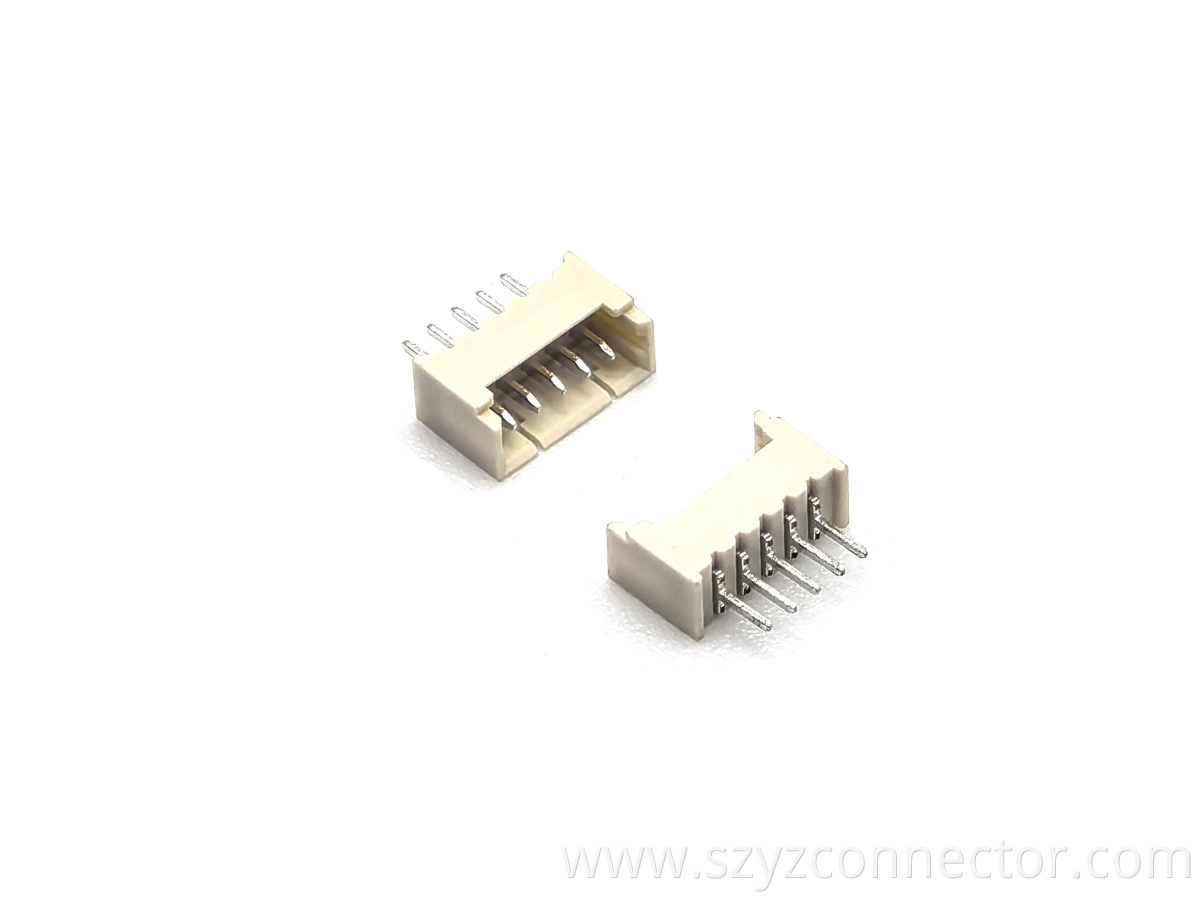

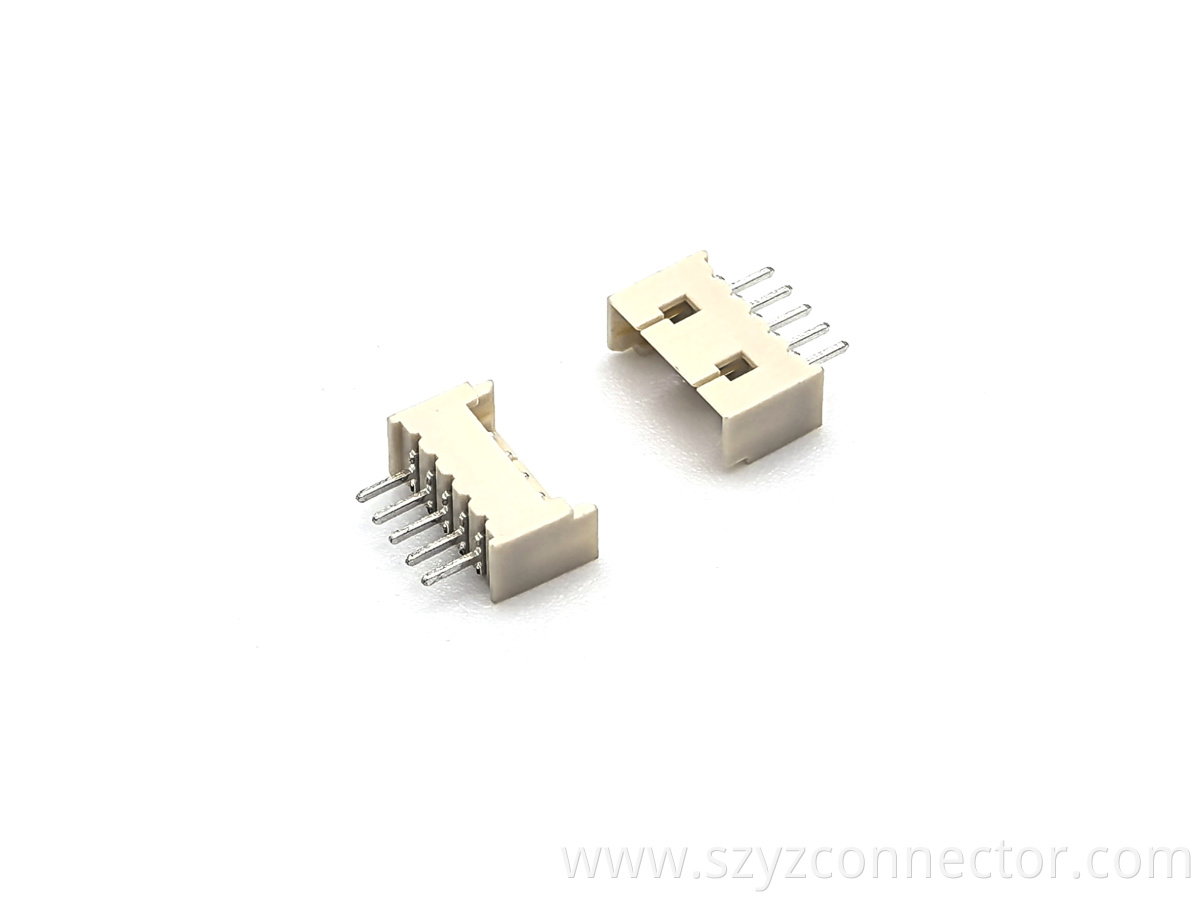

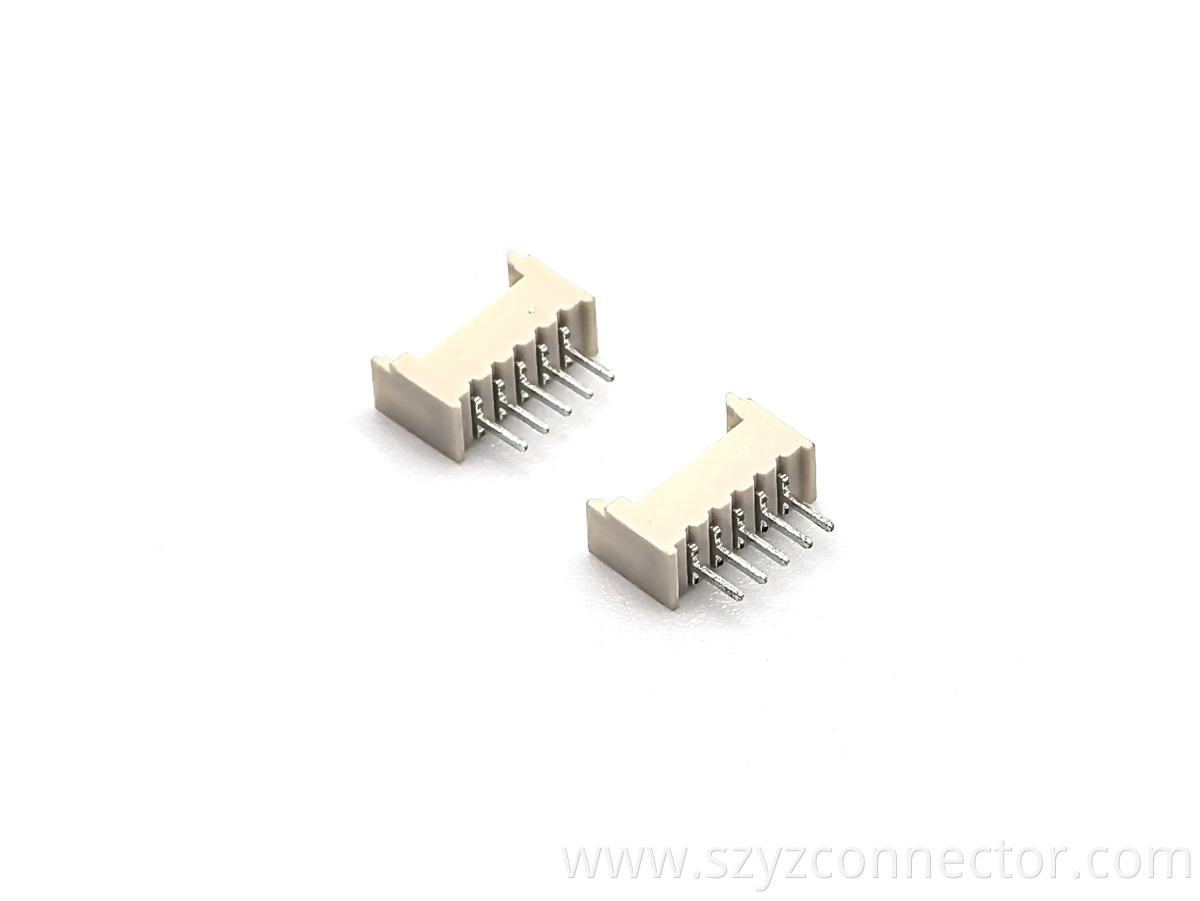

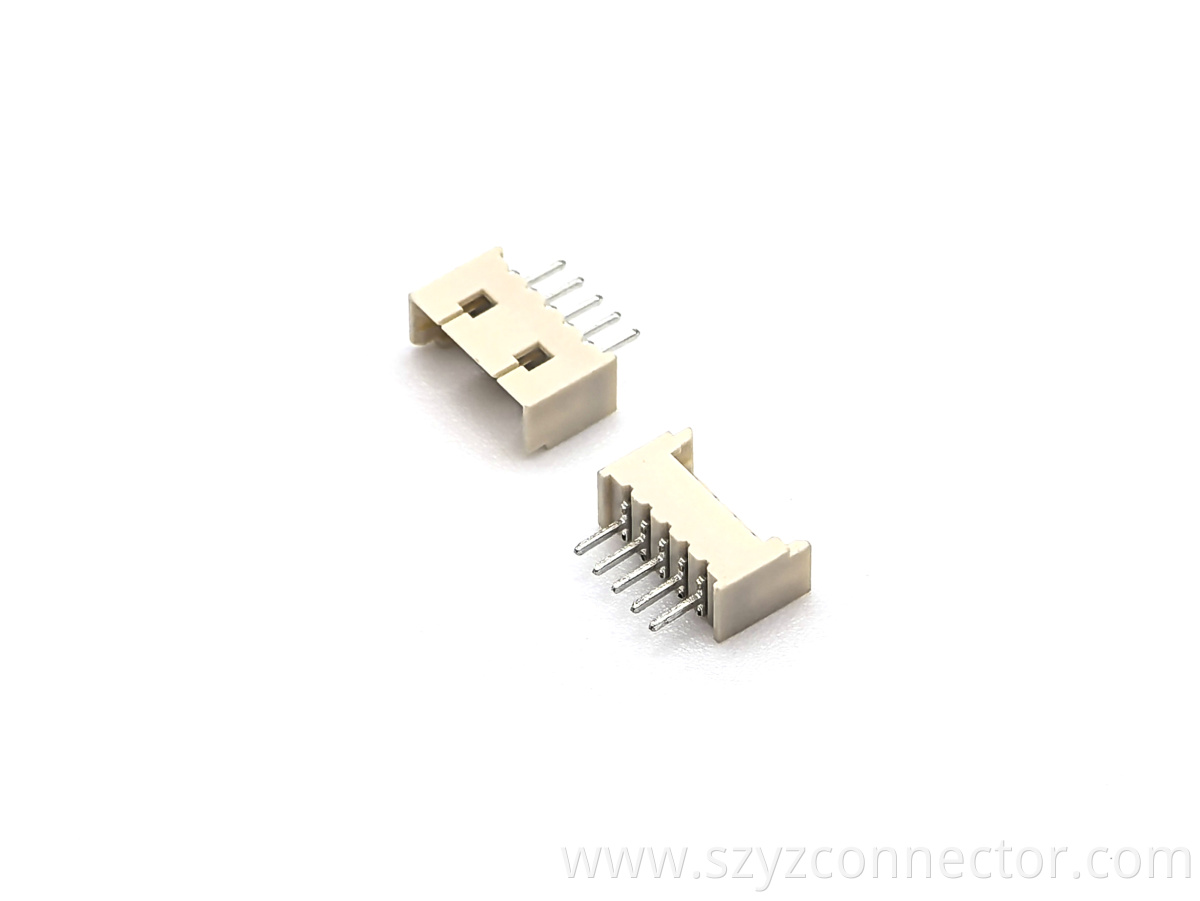

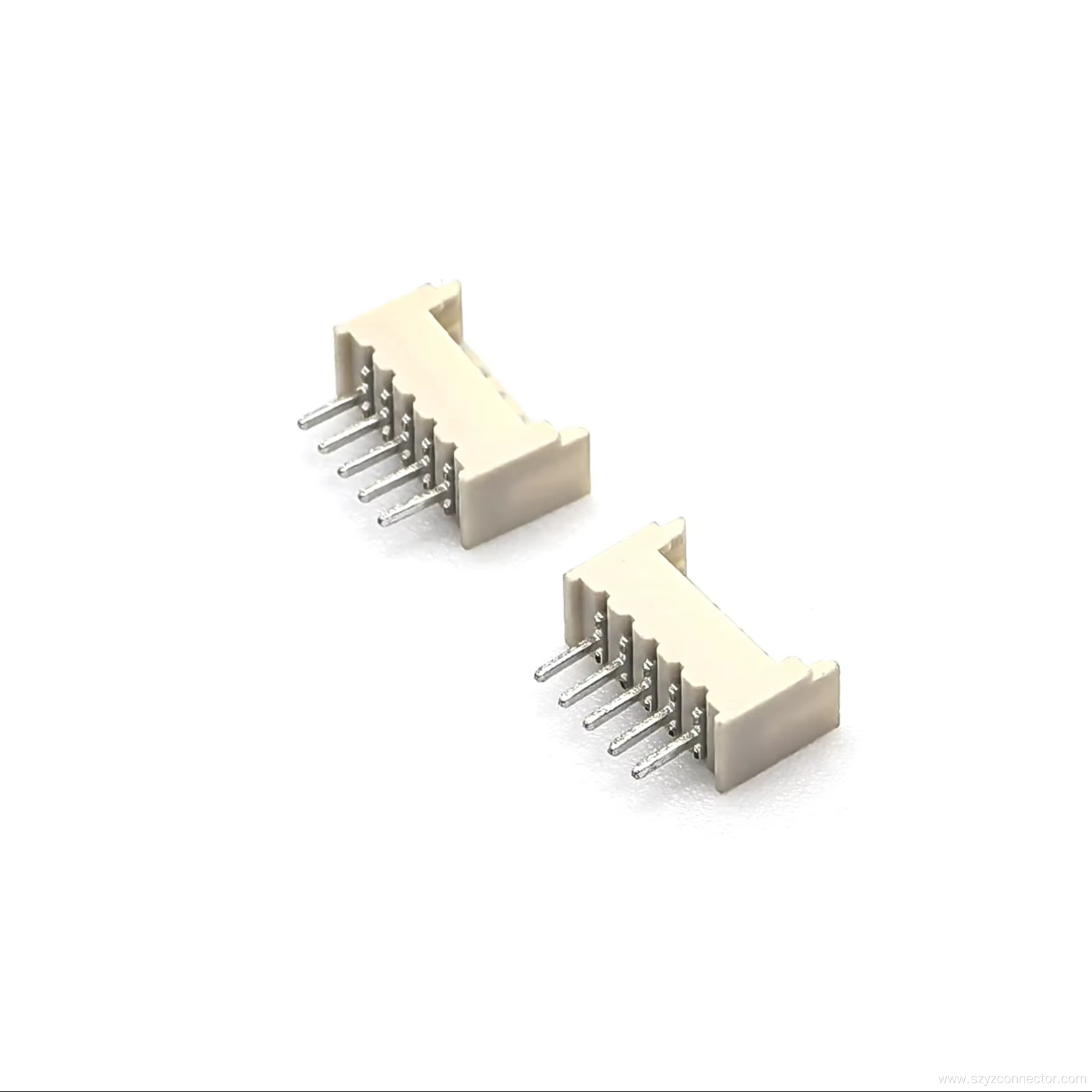

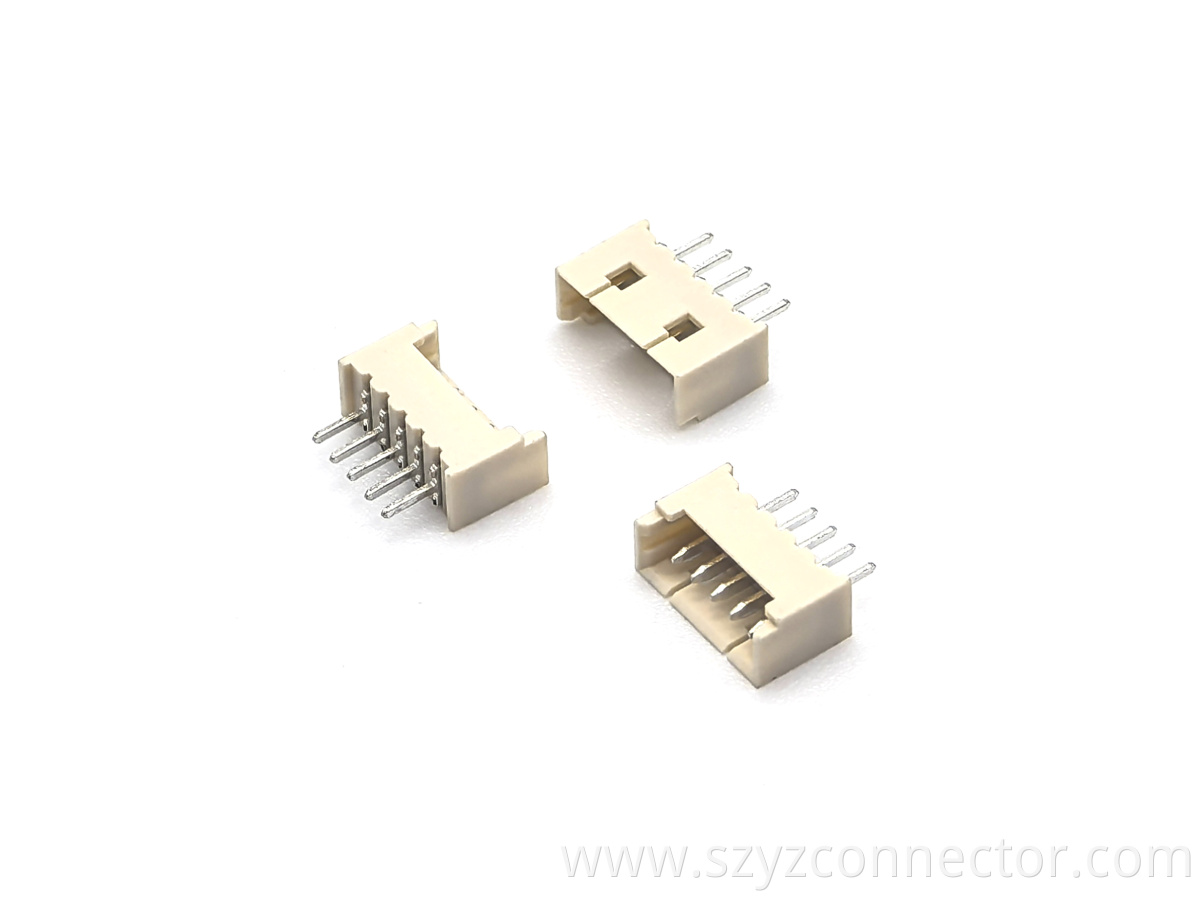

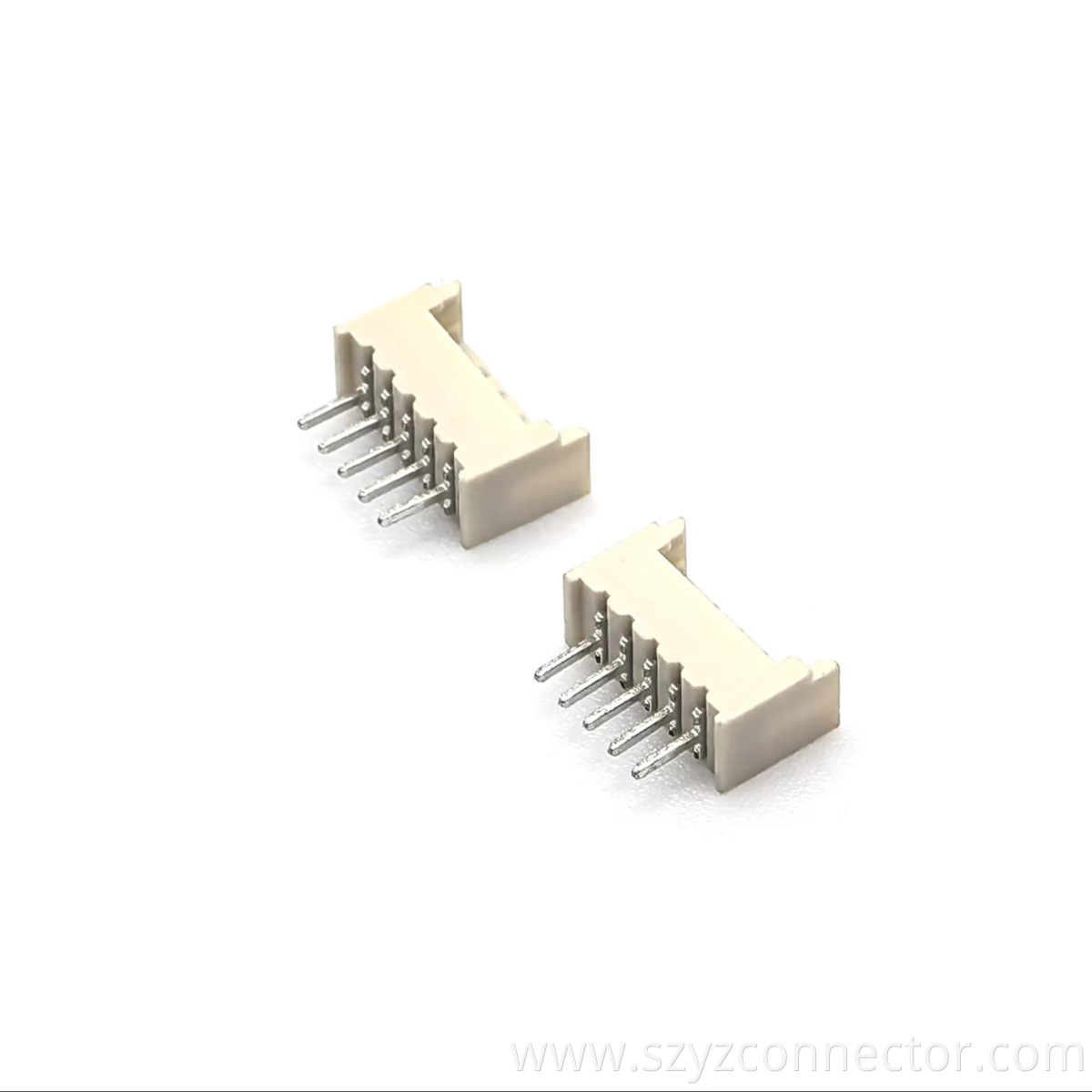

The YZTECH MLX1.25mm single-row straight-insert Pin Header is a high-performance connector that meets the interconnection needs of various electronic devices with its precision design and stable performance,belonging to Wafer Housing Terminal.This product features a single-row, 5-pin rectangular structure with a male-end design. It is installed via a straight-insert method, which greatly simplifies the PCB assembly process. Copper is selected as the contact material, ensuring excellent electrical conductivity. The tin-plating treatment on the surface not only enhances corrosion resistance but also further improves soldering quality, helping to extend the service life of the connector.



The header connector can operate stably within a temperature range of -25℃ to +85℃. With a rated current of 1A and a rated voltage of up to 125V, it is suitable for medium-to low-power scenarios and indoor and semi - outdoor environments where temperature variations are common. The product is packaged in bags, which effectively prevent dust and moisture, facilitating storage, transportation, and use on the production line.



In the consumer electronics field, this product is widely used inside smartphones, tablets, and wearable devices, such as for connecting the display, battery, and mainboard to ensure reliable communication between key components. Meanwhile, it is also commonly found in automotive electronic systems, such as engine control units, airbag sensors, and in - vehicle entertainment equipment, maintaining a stable connection amidst vibrations and temperature changes. In industrial automation, this connector is used for signal transmission between industrial control equipment, sensors, and actuators, fully meeting the requirements of high precision and high reliability. It is an ideal interconnection solution for a variety of electronic systems.
