Wafer VH3.96 Pin Header Connector Straight DIP

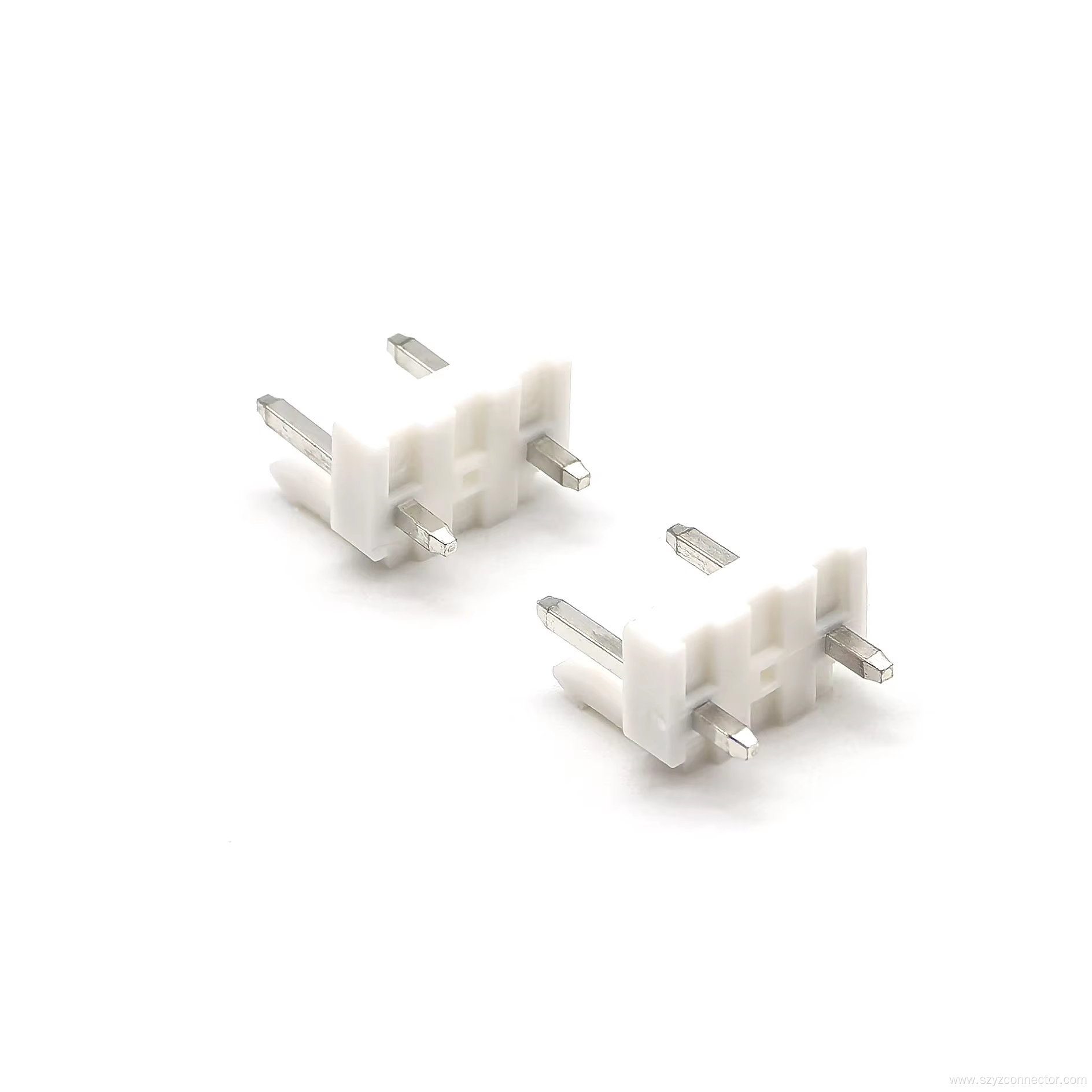

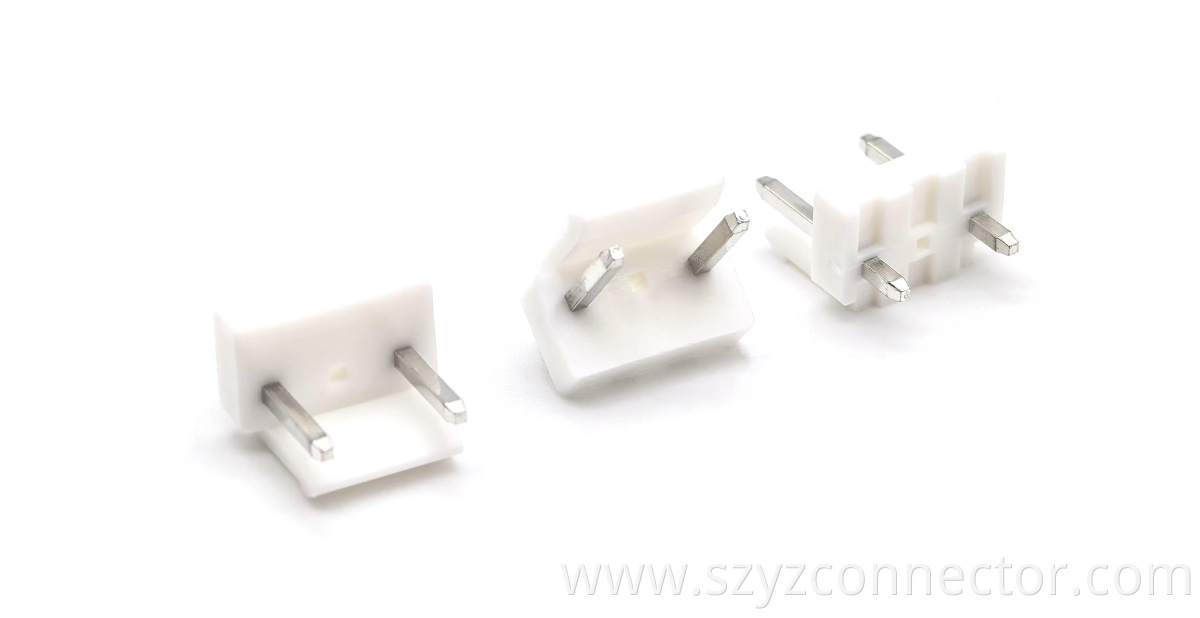

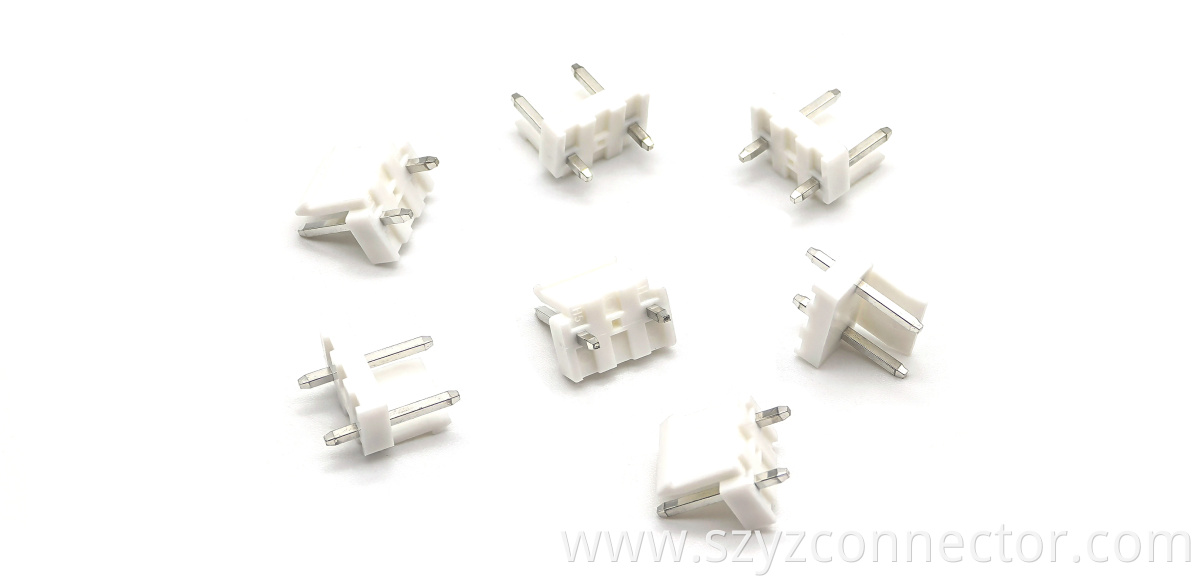

Designed for robust power and signal applications,the YZTECH VH3.96 Wafer Pin Header offers a reliable through-hole connectivity solution with a unique functional feature.This single-row, 3-position male connector is engineered with a specific pinout where the central pin is configured as "No Connect".This intentional design provides a cost-effective and space-efficient method for custom circuit routing or for creating a keying mechanism to prevent mismating with standard sockets.With a generous pitch of 3.96mm,it supports a higher current rating of 7A and 250V,making it ideal for supplying power to motors,transformers,and Other demanding components.



Built for long-term safety and performance,this Wafer Housing Terminal utilizes a material composition that prioritizes both electrical and mechanical integrity.The contacts are crafted from high-conductivity copper with a durable tin plating,ensuring a reliable,low-resistance connection and excellent solderability.The housing is molded from NL66-V0 grade thermoplastic,a material renowned for its high comparative tracking index and superior flame-retardant properties,significantly enhancing operational safety in humid or high-pollution environments. This robust construction ensures stable performance across an operating temperature range of -25°C to +85°C.



Supplied in protective bag packaging,this straight plug header connector is perfectly suited for manual or automated insertion processes, facilitating efficient PCB assembly.Its unique "No Connect" pin configuration offers designers valuable flexibility for custom circuit design without requiring a custom connector.
