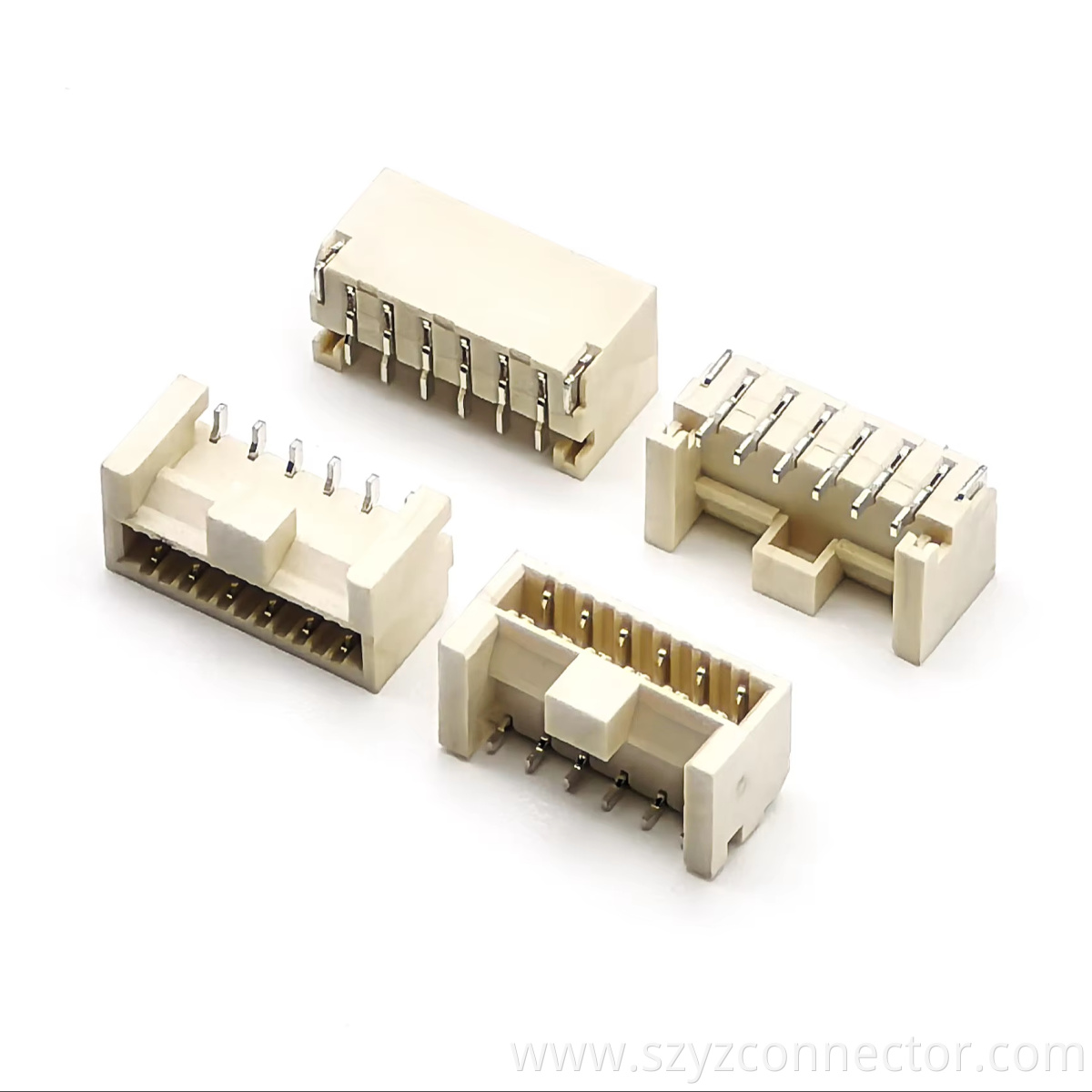

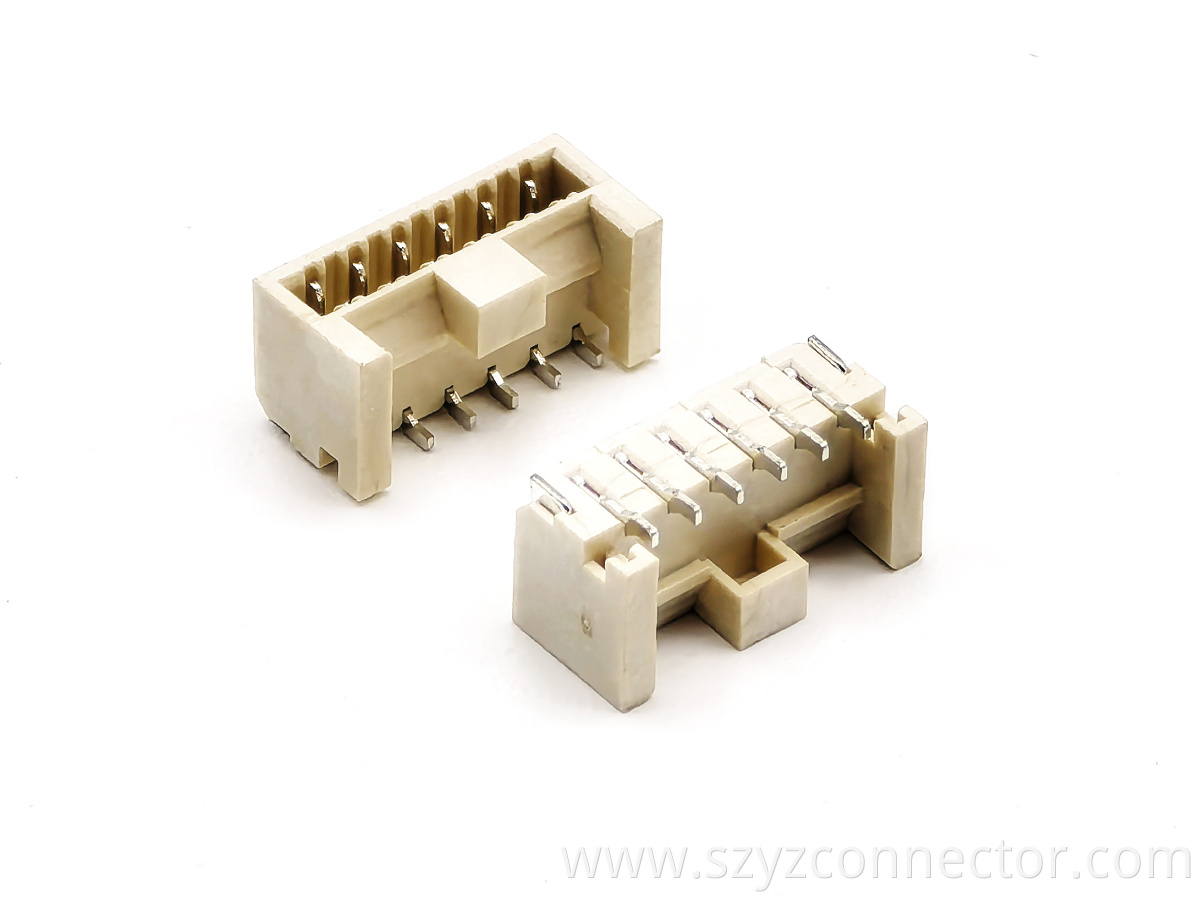

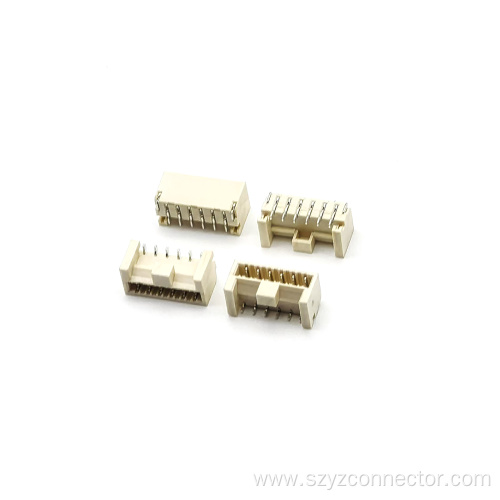

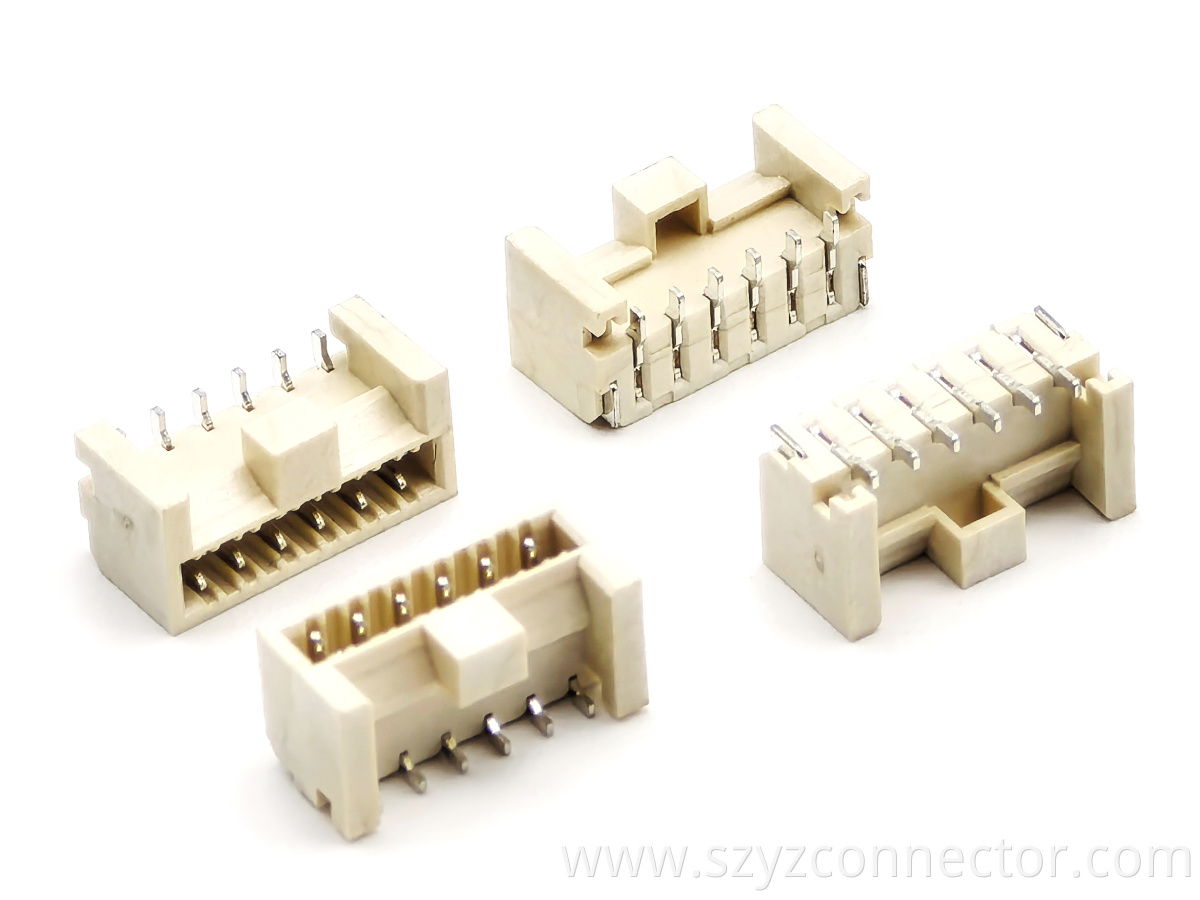

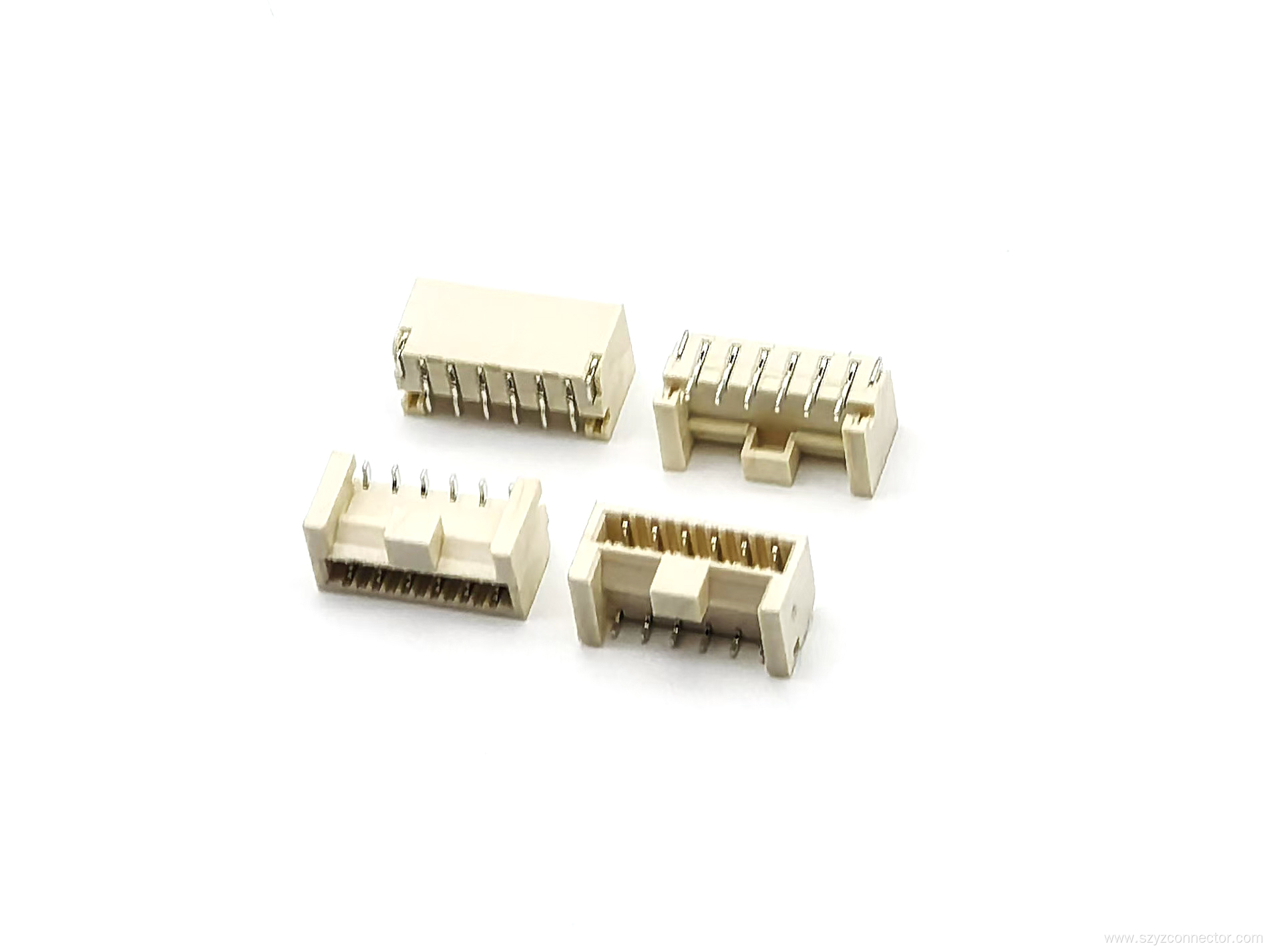

PH1.25mm Wafer Type Pin header Connector 6P

YZTECH's PH1.25mm Wafer Type Pin Header is a precision-engineered interconnect solution designed for compact,low-profile PCB applications.This single-row, 6-pin male header connector features a fine 1.25mm pitch, enabling high-density circuit board layouts without sacrificing connection reliability. Rated for 1A current and 50V voltage,it is ideally suited for signal transmission and low-power applications in space-constrained electronic devices.Its straight-through,rectangular design ensures easy PCB integration and reliable mating with corresponding female sockets, providing a stable and secure interface for a wide range of consumer and industrial electronics.



Superior material selection ensures long-term performance and durability.The Connector utilizes phosphor bronze contacts,which offer excellent spring characteristics and mechanical resilience for repeated mating cycles,finished with a corrosion-resistant tin plating for reliable solderability and conductivity.The insulator is molded from Liquid Crystal Polymer,a high-performance material renowned for its exceptional dimensional stability,high-temperature resistance,and low moisture absorption.This robust construction guarantees stable operation across an extended temperature range from -25°C to +105°C,making it suitable for applications requiring resilience in challenging environments.



Packaged in protective tubes for secure handling and storage,this Wafer Housing Terminal is optimized for efficient manual or automated assembly processes.The tube packaging ensures pin alignment is maintained and protects the components from damage during transportation and production.This connector is an excellent choice for modern electronics such as networking equipment, portable medical devices, and sophisticated sensor modules.
