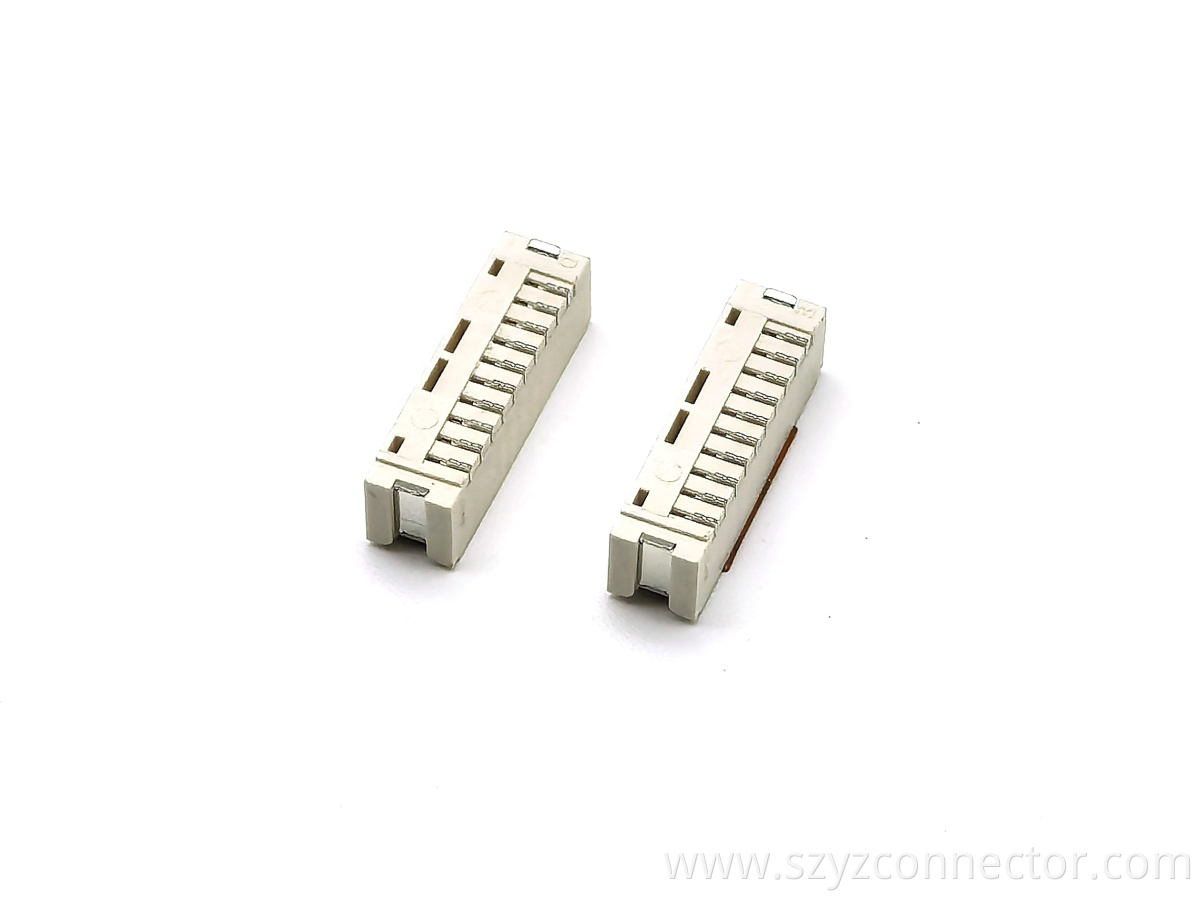

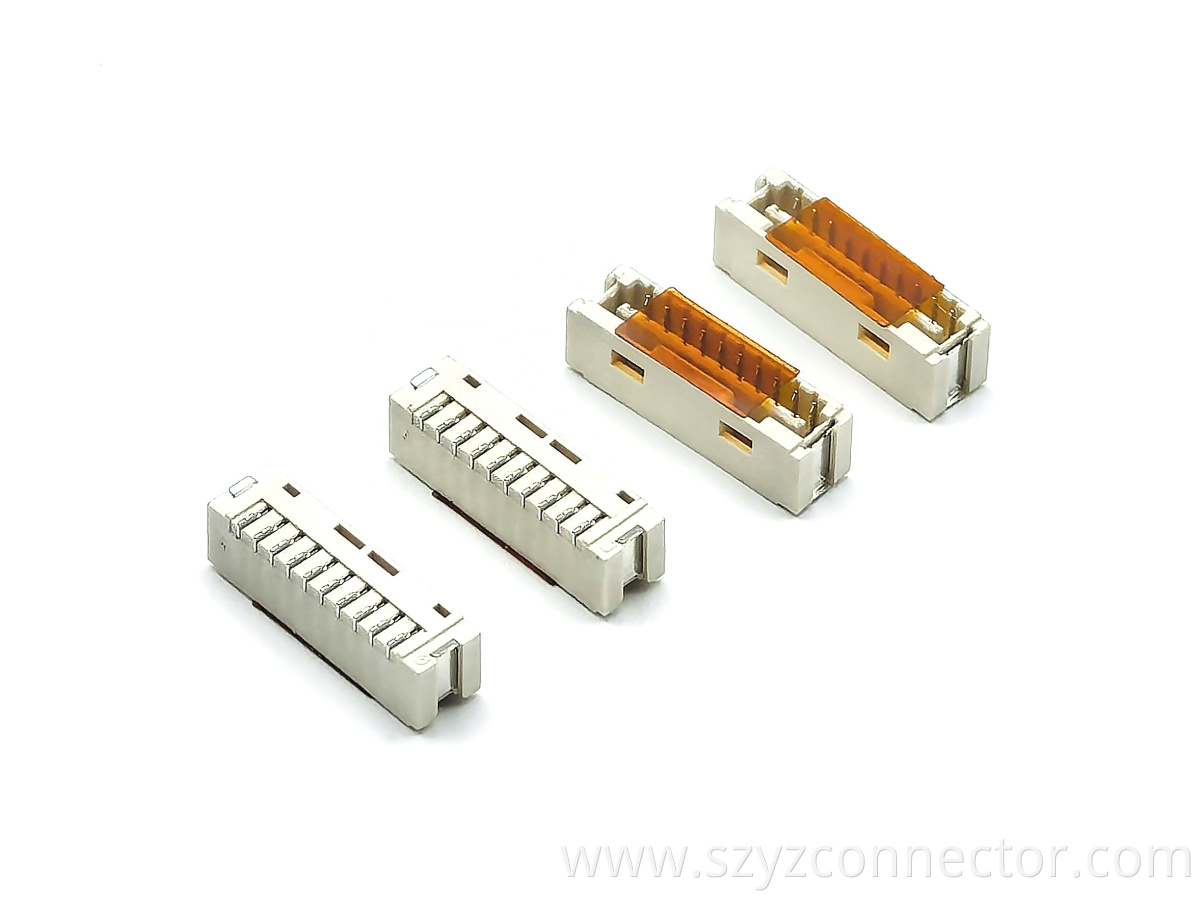

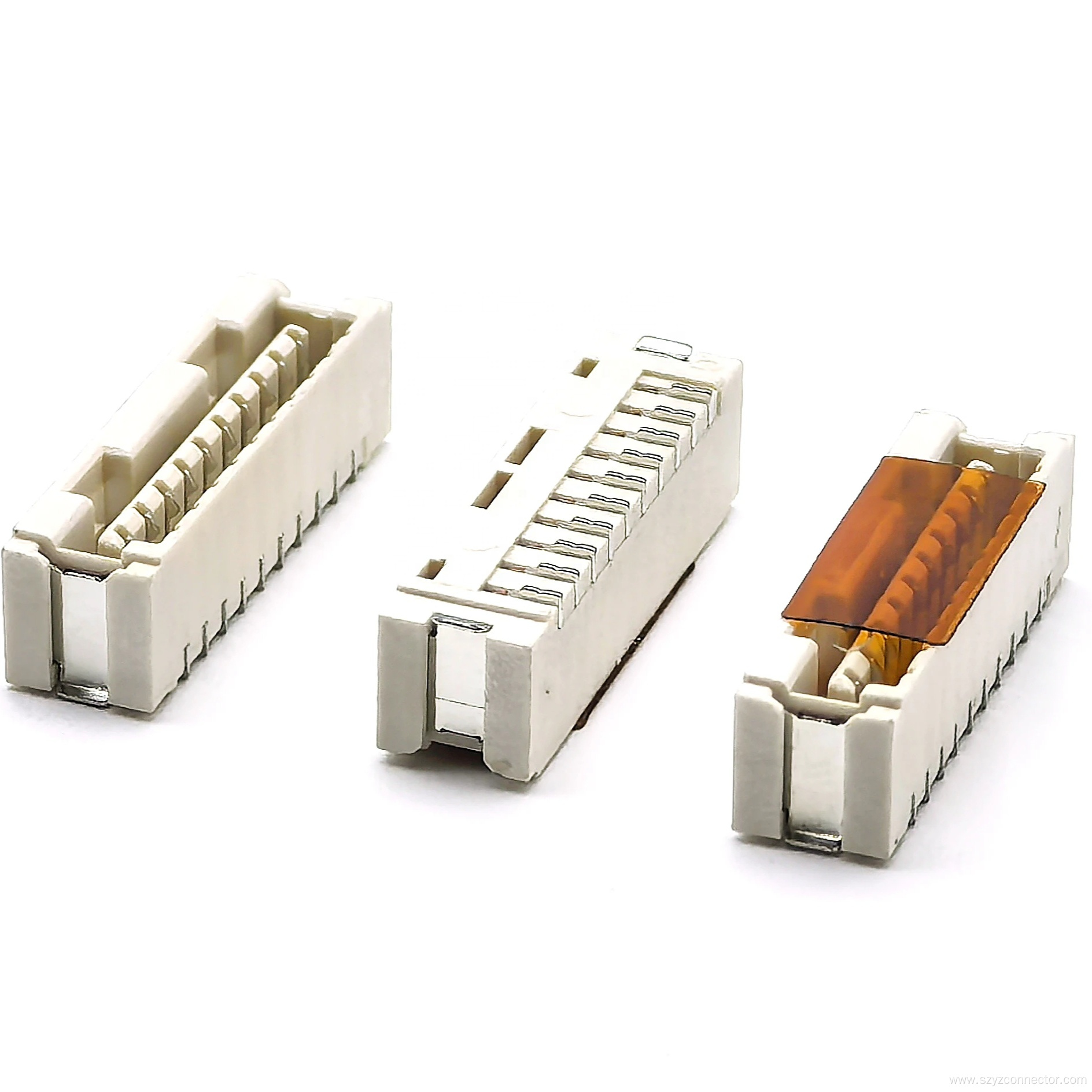

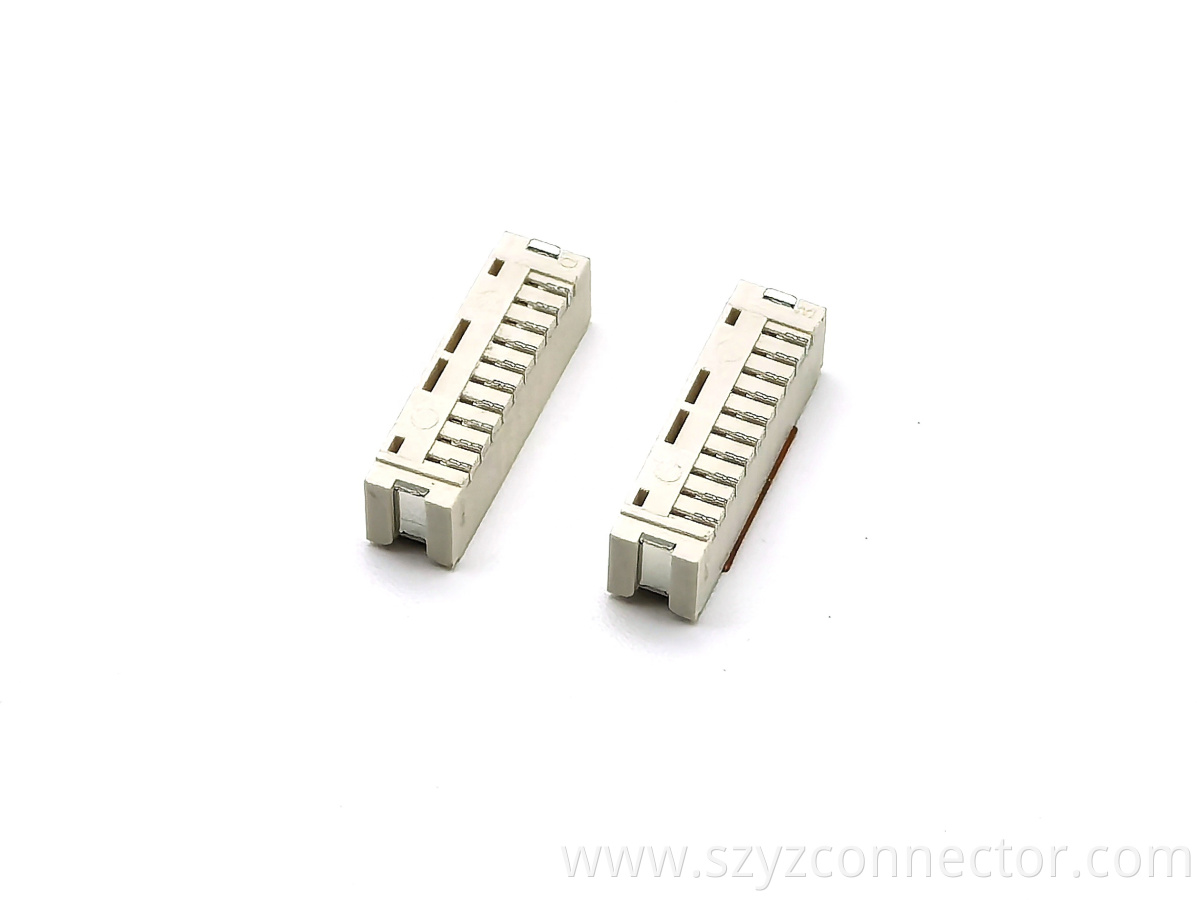

1.25mm Wafer SMT LED Pin header 10P

Optimized for space-sensitive and reliability-driven designs,the YZTECH 1.25mm Wafer SMT LED Pin Header delivers exceptional performance in a compact vertical-mount package. Featuring a 10-position single-row layout and rectangular male interface,this DIN-compliant header connector enables efficient vertical PCB installation—freeing valuable board space while simplifying assembly.With a rated current of 1A and voltage of 50V,backed by a withstand voltage of 500V AC per minute,it ensures stable power and signal transmission in LED lighting systems,control modules,and consumer electronics.Engineered for operation from -25°C to 85°C,this component offers reliable performance across diverse environmental conditions.



Built with precision-machined brass contacts and uniform tin plating,the wafer pin header guarantees low-resistance connectivity and superior solderability. The housing material,LCP, delivers outstanding thermal resilience, maintaining structural integrity during SMT reflow processes and under mechanical stress. Its high dielectric strength and resistance to warping make it ideal for automated, high-density PCB layouts. Packaged in reels for seamless integration into pick-and-place production lines, this header supports fast, error-free manufacturing with consistent quality—ideal for high-volume global supply chains.



From LED displays and lighting solutions to industrial automation and telecommunication devices,this 1.25mm pitch Wafer Housing Terminal meets the demands of modern electronic miniaturization.Its vertical orientation allows for compact board stacking and easier circuit testing,while the tin-plated brass contacts ensure vibration-resistant,durable interconnections.
