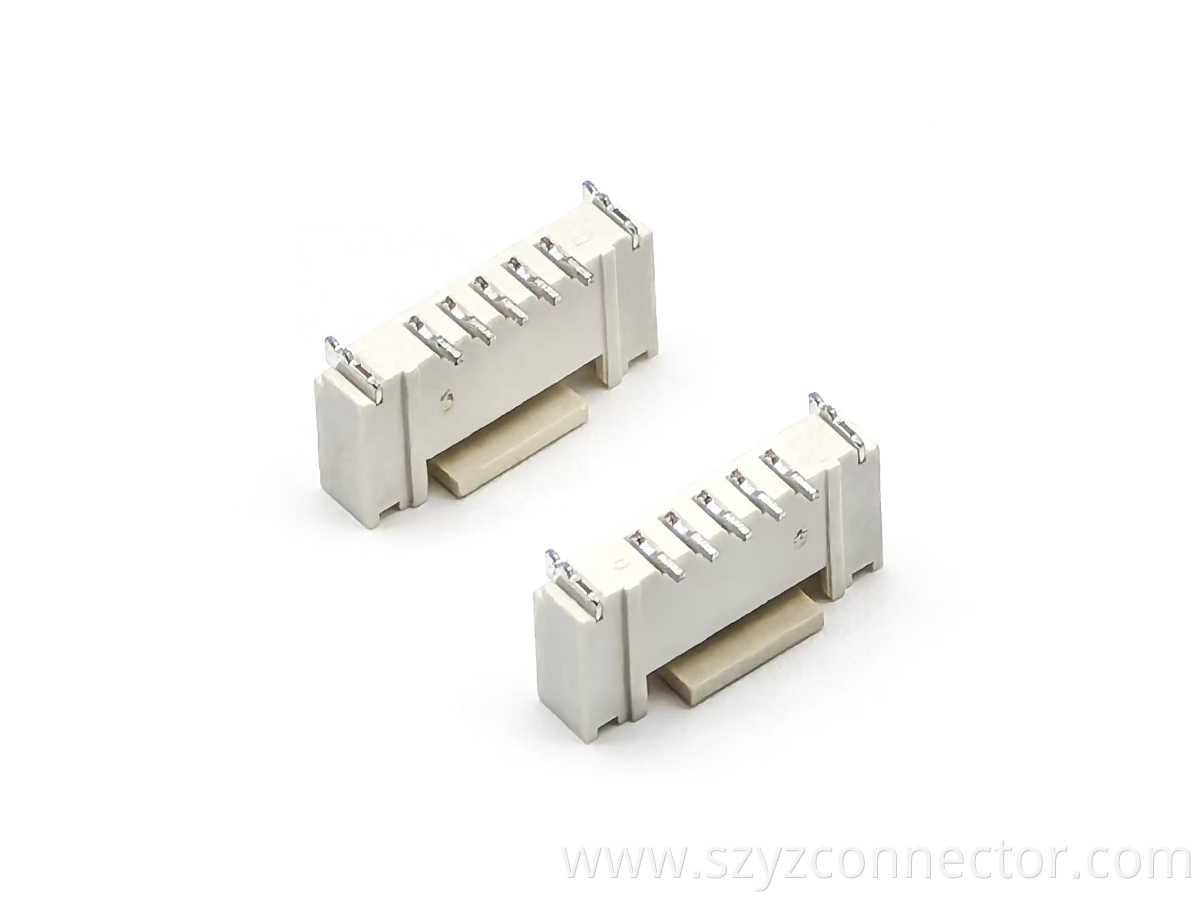

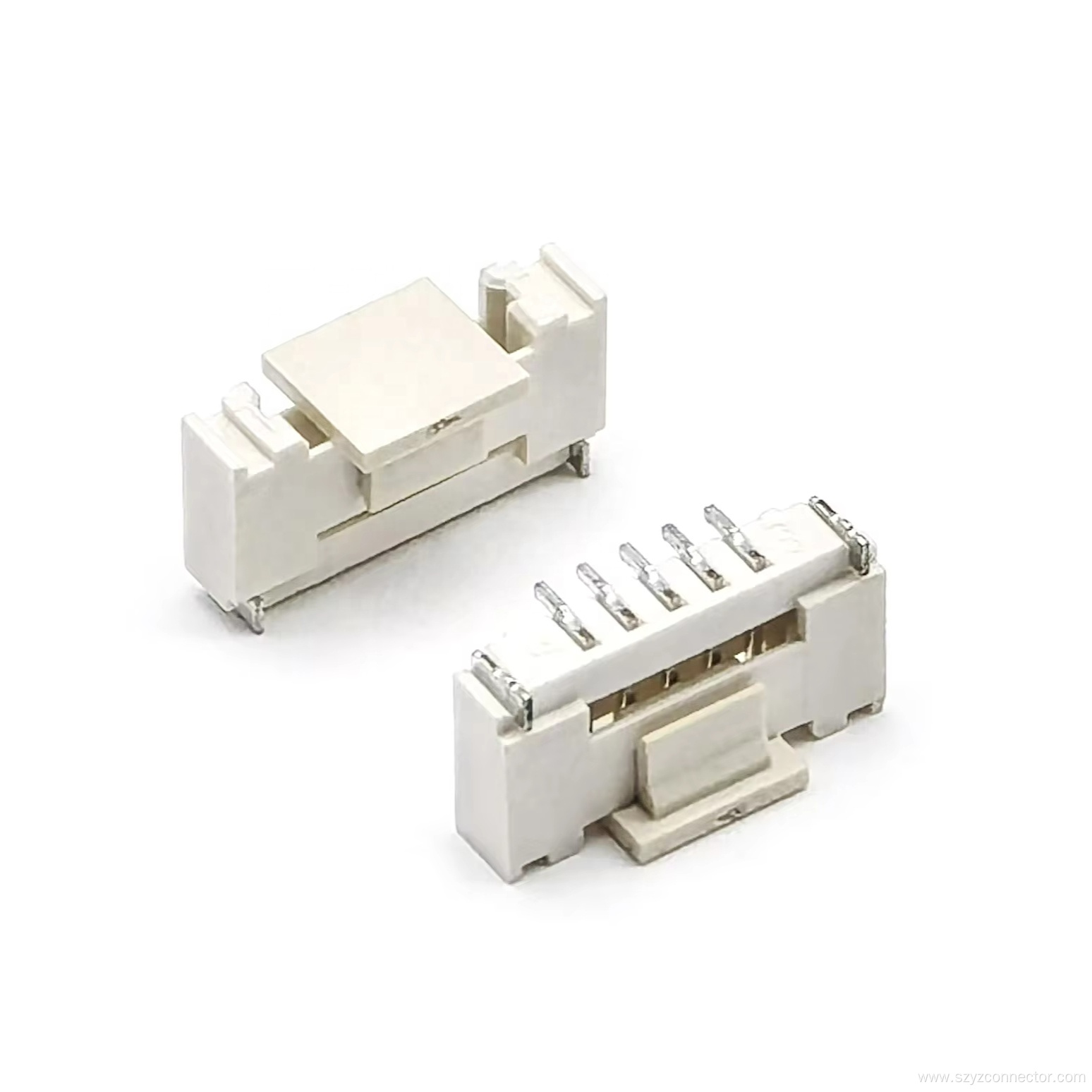

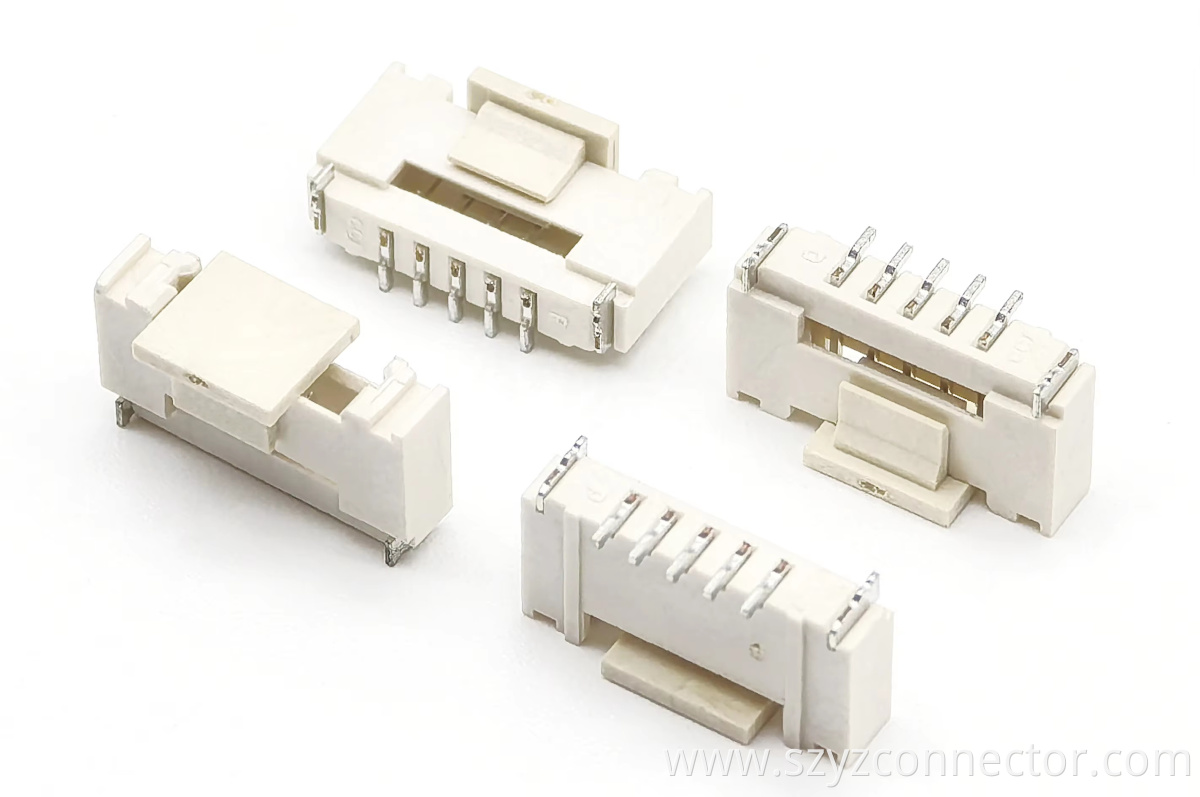

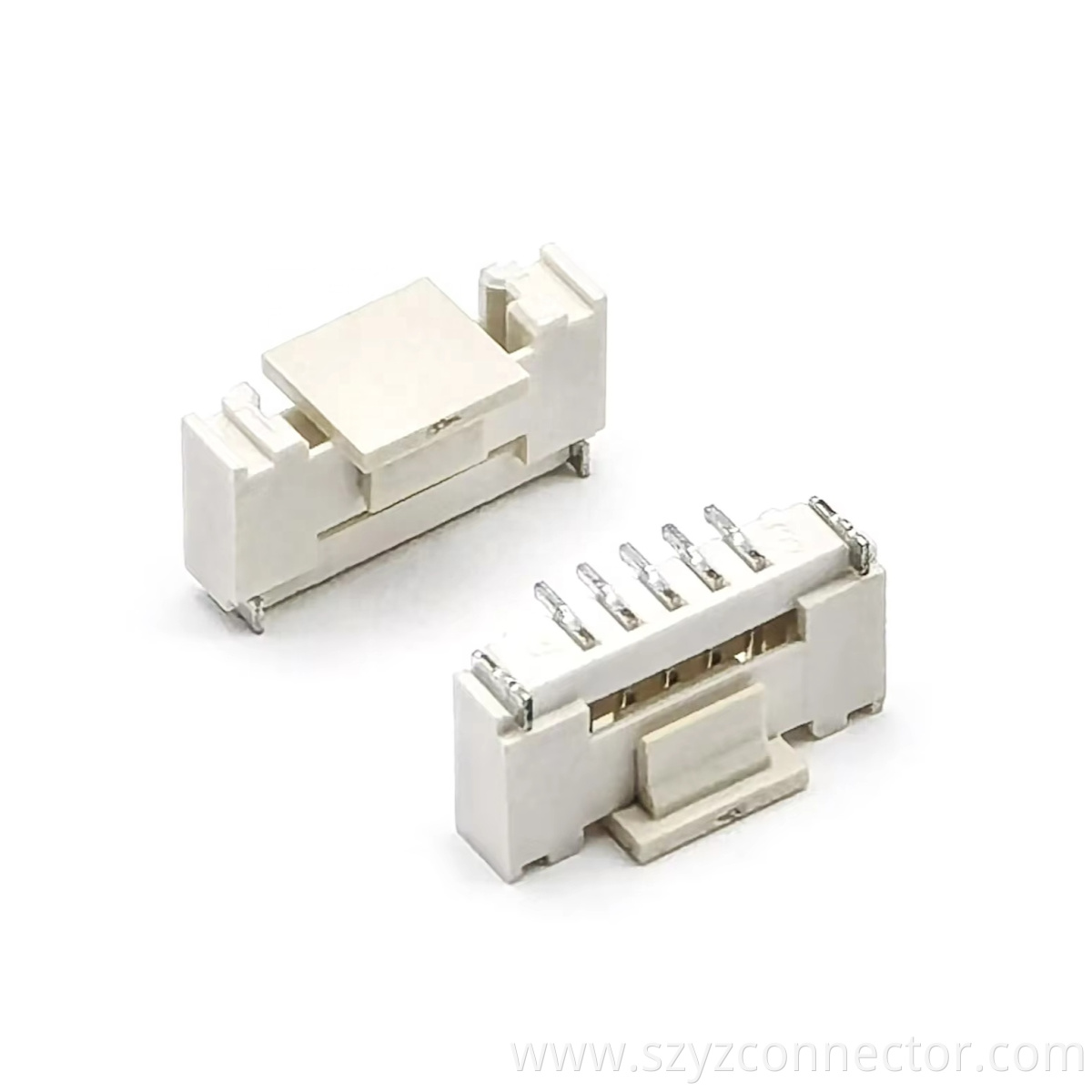

PH1.25mm Wafer SMT Type Pin Header 5P

YZTECH presents its PH1.25mm pitch wafer SMT Pin Header,meticulously designed for modern electronics requiring high-density interconnections with reliable surface-mount compatibility.This single-row male connector with 5-position configuration features a low-profile SMD installation method that enables seamless integration into automated production lines. The precision-engineered phosphor bronze contacts with uniform tin plating deliver consistent electrical performance with a 1A current rating and 150V operational capacity. Manufactured using advanced PA9T thermoplastic material,this Connector maintains excellent mechanical stability and thermal resistance,making it an ideal choice for applications where space optimization and manufacturing efficiency are paramount.



This micro-pitch header connector demonstrates reliable operation across a temperature spectrum of -25℃ to 85℃, suitable for standard commercial and industrial environments.The high-grade PA9T insulation material provides exceptional resistance to soldering temperatures and mechanical stress,while the tin-plated phosphor bronze contacts ensure optimal solderability and corrosion resistance.The 1.25mm pitch represents an optimal balance between connection density and practical manufacturing requirements.Packaged in industry-standard reels,these connectors are specifically engineered for high-speed automated assembly equipment,ensuring precise component placement and manufacturing consistency in volume production scenarios.



The YZTECH PH1.25mm Wafer Housing Terminal serves as a fundamental interconnection component across multiple high-tech industries.This component represents an optimal synthesis of miniaturization,reliability,and production efficiency for electronics manufacturers operating in competitive global markets where technological advancement and cost-effectiveness determine market success.
