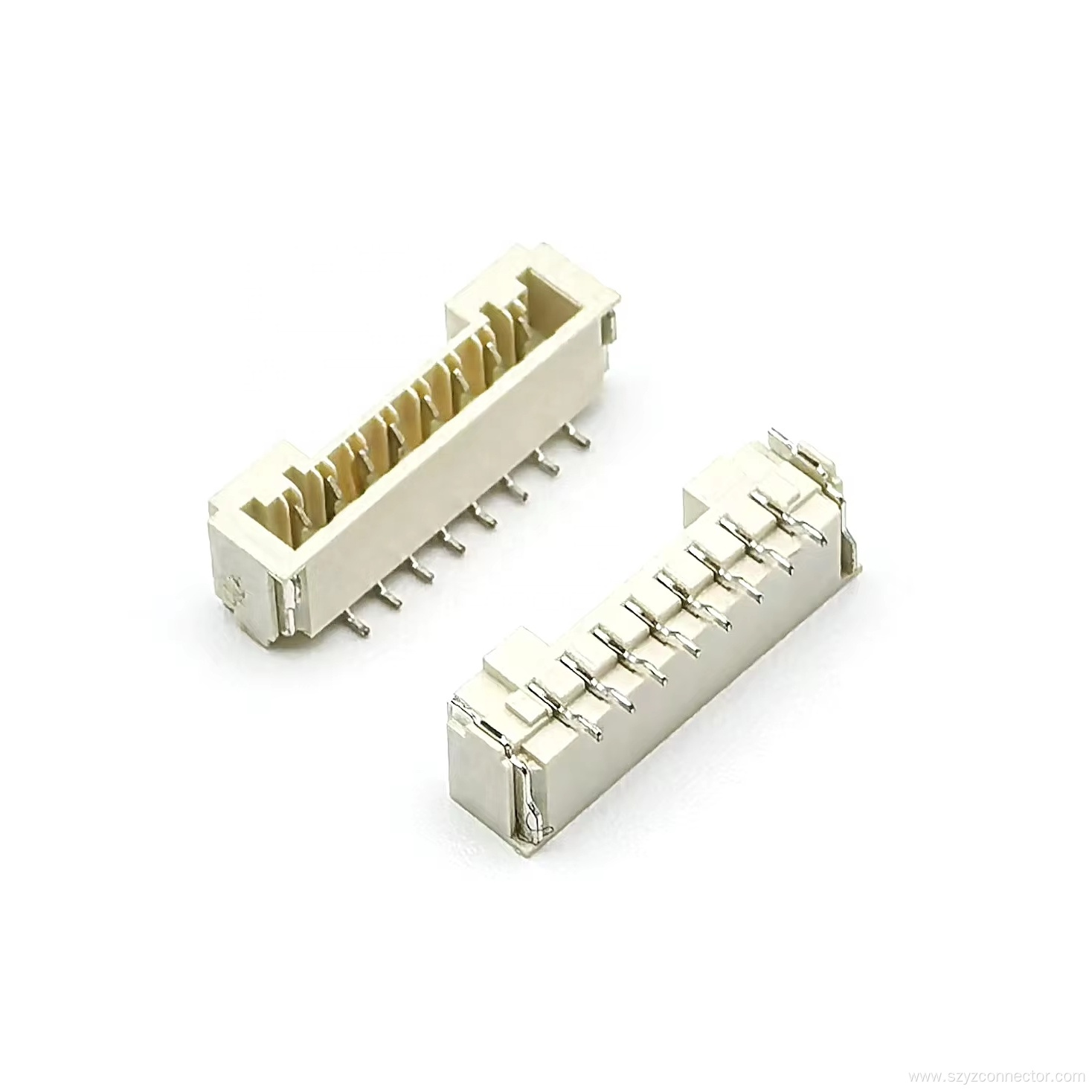

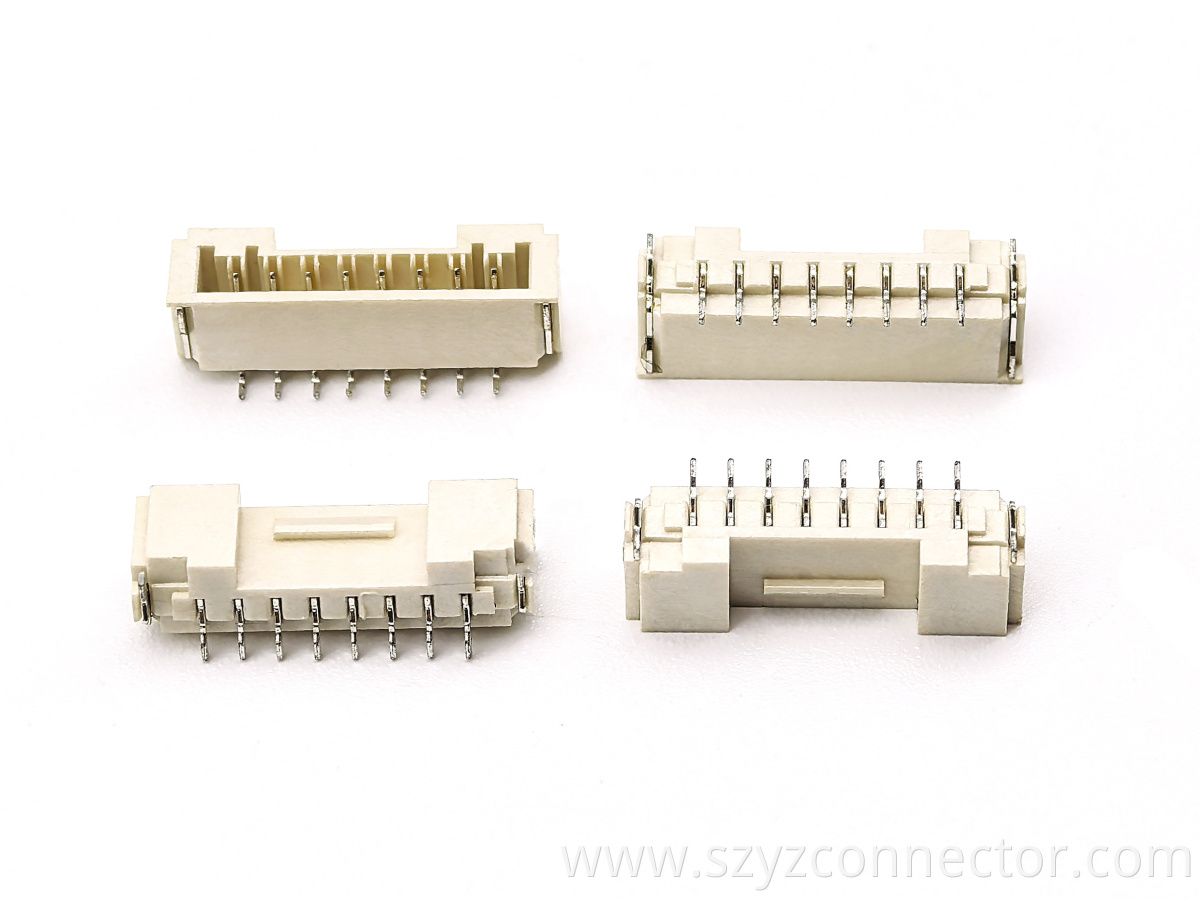

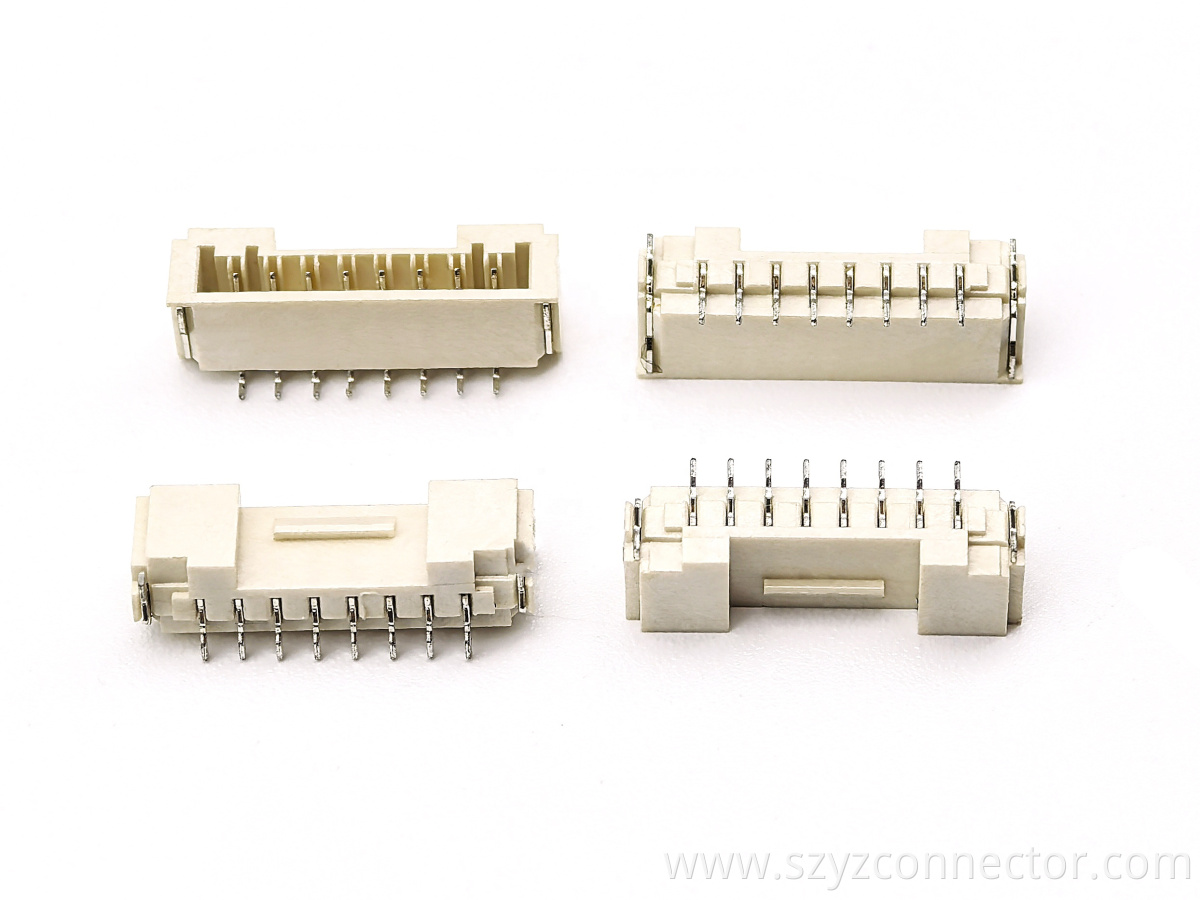

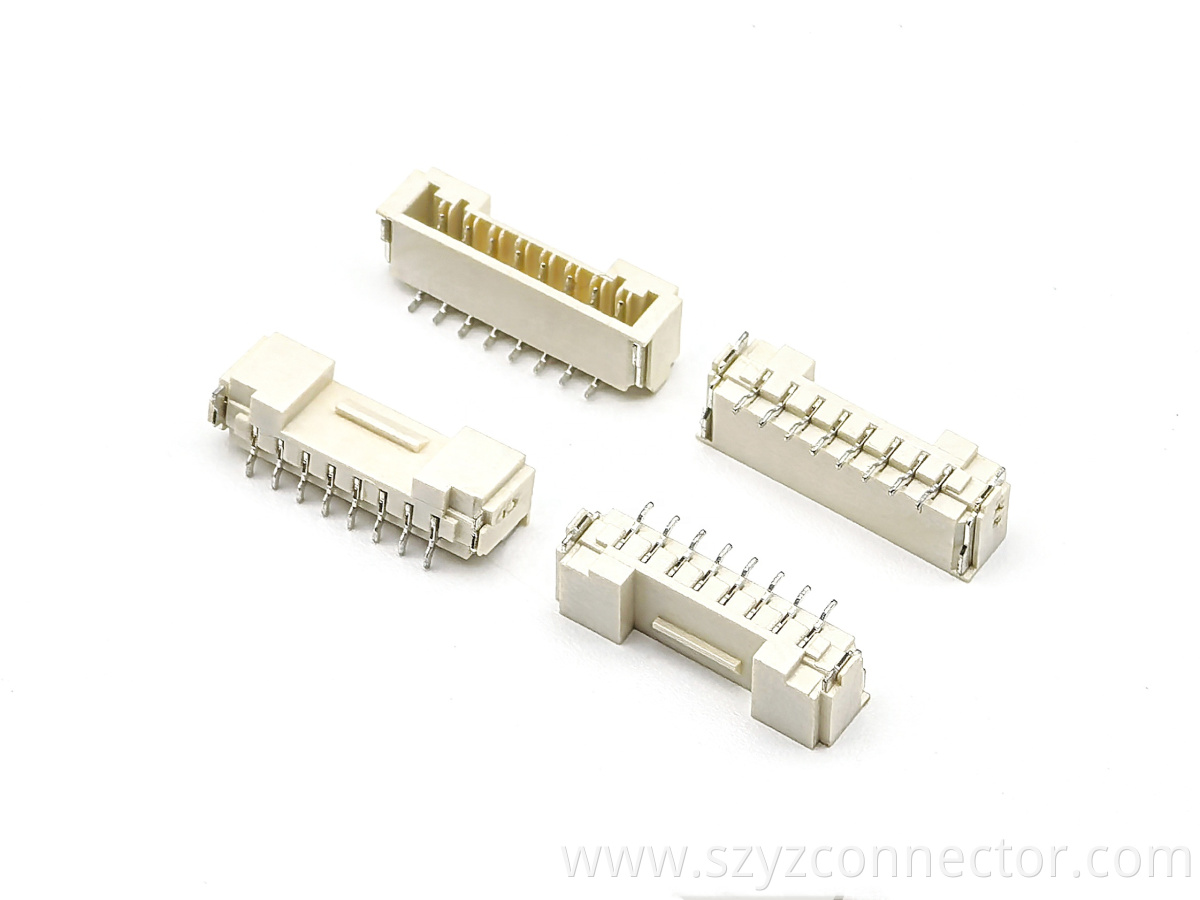

1.25mm Wafer Vertical SMT Pin header 8P

YZTECH’s 1.25mm Wafer Vertical SMT Pin Header redefines space efficiency in PCB assemblies with its 8-pin single-row configuration.Engineered for vertical mounting,this DIN-type Connector optimizes Z-axis utilization in stacked board architectures,enabling dense interconnection without compromising signal integrity.The rectangular male contacts feature phosphor bronze construction with tin plating, delivering 1A current capacity at 50V while ensuring corrosion resistance and low contact resistance.LCP colloidal material provides exceptional thermal stability -25°C to +85°C and mechanical resilience,maintaining dimensional integrity during reflow soldering and thermal cycling.The reel packaging streamlines high-speed SMT assembly,ensuring precise placement accuracy and manufacturing consistency across automated production lines.



This vertical Wafer Housing Terminal excels in applications requiring rigorous electrical and environmental performance.The 1.25mm pitch ensures precise signal transmission for high-speed digital circuits while maintaining mechanical stability during vibration-prone operations.LCP insulation’s superior heat resistance minimizes warpage risks during soldering, enhancing long-term reliability.Phosphor bronze contacts with tin plating deliver over 500 insertion cycles with consistent performance,ideal for industrial controls,automotive electronics,and consumer devices.Compliant with RoHS standards,the wafer header connector supports eco-conscious manufacturing while meeting global regulatory requirements.Its 50V rating suits low-voltage power distribution and signal routing in compact IoT modules,wearables,and medical monitors.
