PH1.25mm Wafer Right-Angle SMT Pin Header

PH1.25mm Wafer Right-Angle SMT Pin Header

Name: PH1.25mm Pitch Wafer Right-Angle SMT Pin Header Connector 4P
Uploaded: 2025-10-24T07:07:49+08:00
Description: YZTECH’s PH1.25mm Wafer Right-Angle SMT Pin Header redefines precision connectivity for modern electronics.This

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

White 1-core 4P

Contact Now

Product Description

Product Attributes

Model No.: B12501-04AWB

Brand: YZTECH

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

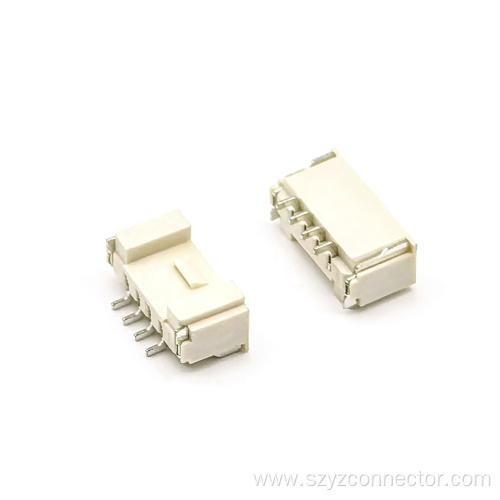

PH1.25mm Pitch Wafer Right-Angle SMT Pin Header Connector 4P



Product Description

YZTECH’s PH1.25mm Wafer Right-Angle SMT Pin Header redefines precision connectivity for modern electronics.This 4-pin single-row DIN header connector features a right-angle horizontal mount configuration,optimized for PCB layouts where vertical clearance is limited.Engineered with phosphor bronze contacts plated in tin,the Wafer Housing Terminal delivers 1A current at 50V while ensuring corrosion resistance and stable conductivity.The LCP colloidal material achieves industry-leading thermal resilience,operating reliably from -25°C to +130°C—ideal for high-temperature environments like automotive engine controls or industrial power modules.Its rectangular male form factor and SMT installation streamline automated assembly,with reel packaging enhancing pick-and-place efficiency for high-volume production.

Leveraging advanced polymer science,the LCP insulation maintains dimensional stability during reflow soldering,minimizing warpage risks even at 130°C peak temperatures. Phosphor bronze contacts provide optimal spring tension for over 500 mating cycles,ensuring consistent signal integrity in high-speed digital circuits.The tin plating reduces contact resistance to <10mΩ,critical for low-power applications like sensor networks and battery management systemsThe 50V rating suits low-voltage signal routing in crowded PCB layouts,while the 1.25mm pitch prevents crosstalk in dense interconnects.

YZTECH’s ISO 9001-certified production ensures batch consistency,with 24/7 technical support and customization services for specialized requirements like custom plating thickness or tailored packaging.The reel packaging optimizes SMT line efficiency,reducing assembly time by 15% compared to tape-and-reel alternatives.
