0.8BTB-22P male double slot with

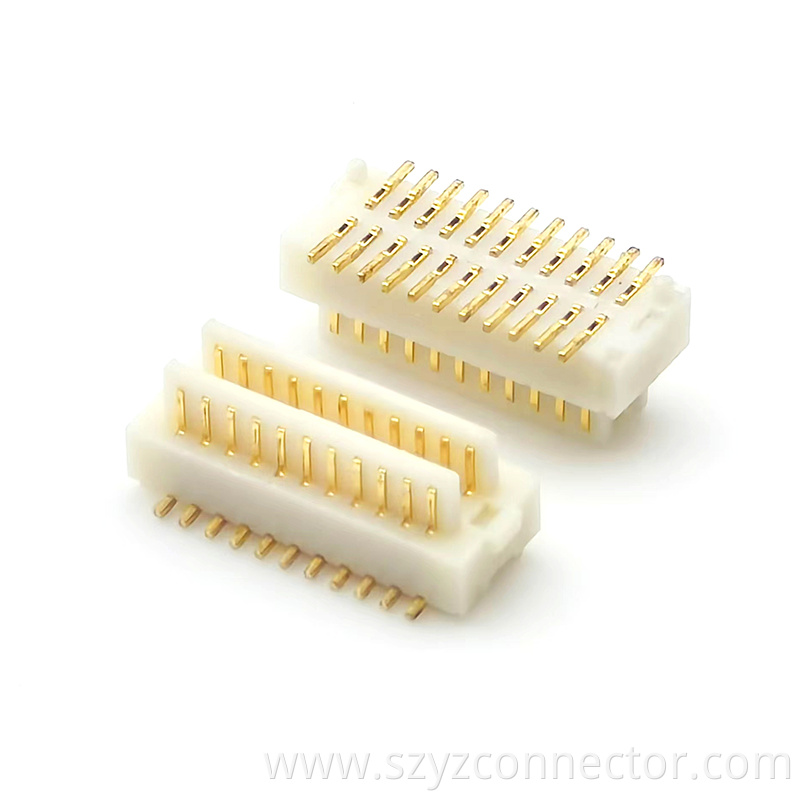

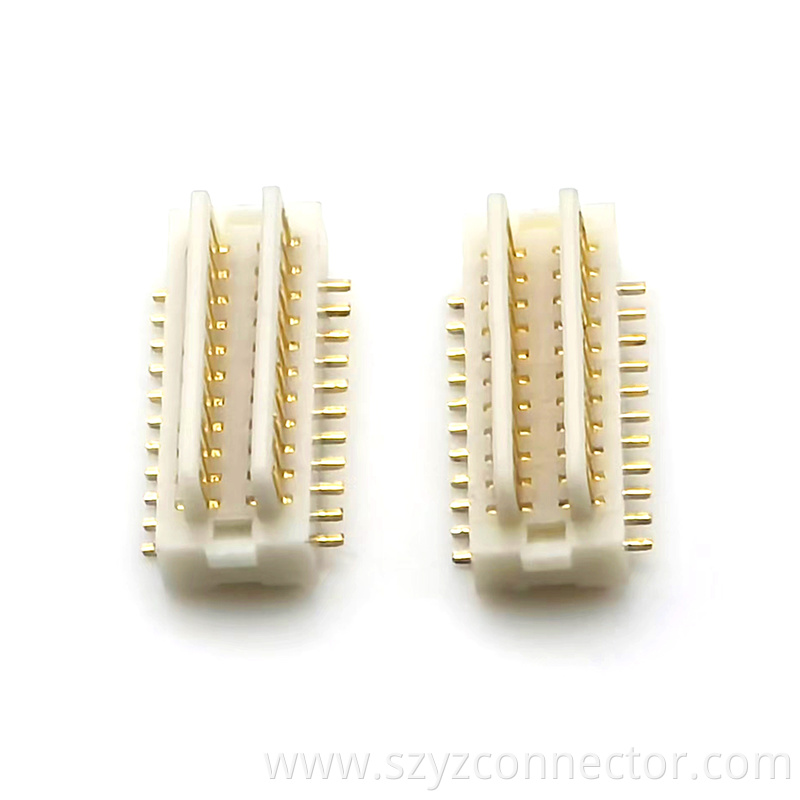

The 0.8BTB-22P male double slot with by yztech is a reliable choice for inter-board connections in medium-density electronic devices. Its 0.8mm pitch and 22-pin design balance transmission stability and space efficiency, suitable for smart home control modules and small industrial sensors. As a high-performance connector, its structural design references the industrial standards of board to board connector molex, with a double slot structure enhancing docking stability to prevent loosening.​



The connector shell, made of high-temperature resistant PBT material (UL94 V0 certified), operates stably at -40℃ to 125℃, fully meeting the requirements of board to board connector smt for surface mount technology and adapting to automated production lines. Unlike the vertical connection of board to board connector 90, it adopts a straight plug design, more suitable for planar wiring scenarios, and can be used with board to board coaxial connector to meet high-frequency signal transmission needs. Internal terminals are made of tin-plated phosphor bronze, with contact resistance as low as 10mΩ and plug life over 500 times, ensuring long-term reliable connection. Whether building internal signal transmission networks or realizing mixed power and data transmission between boards, this connector stands out for its excellent performance and compatibility.
