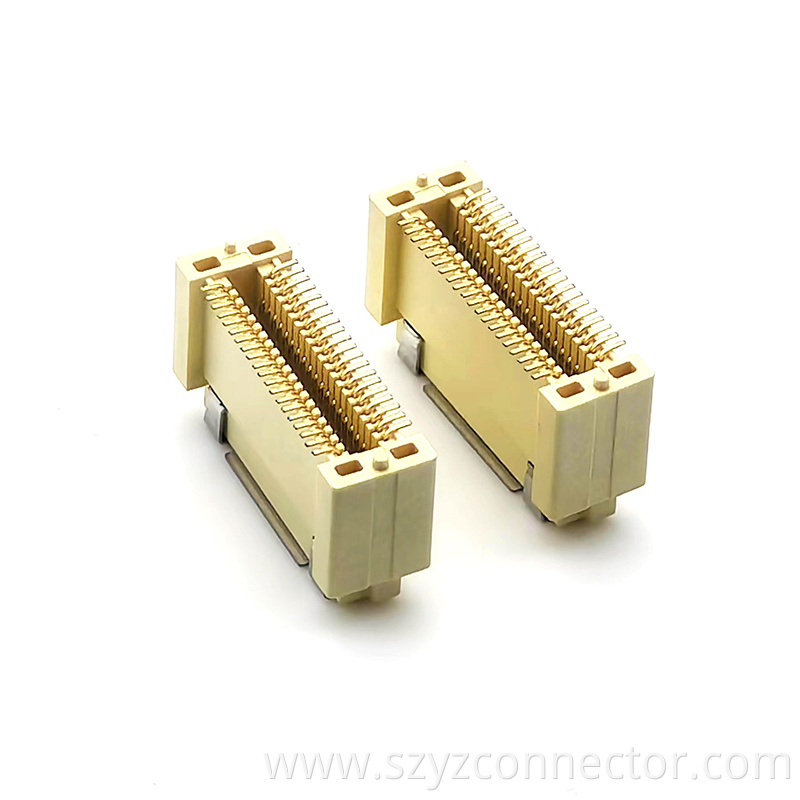

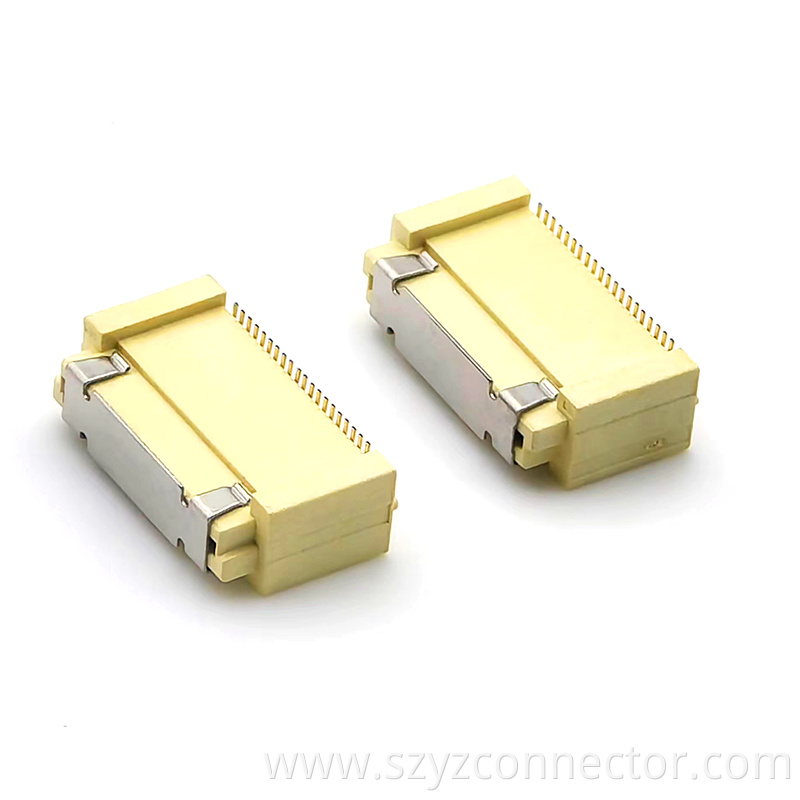

0.8BTB-40P Female Head H11.7 SMT

The 0.8BTB-40P Female Head H11.7 SMT by yztech offers an efficient solution for inter-board connections in medium-high density electronic devices. Its 0.8mm pitch, 40-pin design, and 11.7mm height enable multi-signal parallel transmission in limited space, suitable for smart controllers and industrial detection modules. As a reliable connector, its structural standards reference board to board connector molex industrial specifications, with a female head design that precisely mates with the same series male to ensure signal integrity.​



The housing, made of high-temperature resistant PBT (UL94 V0 certified), operates stably at -40℃~125℃, fully compatible with board to board connector smt processes for efficient automated assembly. Unlike the vertical connection of board to board connector 90, it features a straight layout ideal for planar wiring, and can work with board to board coaxial connector to handle both high-frequency signals and power transmission. Tin-plated phosphor bronze terminals ensure <8mΩ contact resistance and 500+ mating cycles, maintaining stable connections even in frequently used scenarios. Whether building multi-layer PCB signal networks or achieving precise inter-board docking, this female head connector stands out for balanced performance and flexibility in medium-high density connection scenarios.
