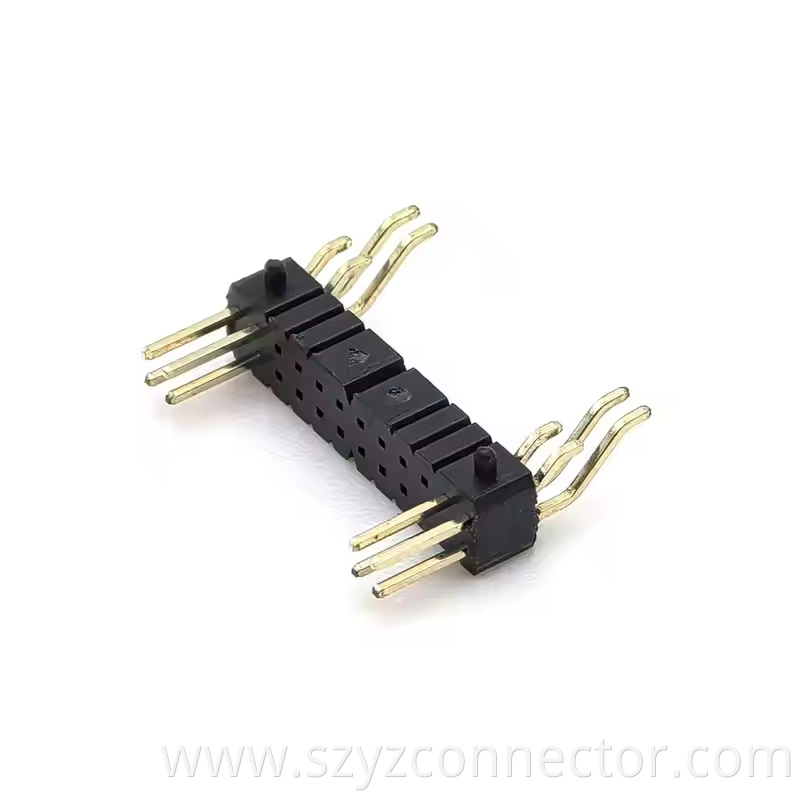

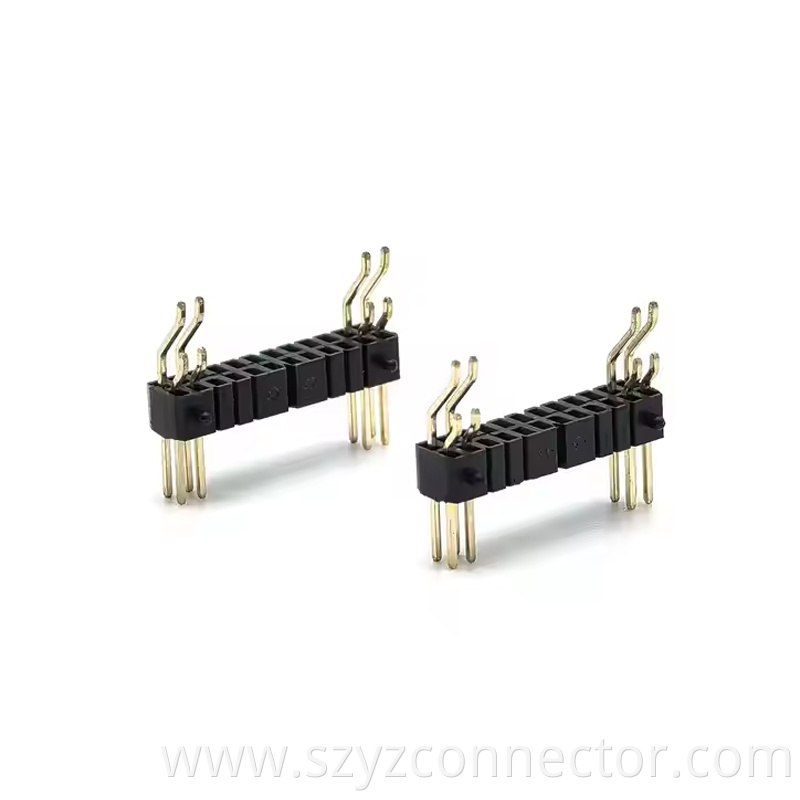

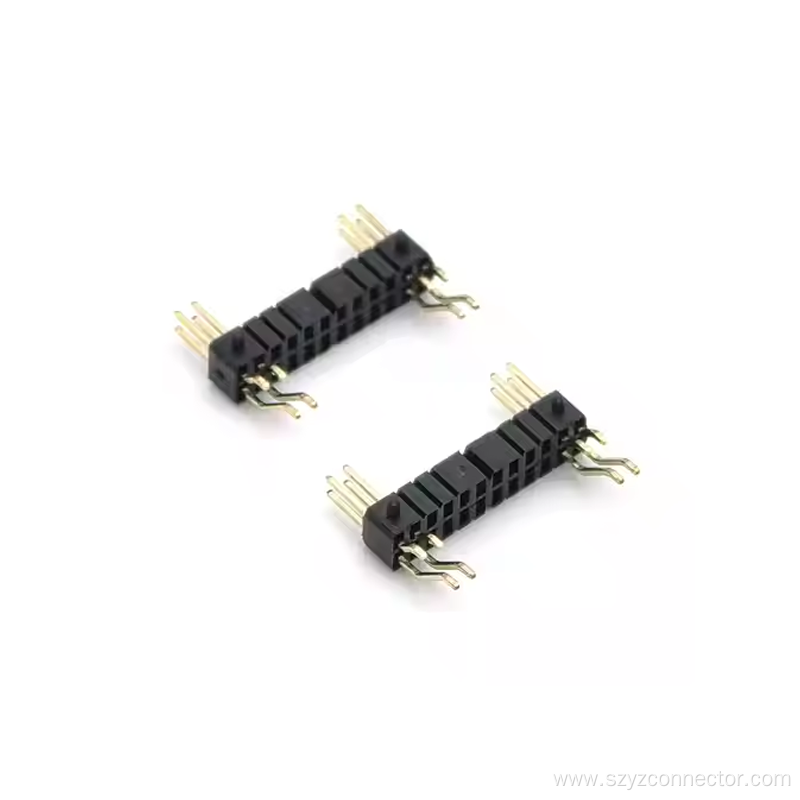

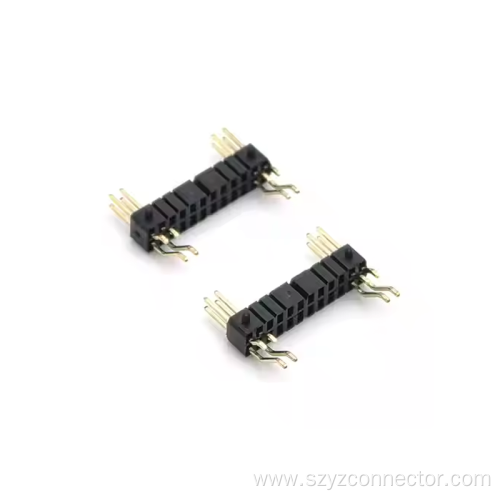

1.27mm Pin Header Dual Row Right Angle

yztech’s 1.27mm Pin Header Dual Row Right Angle is an excellent solution for high-density and compact connection requirements in electronic devices. As a star product of the Pin Header series, its standard 1.27mm pitch combined with a dual-row right-angle design perfectly fits the complex wiring scenarios of PCB Pin Header. It not only saves internal device space but also enables efficient and stable signal transmission, setting a model of practicality and innovation in the 1.27mm pitch header category.



This connector supports various soldering types, including SMT and through-hole, adapting to different production process needs. With high-quality C2680 terminals paired with black LCP (UL94V - 0) insulators, it operates stably at a rated current of 3A/pin in harsh environments ranging from -40°C to +105°C. Through Gold Flash plating and a ≥50u" nickel base layer treatment, the contact resistance is strictly controlled within 20mΩ, ensuring zero-loss signal transmission. The flexible 6 - 64 PIN configuration meets the connection needs of diverse fields, from consumer electronics to industrial control, and is highly compatible with Female Header Pins. Certified by ISO9001, ISO14001 and RoHS-compliant, it comes in standard anti-static tray + carton packaging. Offering flexible ODM and OEM customization services, it provides precise solutions for both conventional applications of 1.27mm pin Header and special scenario requirements.
