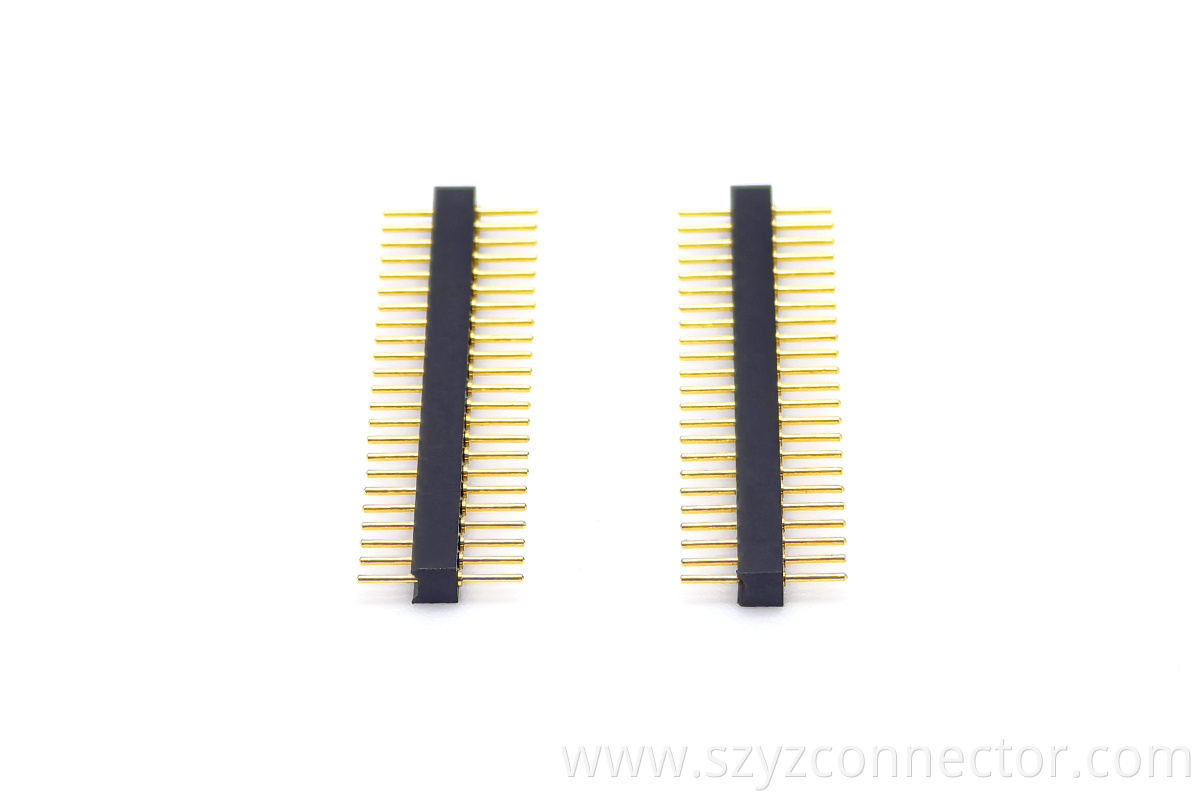

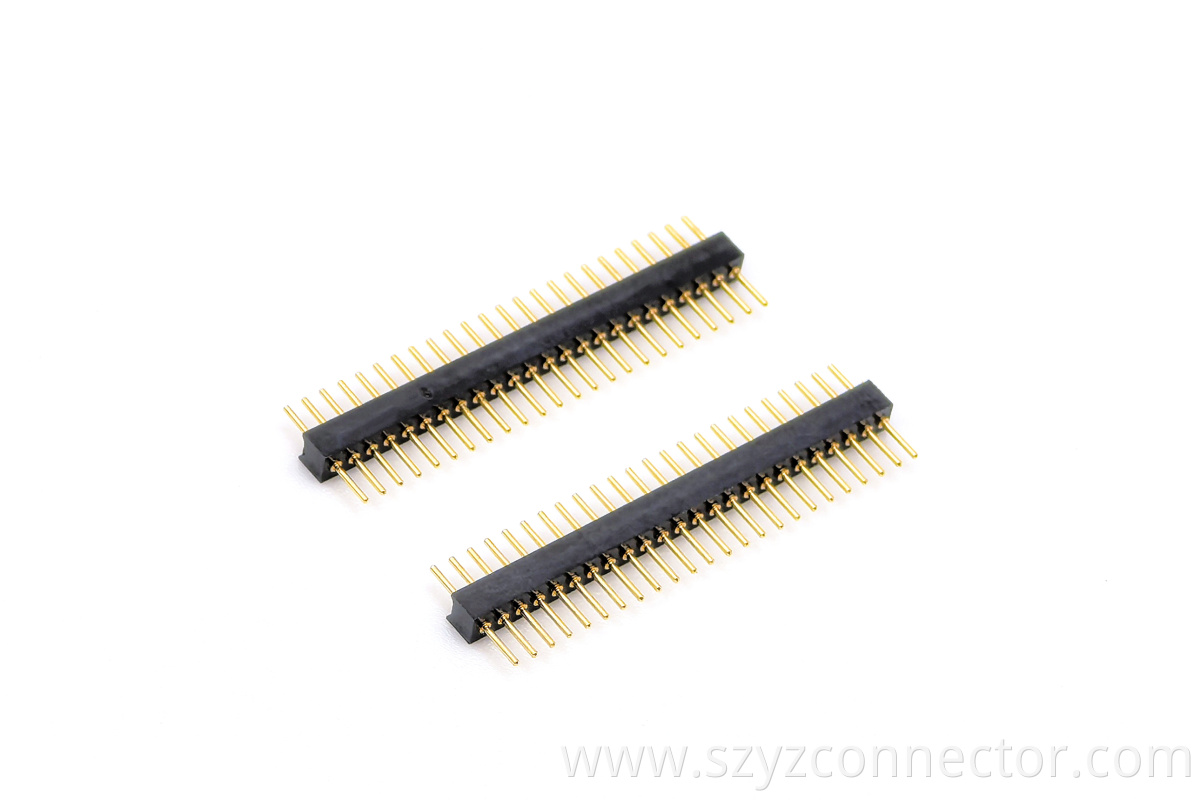

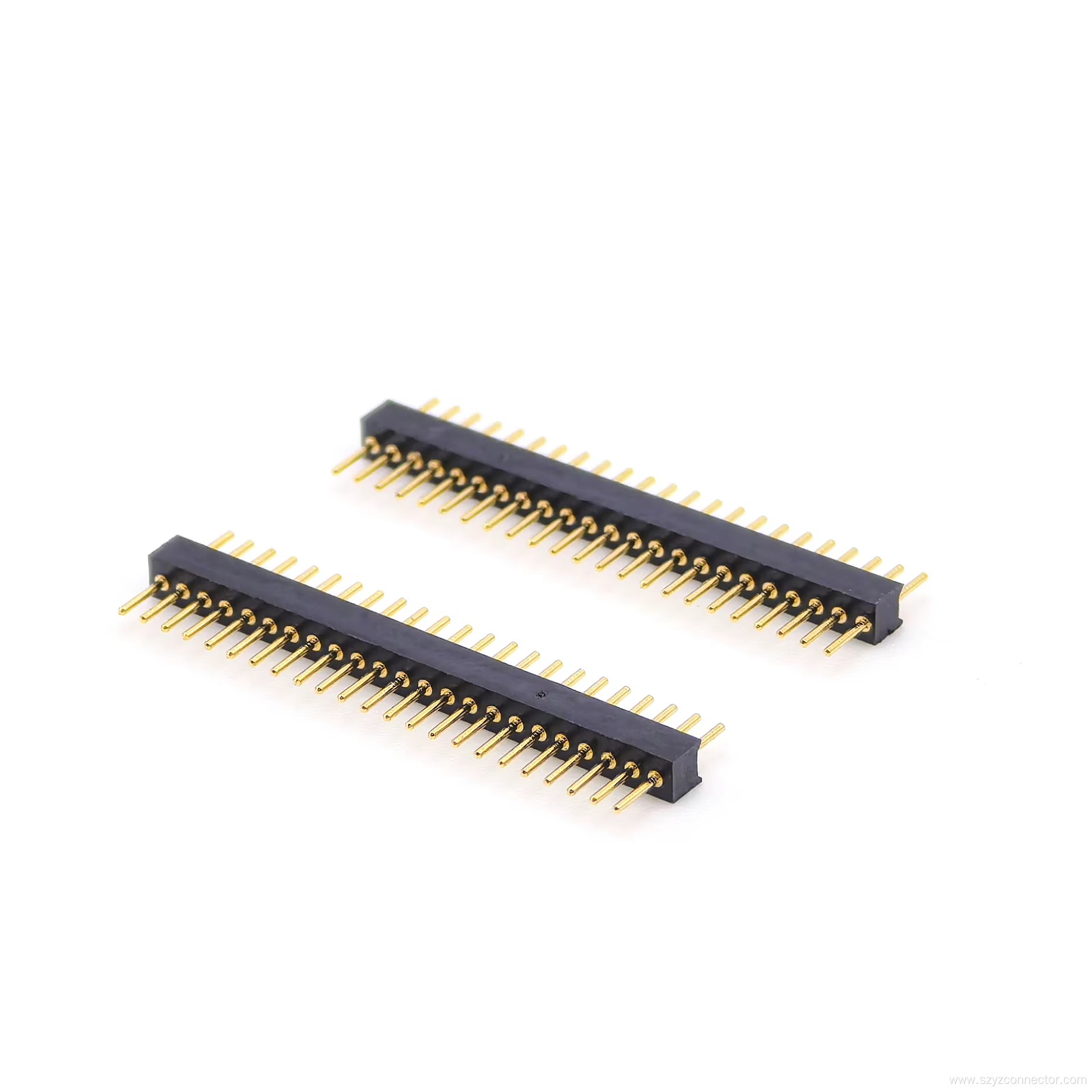

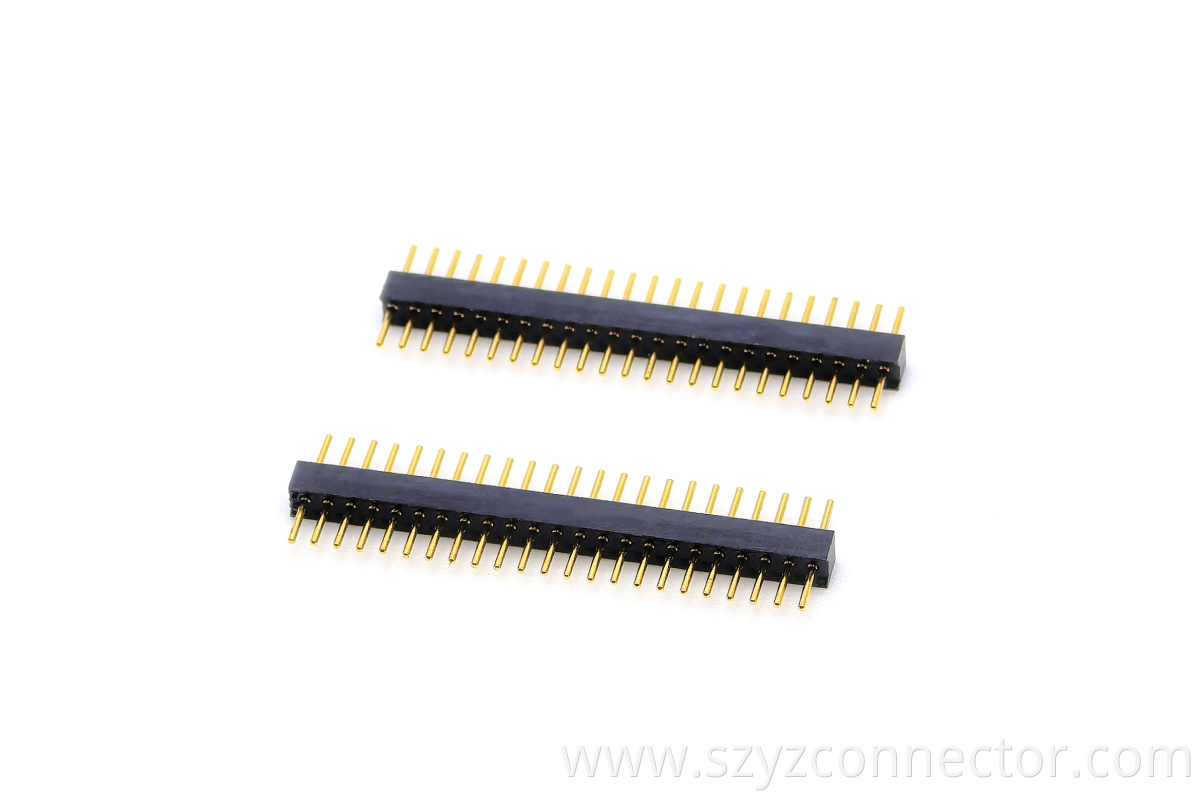

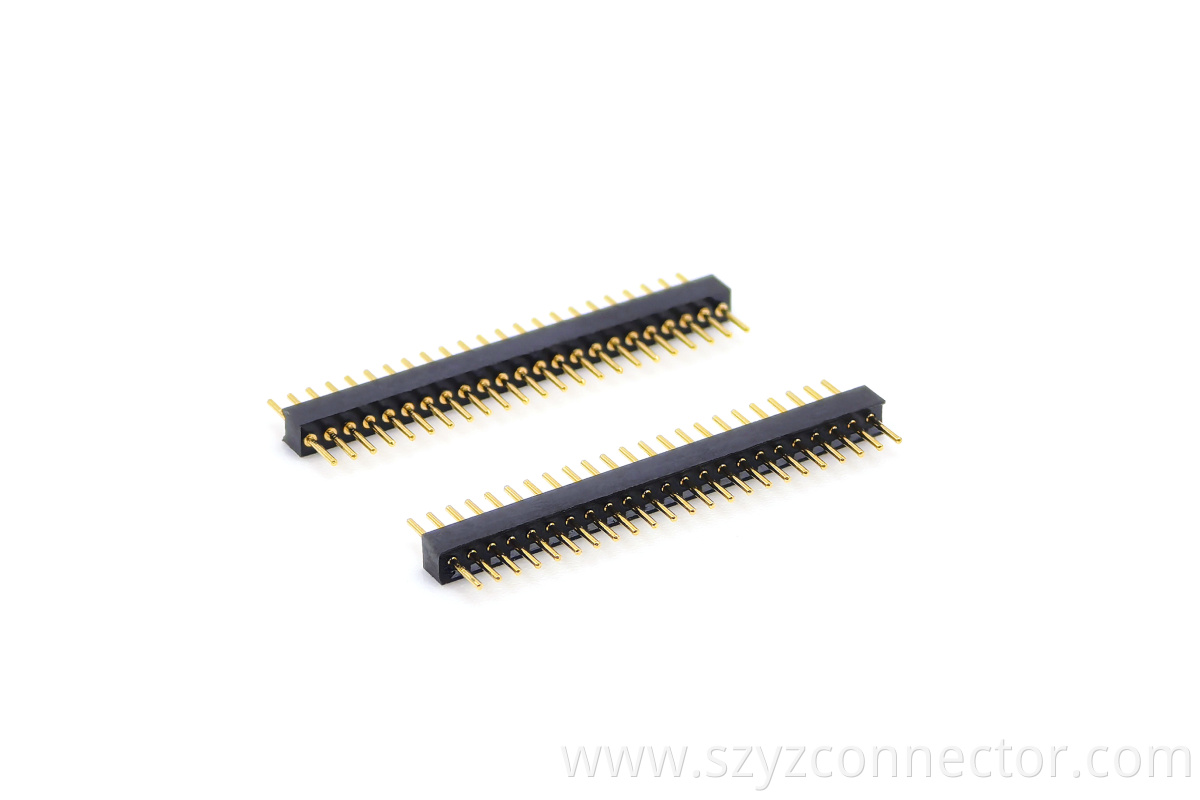

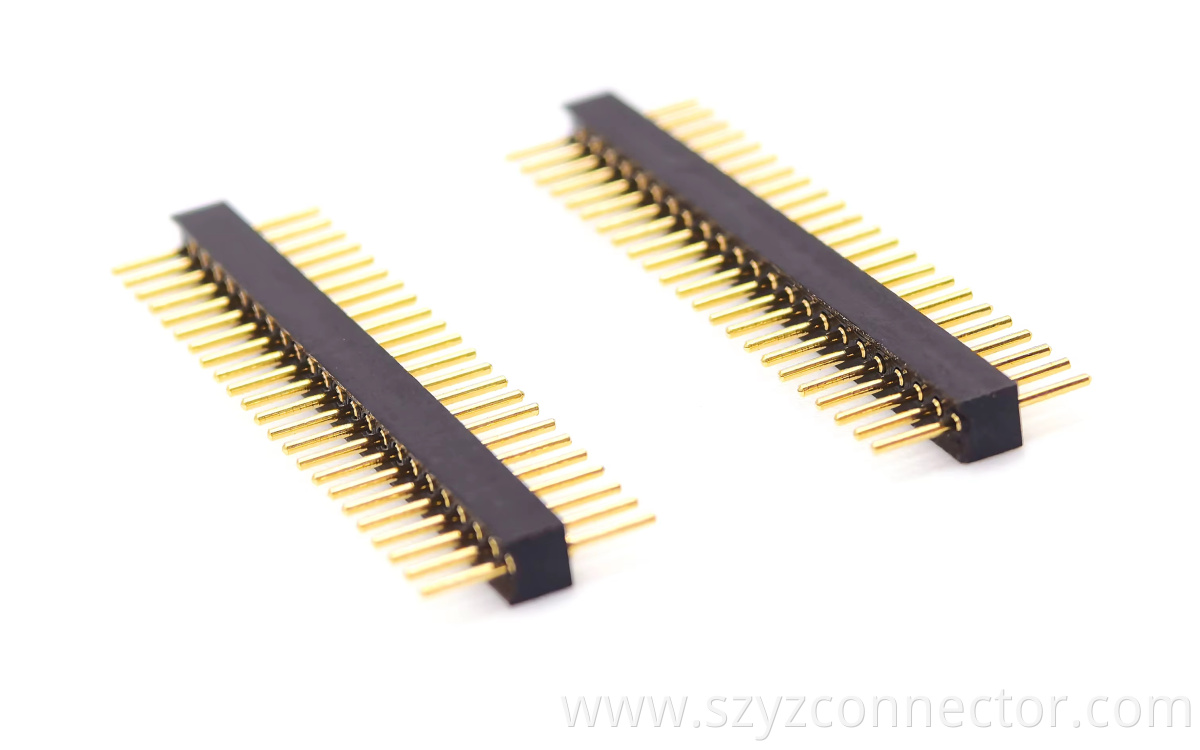

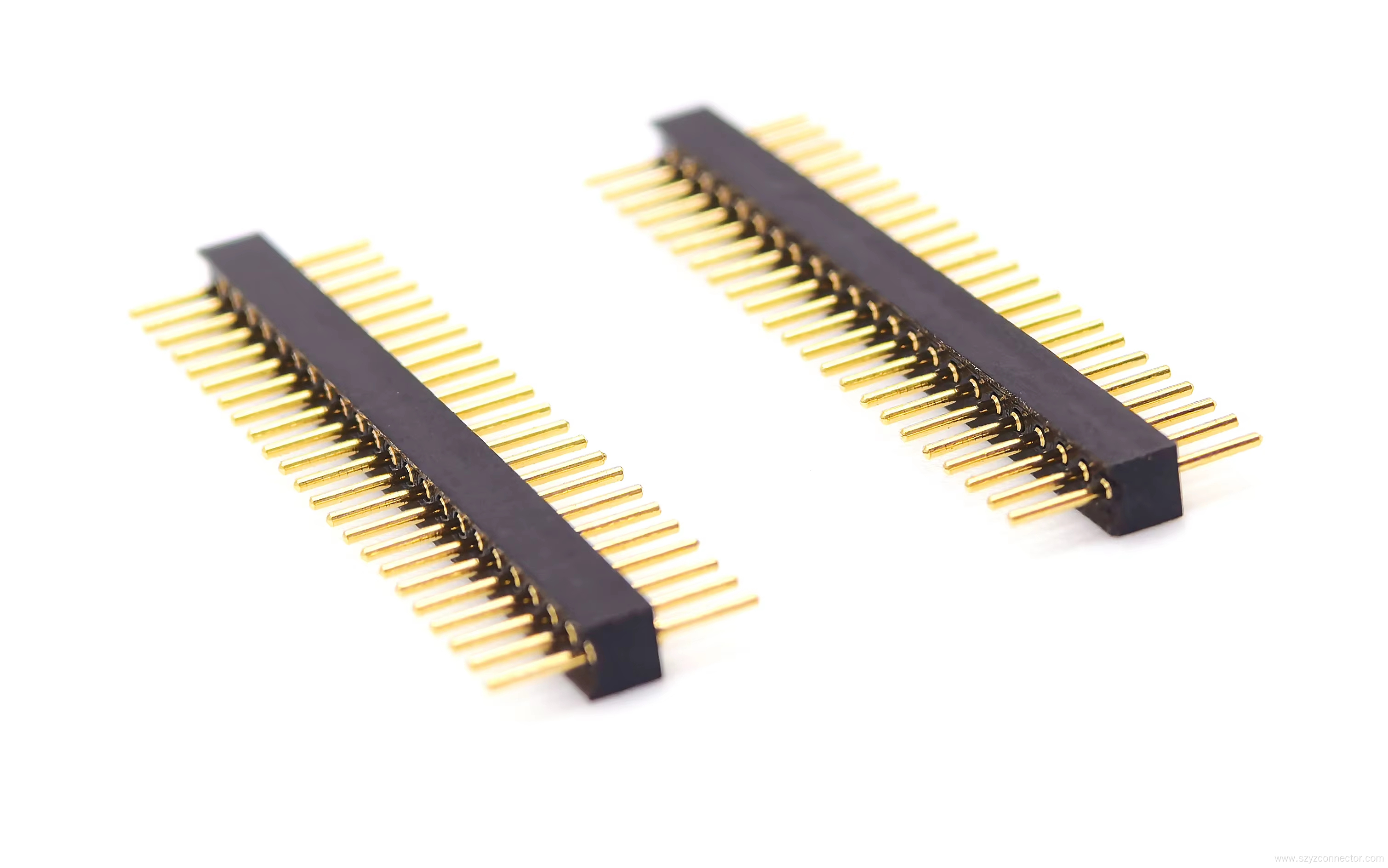

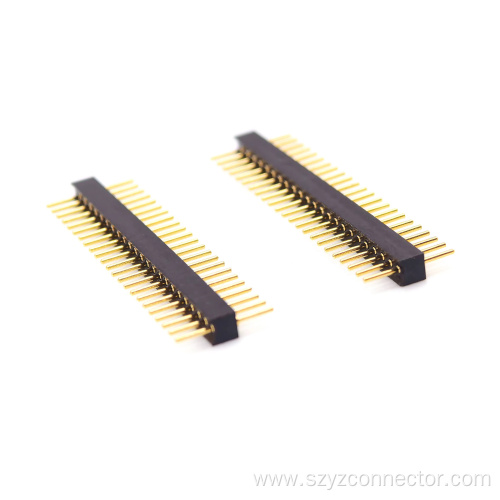

1.27mm Pitch Machined Pin header Straight 23P

YZTECH's 1.27mm pitch machined Pin Header is meticulously engineered with a 23 - pin single - row configuration, specifically designed for applications that require high - density printed circuit boards . This straight male header connector, fabricated from precision - machined brass contacts with gold plating, guarantees superior signal integrity and stable connectivity. The ultra - fine pitch design enables space - efficient integration while maintaining precise alignment, making it appropriate for advanced electronics, communication systems, and compact industrial controls where board space is limited.



This machined pin header connector is rated with a current capacity of 1A and a voltage tolerance of 300V. It operates reliably within a wide temperature range from - 45℃ to + 105℃. The gold - plated machined contacts exhibit excellent conductivity and corrosion resistance, and the straight pin configuration simplifies PCB mounting and ensures secure mating. With a maximum welding temperature tolerance of 260℃ for a duration of 10 seconds, it is compatible with automated reflow soldering processes while preserving both mechanical and electrical integrity.



Packed in protective bags for safe handling and storage, the 1.27mm Pin Header connector is optimized for high - volume production environments. Complying with industry standards, YZTECH's 1.27mm pitch machined pin header represents an ideal combination of high - density connectivity, stable performance, and manufacturing efficiency, meeting the requirements of complex electronic applications that demand precision and durability.
