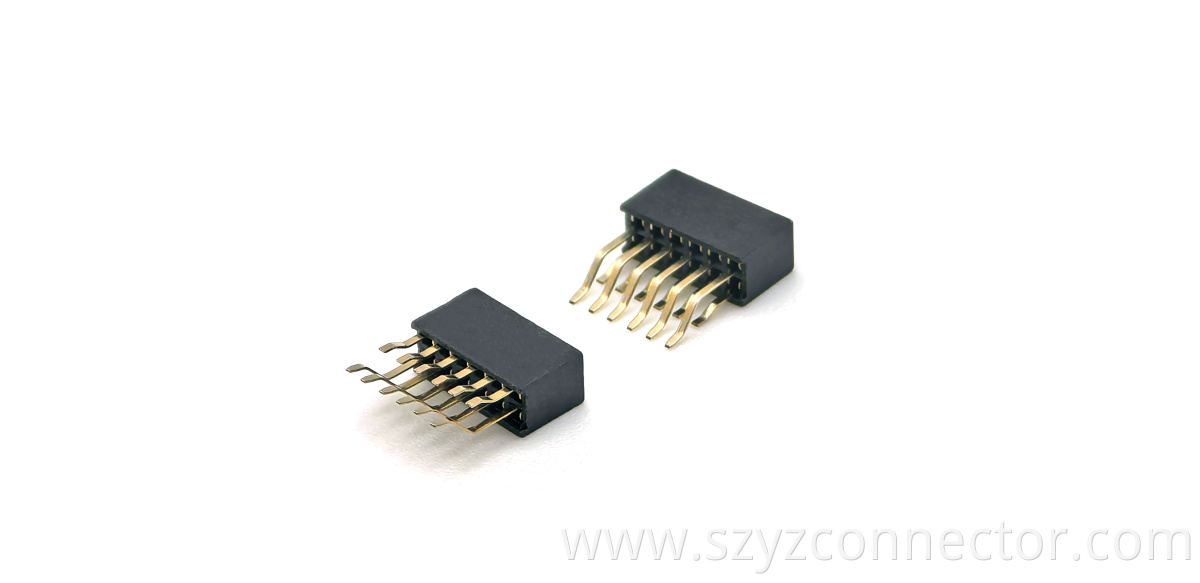

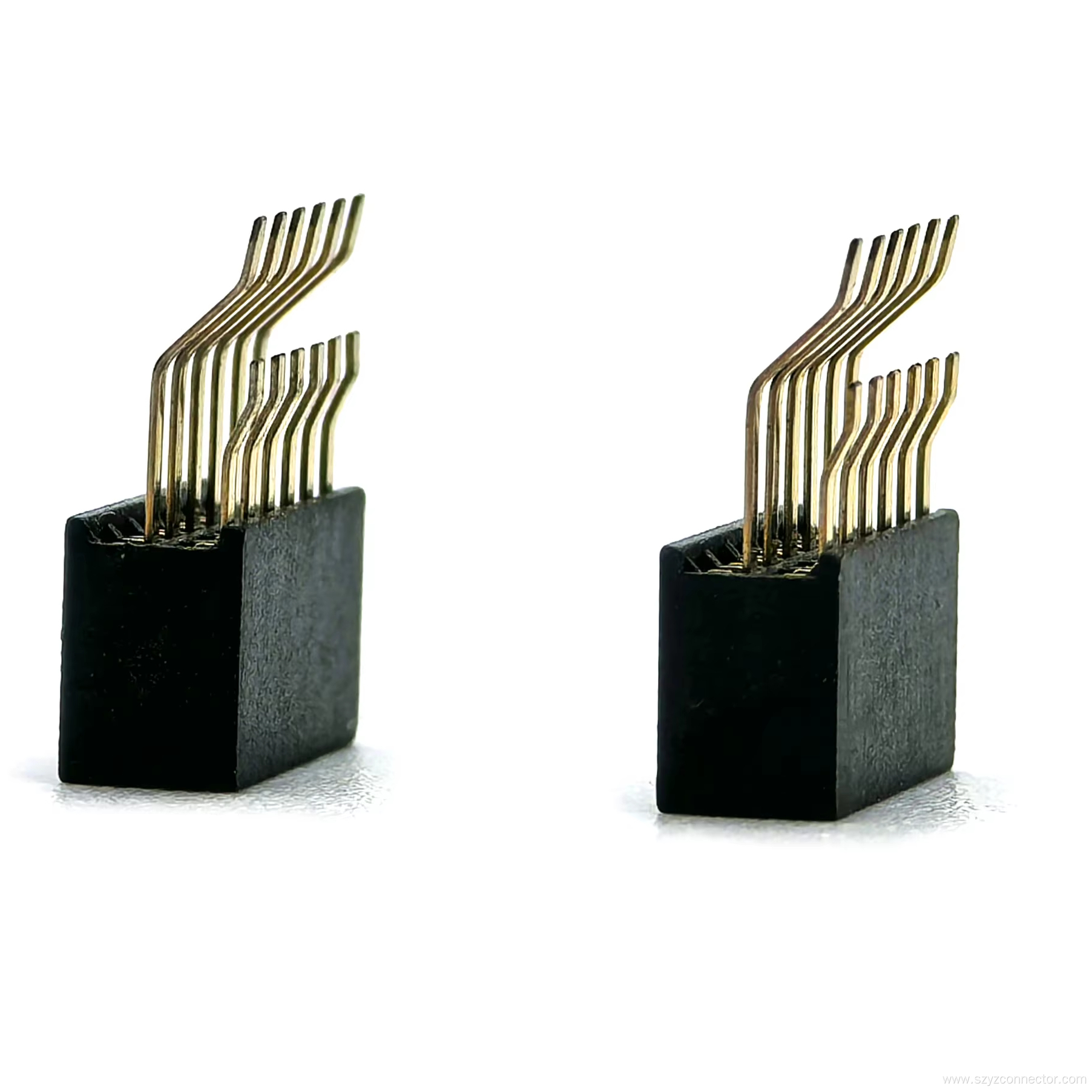

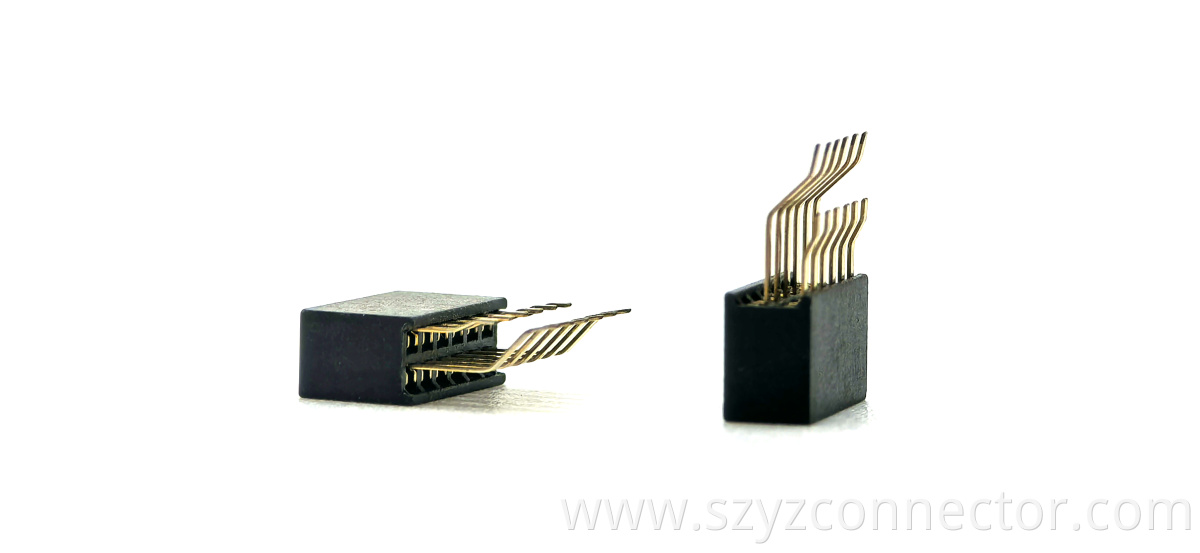

1.27mm Female header Dual Row Right Angle

YZTECH presents a 1.27mm pitch,dual-row right-angle Female Header engineered for space-constrained and high-density PCB applications.With 6 pins per row in a compact rectangular housing,this DIN-compliant connector enables reliable horizontal interconnection while maximizing board layout flexibility.The right-angle SMT mounting style allows low-profile integration,ideal for modern electronic devices where vertical space is limited.Built with a high-temperature PA6T insulator and precision brass contacts,the header ensures stable performance across an operating temperature range of -40°C to +105°C.Supplied in reel packaging,it supports efficient automated assembly and is compatible with reflow soldering up to 220°C for 10 seconds.



Engineered to deliver secure mating and consistent signal transmission, this female header connector supports a rated current of 1A and a rated voltage of 1000V, suitable for both signal and low-power power delivery applications. The gold-plated contact surfaces enhance conductivity and corrosion resistance, extending the connector’s lifecycle in challenging conditions.The PA6T housing offers high flame retardancy and mechanical strength.



This right-angle 1.27mm Female Header meets the interconnection needs of various advanced industries,including industrial automation,consumer electronics,automotive electronics, and precision instrumentation.Its low-profile design is particularly advantageous in applications such as IoT sensors,handheld scanners,embedded systems,and miniaturized power supplies.By enabling streamlined PCB routing and reduced interference in high-speed circuits,YZTECH’s connector supports next-generation electronic designs requiring durability and space efficiency.Available in reel packaging for pick-and-place automation,it ensures seamless integration into global manufacturing workflows,providing a trusted solution for engineers seeking high-density,high-reliability interconnects.
