2.54mm Pitch Female Header Bottom Entry 12P

2.54mm Pitch Female Header Bottom Entry 12P

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 0530113

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

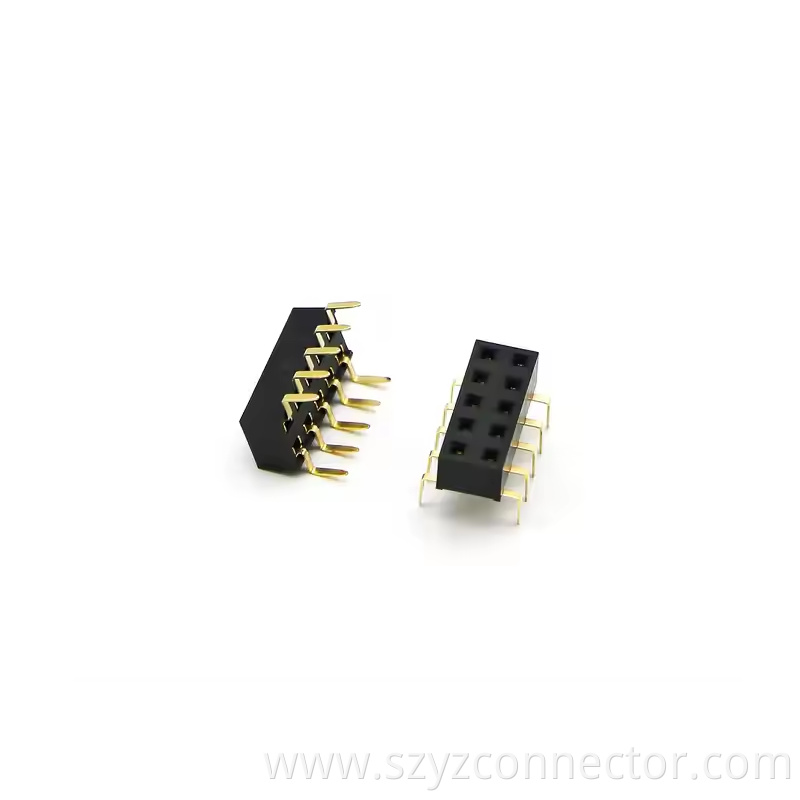

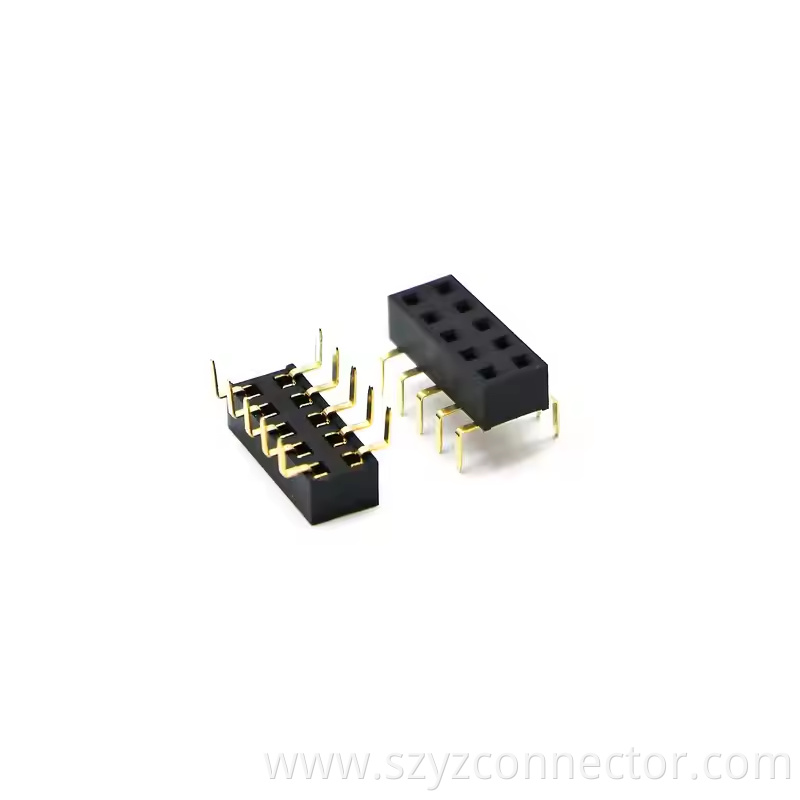

yztech’s 2.54mm Pitch Female Header Bottom Entry 12P is an innovative product designed to optimize internal wiring and enhance connection reliability in electronic devices. As a featured model in the 2.54 mm pitch female header series, its standard 2.54mm pitch and bottom-entry design precisely meet the application scenarios of PCB boards with compact spaces and complex wiring, standing out in the 2.54 mm header category for its unique installation method and stable performance.

This female header features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant PPS (UL94V - 0) insulation materials, stably carrying 3A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 15mΩ. The 12-pin configuration meets the demand for multi-signal transmission. The bottom-entry structure effectively avoids interference with components above the PCB board and can form a stable connection with female header and male female Pin Header. Additionally, it supports 2.54 right angle installation, further enhancing wiring flexibility. Customization services are available to adjust pin lengths and layouts according to project requirements. Widely used in small communication devices, smart wearable products, etc., certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering efficient and reliable solutions for complex electronic connection scenarios.
