Name: PH3.0mm Wafer Horizontal SMT Type Pin header Connector
Uploaded: 2025-08-16T01:03:31+08:00
Description: YZTECH PH3.0mm Wafer SMT Pin Header Connector 3P offers a compact, board-to-board interfacing solution engineered for

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Land,Air,Ocean,Express,Others

Contact Now

Product Description

Product Attributes

Model No.: 15036-5A3T-WAFER-SMT-TYPE-3P

Brand: YZTECH

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

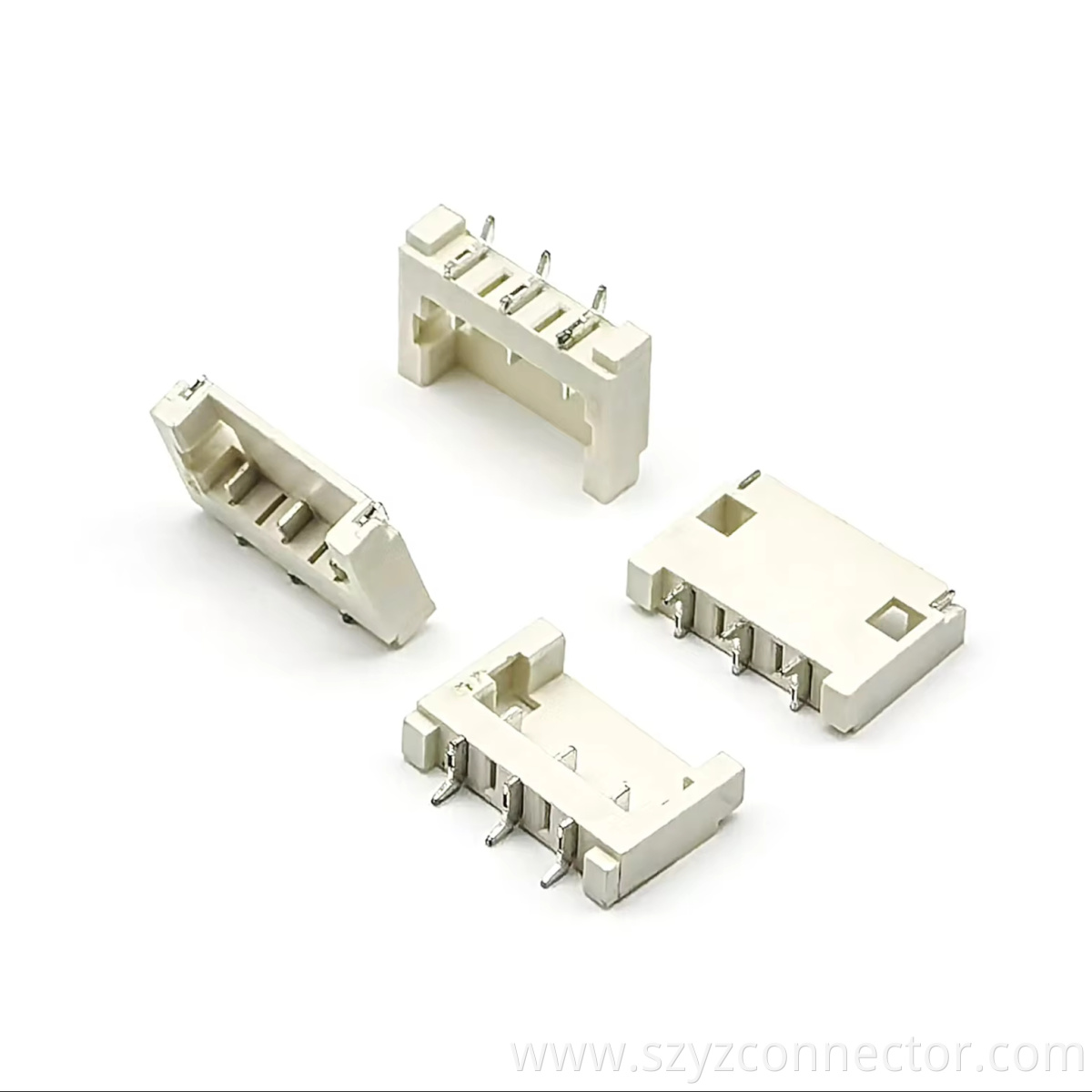

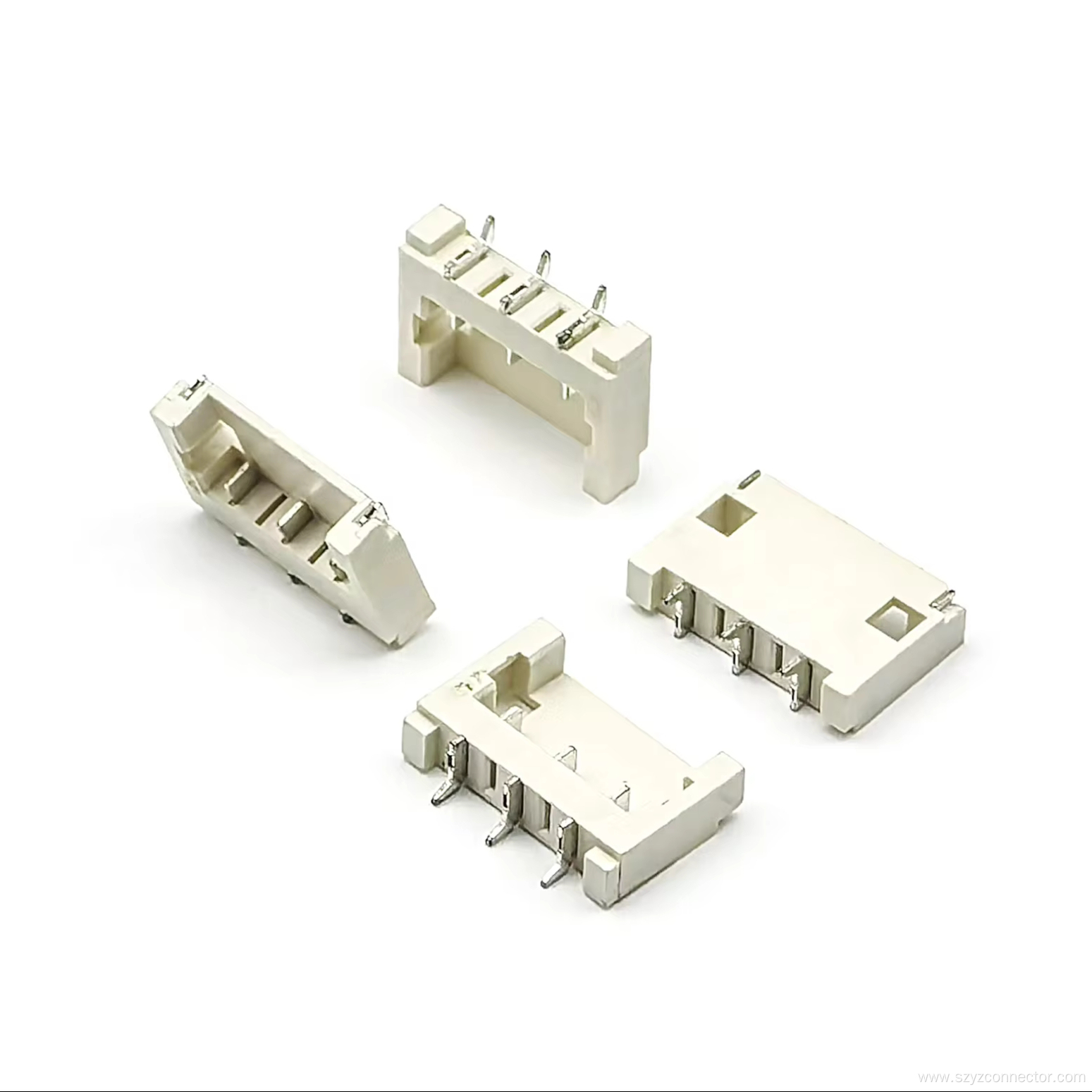

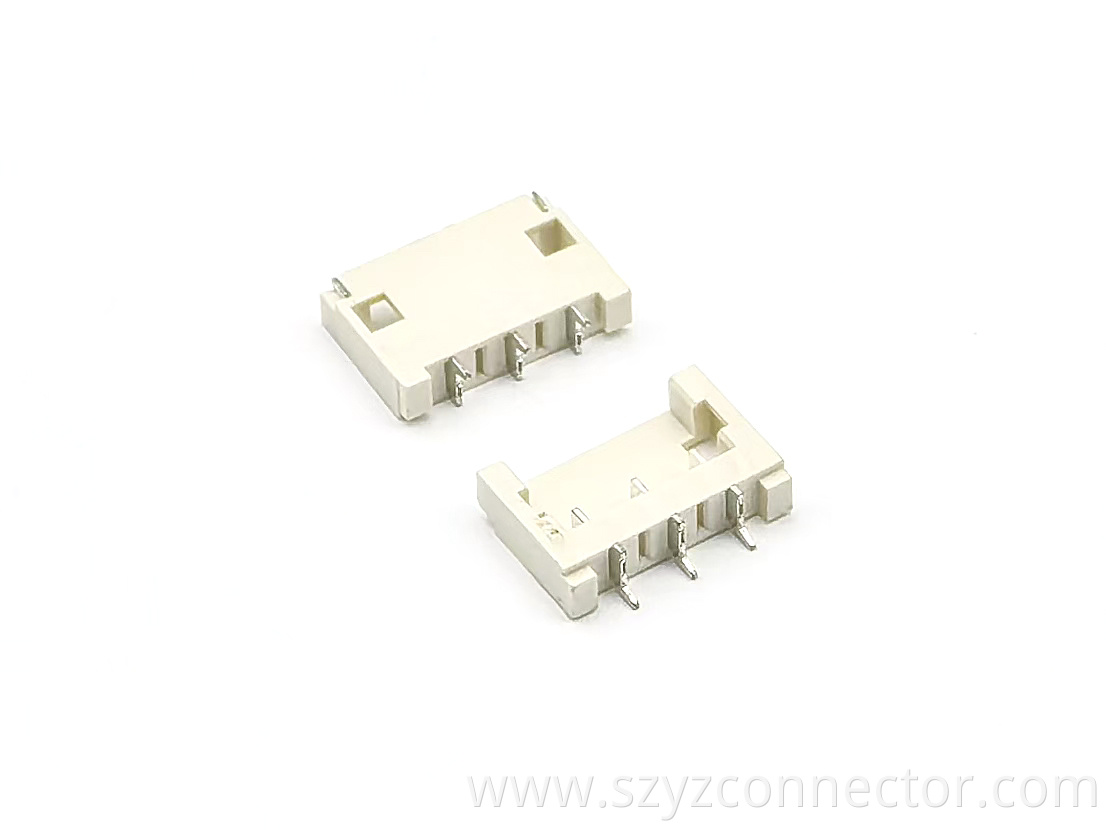

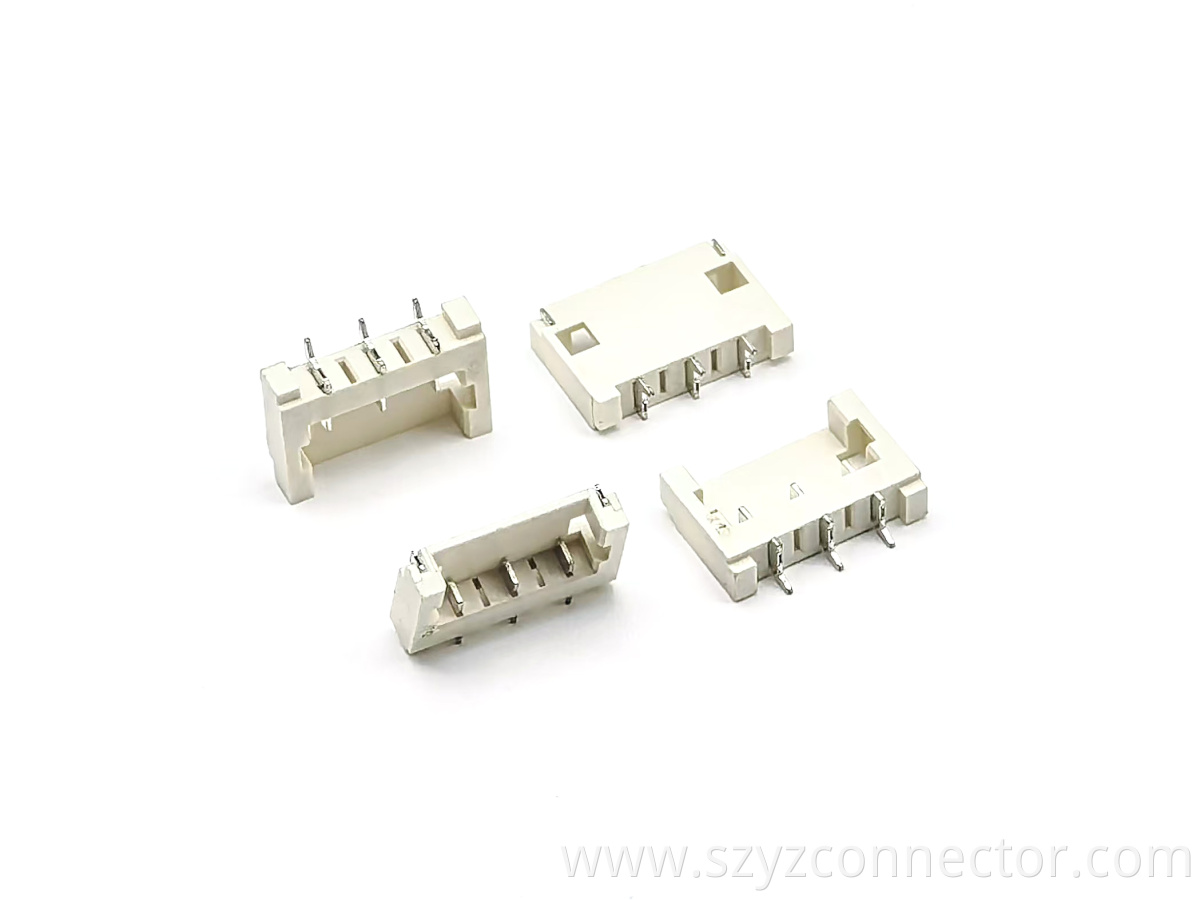

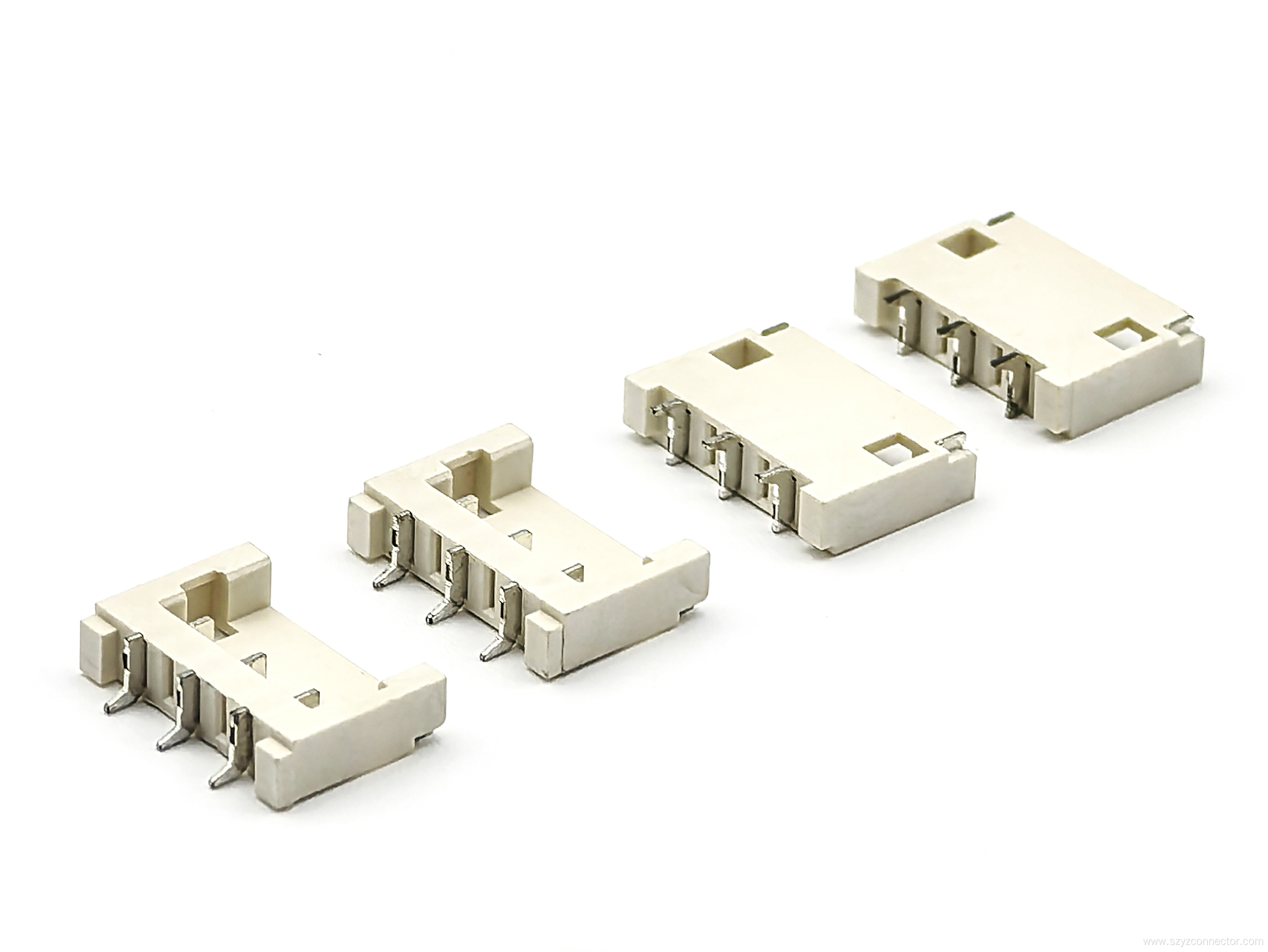

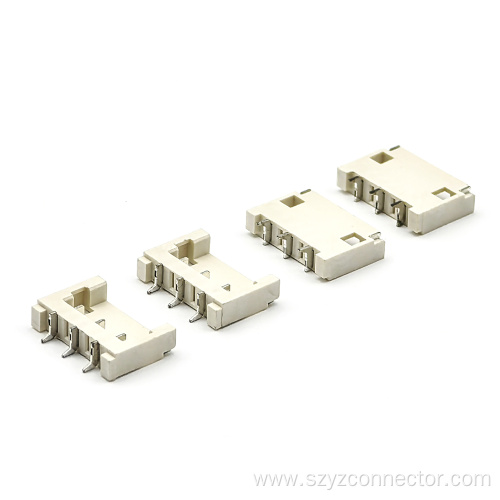

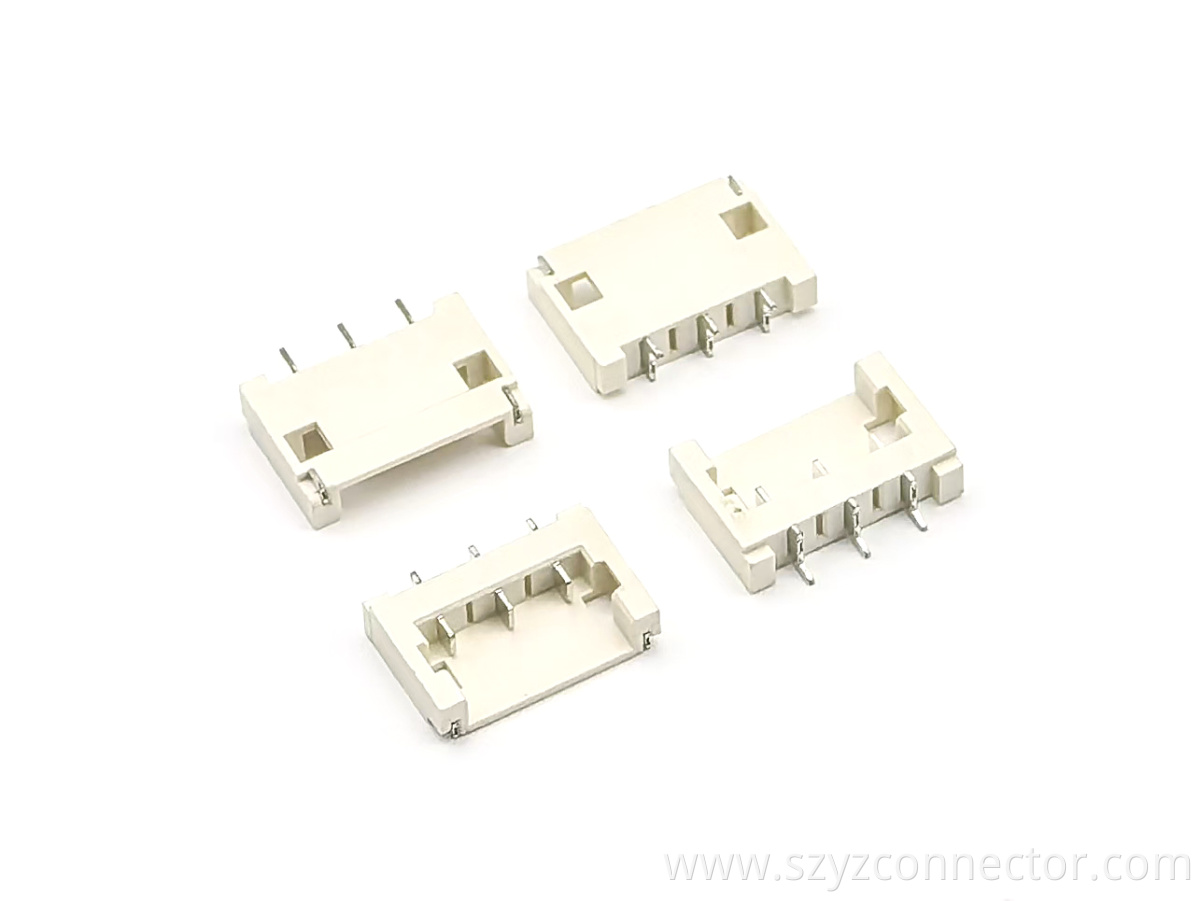

PH3.0mm Wafer Horizontal SMT Type Pin header Connector



Product Description

YZTECH PH3.0mm Wafer SMT pin header connector 3P offers a compact, board-to-board interfacing solution engineered for high-density PCB designs. Designed in compliance with DIN standards, this single-row male connector features a 3-pin configuration and a low-profile rectangle shape suitable for surface-mount installation. The robust PH3.0mm Wafer Housing Terminal ensures secure mounting and reliable solder joint integrity during reflow processes. Ideal for applications where space and weight are critical constraints.

Crafted from phosphor bronze with a tin-plated finish, the connector provide low resistance and stable conductivity under rated loads of 1A and 150V. The housing terminal maintains mechanical stability across an operating temperature range of -25°C to +85°C, making it a durable choice for commercial and light industrial environments. Delivered in reel packaging, this PH3.0mm wafer horizontal SMT type connector supports automated assembly processes, improving production efficiency and consistency.

This connector is widely used in consumer electronics, communication modules, and precision instrumentation. Its combination of material quality and streamlined design ensures signal integrity and mechanical endurance in compact devices. YZTECH’s wafer SMT type Pin Header meets international requirements for performance and compatibility, providing a reliable interconnect solution for global markets.
