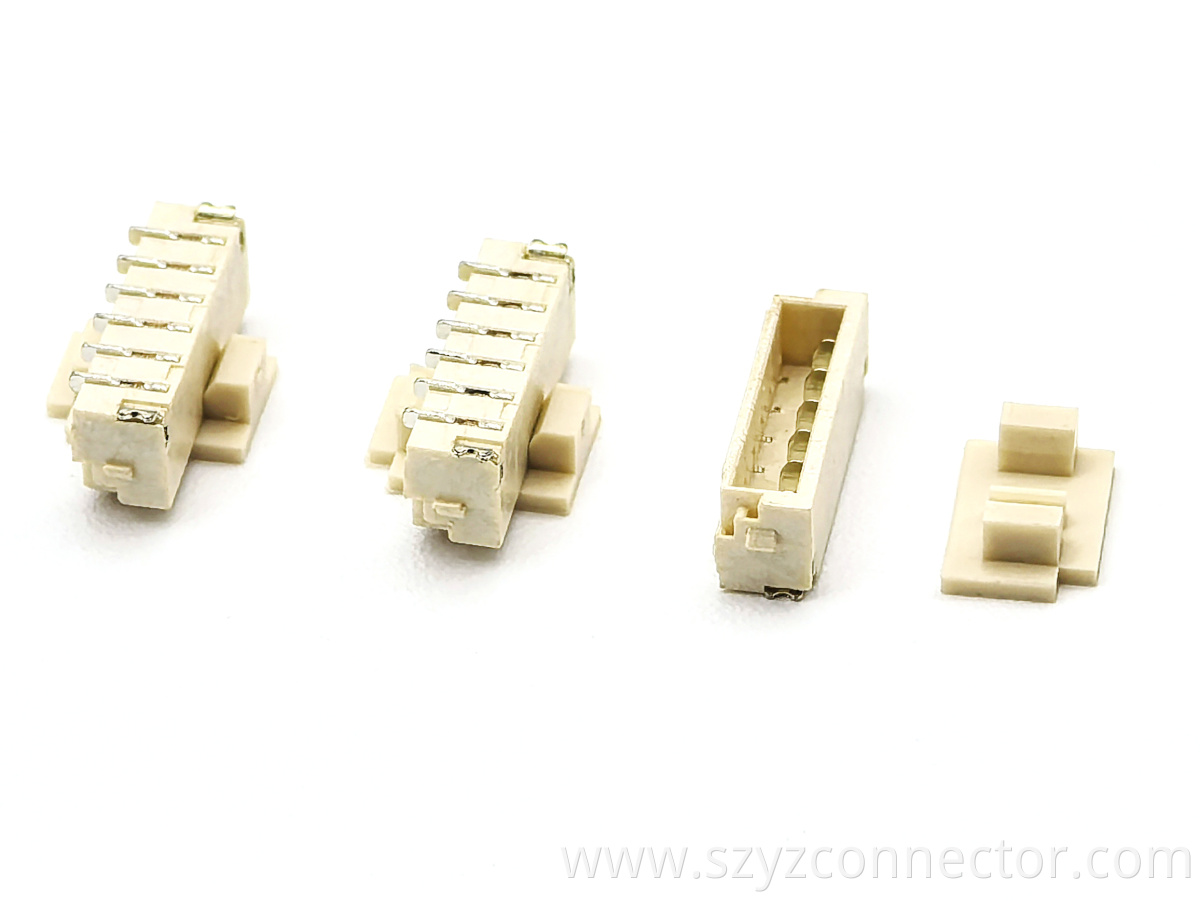

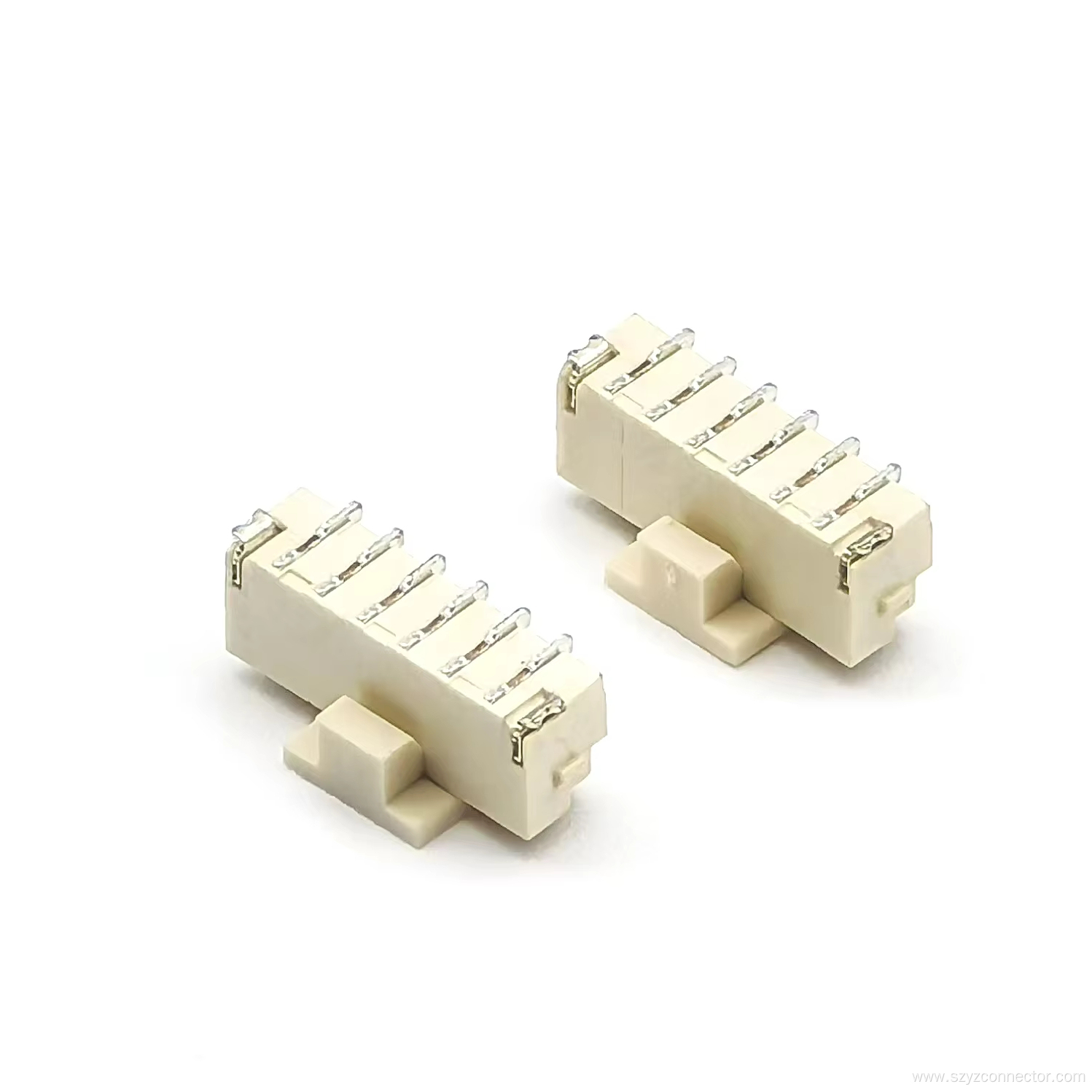

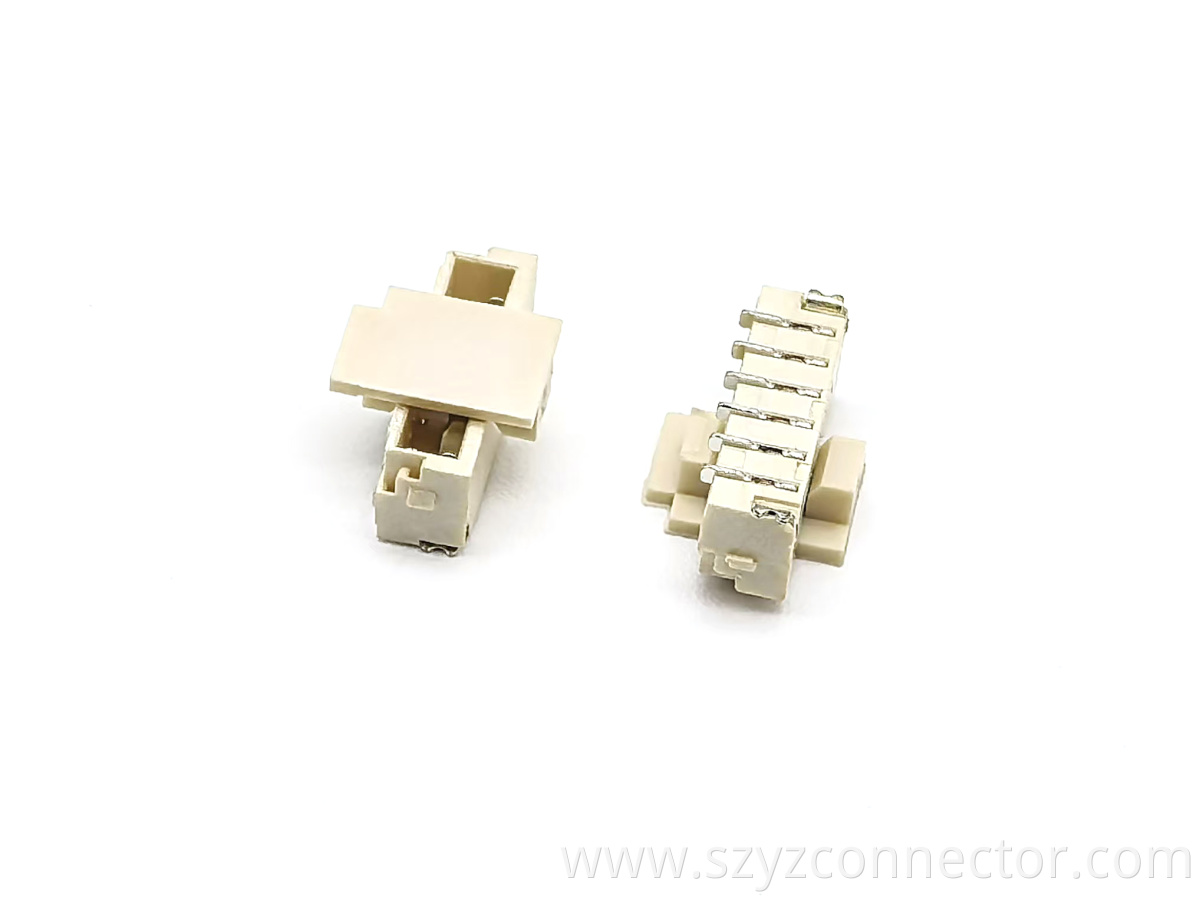

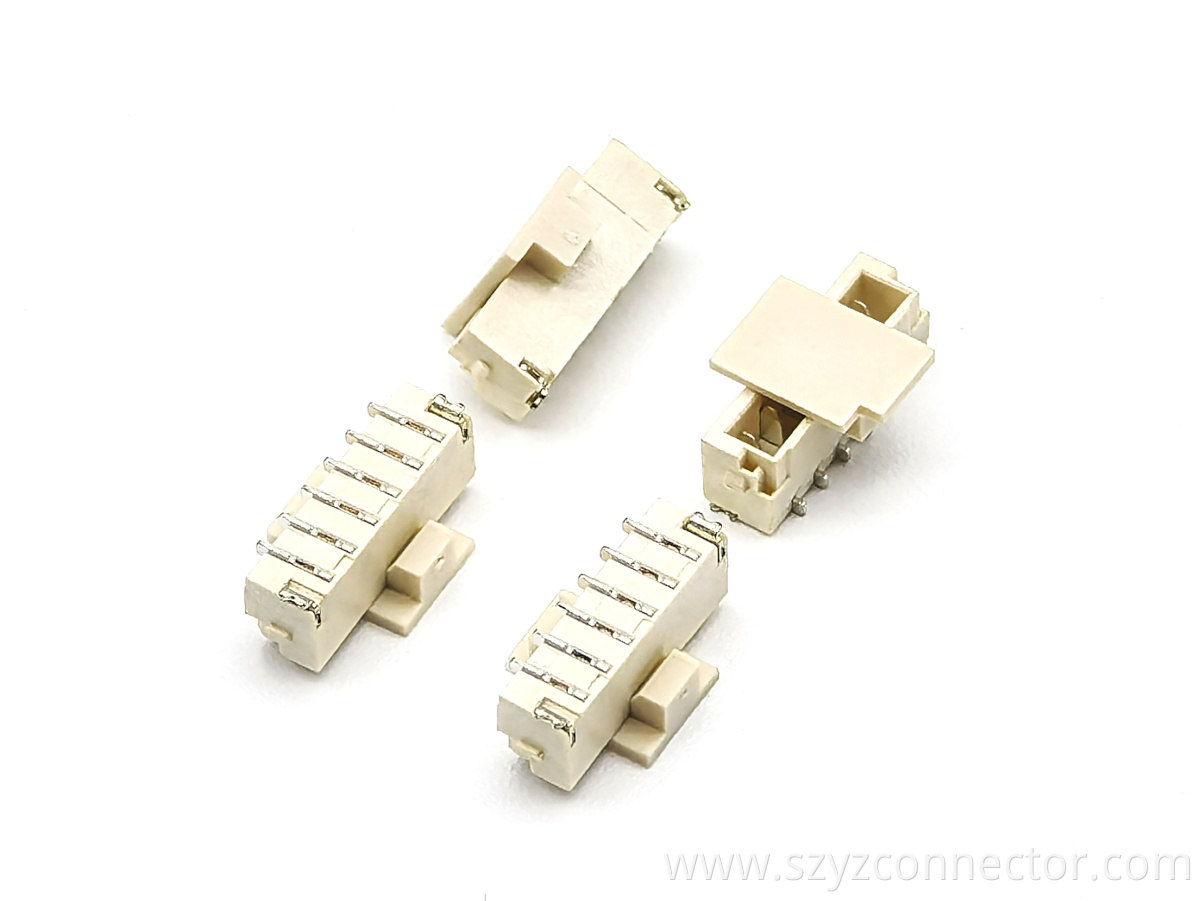

PH1.25mm Wafer SMT Type Pin header Connector

YZTECH's PH1.25mm Wafer SMT Type pin header connector is an ultra-compact, high-performance solution designed for modern PCB applications. This PH1.25mm wafer smt type component is engineered with a single-row, 6-position male configuration and a rectangular interface, ensuring reliable performance in space-constrained designs. Its DIN-standard compliance and reel packaging make it ideal for automated assembly processes, providing both efficiency and consistency.



Constructed from phosphor bronze with a tin-plated surface, the connector offers excellent conductivity and corrosion resistance, supporting a rated current of 1A and voltage up to 125V. The robust PH1.25mm Wafer Housing Terminal ensures secure connections and long-term durability. It operates reliably across a broad temperature range from -25°C to 85°C, making it suitable for use in challenging environments. The SMT termination style ensures stable mounting and strong solder joint integrity.



Ideal for consumer electronics, communication devices, and precision instruments, this Pin Header combines durability with streamlined manufacturability. The design is also compatible with the PH1.25mm wafer vertical SMT type for flexible layout options. Its global compatibility and adherence to international standards make it a versatile choice for diversified industrial and commercial applications.
