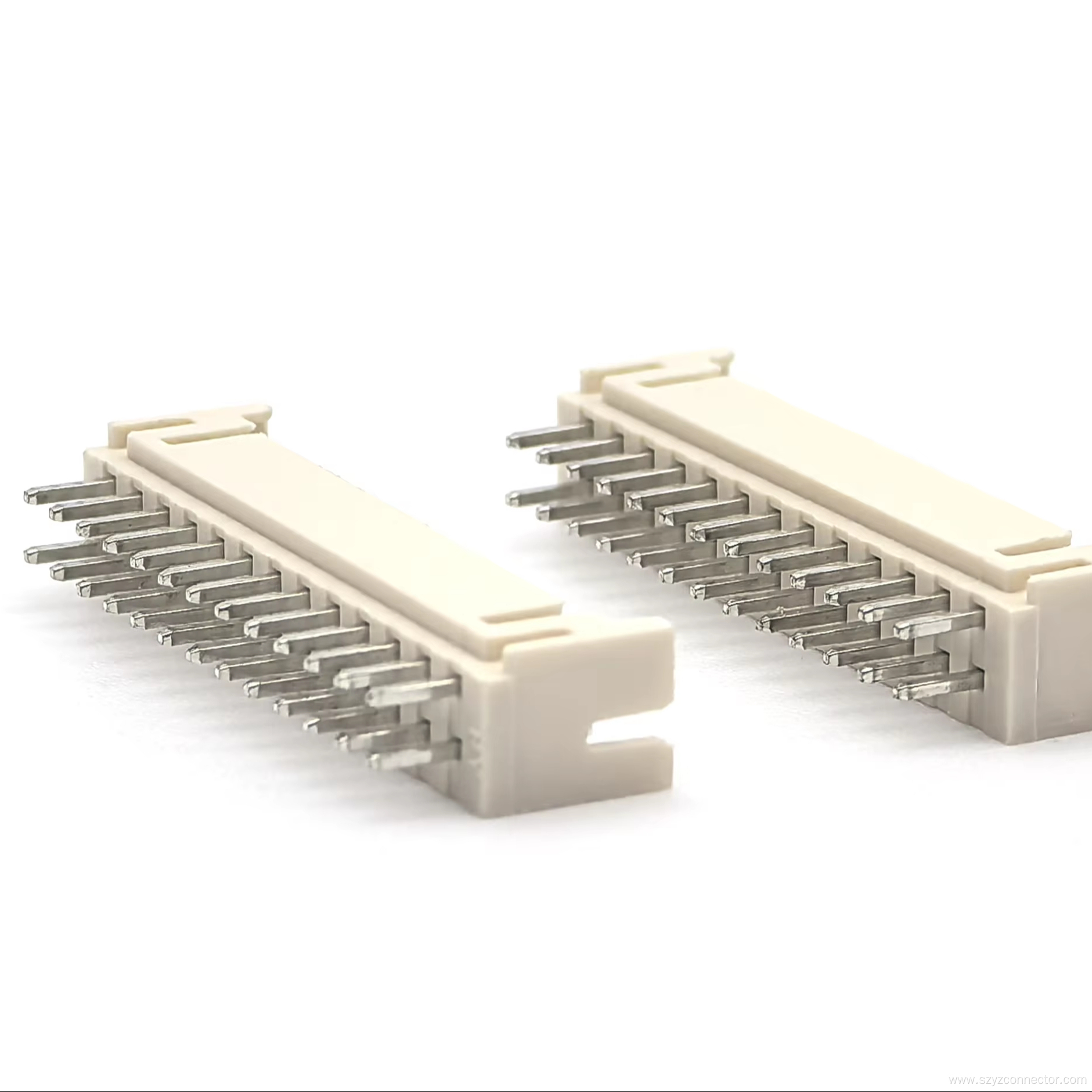

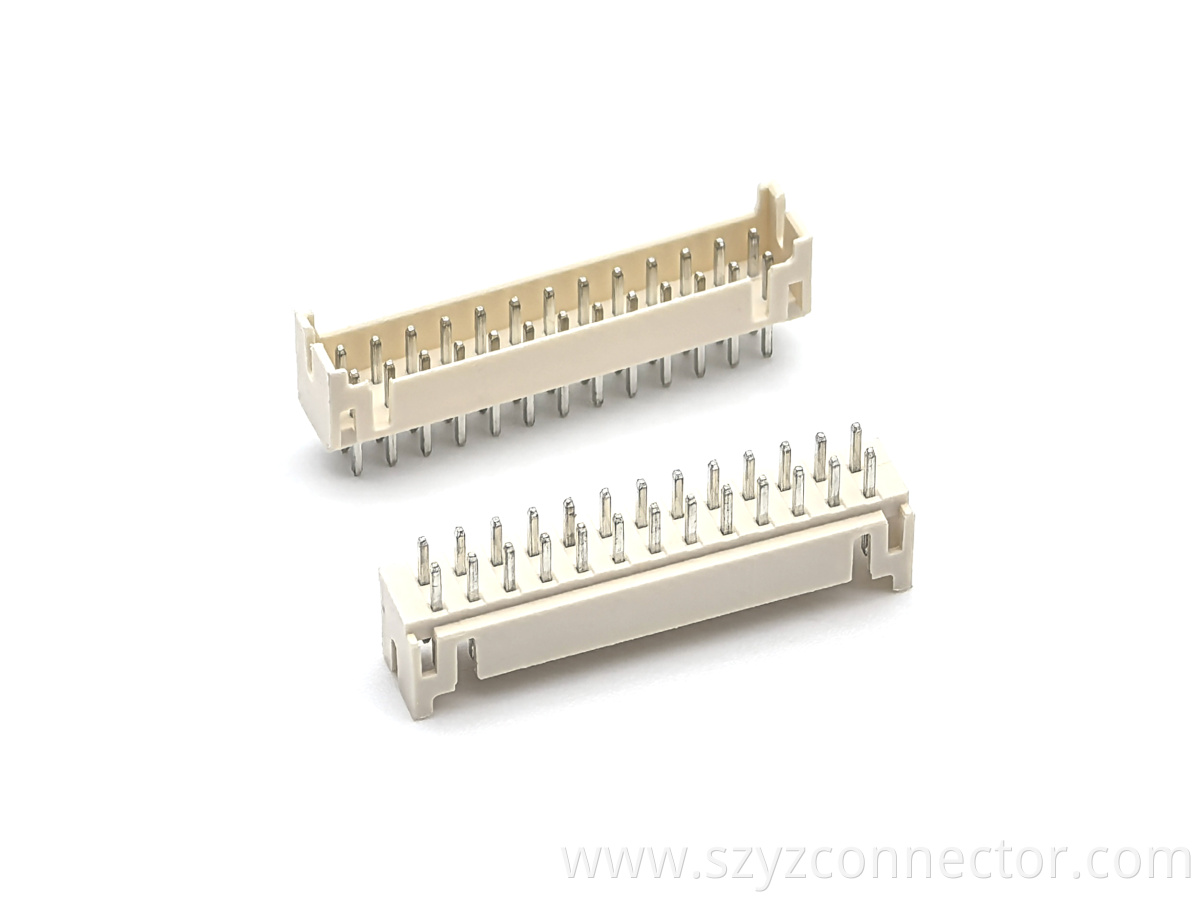

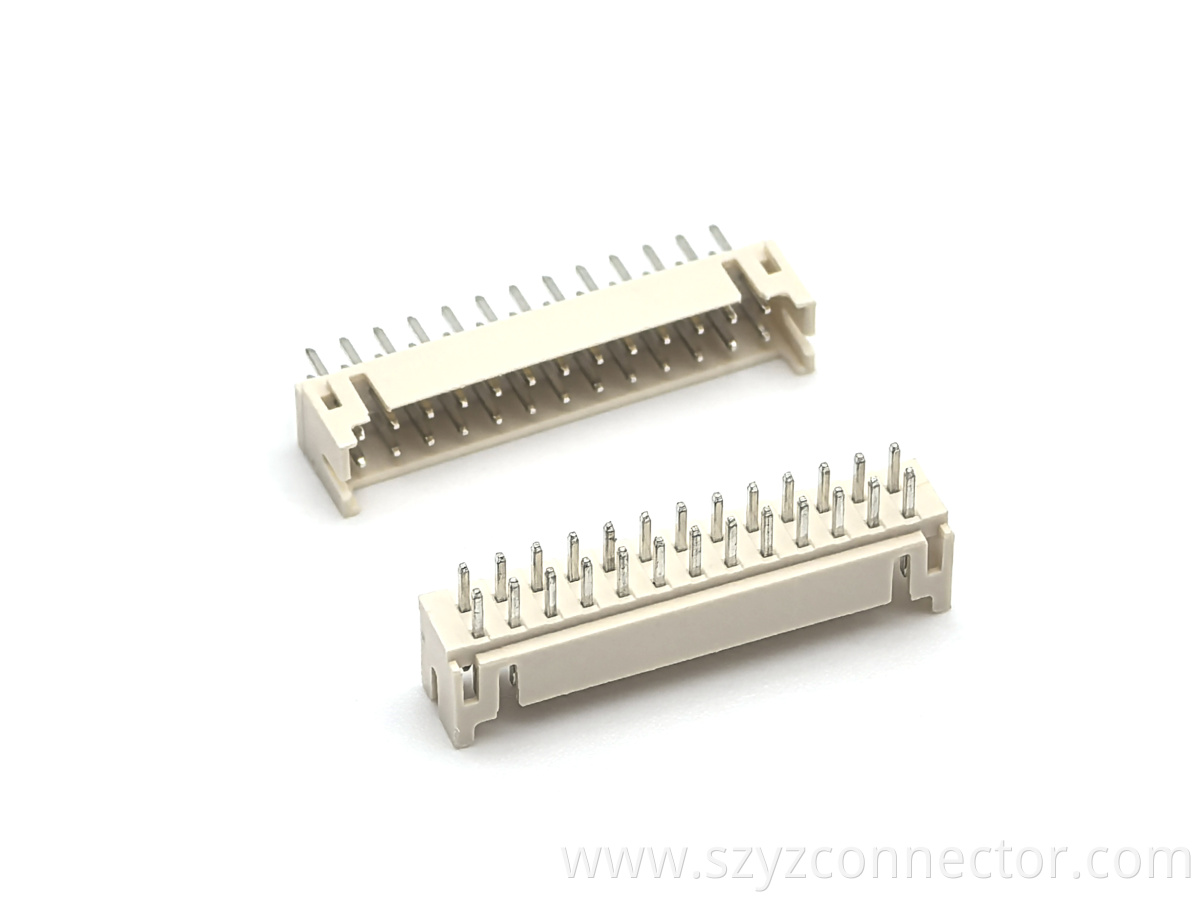

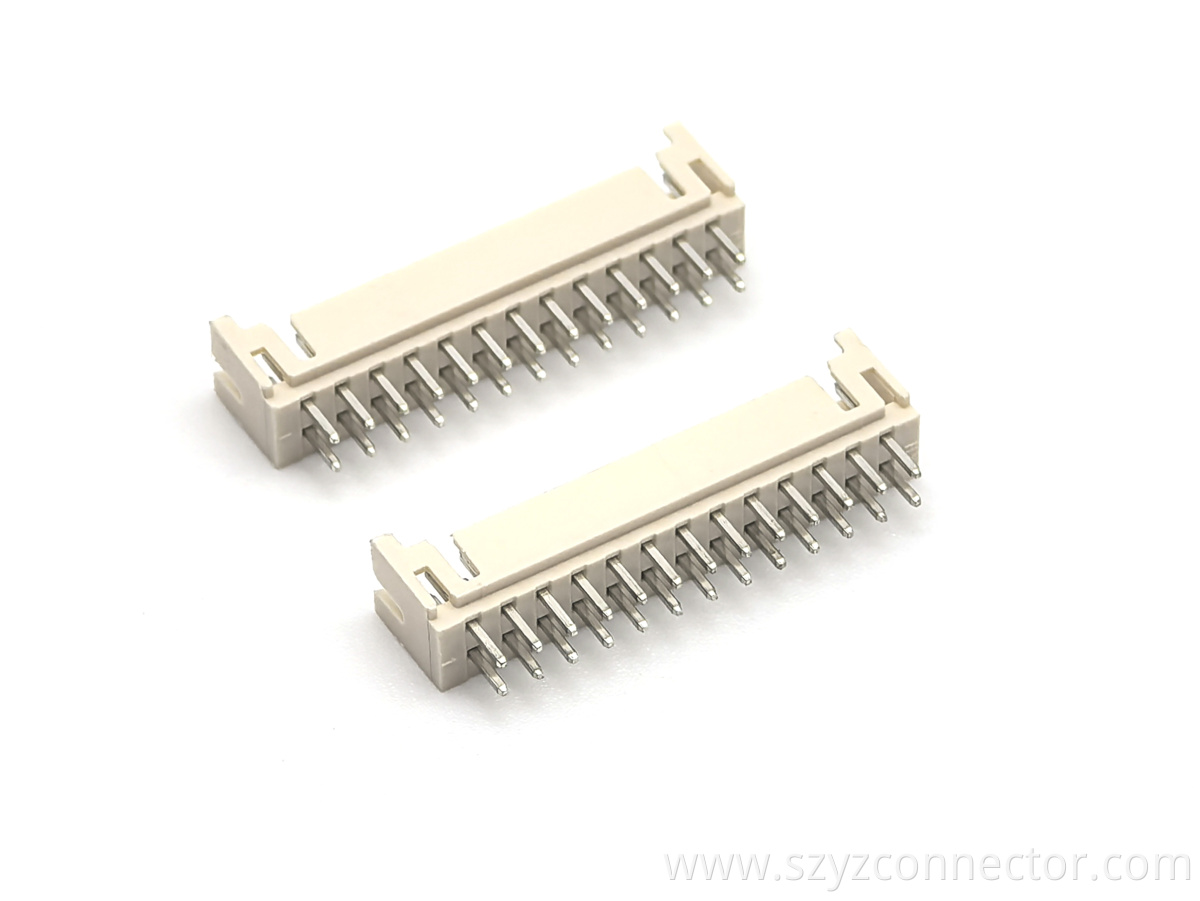

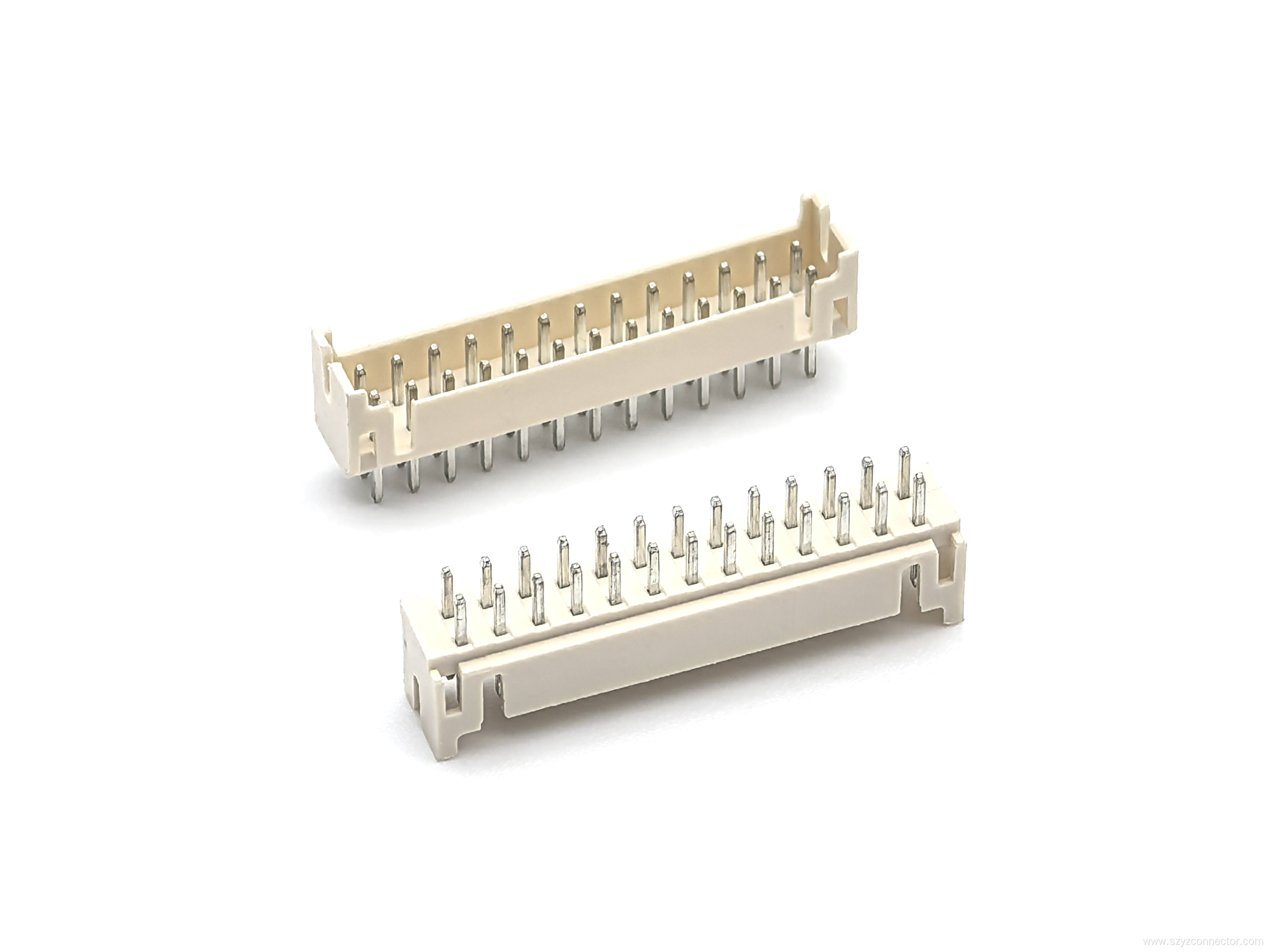

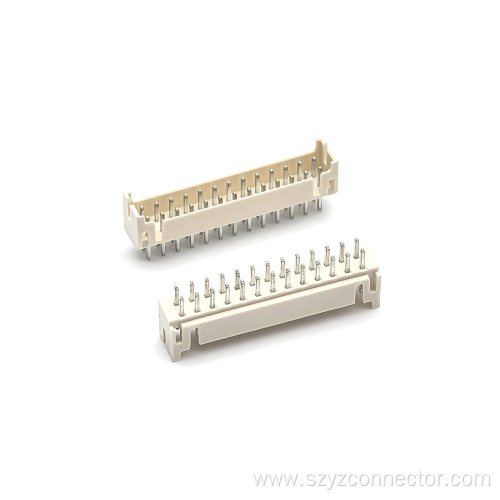

Wafer PHD2.0 Pin header Connector Straight DIP 2*13P



Product Description

YZTECH Wafer PHD2.0 pin header connector is engineered for reliable PCB integration in a wide range of industrial and electronic applications，belonging to wafer housing terminals. Designed with a straight plug configuration and dual-row layout featuring 13 pins per row, this male header connector ensures accurate and secure connections. Its rectangular shape and straight pin design make it ideal for vertical mounting, saving space while improving structural stability. The Pin Header connector complies with DIN standards, guaranteeing broad compatibility and consistent performance across various devices.

Constructed with a copper contact material and finished with tin plating, the connector offers excellent conductivity, corrosion resistance, and long-term durability. It is rated for currents up to 3A and voltages up to 250V, making it suitable for low-power control systems, signal transmission, and power supply circuits. The operating temperature range of -25°C to +85°C ensures stable performance even in challenging environments. This robust construction makes it a dependable choice for automation equipment, communication devices, and consumer electronics.

This product comes in convenient bag packaging, providing practical handling and storage for both prototyping and volume production. Its straightforward dip soldering design simplifies PCB assembly, reducing installation time and cost. Whether used in industrial machinery, IoT applications, or electronic control modules, the YZTECH PHD2.0 pin header delivers a blend of versatility, safety, and efficiency, meeting global standards for quality and reliability.
