SH1.0mm Wafer SMT TYPE Pin header

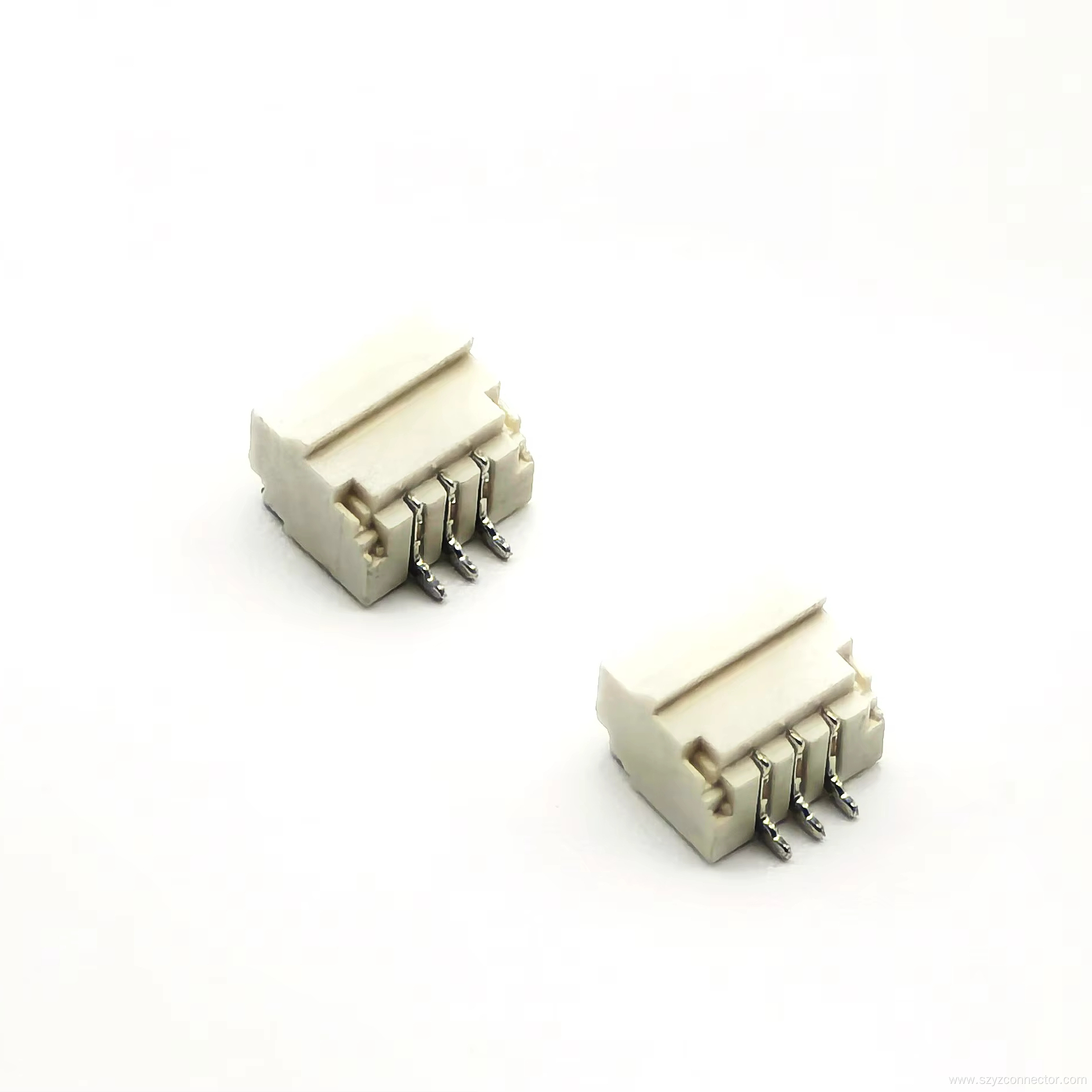

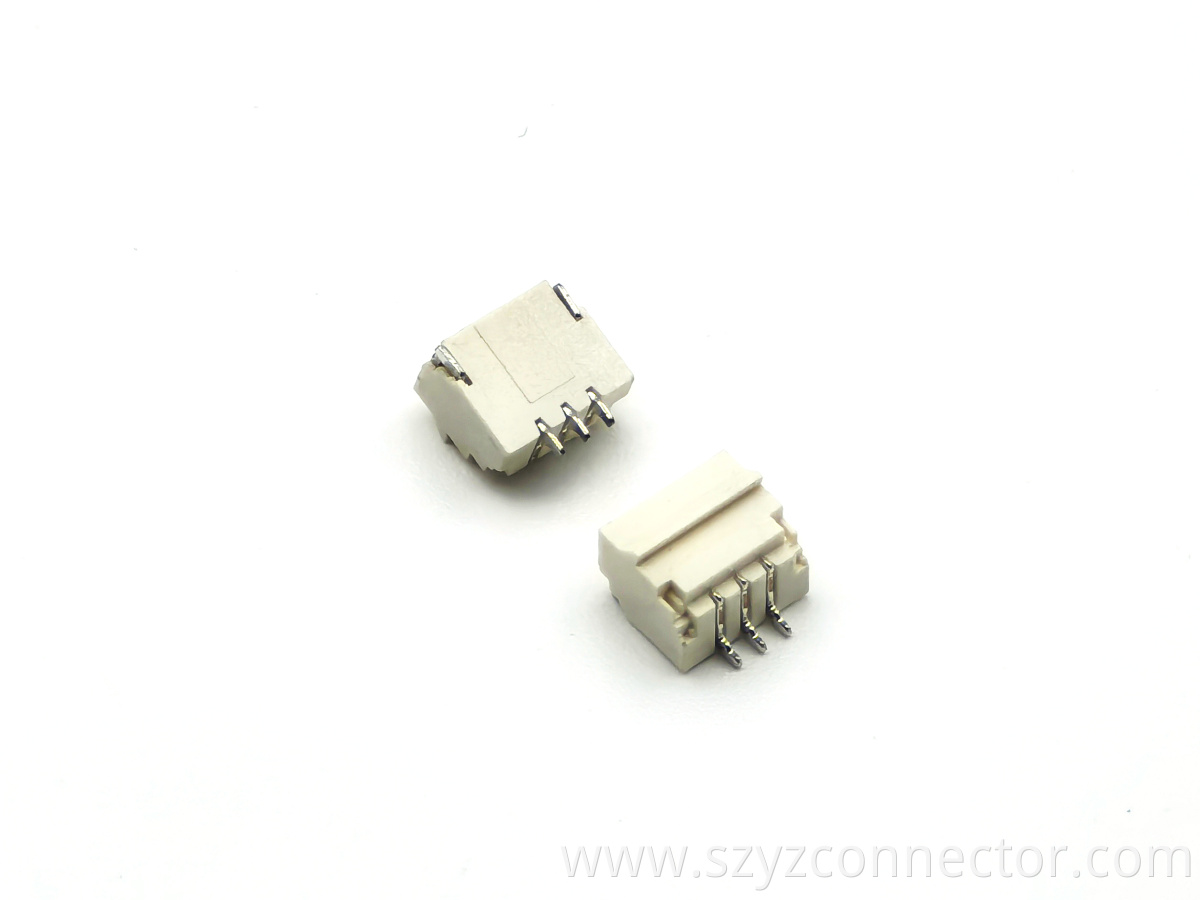

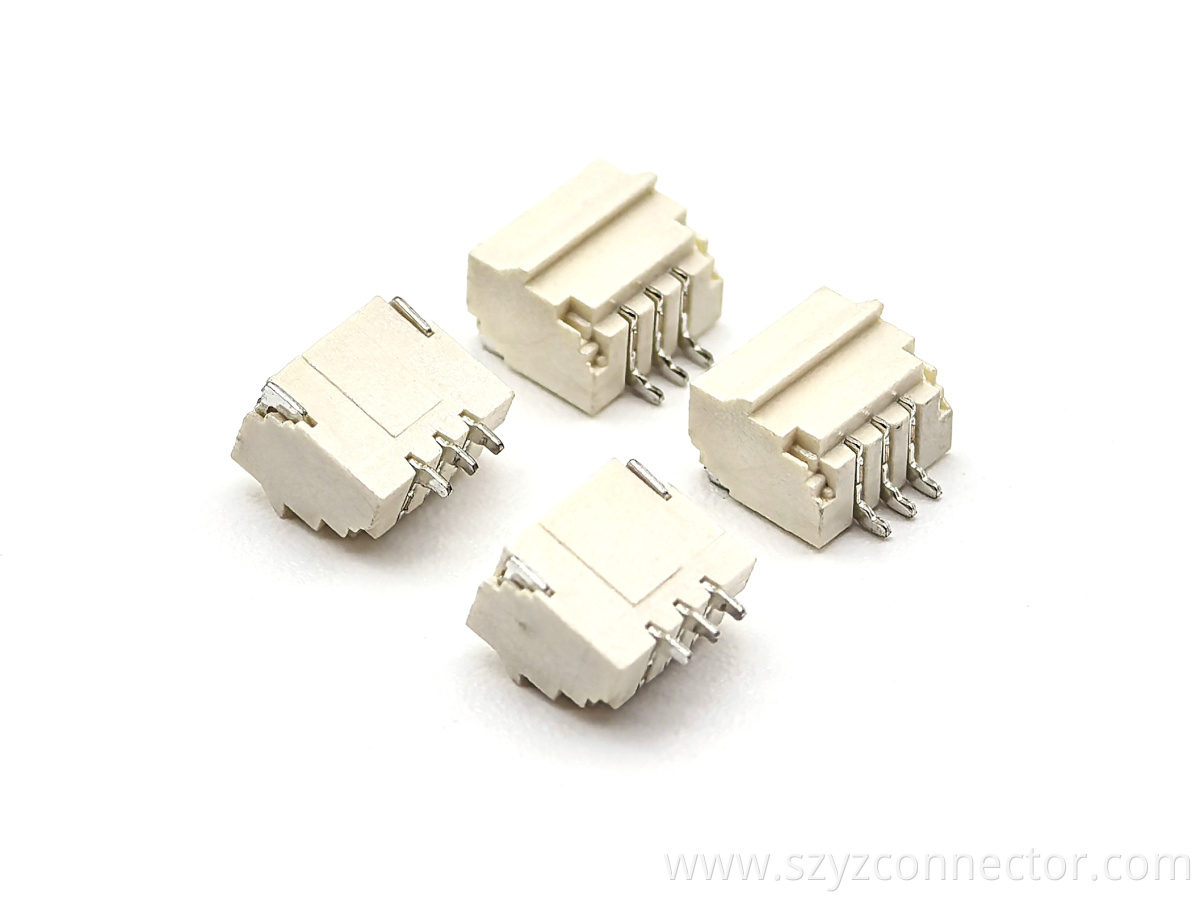

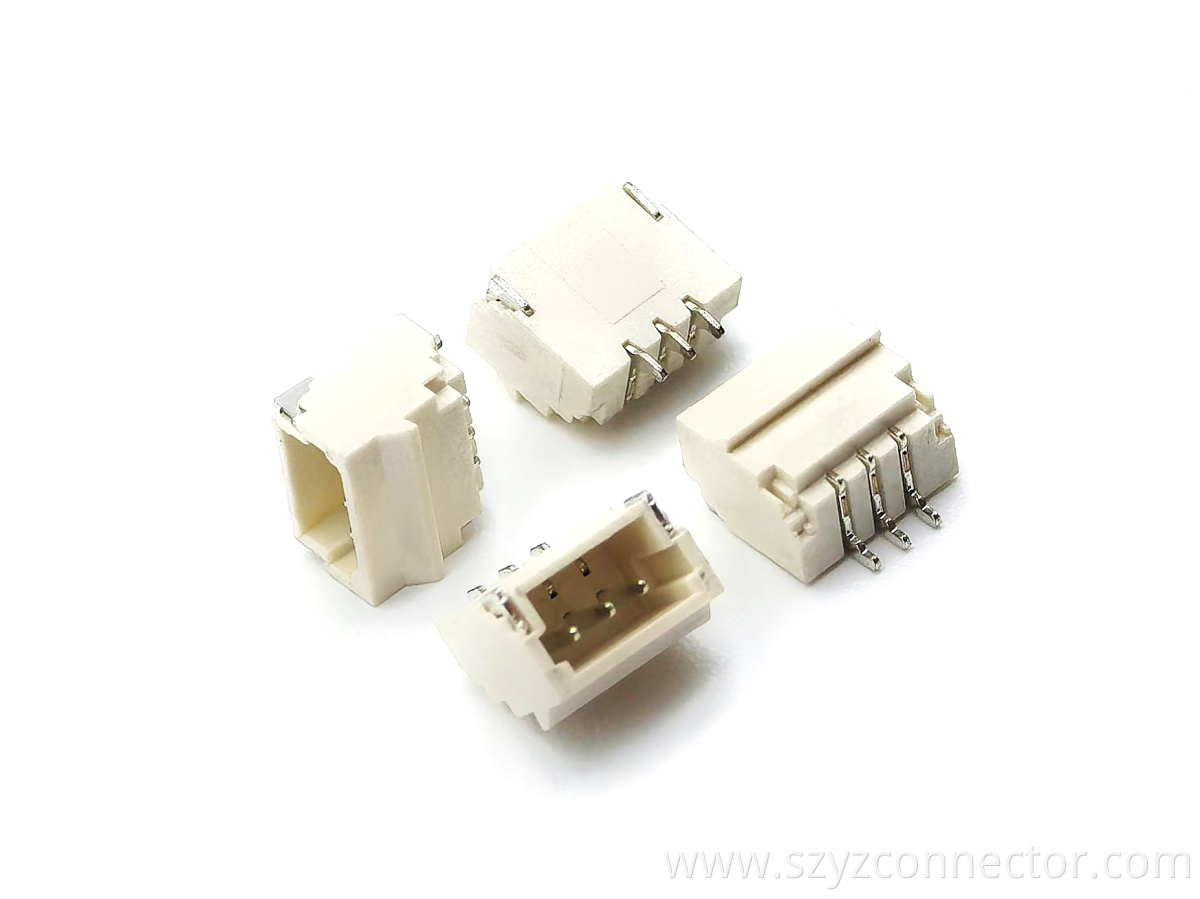

The YZTECH SH1.0mm Wafer SMT TYPE Pin Header is a miniature connector specifically designed for high-density electronic assembly,belonging to Wafer Housing Terminal. With its compact single-row, three-pin structure and rectangular shape, it serves as an ideal choice for PCB integration. Featuring male-pin design, this header connector can be securely paired with corresponding female sockets, providing reliable connections for various electronic devices.



In terms of materials and craftsmanship, this pin header connector demonstrates exceptional technical standards. The pin header are made of highly conductive phosphor bronze as the contact material, ensuring efficient signal transmission with low loss while offering excellent wear and corrosion resistance. The tin-plated surface not only enhances solderability for convenient SMT mounting but also further improves oxidation resistance. The insulator is made of LCP, which features high-temperature resistance, dimensional stability, and high mechanical strength, ensuring stable operation within an environmental range of -25℃ to +85℃. With rated performance specifications of 1A current and 50V voltage, it is widely applicable to various medium- and low-power scenarios.



This connector exhibits broad applicability across multiple industries. Packaged in tubular form, it facilitates production, transportation, and storage, fully ensuring product quality and supporting the continuous development of electronic devices towards thinner, lighter, and higher-performance directions.
