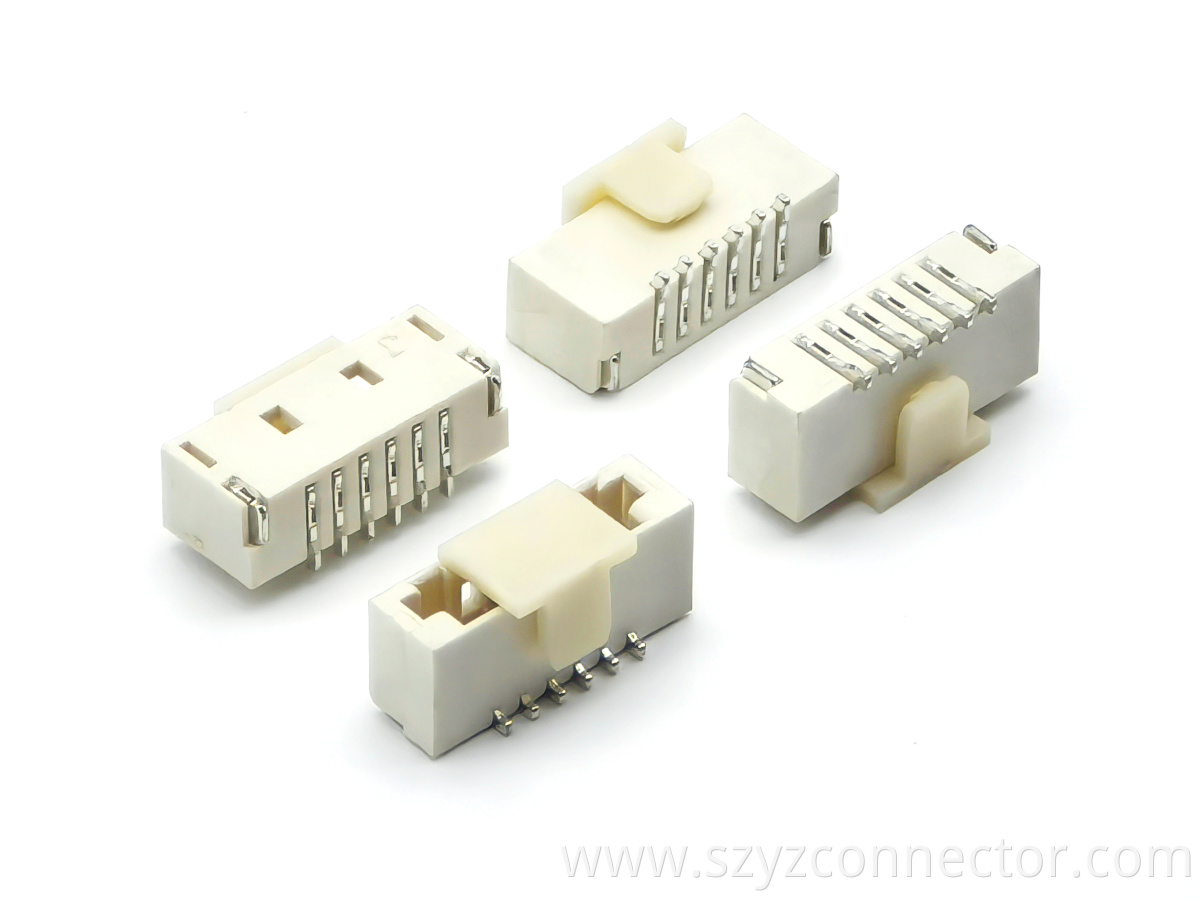

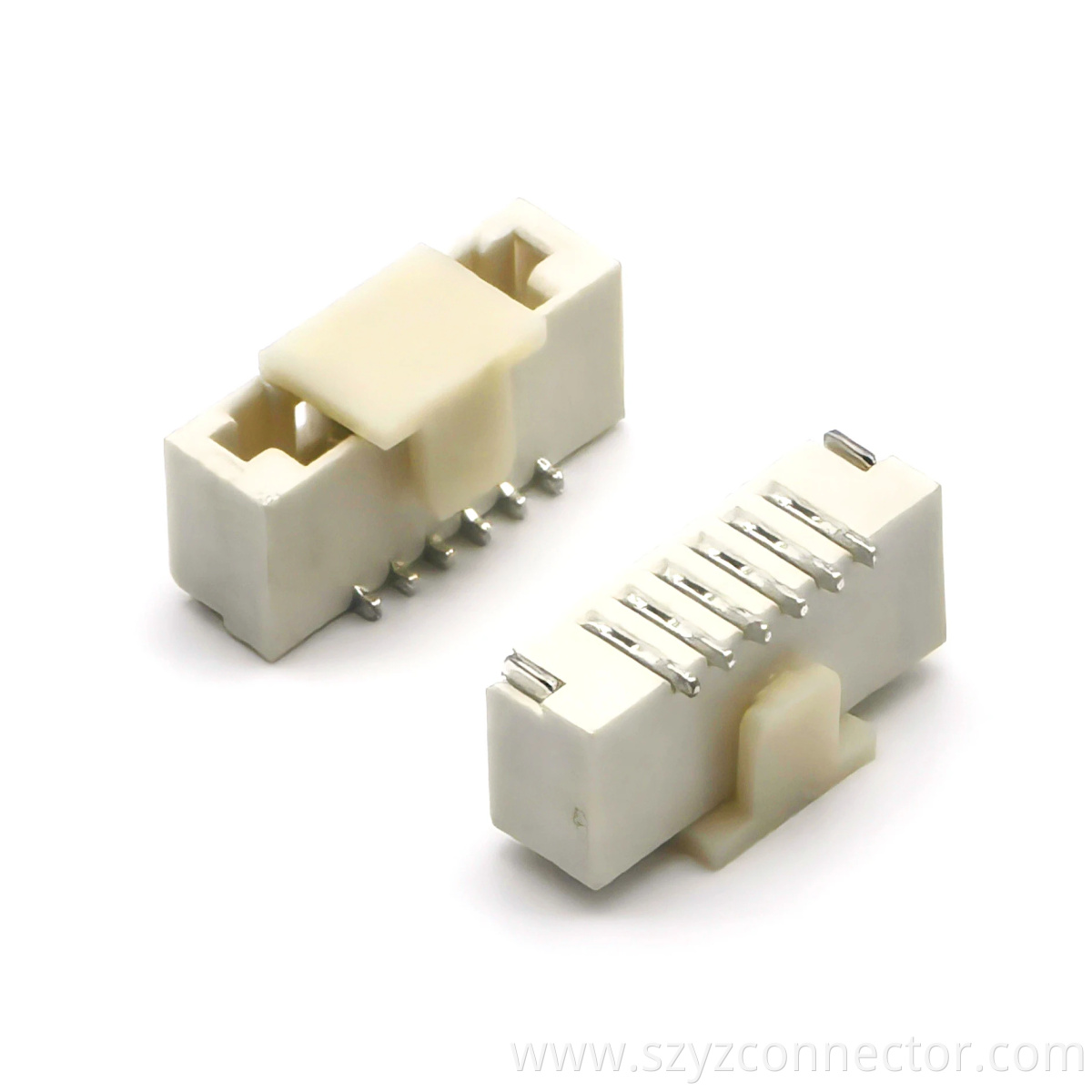

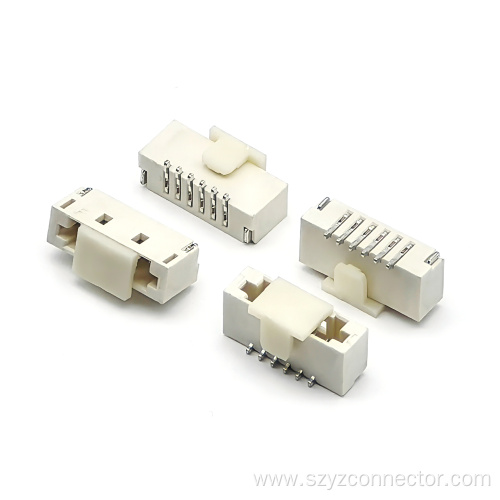

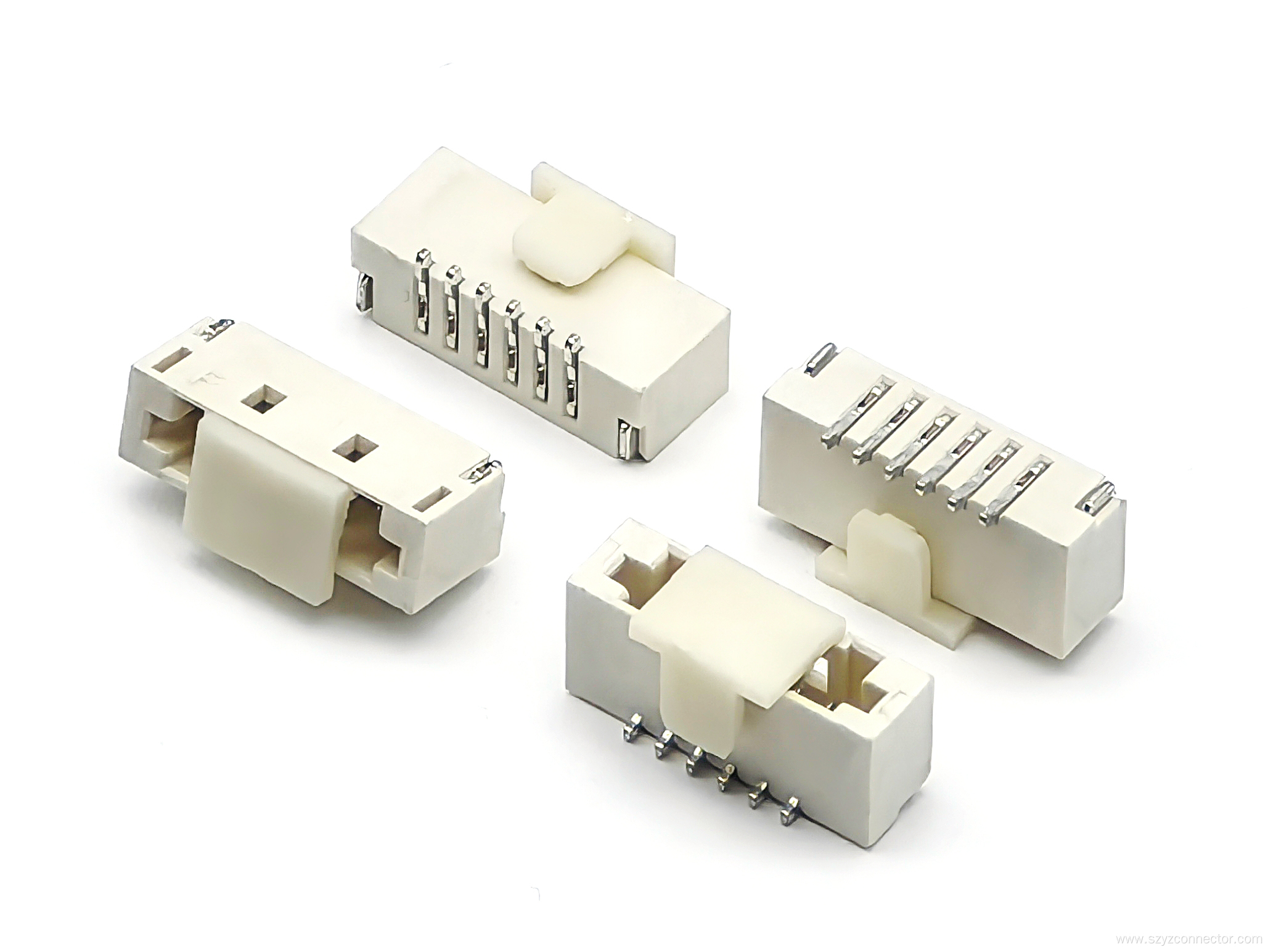

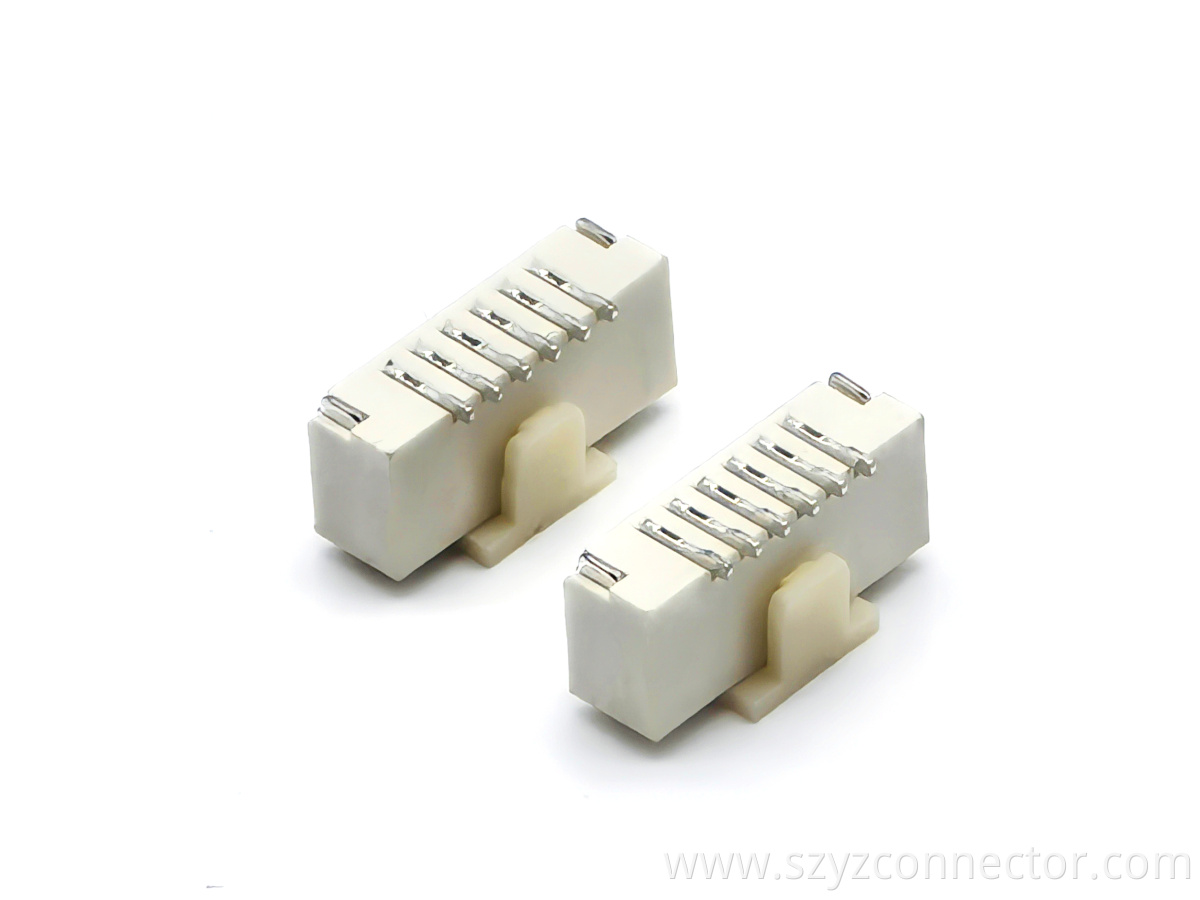

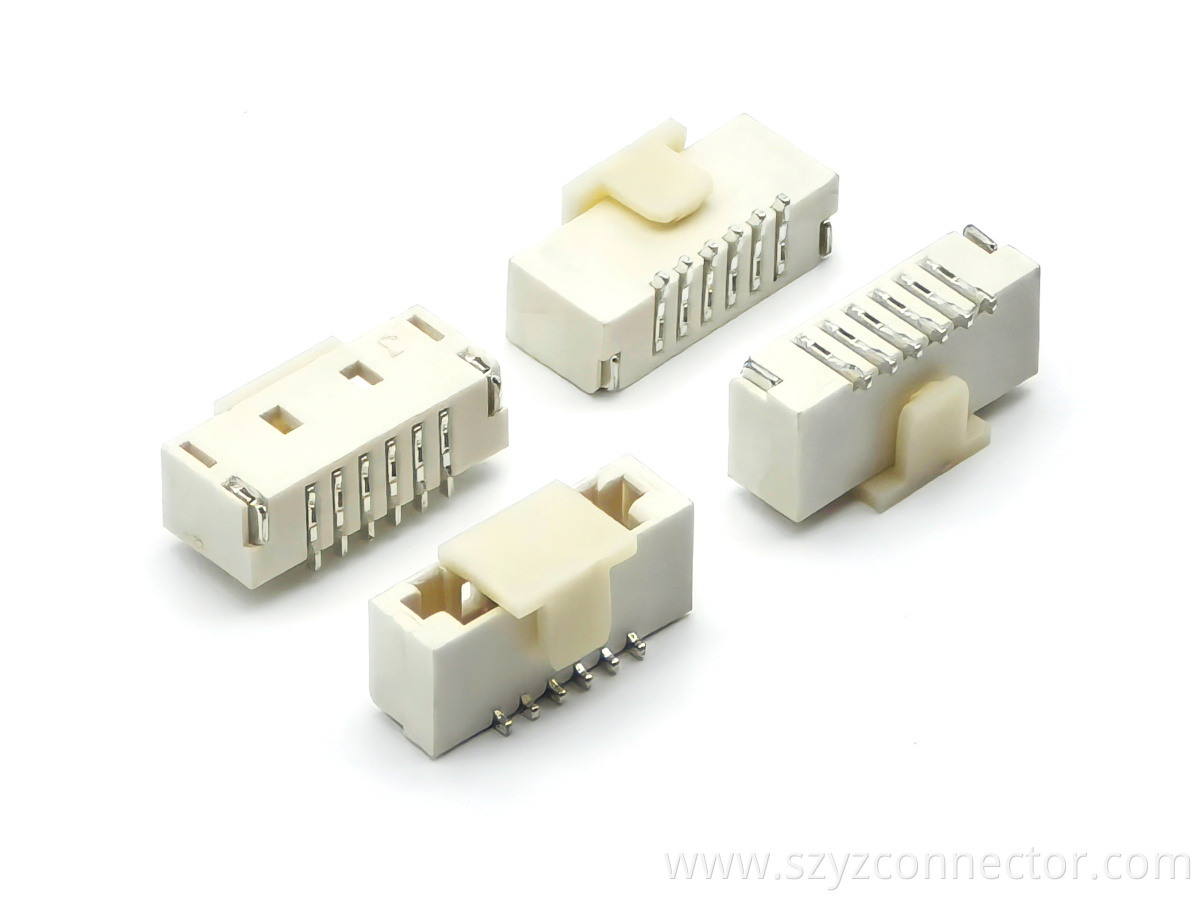

Wafer SMT Type Pin header Connector

YZTECH’s Wafer Vertical SMT Type pin header connector redefines space-efficient PCB integration with its 1A/50V-rated, single-row 6P configuration. Engineered for SMT assembly, this DIN-standard male header connector features a durable bronze contact system plated with tin for optimal conductivity and corrosion resistance.Its vertical orientation maximizes board-to-board spacing in consumer electronics, IoT devices, and industrial controls. Unlike traditional designs, this connector balances compactness with robustness, supporting high-speed SMT processes without compromising electrical integrity.



Built with LCP colloidal material, this wafer Pin Header outperforms standard plastics in thermal management and mechanical durability. The bronze contacts provide reliable 1A current handling at 50V, suitable for low-power signal transmission in precision instruments and wearable devices. Tin-plated surfaces ensure consistent performance across extended mating cycles, while the -25℃ to +85℃ operating range accommodates diverse environmental conditions.This connector’s single-row layout adheres to DIN specifications, enabling global compatibility with standardized PCB footprints.



The tube packaging minimizes shipping volume and environmental impact,aligning with sustainable sourcing trends.For cross-border trade,the connector’s universal DIN compatibility reduces design-in time for OEMs.By emphasizing non-proprietary specifications and multilingual accessibility,this detail empowers international procurement teams to make informed decisions, positioning YZTECH as a trusted supplier in competitive markets.
