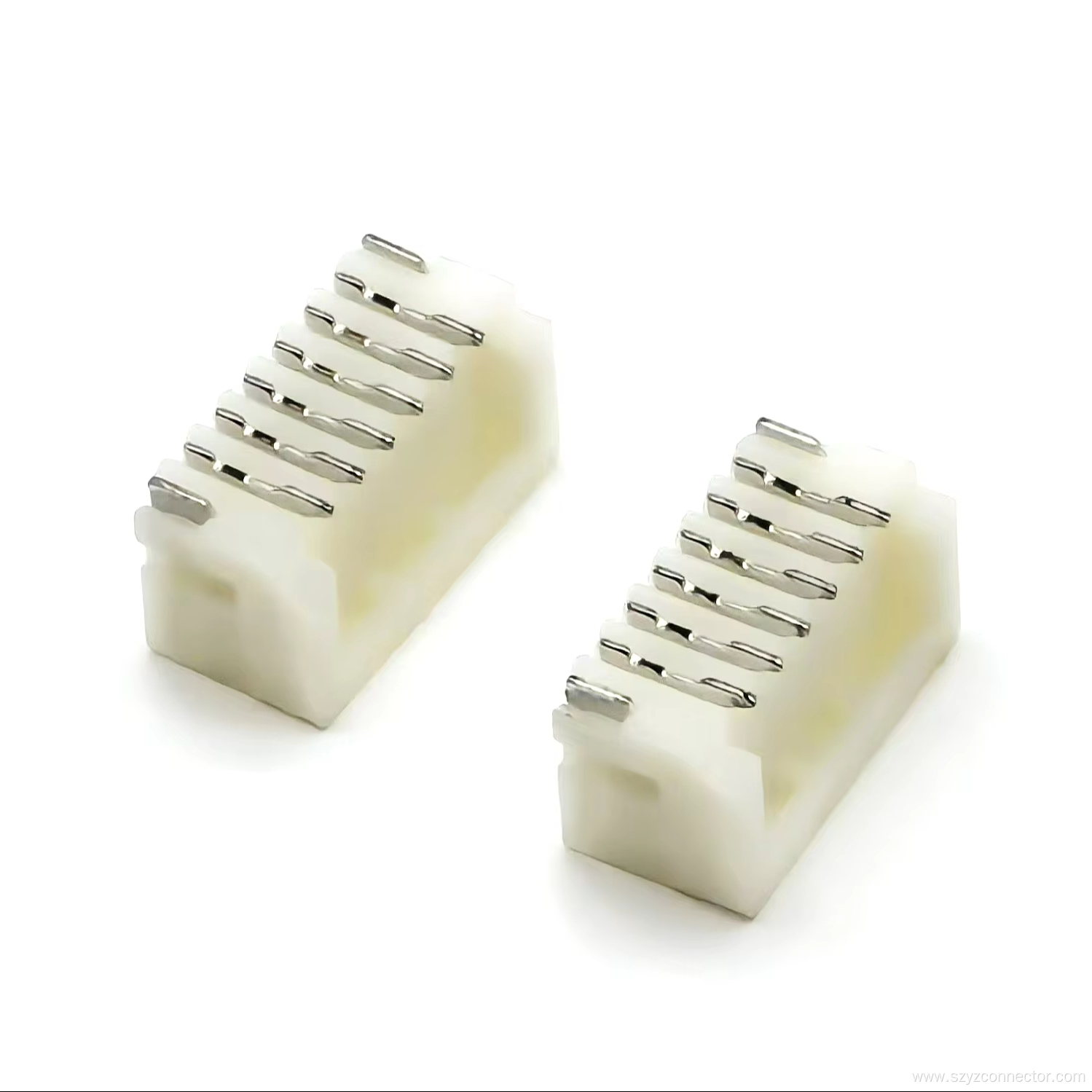

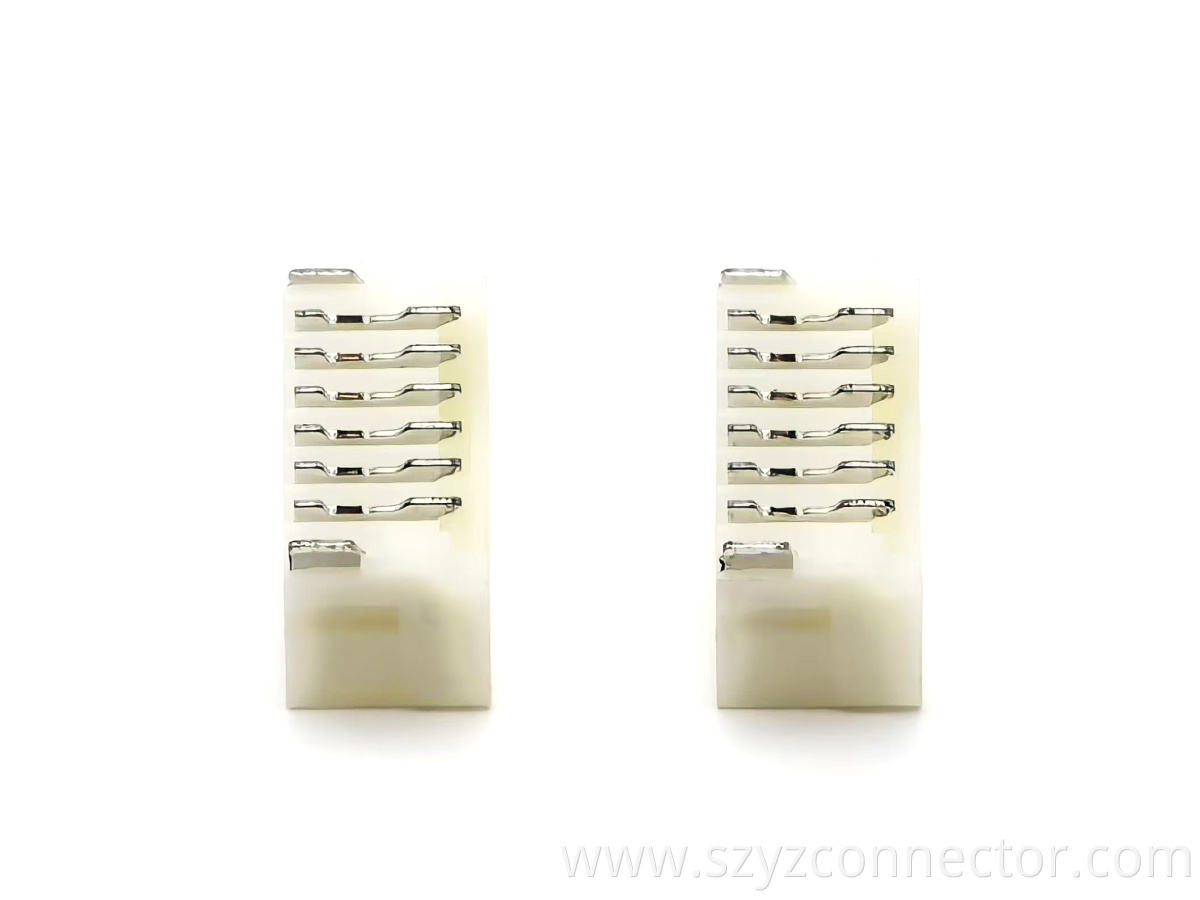

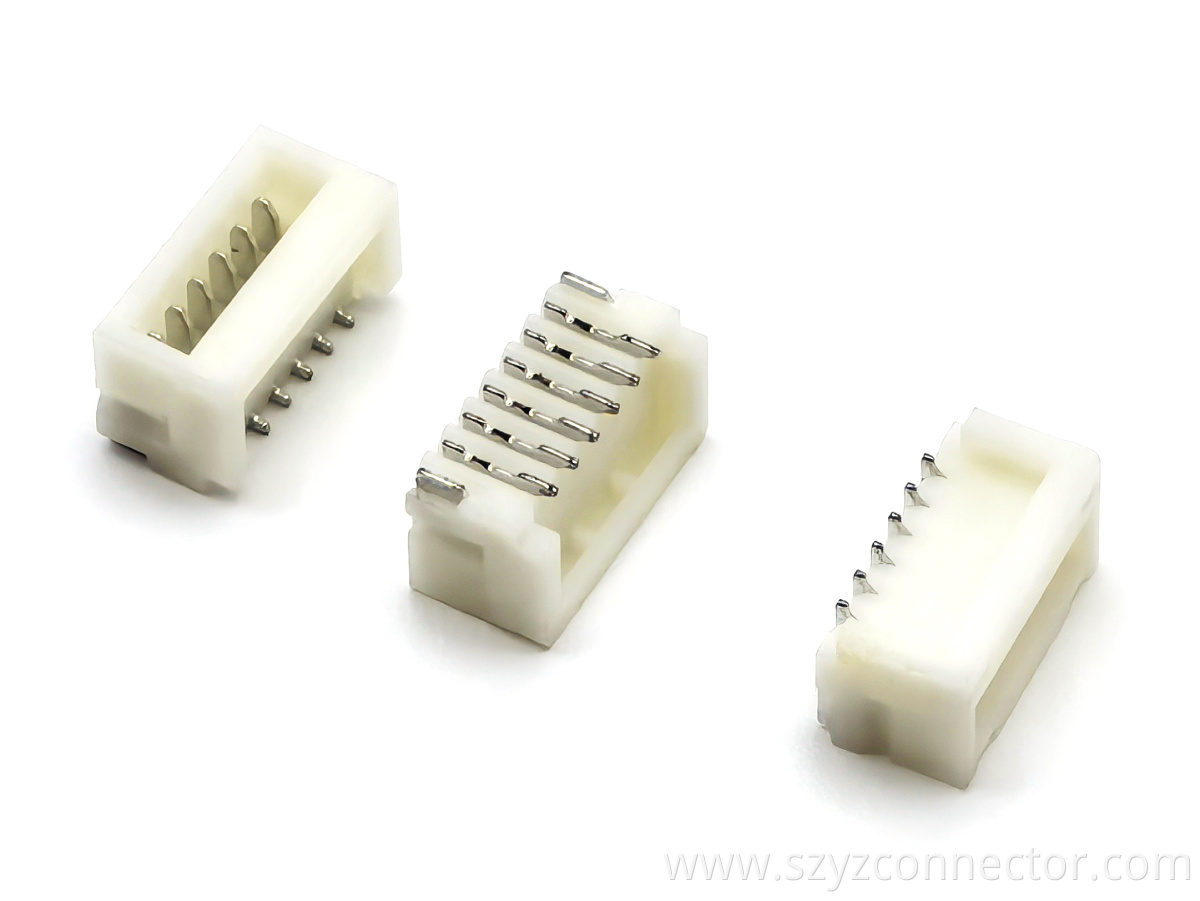

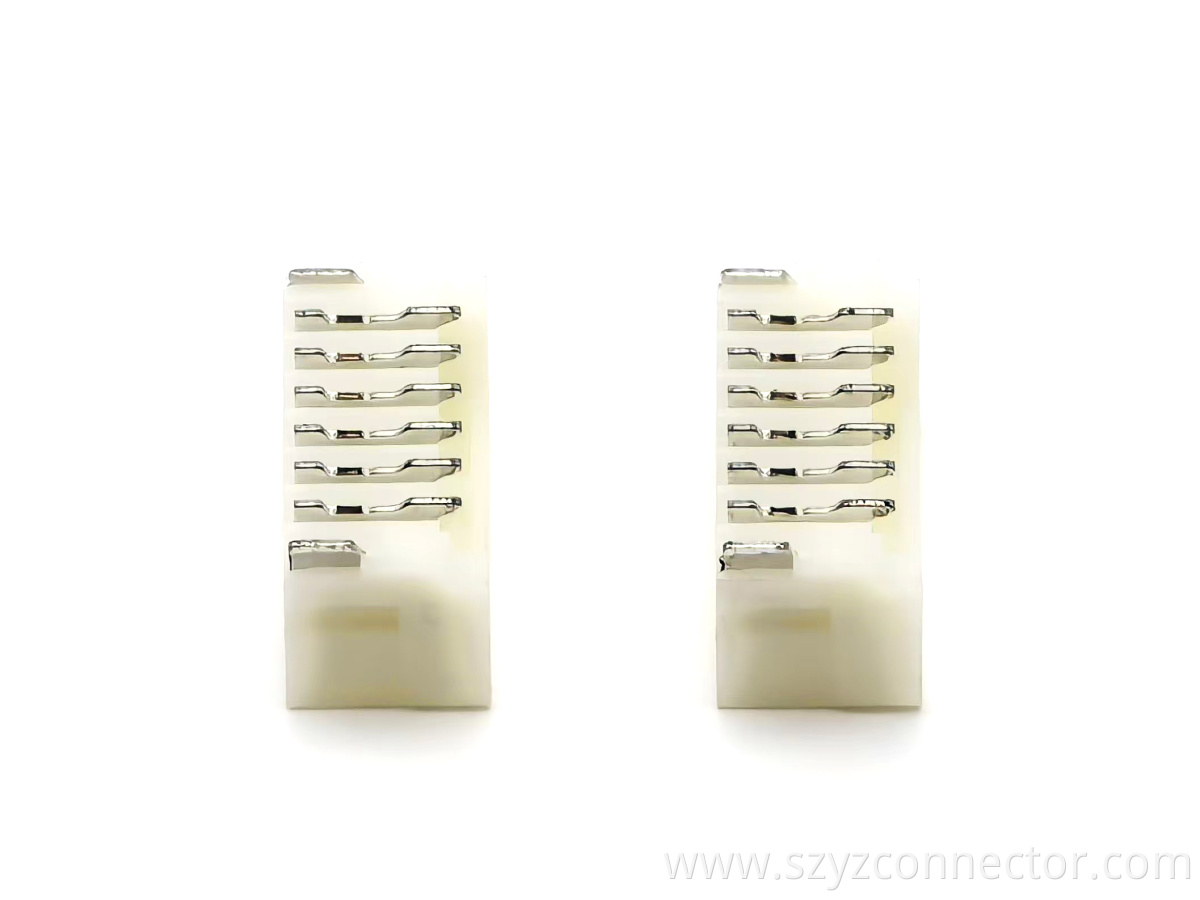

SHJ1.0mm Wafer SMT Type Pin header Connector

YZTECH introduces the SHJ 1.0mm Wafer Vertical SMT Pin Header,a single-row male Wafer Housing Terminal engineered for space-constrained PCB designs.This DIN-compliant header connector features 6 pins per row with a precision 1.0mm pitch,optimized for automated SMT assembly.Its phosphor bronze contacts with tin plating ensure reliable low-resistance connections while maintaining cost efficiency,and the PA6T colloidal housing delivers exceptional dimensional stability and flame resistance.Rated for 1A/125V operation,the unit operates reliably between -25°C and +85°C,making it suitable for consumer electronics, IoT devices, and portable systems.The vertical mount design maximizes vertical PCB space, and reel packaging supports high-speed pick-and-place machinery, enhancing manufacturing throughput.



The SHJ wafer pin header connector leverages advanced material technologies to balance performance and durability.Phosphor bronze contacts with tin plating provide a cost-effective solution without compromising electrical integrity,while the PA6T housing offers superior resistance to thermal cycling and mechanical stress.The 1.0mm pitch design enables high-density interconnection in compact devices, and the single-row configuration simplifies PCB routing. Operating within a -25°C to +85°C range ensures compatibility with temperature-sensitive applications,and the 260°C/10s soldering profile aligns with lead-free reflow processes.Reel packaging minimizes handling errors during automated assembly,and polarization features prevent mis-mating. DIN-standard dimensions ensure global compatibility, reducing design-in time for international projects.
