PH1.25mm Pin header Connector

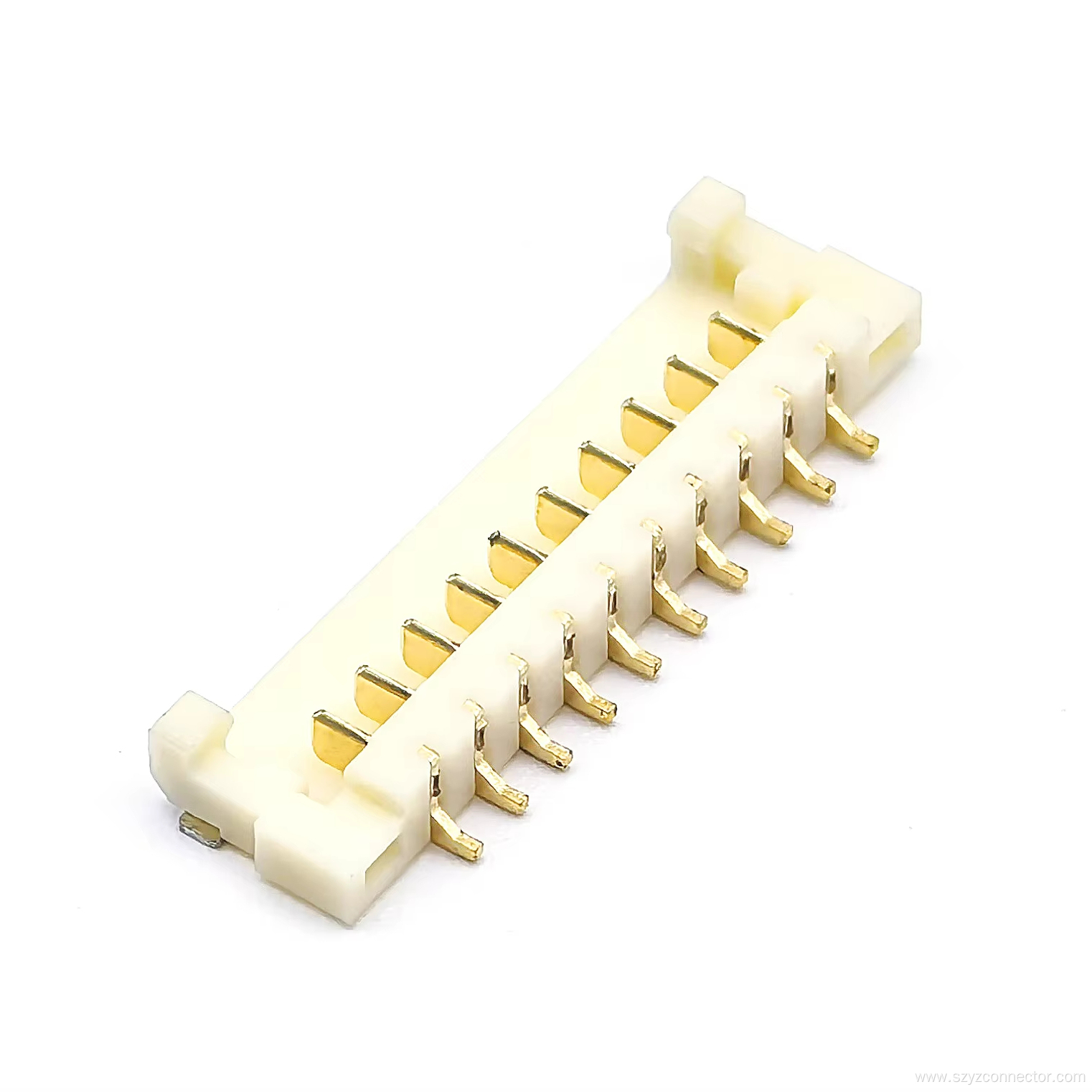

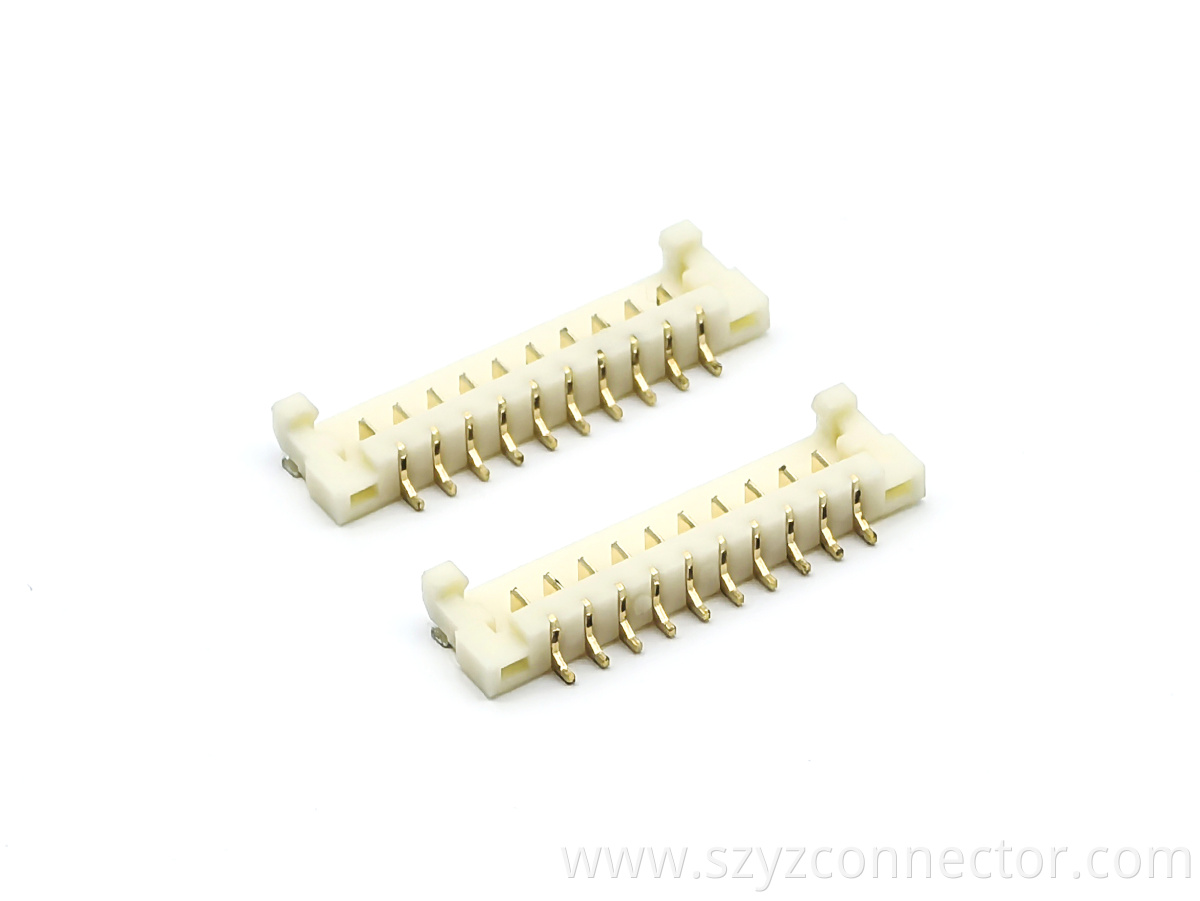

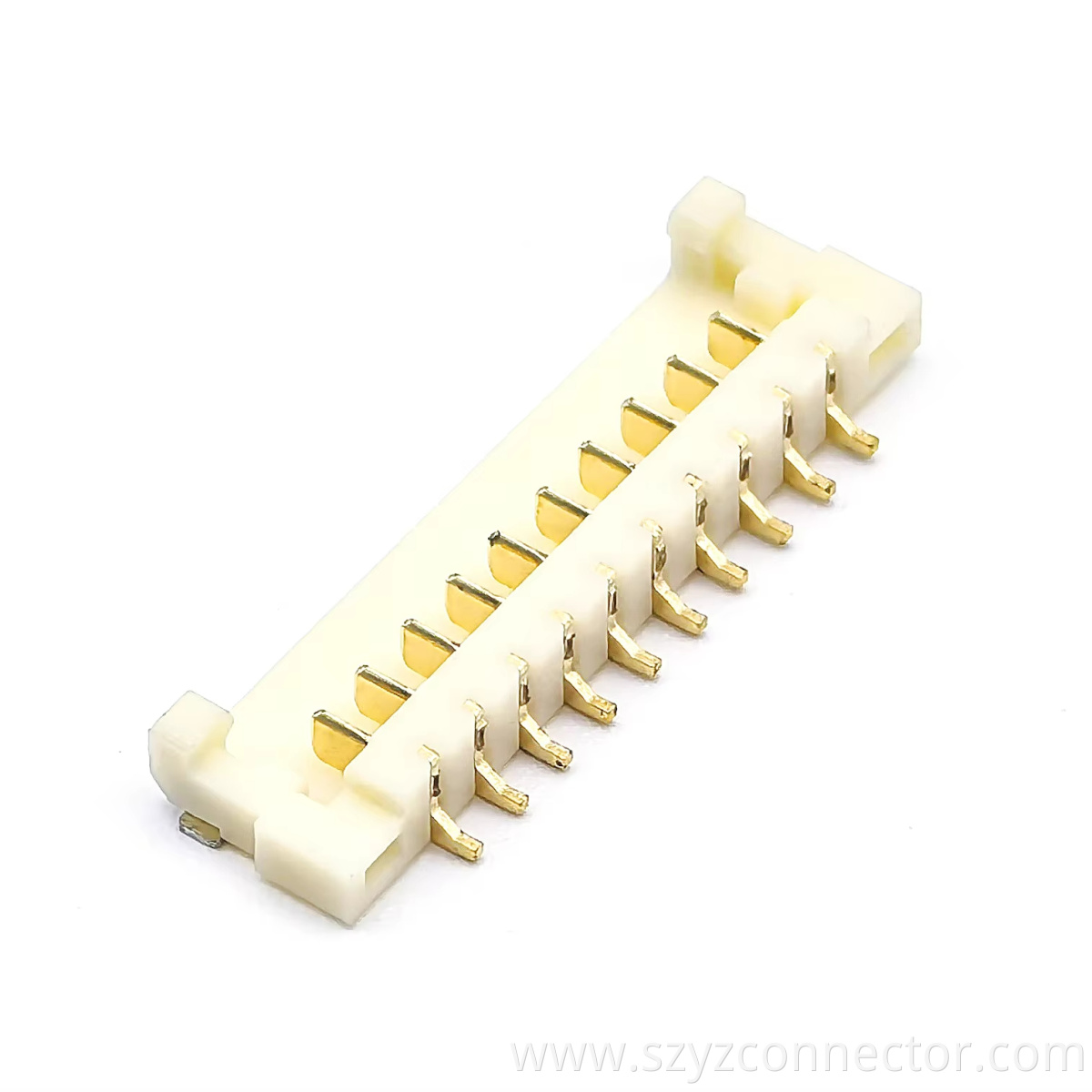

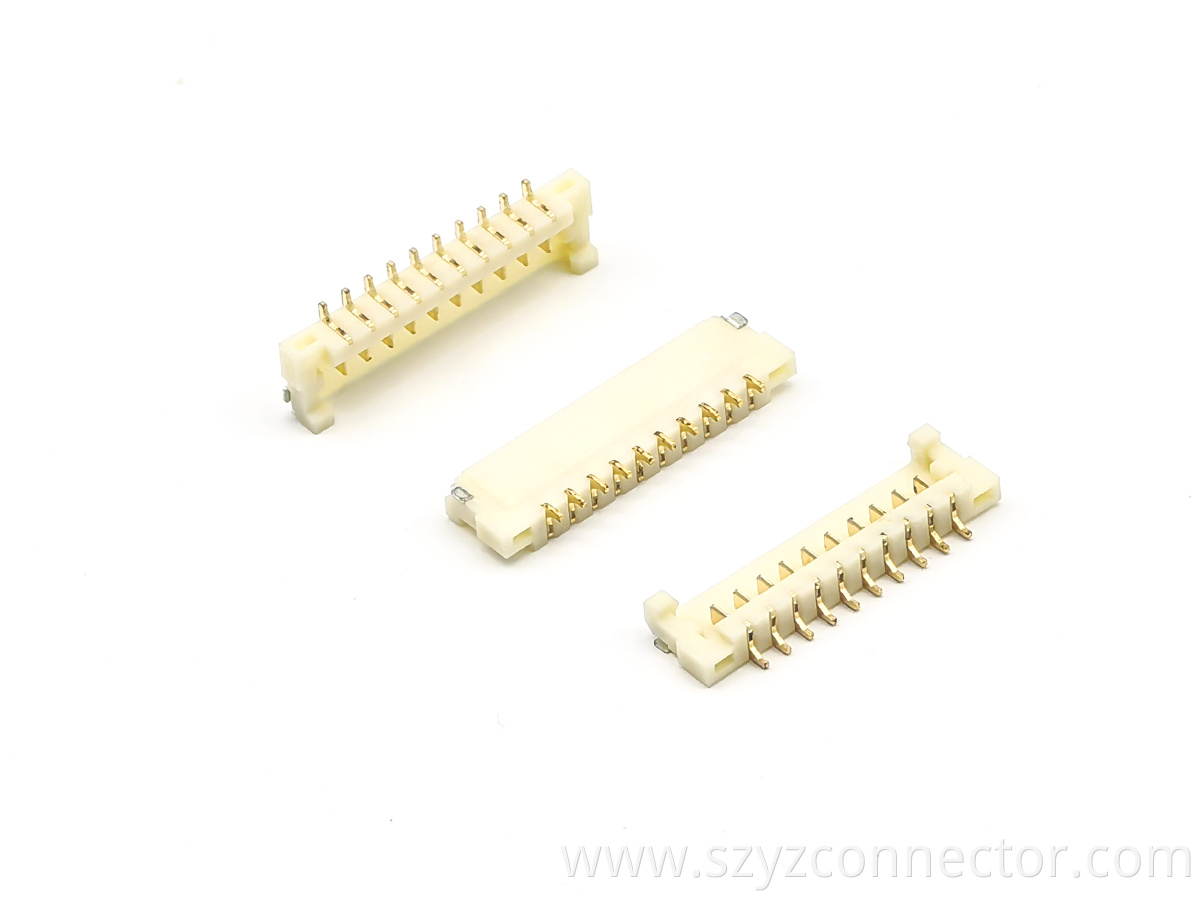

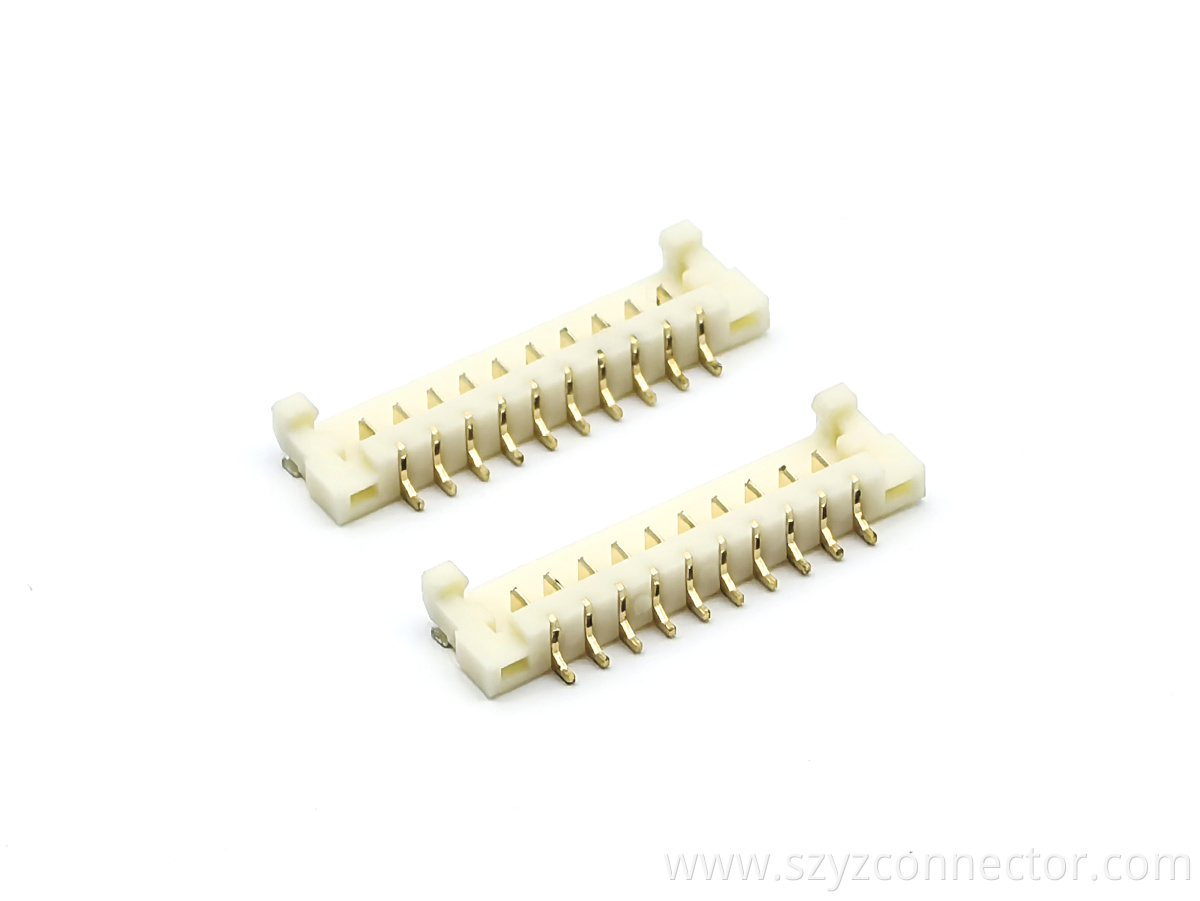

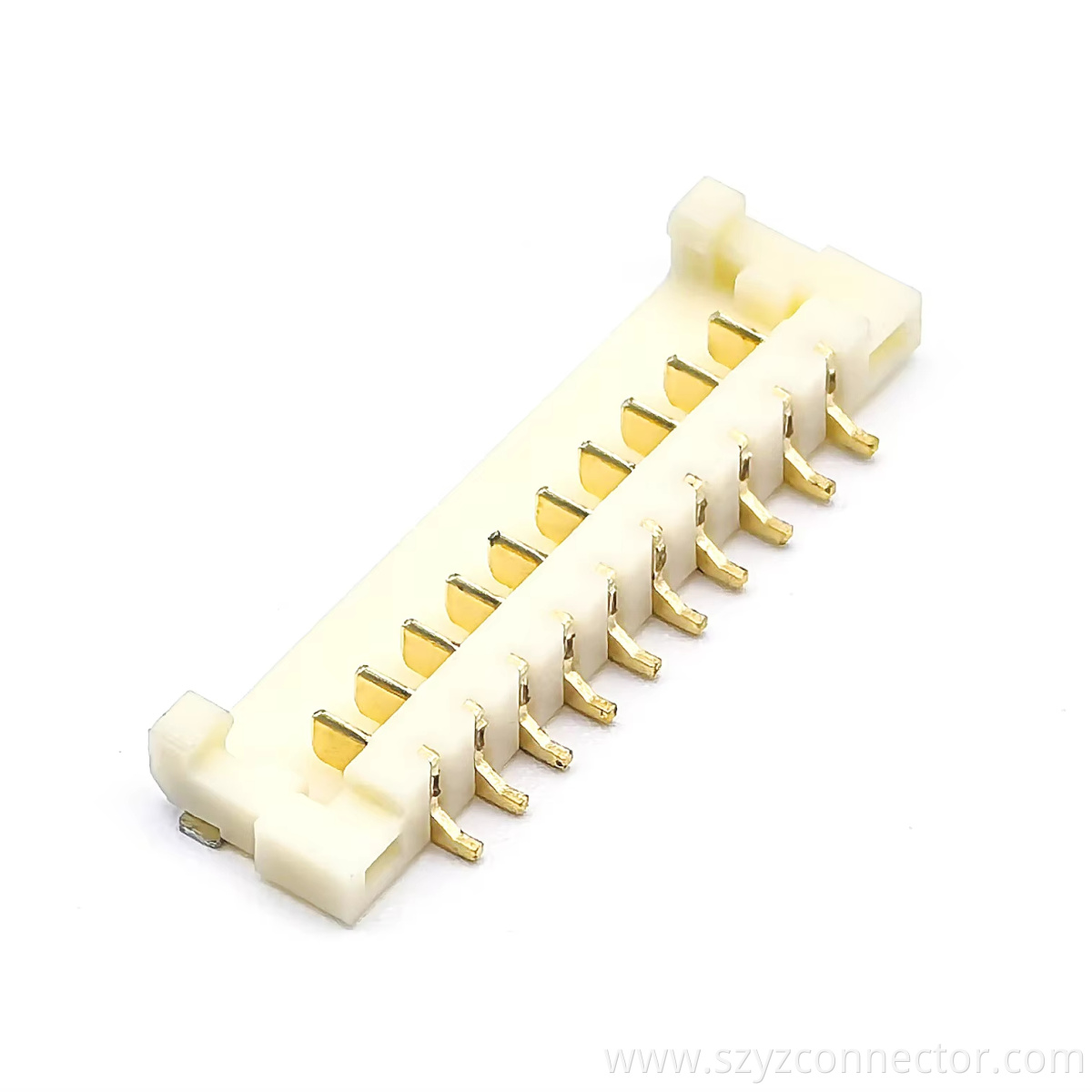

YZTECH's PH1.25mm wafer male pin header connector delivers exceptional performance in an ultra-compact form factor,engineered for modern electronics where space and reliability are paramount.This single-row,10-position header connector meets DIN standards and is characterized by its robust power handling,supporting up to 3A current—a significant capacity for its miniature size—with a 30V rated voltage.The connector features brass contacts with a durable gold plating,ensuring minimal contact resistance and superior corrosion resistance.The housing is constructed from high-temperature PA6T plastic,providing excellent mechanical strength and thermal stability for soldering processes,all within a dependable operating range of -25℃ to +85℃.



This connector is designed for precision and longevity.The use of a high-grade engineering polymer like PA6T ensures the Wafer Housing Terminal resists warping during reflow soldering,maintaining perfect pin alignment for seamless mating with corresponding sockets.The combination of gold-over-brass contacts guarantees a stable and low-resistance connection path,which is critical for both power delivery and signal integrity in sensitive analog or digital circuits.Supplied in practical tube packaging,the pins are protected from damage and oxidation, facilitating organized inventory management and safe handling during manual or automated assembly processes.



Ideal for a diverse array of compact applications,the YZTECH PH1.25mm wafer Pin Header is a perfect interconnect solution for drone power distribution boards,portable medical sensors,high-density embedded computing modules,and advanced automotive telematics.Its unique blend of a small 1.25mm pitch,elevated current rating, and stable gold-plated interface makes it an optimal choice for designers who need to maximize performance within a minimal footprint.
