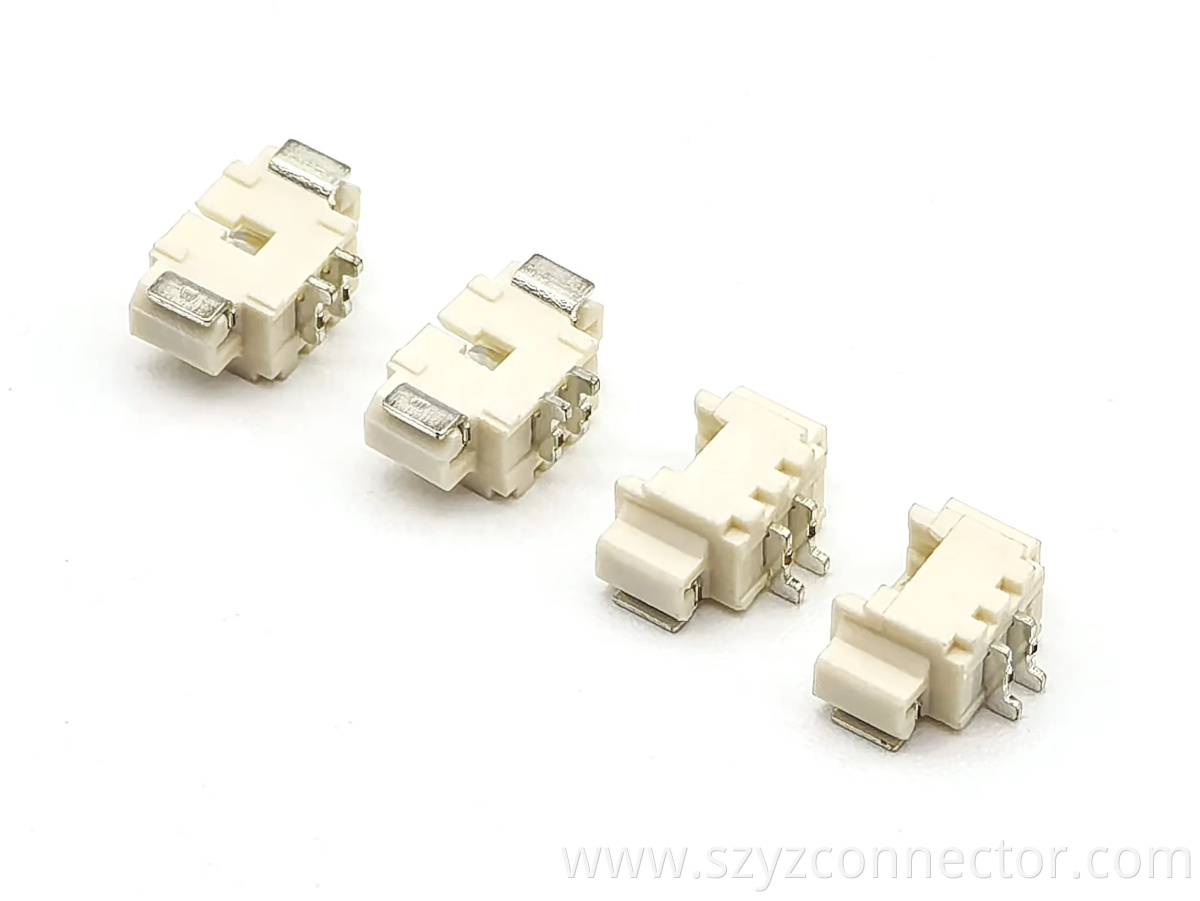

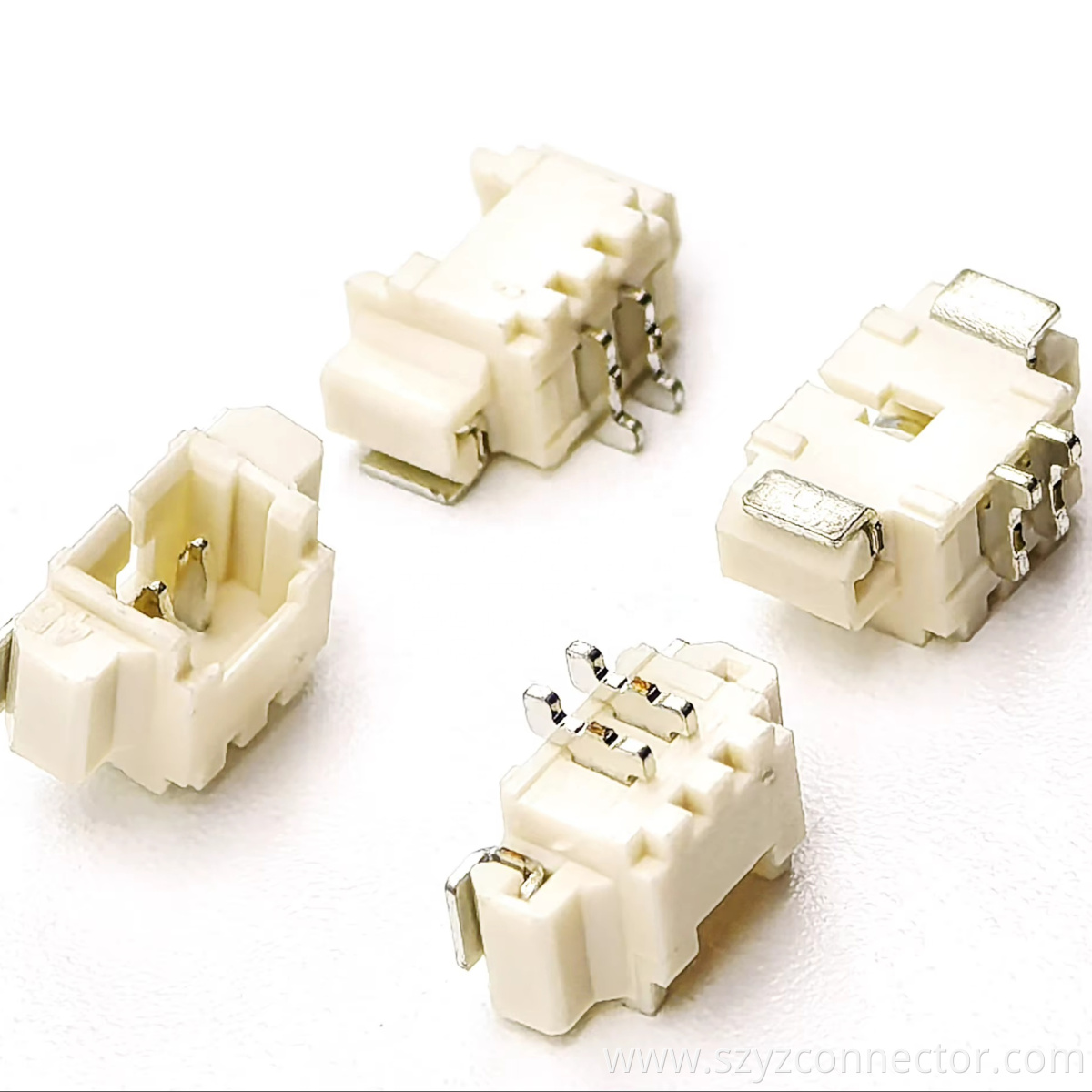

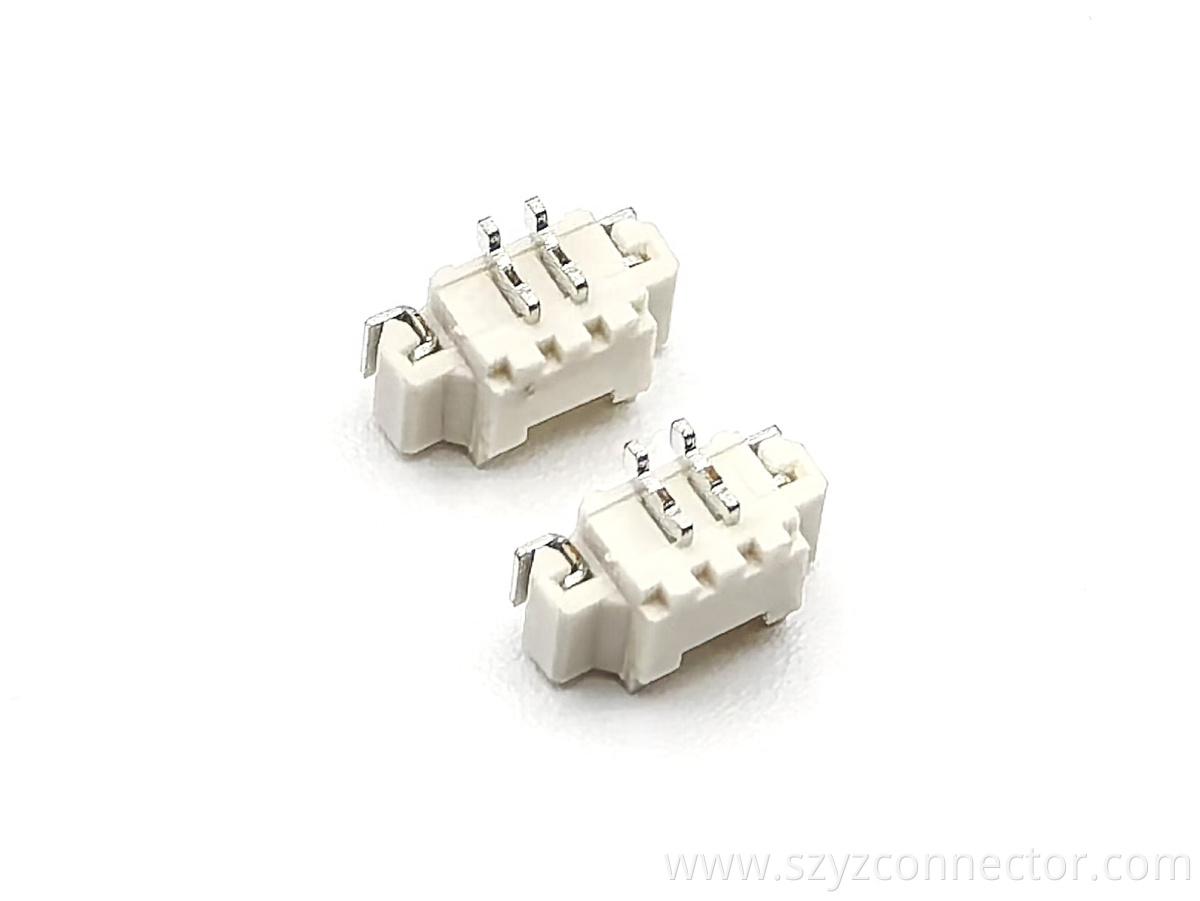

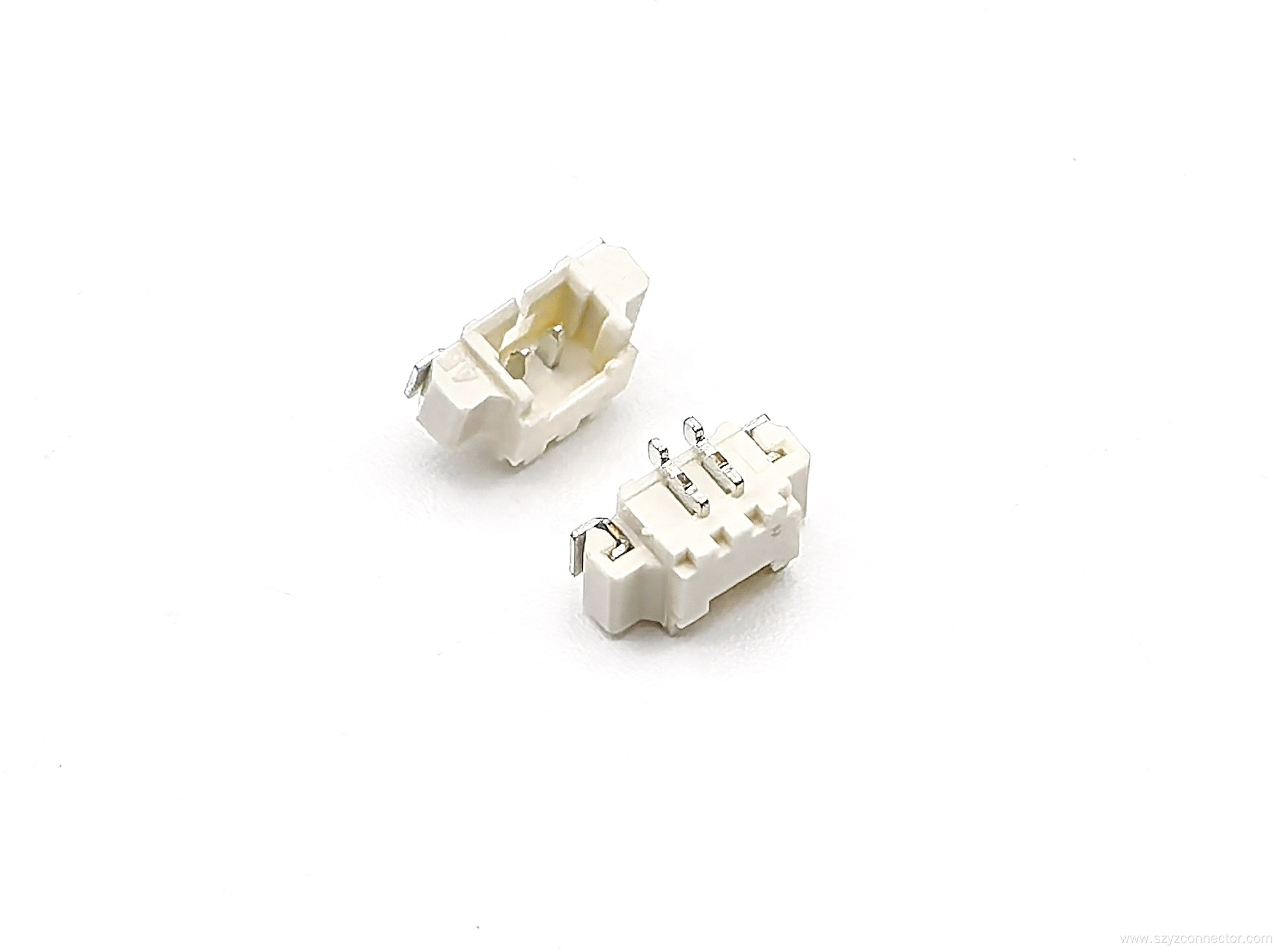

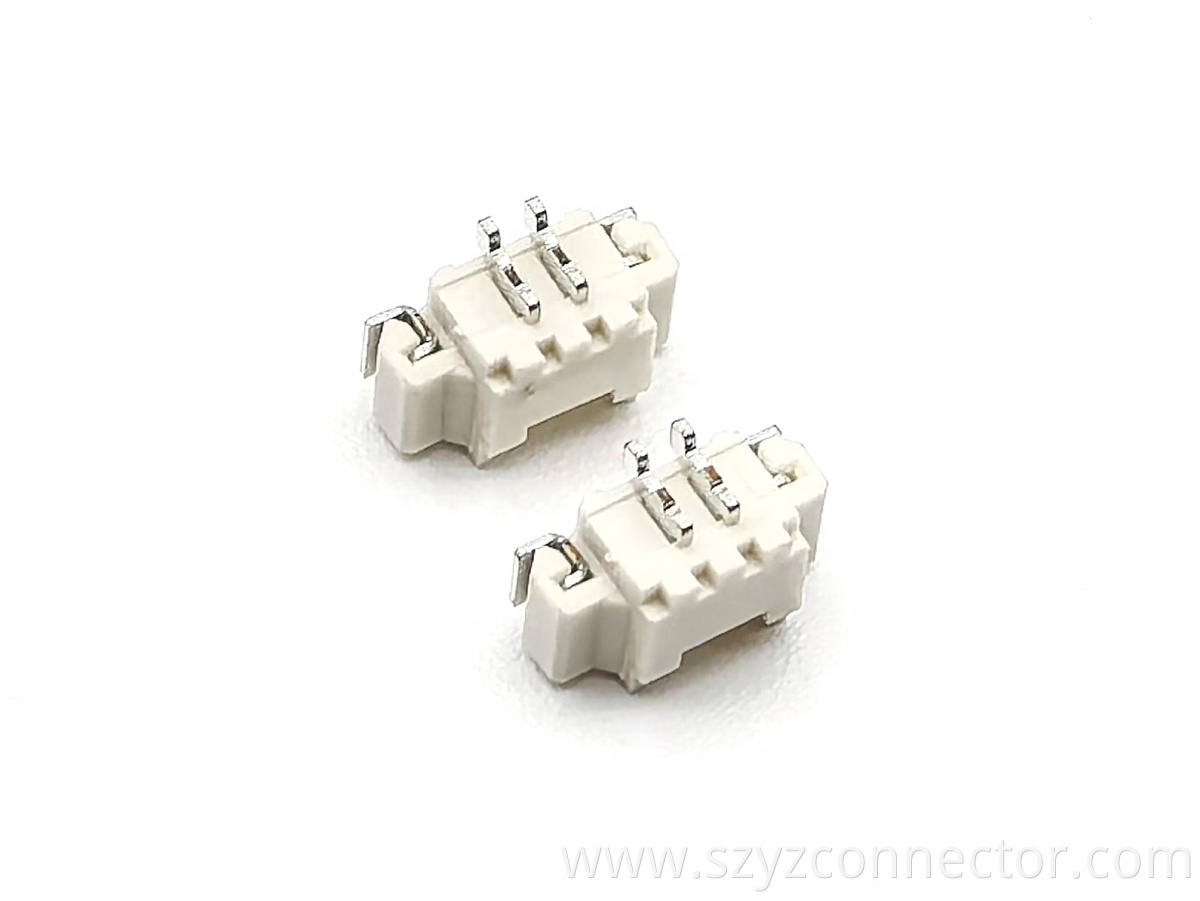

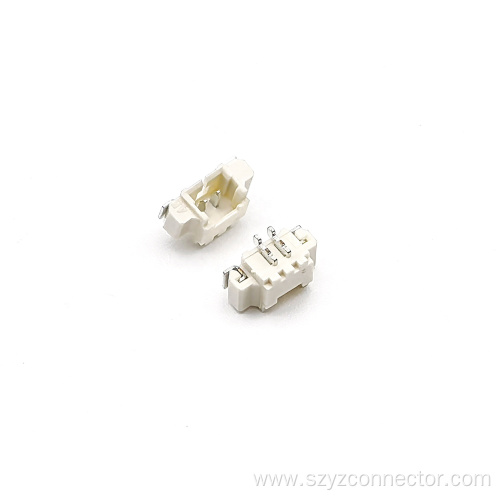

1.25mm Wafer Right Angle SMT Pin header

Meet the YZTECH 1.25mm Wafer Pin Header, a right-angle SMT solution engineered for efficient PCB design.This single-row, 2-pin male header connector offers a compact footprint,enabling streamlined board layout and optimal use of space.It is engineered to reliably handle a rated current of 1A and a voltage of up to 125V,providing consistent performance for low-power circuit applications.The connector's right-angle form factor is specifically designed for horizontal mating, making it an excellent choice for creating parallel board-to-board connections or facilitating easy cable attachment in tight spaces.



Durability is at the core of this connector's construction.The contact pins are crafted from robust brass and finished with a reliable tin plating,ensuring low resistance and strong solder joint integrity during reflow processes.The insulator is molded from high-grade PA46 plastic,a material selected for its excellent electrical insulation properties,good mechanical toughness, and resistance to a wide thermal range.This build quality ensures stable operation within an operating temperature range of -25℃ to +85℃,suitable for various challenging environments.



To accelerate production efficiency,this Wafer Housing Terminal comes supplied in industry-standard reel packaging,fully compatible with automated pick-and-place equipment for high-speed,accurate mounting.This SMT-style connector is a fundamental building block for a multitude of applications,including consumer electronics,smart home devices, and communication modules.By integrating this YZTECH component,you select a part that delivers a blend of space-saving design,dependable connectivity,and manufacturing readiness for modern electronic assembly.
