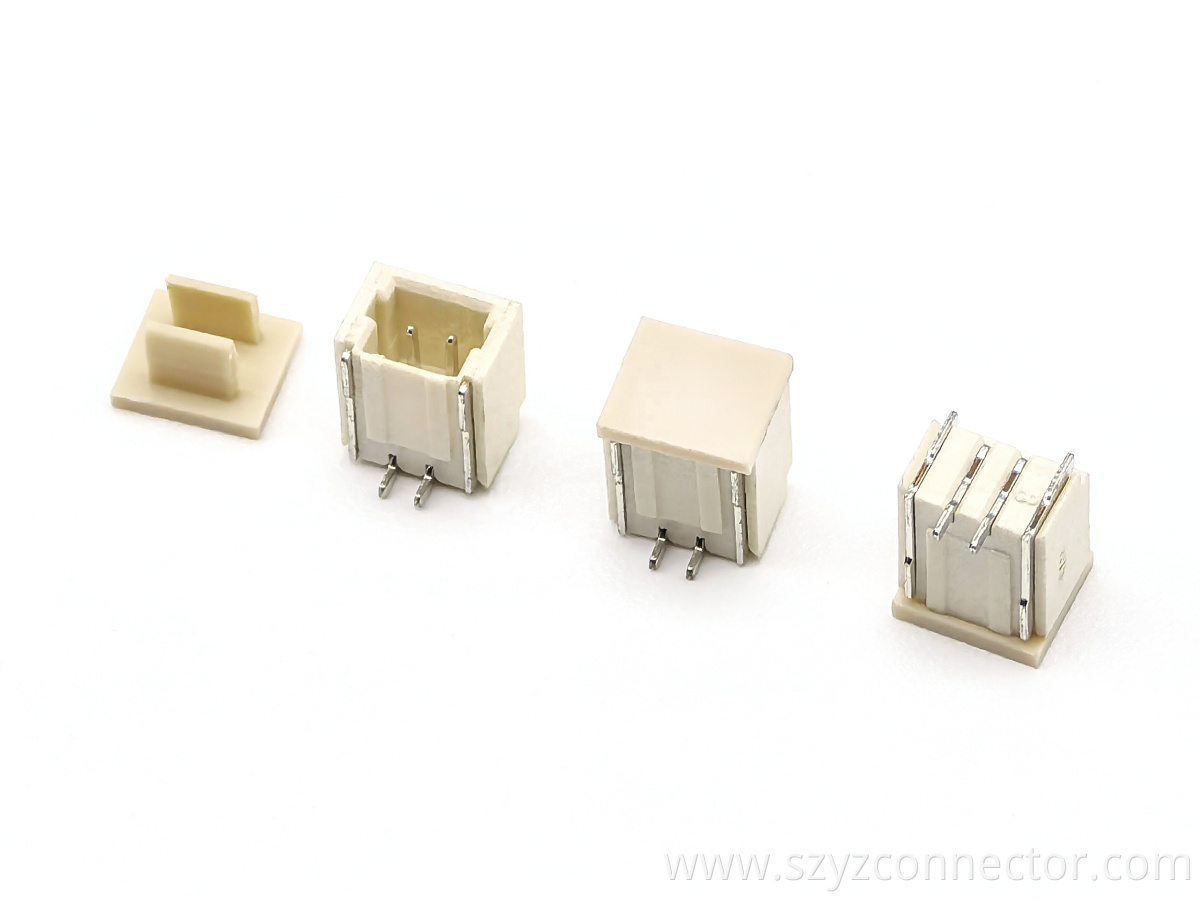

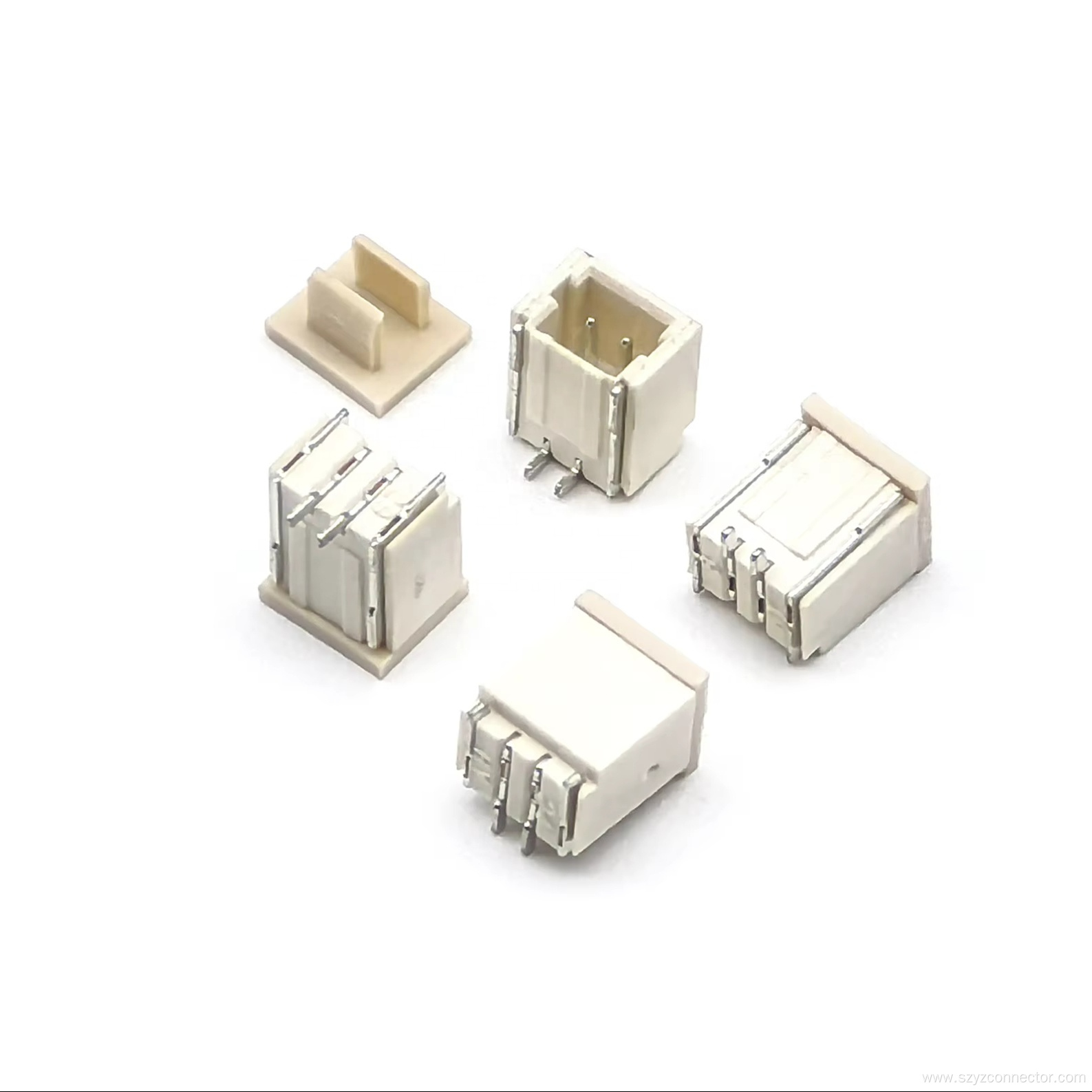

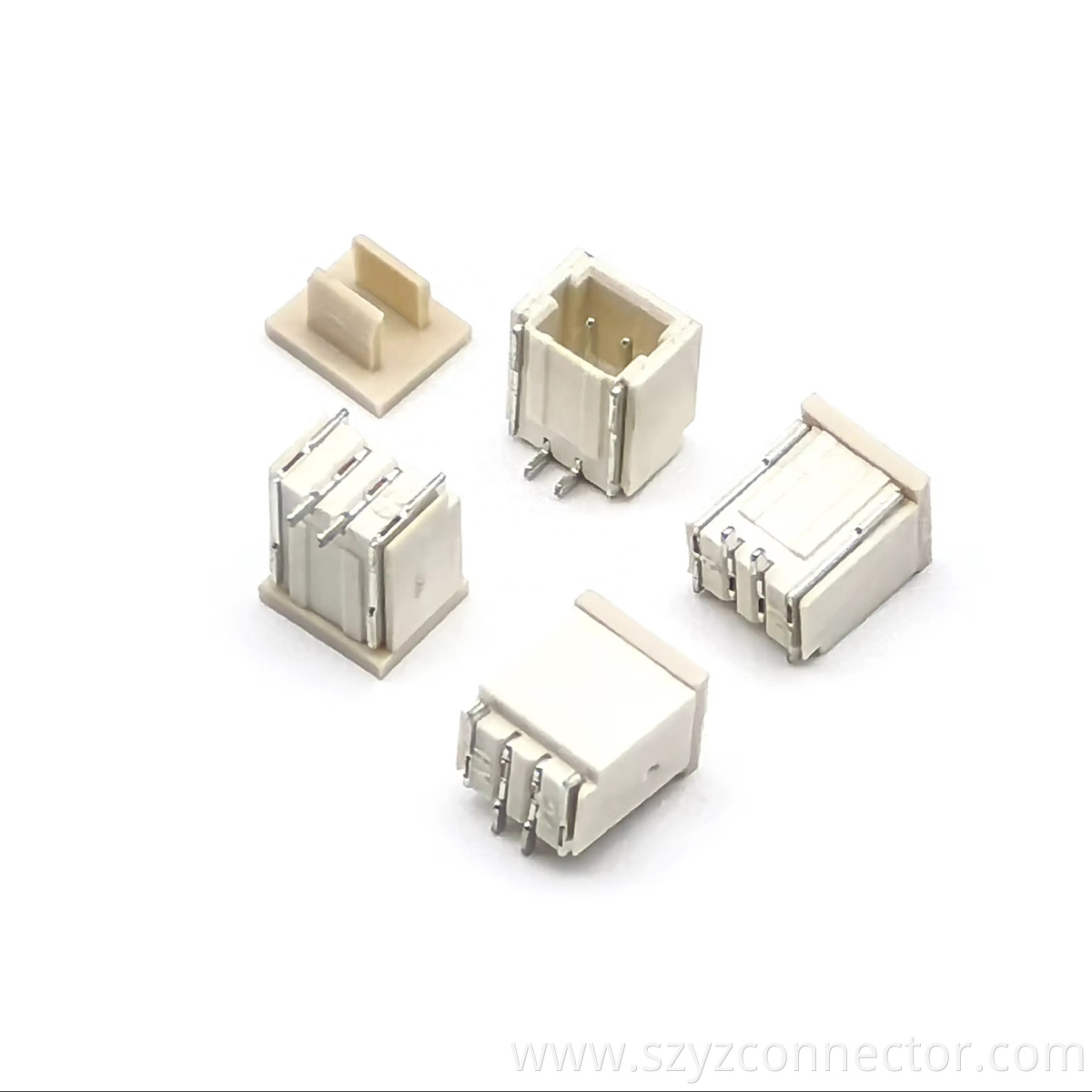

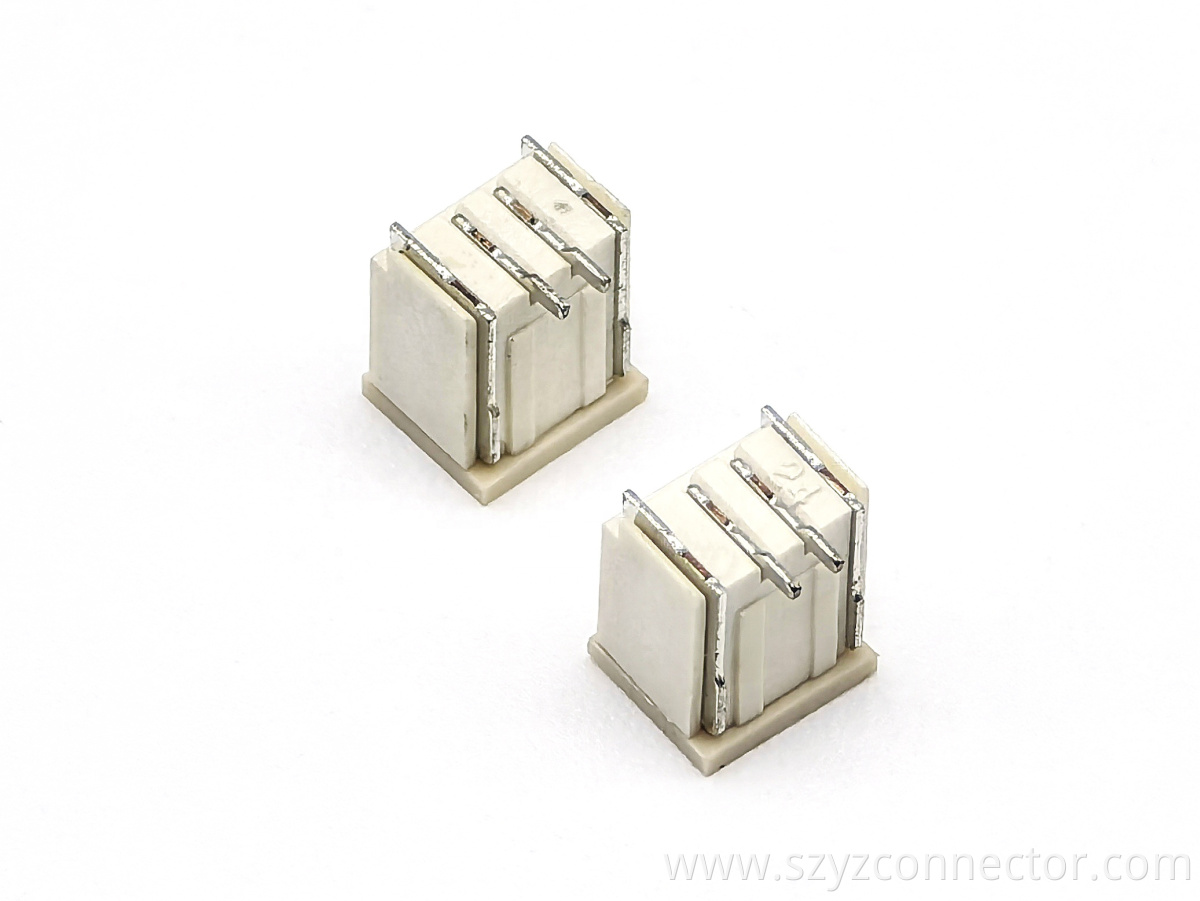

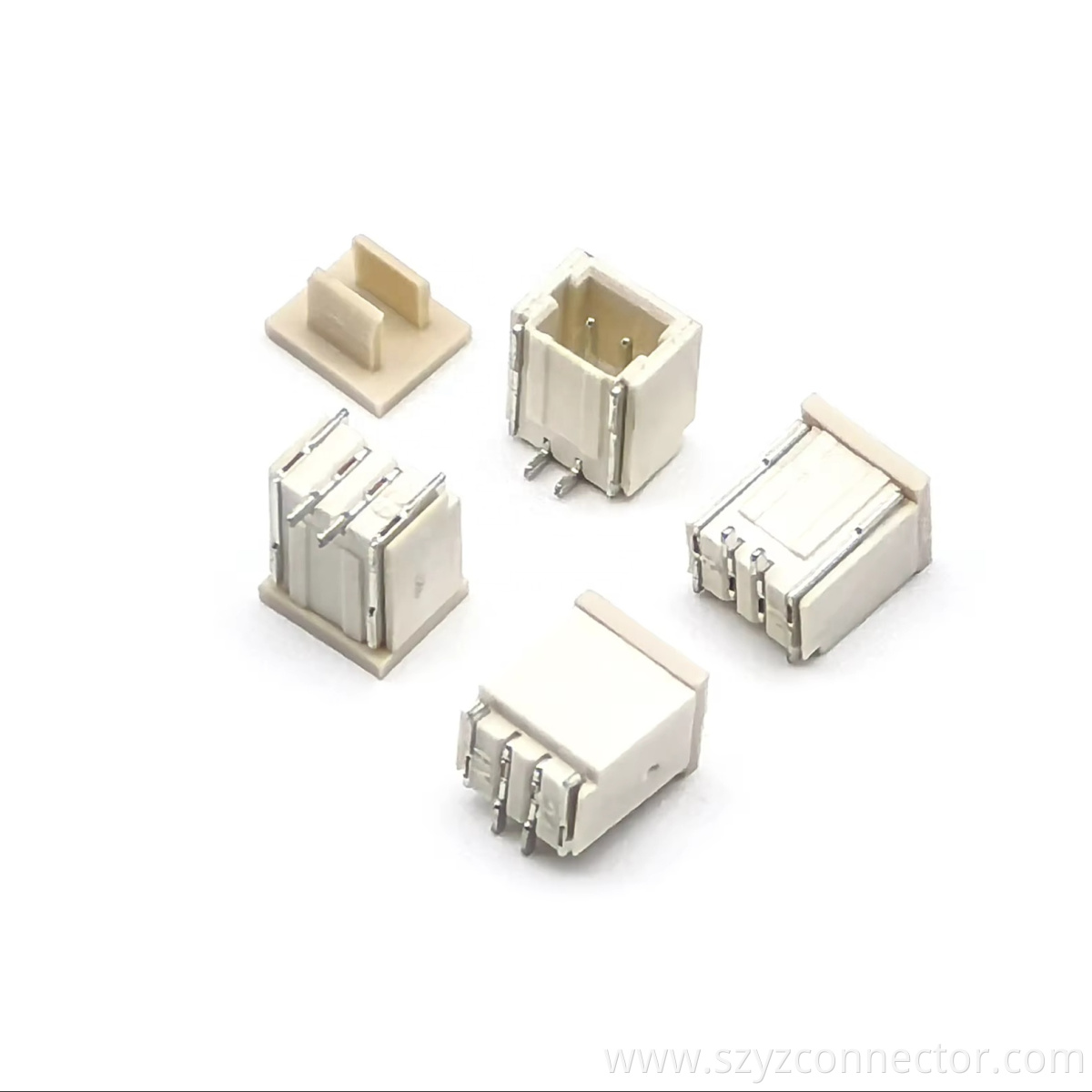

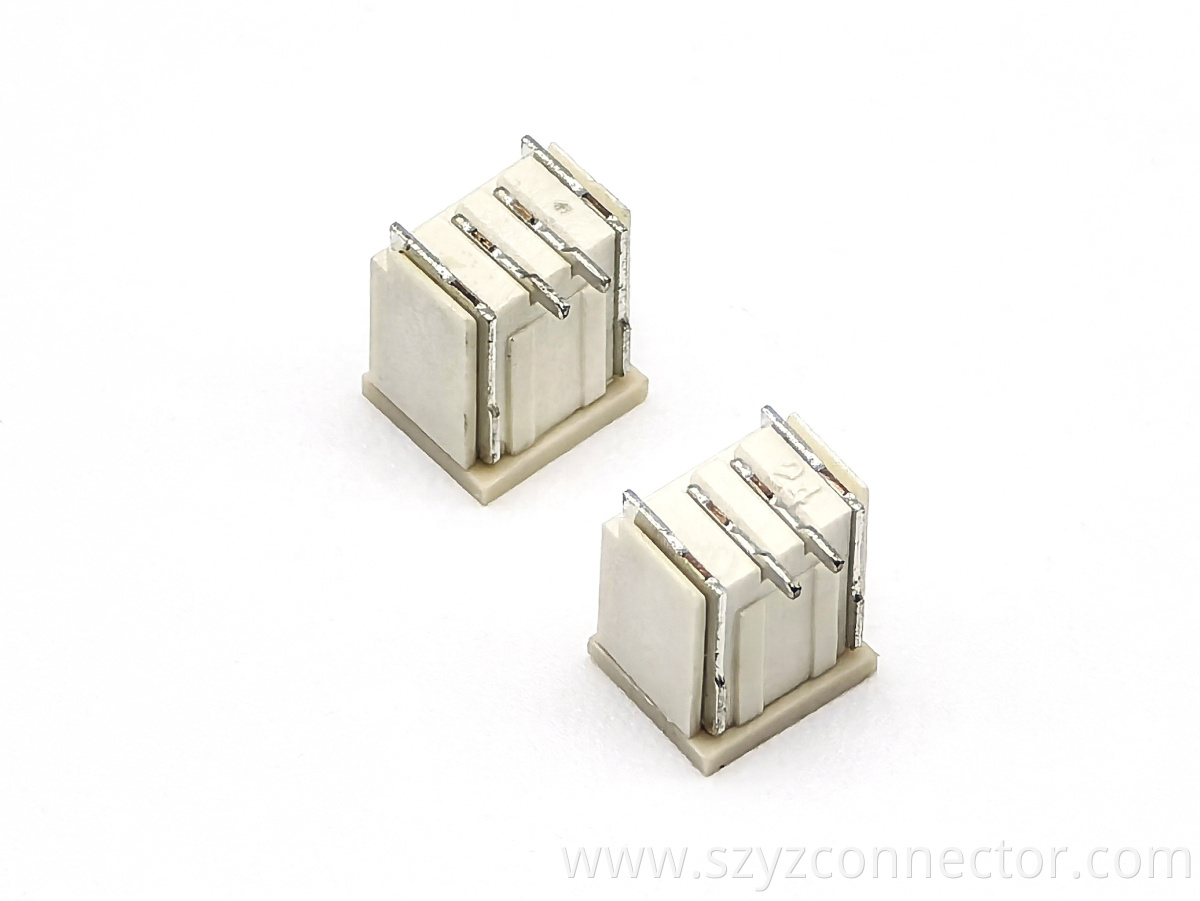

SH1.0mm Wafer Vertical SMT Type Pin header

Designed for modern,miniaturized electronics,the YZTECH SH1.0mm Wafer Pin Header offers an ultra-compact and efficient interconnection solution.This single-row,2-position male header connector features a vertical SMT type design,enabling direct placement onto PCB pads for a streamlined,low-profile assembly.Its precise 1.0mm pitch is ideal for high-density board layouts where space conservation is critical,meeting stringent DIN standards for consistent quality and reliable mating with corresponding female sockets.



The Wafer Housing Terminal ensures dependable electrical performance with a rating of 1A and 125V.The contact pins are fabricated from phosphor bronze,providing superior resilience and stable conductivity,and are finished with a reliable tin plating for good solderability and corrosion resistance.The insulator is molded from Liquid Crystal Polymer,a material chosen for its exceptional stability,high heat resistance,and low moisture absorption,which guarantees consistent performance through reflow soldering cycles and within an operating temperature range of -25°C to +85°C.



Optimized for automated,high-volume production environments,this component is delivered in practical reel packaging,ensuring compatibility with pick-and-place equipment for efficient PCB population.Its compact wafer design and SMT termination make it a perfect fit for applications like micro-sensors,compact modules,and portable consumer devices. YZTECH's commitment to precision in micro-connector manufacturing makes this 2P header a trusted choice for creating reliable, space-saving electronic designs for the global market.
