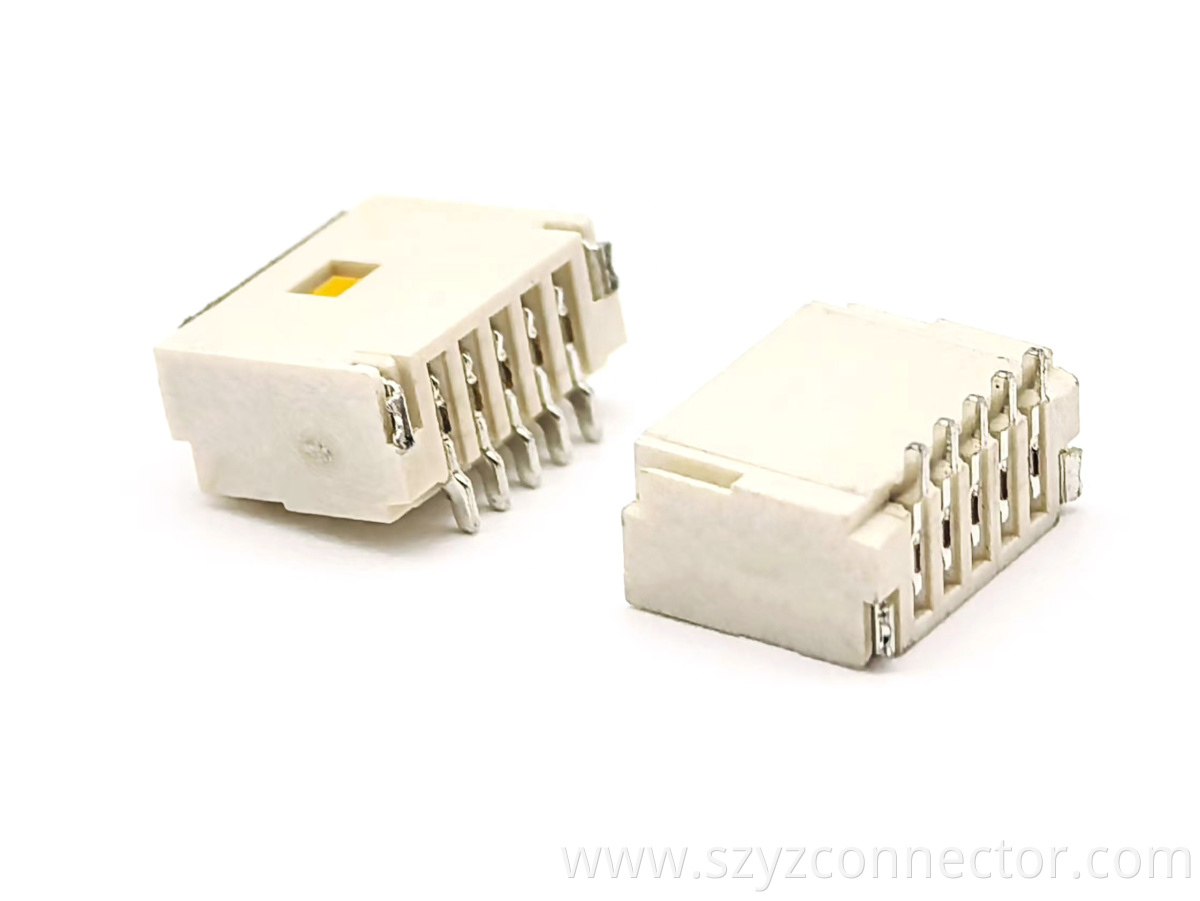

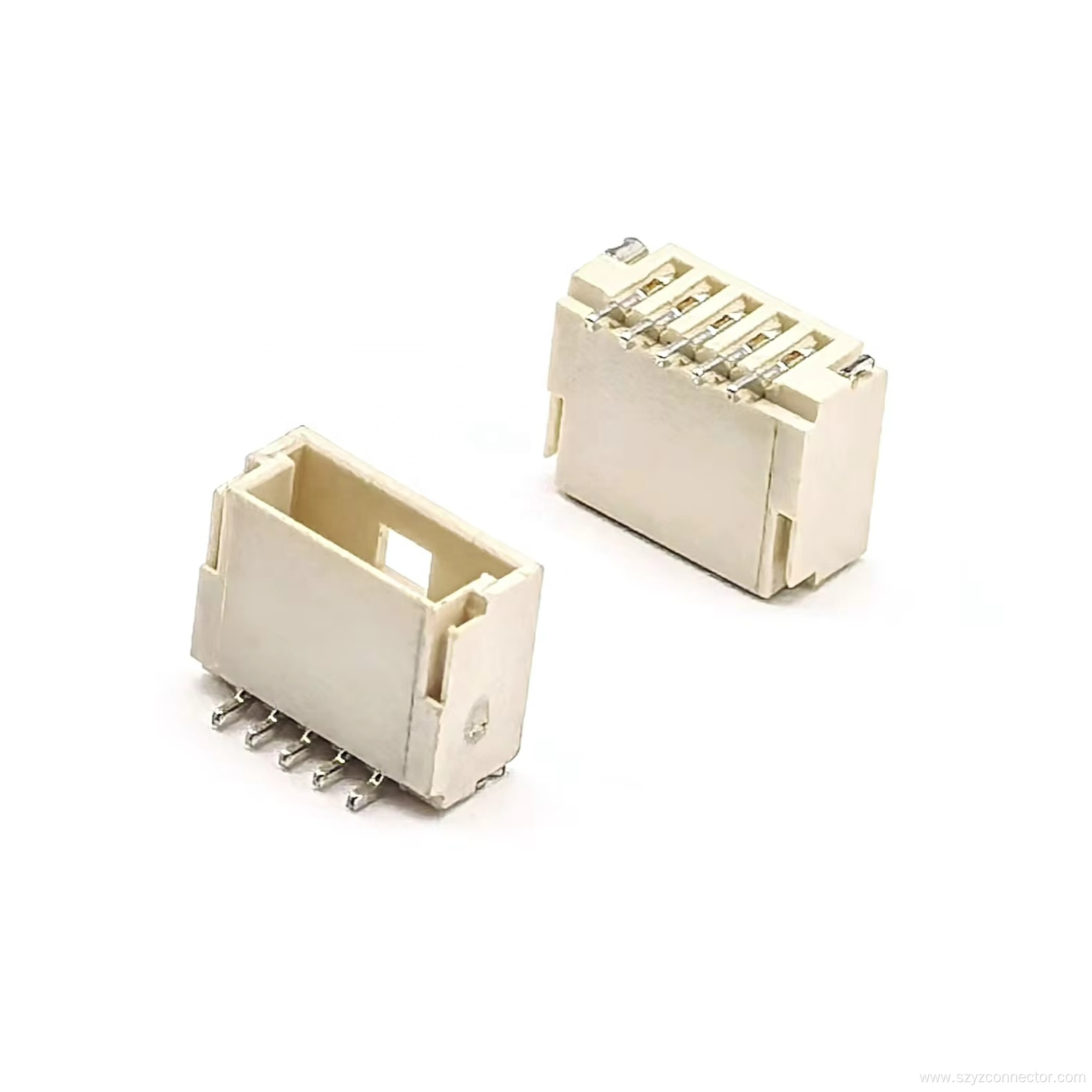

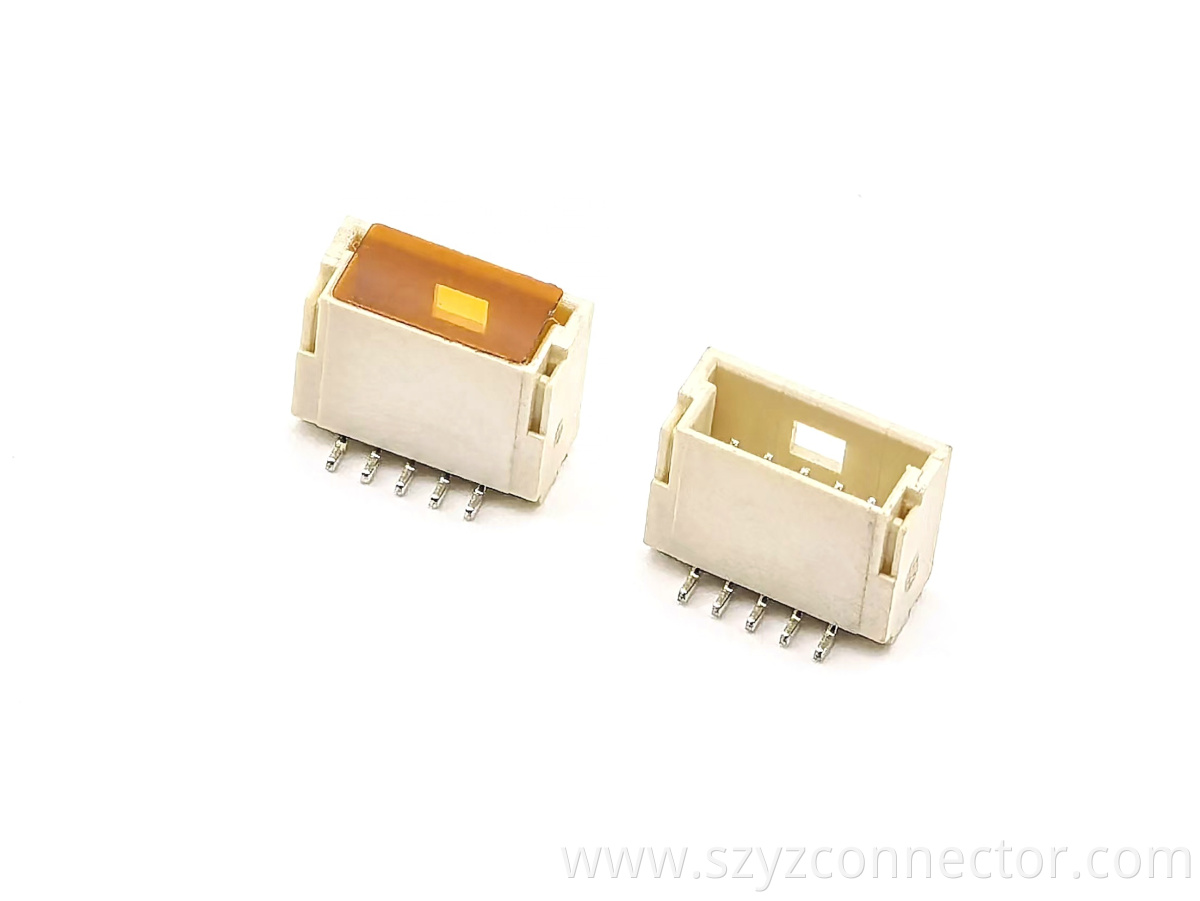

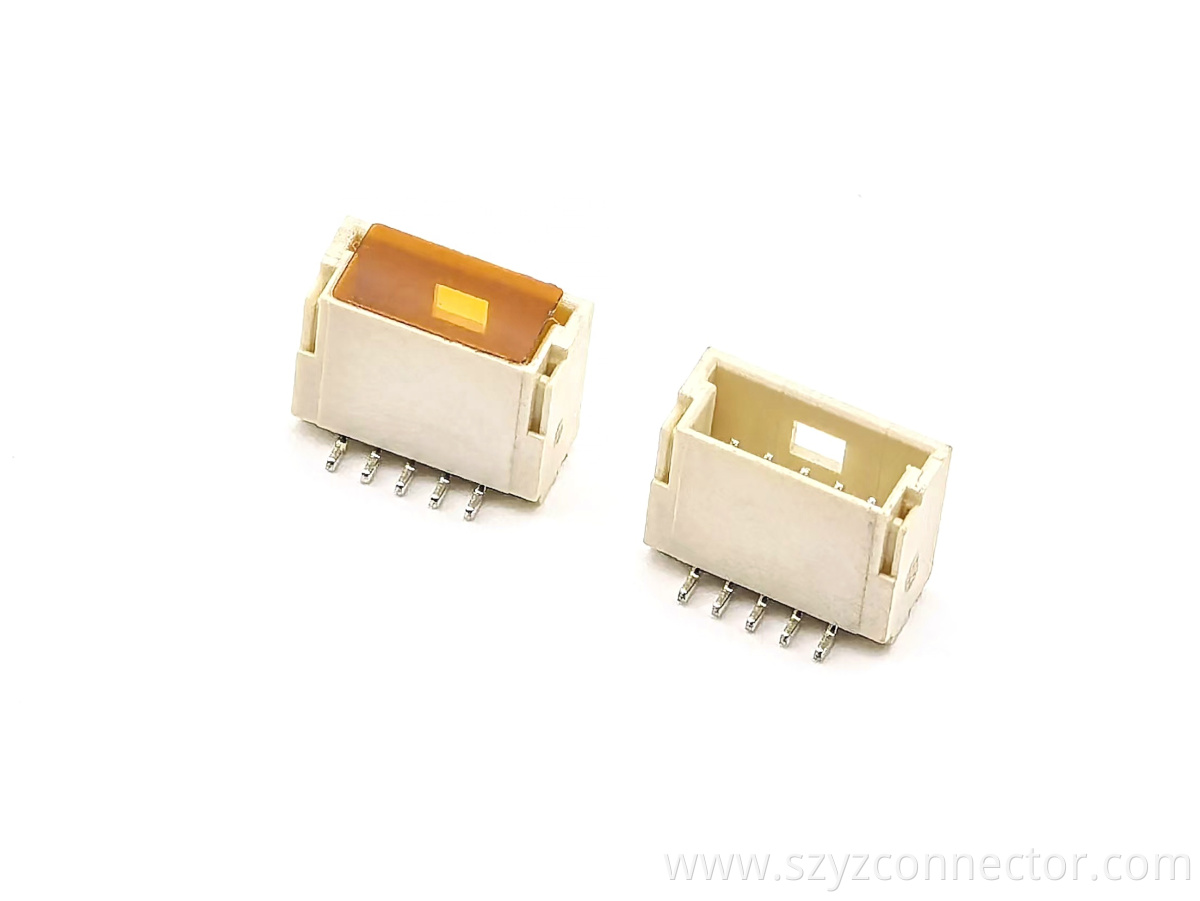

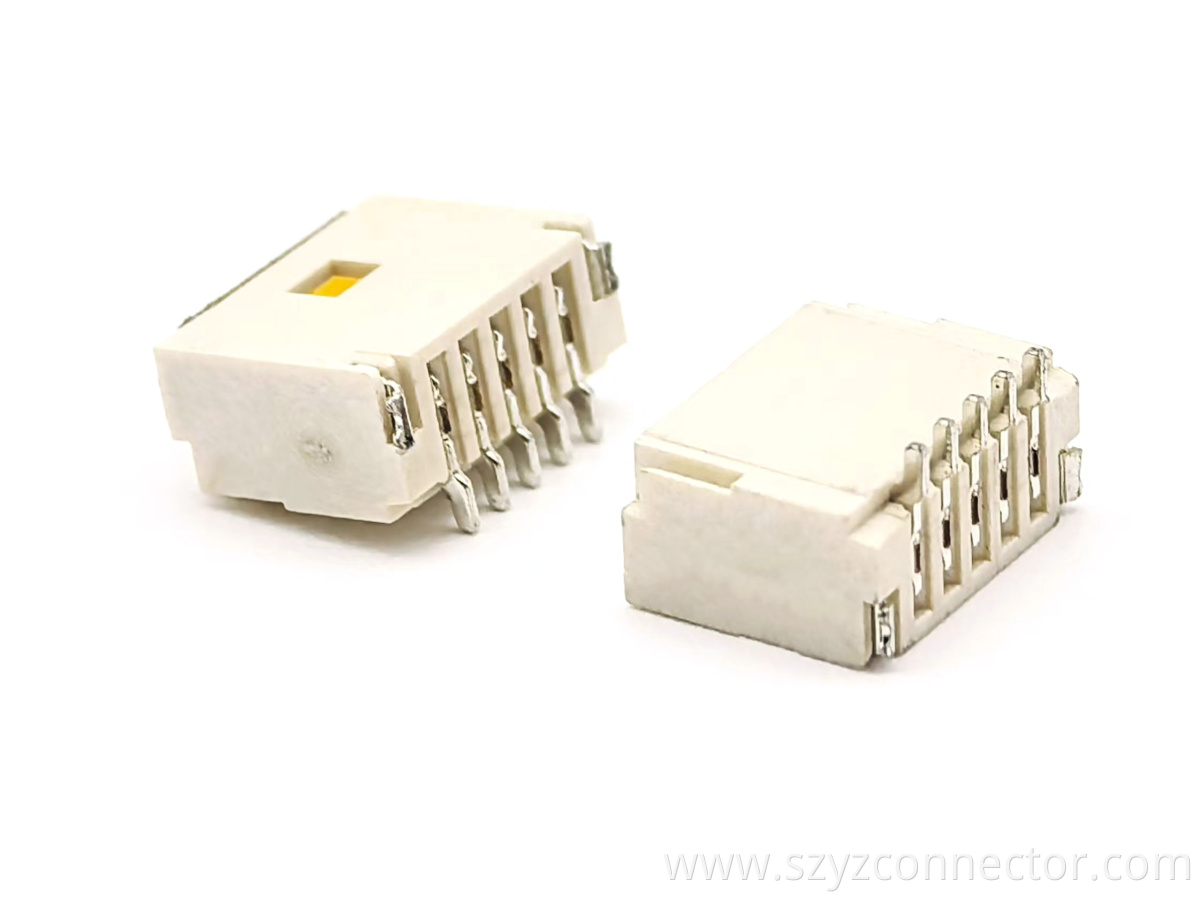

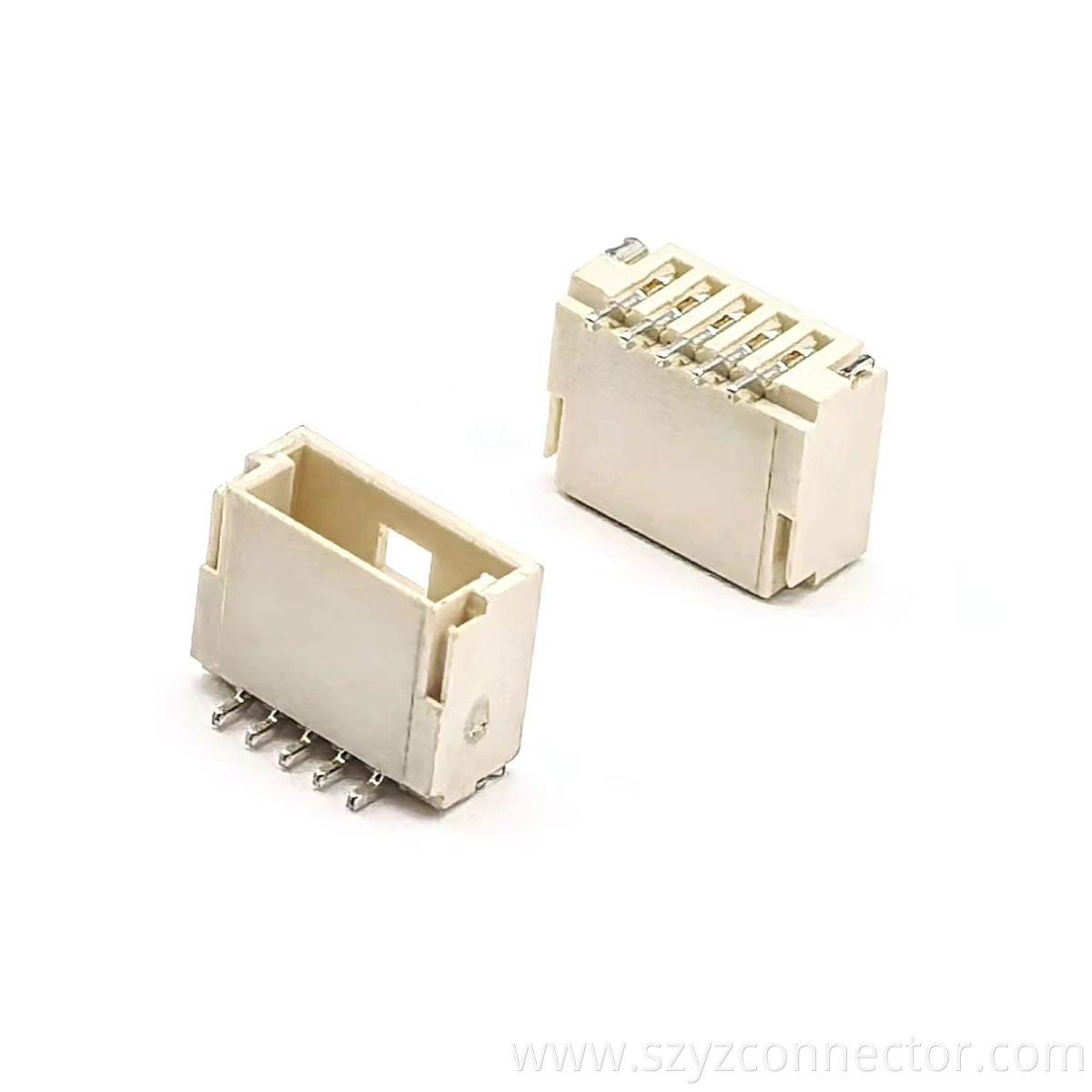

PH1.0mm WAFER Pin header Connector 5P

Engineered for high-density PCB integration,the YZTECH PH1.0mm Wafer Pin Header delivers exceptional performance in a compact form factor.This single-row, 5-pin male header connector features a precise 1.0mm pitch,making it an ideal solution for space-constrained electronic designs. It is built to support a rated current of 1A and a voltage of up to 300V, ensuring stable power and signal transmission.The connector's rectangular DIN design guarantees a secure fit and reliable mating with corresponding female sockets. Constructed for durability,it utilizes a brass contact pin with a high-conductivity tin plating, promoting excellent solderability and corrosion resistance.



Crafted for resilience,the Wafer Housing Terminal body is molded from high-temperature LCP material.This advanced colloidal substance offers superior thermal stability,mechanical strength,and flame-retardant properties, ensuring unwavering performance even in demanding operating environments.The combination of robust materials and precision engineering results in a connector that resists warping and maintains its structural integrity through rigorous soldering processes and extended use,thereby significantly enhancing the longevity and reliability of your PCB assemblies.



Designed for streamlined manufacturing,this male header is supplied in convenient reel packaging,facilitating high-speed automated assembly and placement.Its global DIN compliance ensures broad compatibility across various international applications.This connector is a fundamental component for a wide array of devices in sectors such as telecommunications,consumer electronics,and industrial control systems.By choosing YZTECH,you select a component that embodies precision,durability,and manufacturing efficiency for your global supply chain needs.
