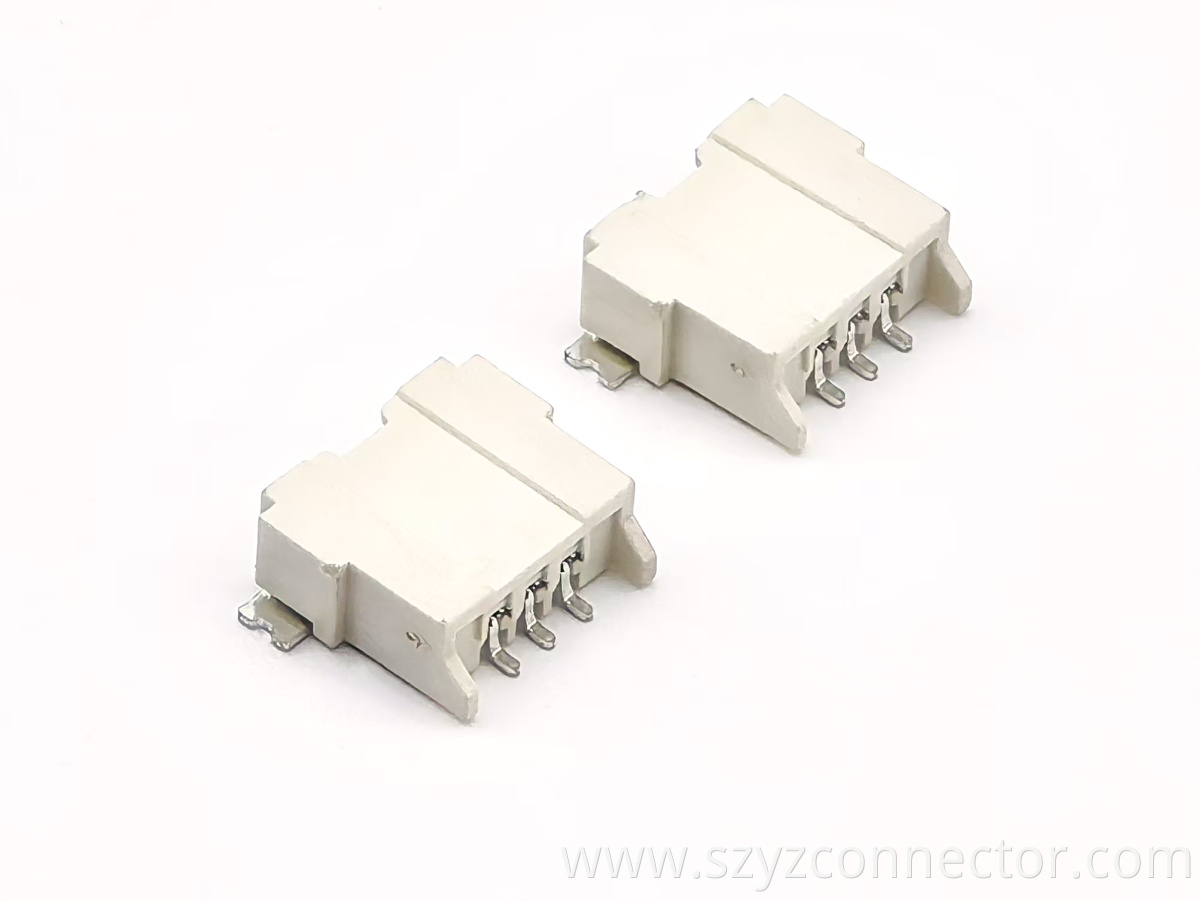

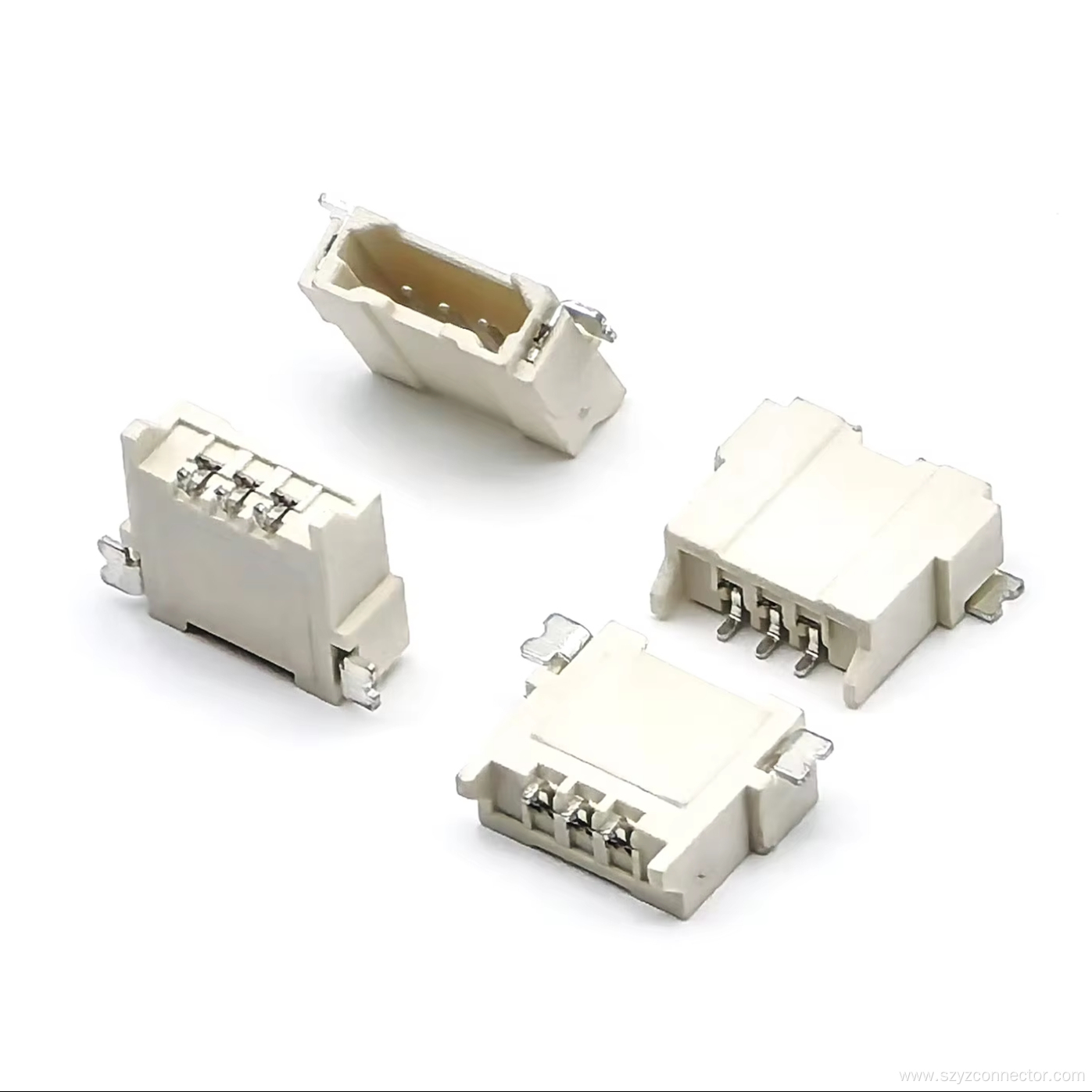

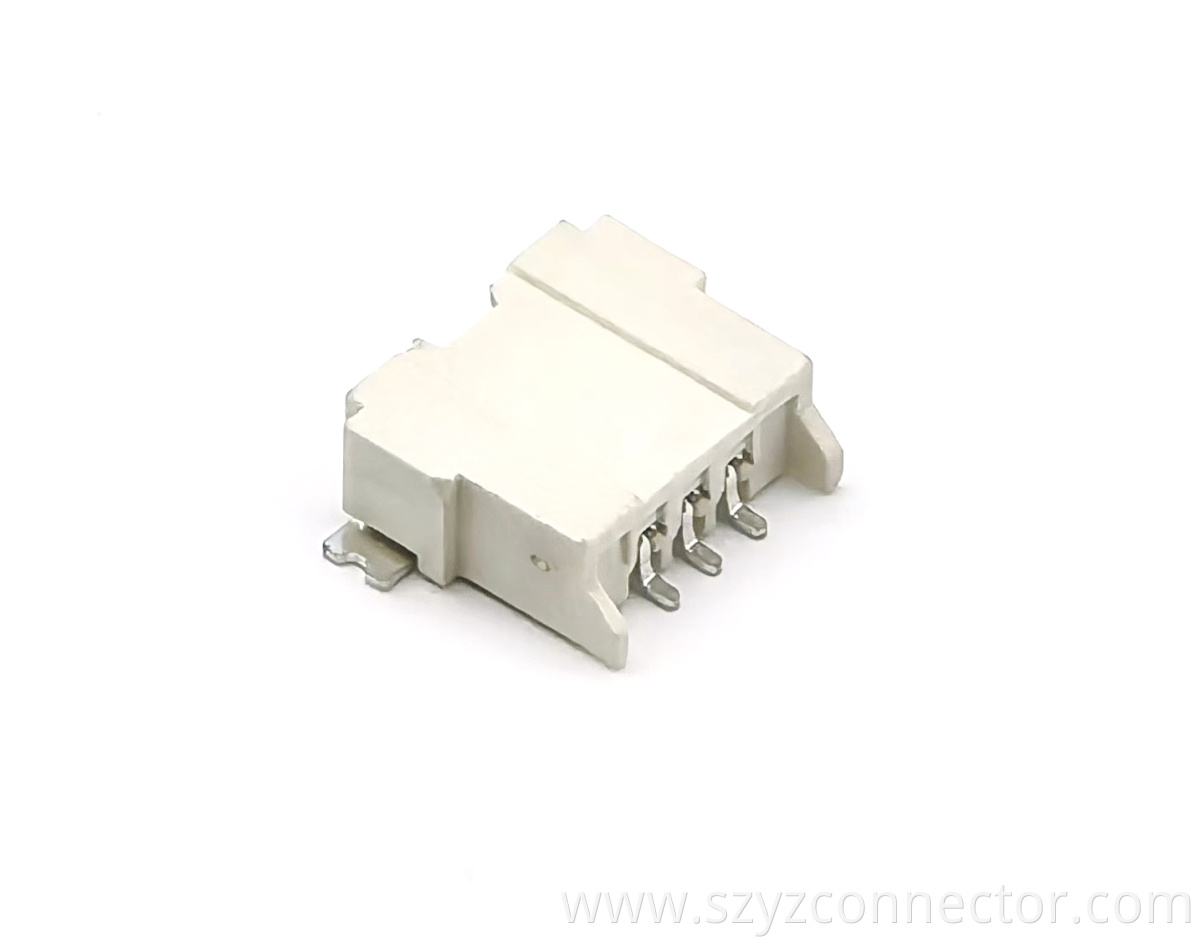

1.25mm Wafer SMT Type Pin header Connector

YZTECH’s 1.25mm pitch horizontal SMT wafer pin header connector offers a compact and reliable interconnect solution for industrial and automotive PCB applications. Designed to DIN standards, this 3-position single-row male header connector features phosphor bronze contacts with tin plating, housed in a robust LCP body. It supports 1A current and 150V voltage ratings, with an operating temperature range of -25℃ to +130℃.



The horizontal SMT design saves board space and ensures stable signal transmission, while also being compatible with automated assembly processes for improved production efficiency. The 1.25mm pitch balances miniaturization with mechanical strength, and the tape-and-reel packaging facilitates streamlined logistics and reduces ESD risks.Constructed with high-quality LCP material, the connector maintains dimensional stability and thermal resistance up to 130°C. The tin-plated phosphor bronze contacts offer low resistance and corrosion resistance, suitable for high-voltage environments. It meets relevant ISO standards for electrical performance, thermal shock, and vibration, with LCP providing flame retardancy and strong chemical/UV resistance.



This wafer Pin Header is widely used in industrial automation, automotive ECUs, renewable energy systems, smart grid equipment, LED lighting, and high-temperature IoT devices. Its universal DIN compatibility and industry certifications make it easy to integrate into global OEM designs, while reel packaging supports eco-friendly logistics and cost-effective shipping.
