1.0mm Pitch Right Angle Pin Header

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 052803

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.0mm Pitch Right Angle Pin Header

yztech’s 1.0mm Pitch Right Angle Pin Header is an innovative solution for compact electronic device connections, designed for space-constrained consumer electronics, industrial control, and medical equipment. As a core model in the Pin Header series, its unique right-angle structure (pin header 90 degree) breaks through traditional wiring limitations, effectively saving 30% installation space, especially suitable for vertical wiring scenarios of PCB Pin Header. The black 1.0mm pitch header represents high cost-performance in the 1.0 mm Pin header category.

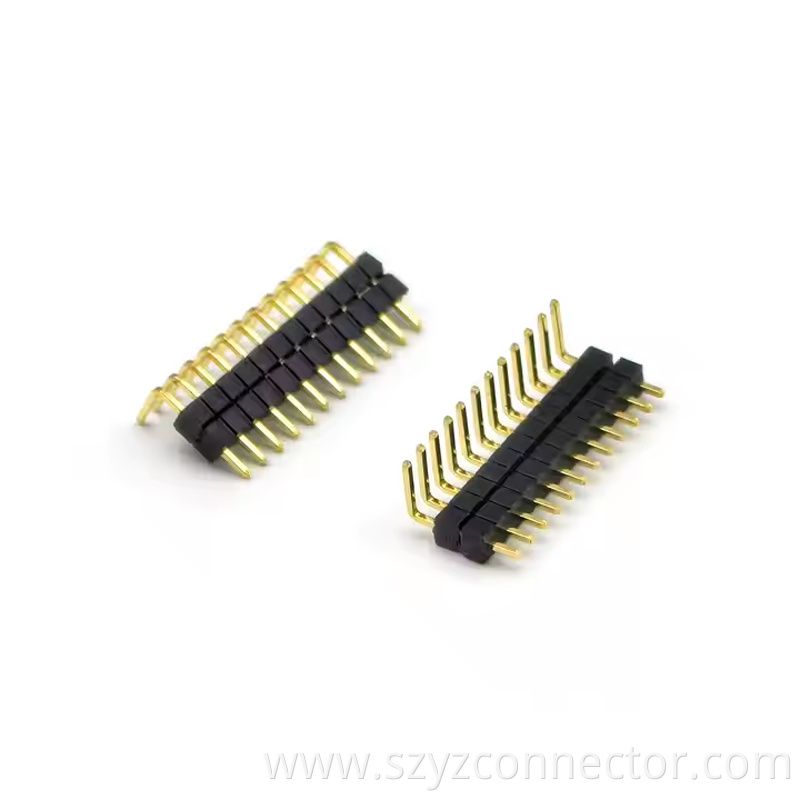

1.0mm Pitch Pin Header Right Angle H1.01.5 SQ0.3 12P-150P (3)

Featuring C2680 phosphor bronze terminals (gold-plated) and black LCP insulators, the 1.0mm pitch header stable operates across -40°C to +105°C with a 2A/pin current rating, ensuring stable high-frequency signal transmission. The Gold Flash plating, combined with a ≥50u" nickel base, keeps contact resistance below 20mΩ, minimizing signal loss in right-angle paths. With 6-64 PIN options, it is compatible with Female Header Pins and various socket models, adapting to diverse applications from smart homes to precision instruments.

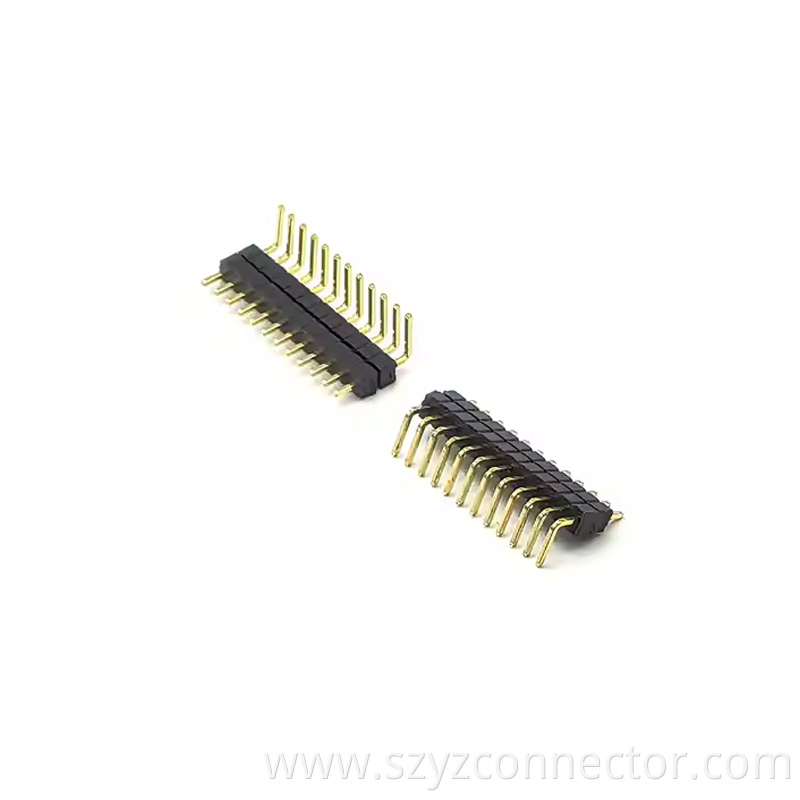

1.0mm Pitch Pin Header Right Angle H1.01.5 SQ0.3 12P-150P (4)

Certified to IPC-A-610 and RoHS-compliant, standard packaging includes anti-static carrier tapes + cartons. ODM/OEM customization is available, offering one-stop procurement for the full range of 1.0mm pitch header black derivatives.
