1.0mm Pin Header Single Row 10P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 10P

Contact Now

Product Description

Product Attributes

Model No.: 1101-100R-1*10P-H1.0-F-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Bulk

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

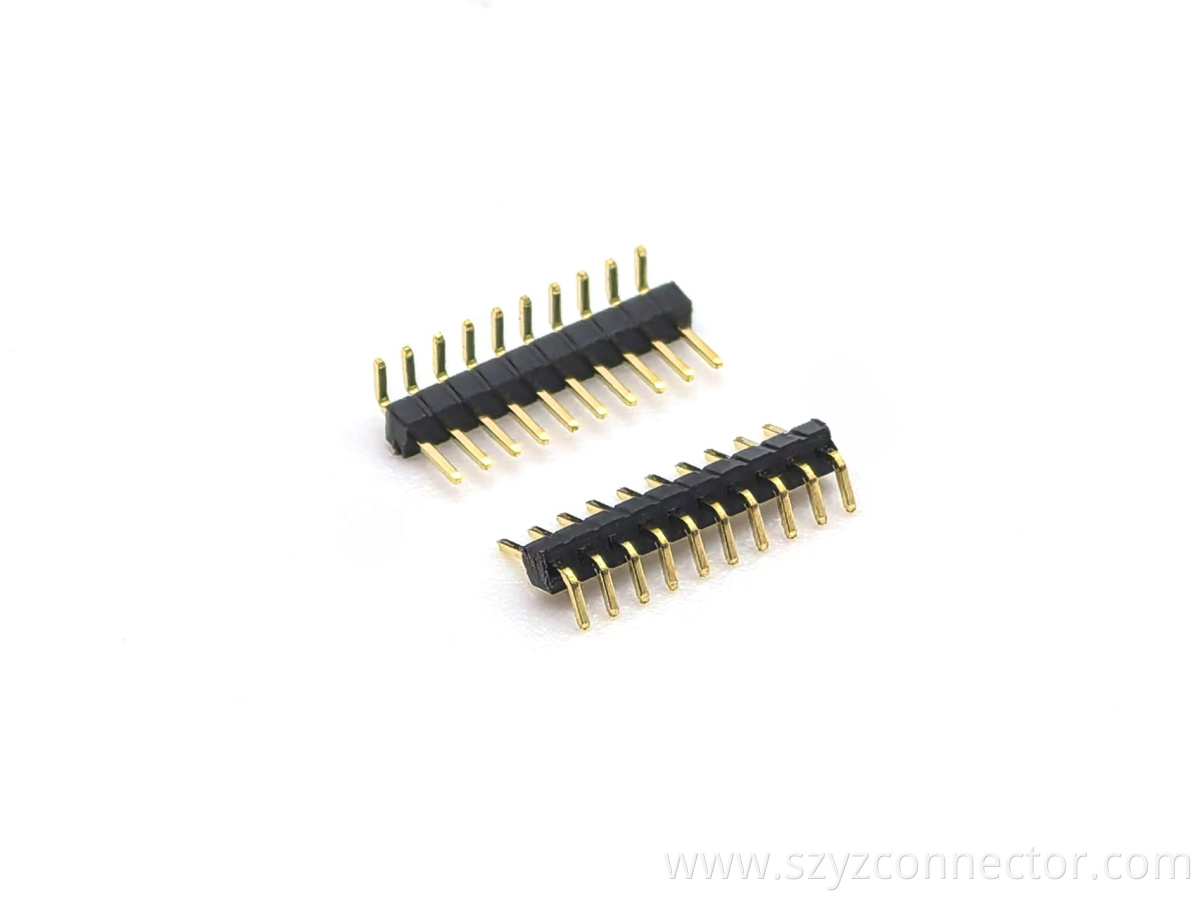

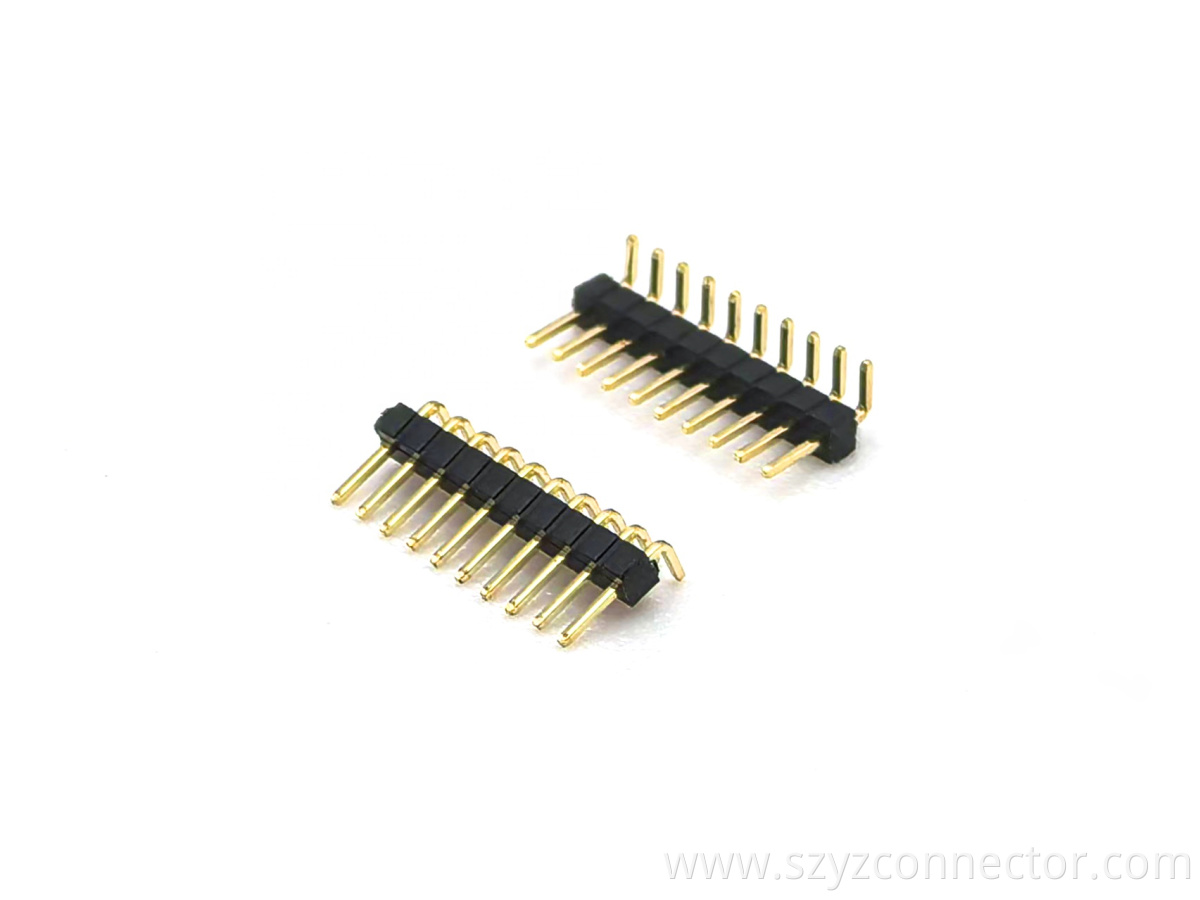

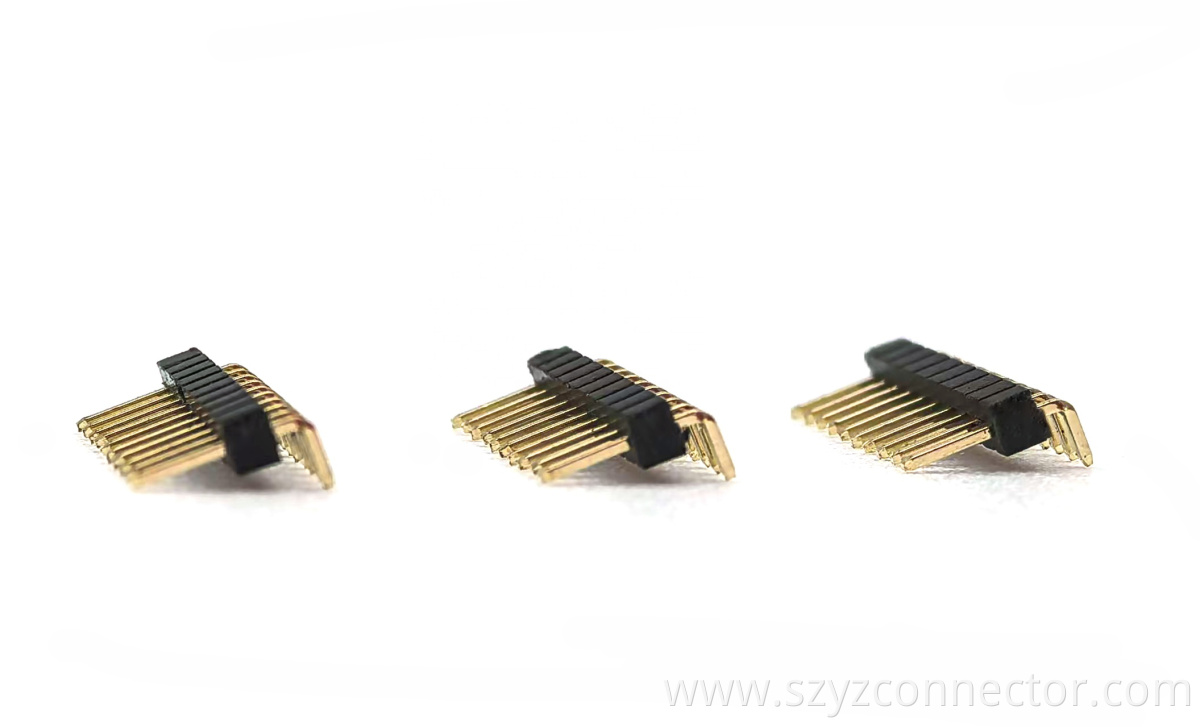

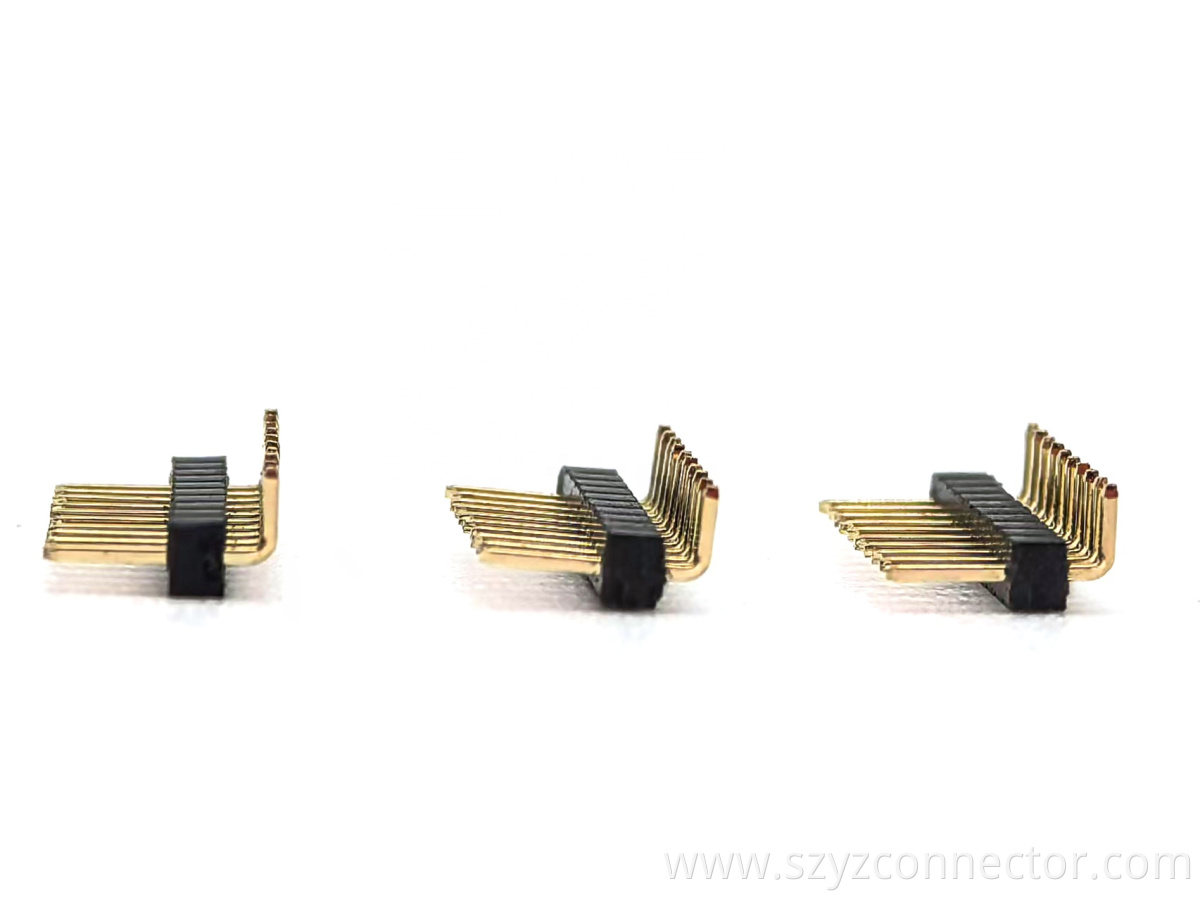

1.0mm Pitch Pin Header Connector Single Row Right Angle H:1.0mm 1*10P



Product Description

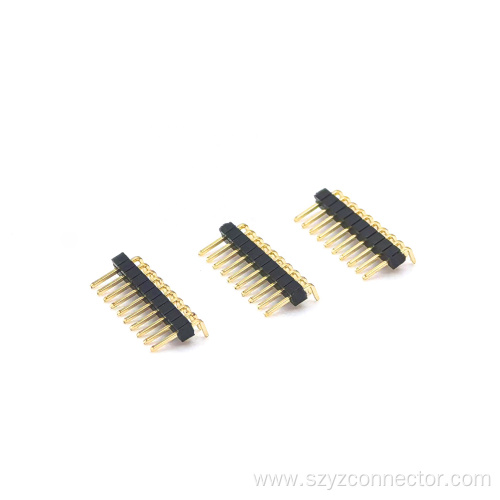

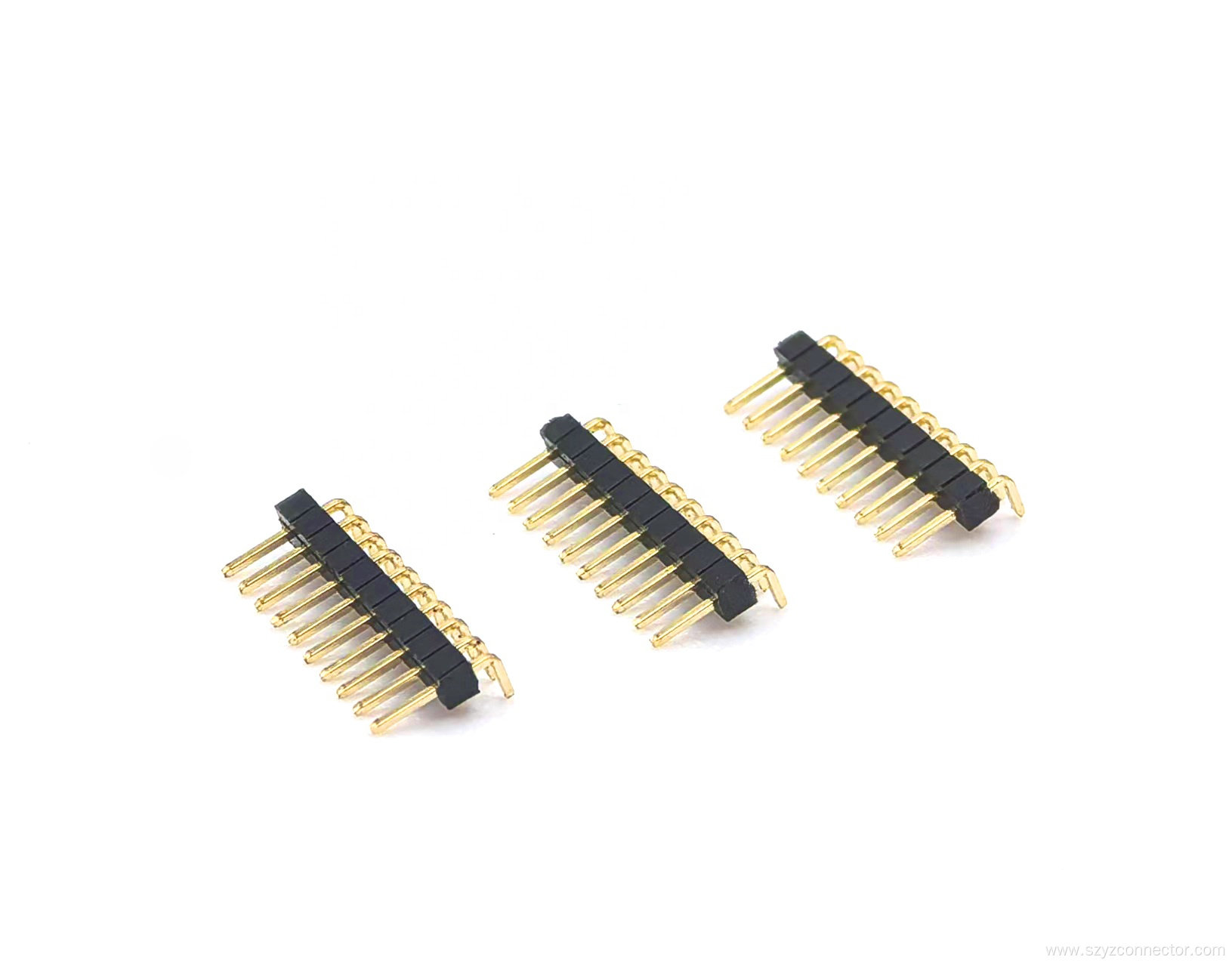

1.0mm Pin Header Single Row 10P

YZTECH introduces its precision-engineered 1.0mm Pin Header Single Row 10P, featuring an innovative right-angle bending plug design for ultra-compact PCB applications.This 1mm pitch pin header H1.0mm with 10-position contacts enables efficient parallel board connections while minimizing vertical space requirements.The precision-formed brass contacts with gold plating ensure reliable electrical performance with a 0.75A current rating and exceptional 600V voltage capacity.Manufactured using high-temperature PA6T insulation material,this 1.0mm pitch pin header connector PA6T provides superior mechanical stability and thermal resistance in space-constrained electronic assemblies, representing a significant advancement in high-density interconnection technology.

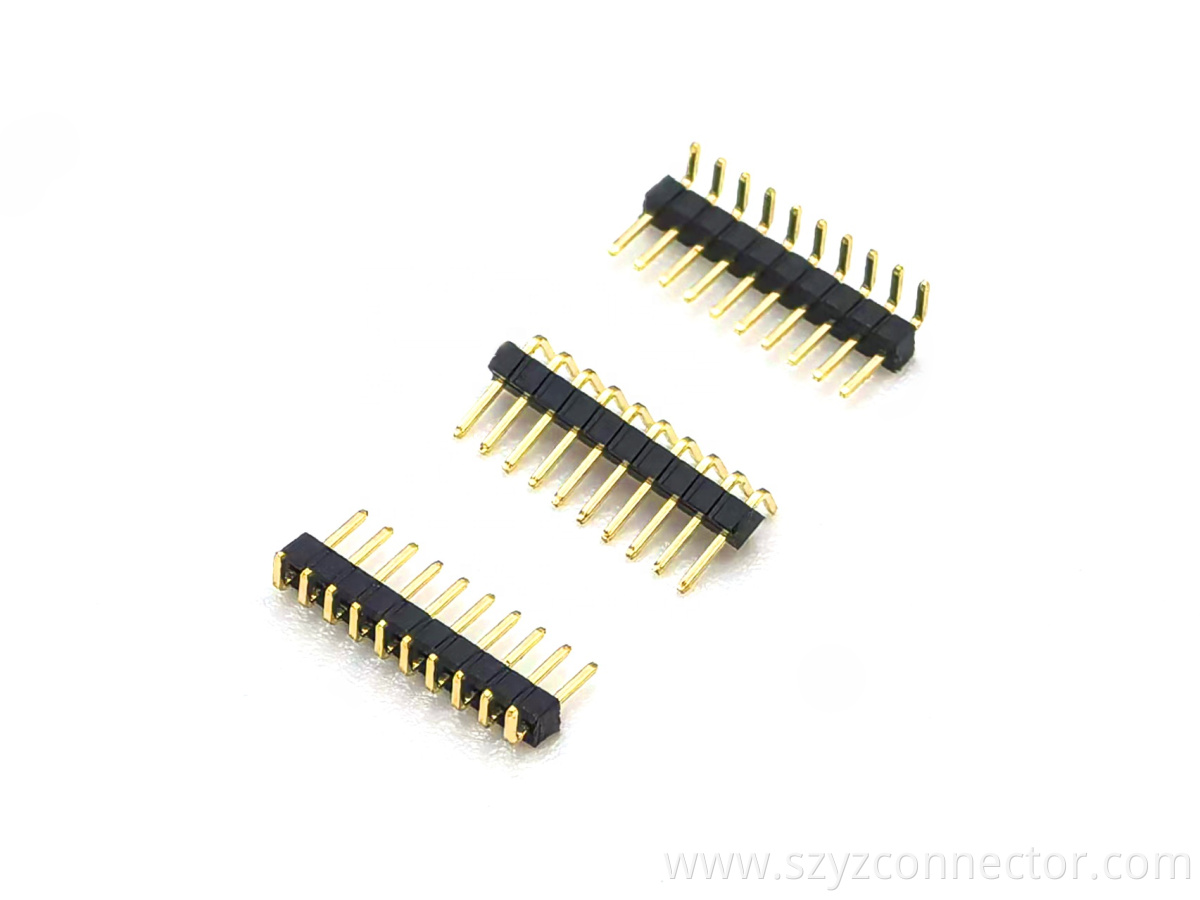

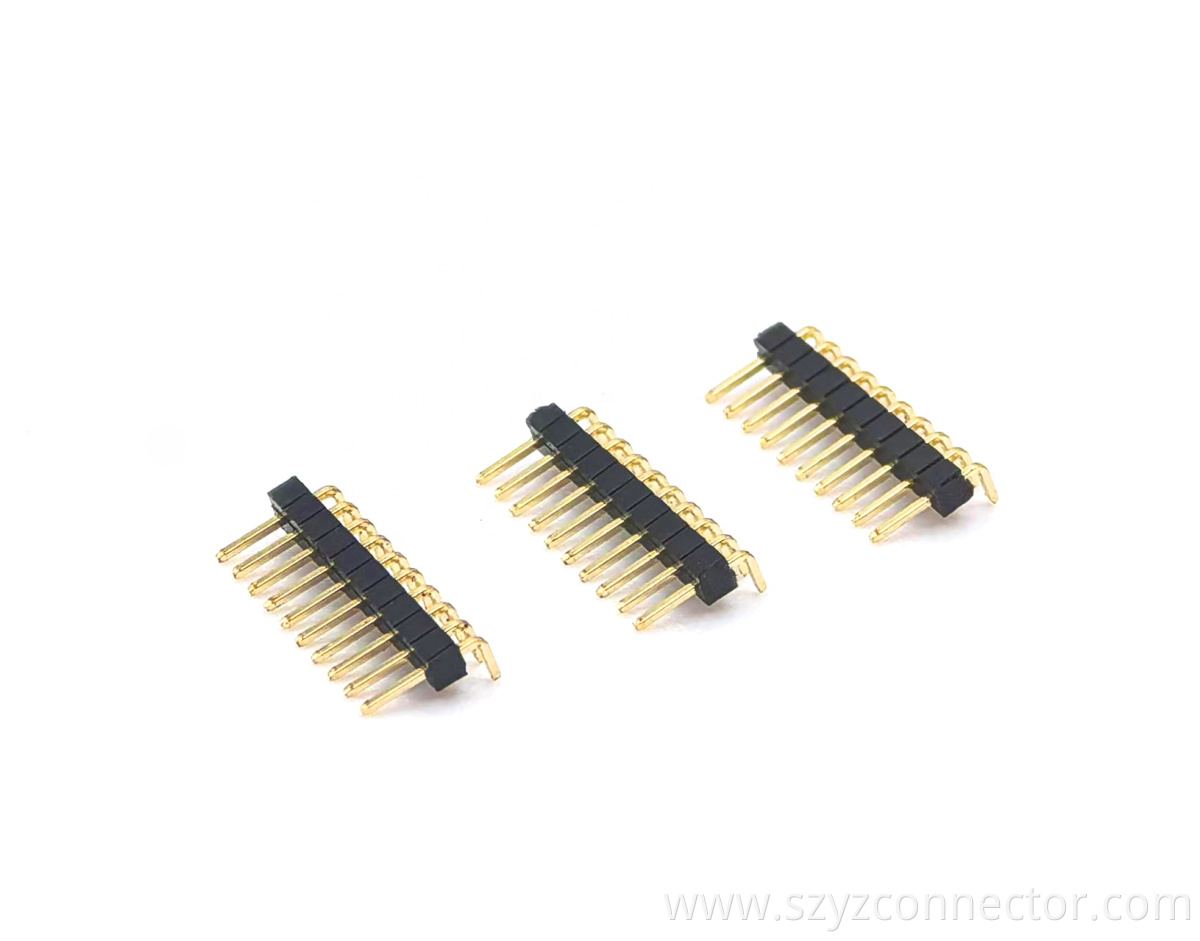

1.0mm Pitch Pin Header Connector Single Row Right Angle H:1.0mm 1*10P

This ultra-fine 1mm pitch header demonstrates remarkable durability across an extended operational temperature range from -45℃ to 105℃,ensuring reliable performance in both extreme cold and elevated temperature conditions. The high-grade PA6T thermoplastic housing maintains dimensional stability under thermal stress,while the gold-plated contacts ensure minimal insertion force and stable electrical characteristics through repeated mating cycles.With a maximum welding temperature tolerance of 220℃ for 10 seconds,the 1.0mm pin header connector right angle withstands standard reflow processes without compromising structural integrity.

The protective box packaging safeguards the delicate right-angle pins during transportation and handling, ensuring perfect condition for automated assembly processes.The YZTECH 1.0mm pin header delivers exceptional value in applications where maximum space optimization is critical.The 90-degree design facilitates efficient parallel board stacking while maintaining reliable electrical connections between adjacent circuits.
