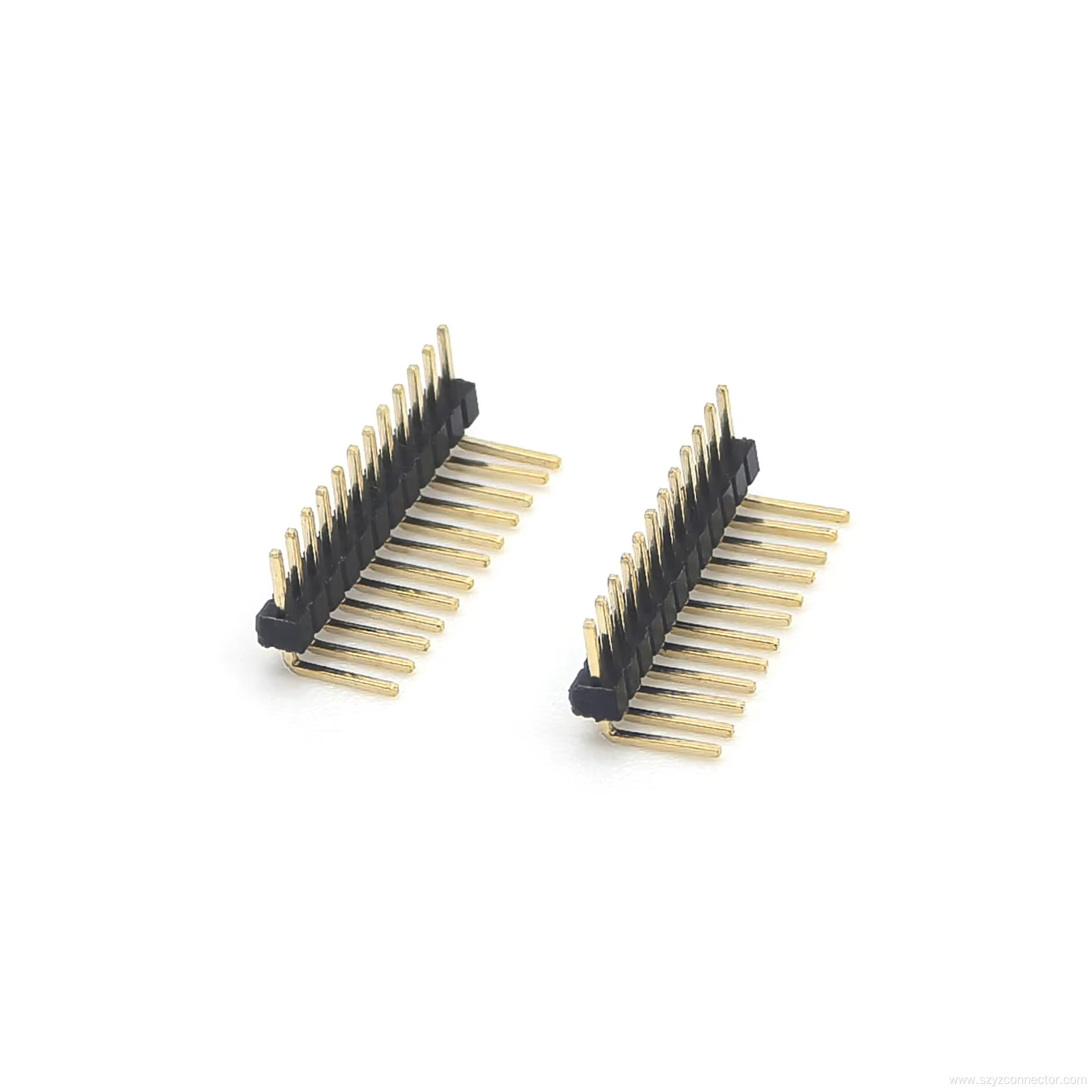

1.0mm Pin header Right Angle H1.0mm 12P

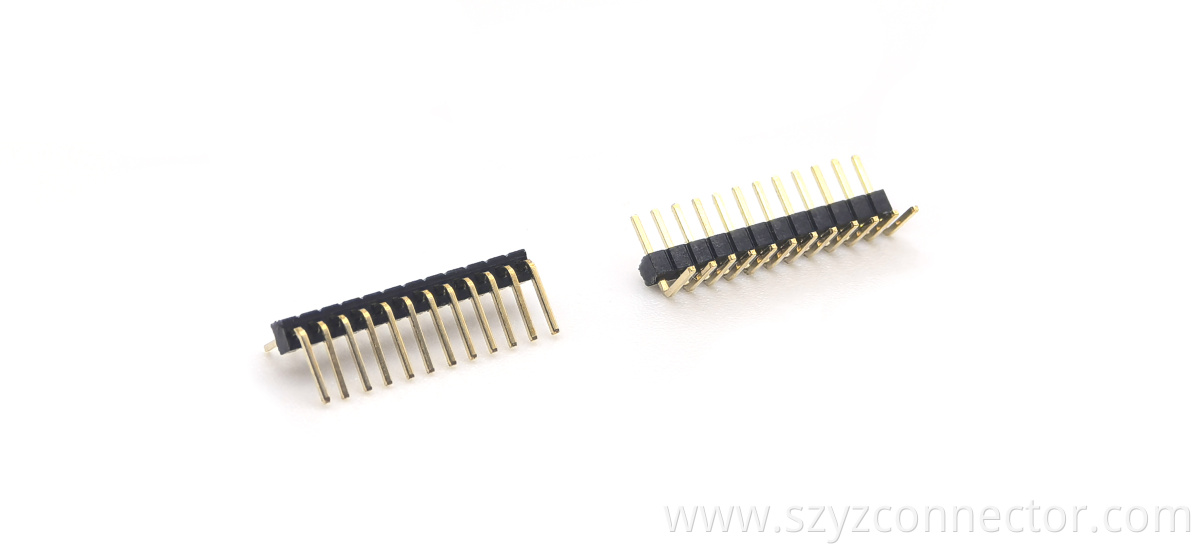

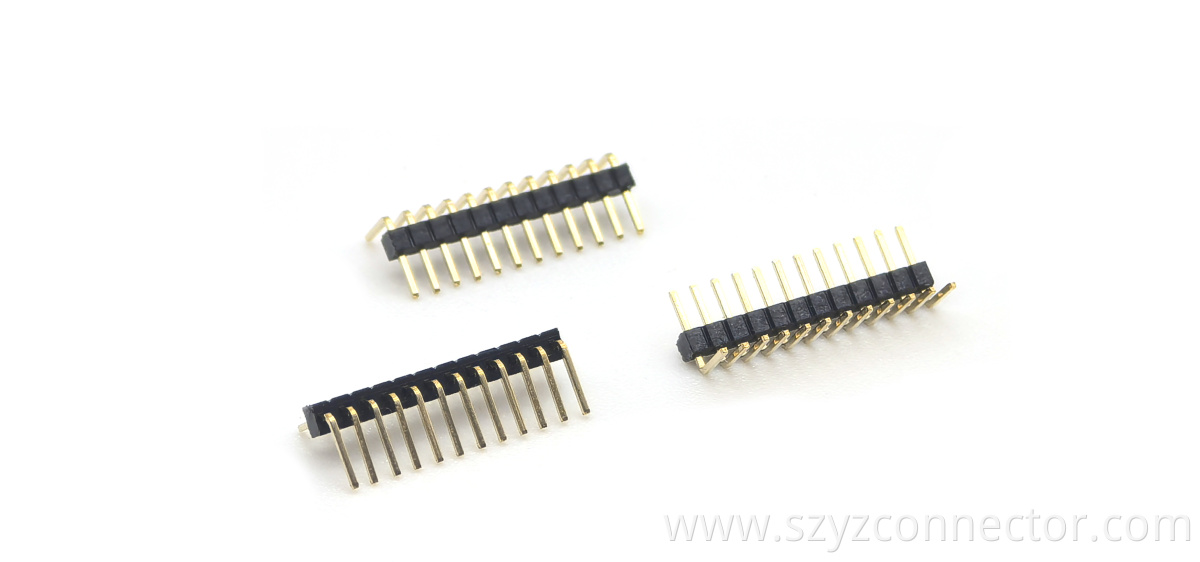

Constructed with precision,the YZTECH right-angle 1.0mm pin header connector features a brass contact base with a durable gold plating finish,minimizing contact resistance and enhancing wear resistance for repeated mating cycles.The insulator is molded from high-performance PA6T,a material known for its superior mechanical strength,low moisture absorption,and exceptional heat resistance-allowing the component to endure peak reflow temperatures without warping or blistering.Operating seamlessly from -40℃ to +105℃,this header ensures consistent performance under harsh thermal conditions.Electrical ratings include a 3A current-carrying capacity per pin and a 600V voltage withstand,suitable for low-to-medium power distribution and signal circuits.The single-row,12-pin layout with a 1.0mm pitch supports dense PCB designs while maintaining adequate creepage and clearance distances.Maximum soldering temperature is specified at 220°C for 10 seconds,enabling reliable hand or wave soldering operations.

To streamline your production workflow,each YZTECH 1mm pin header is supplied in bag-and-box packaging-protecting pins from bending or contamination during storage and transit.
