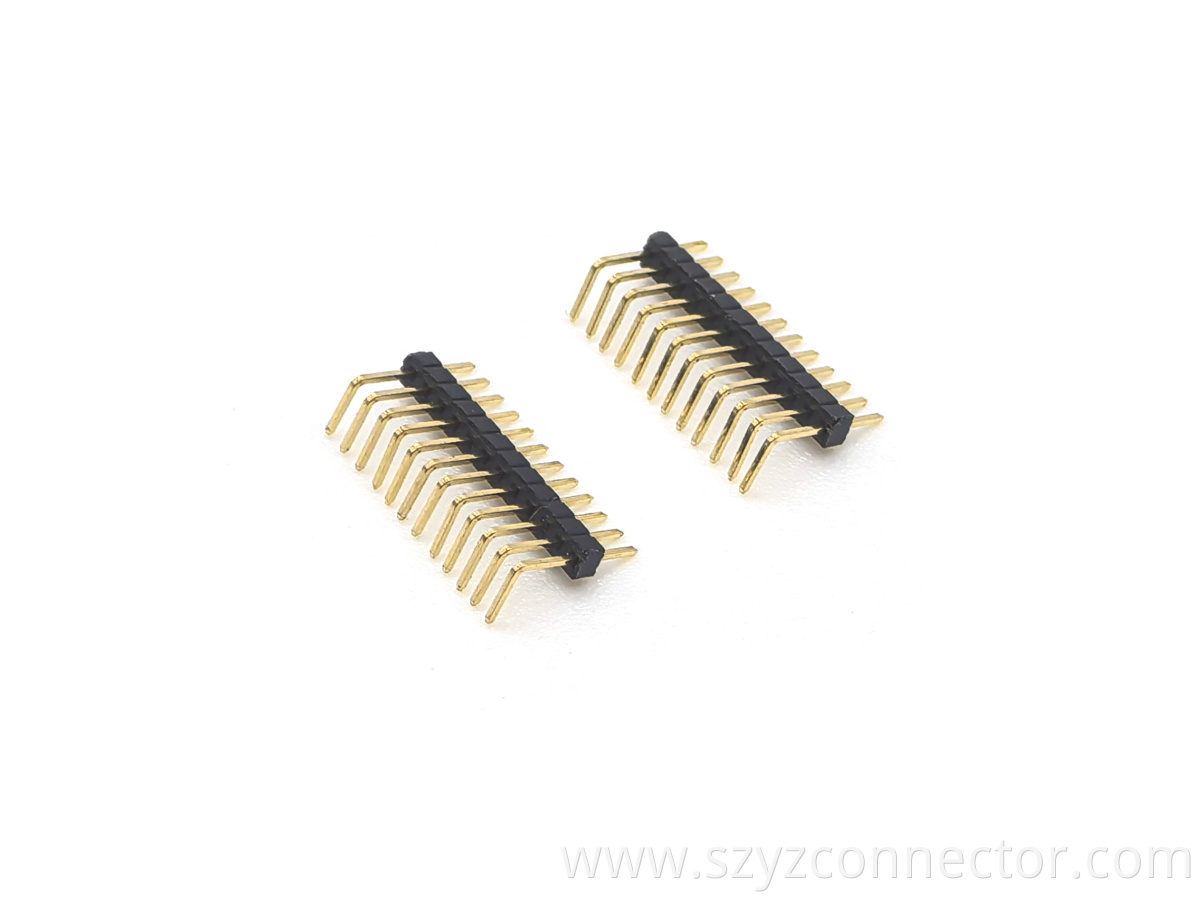

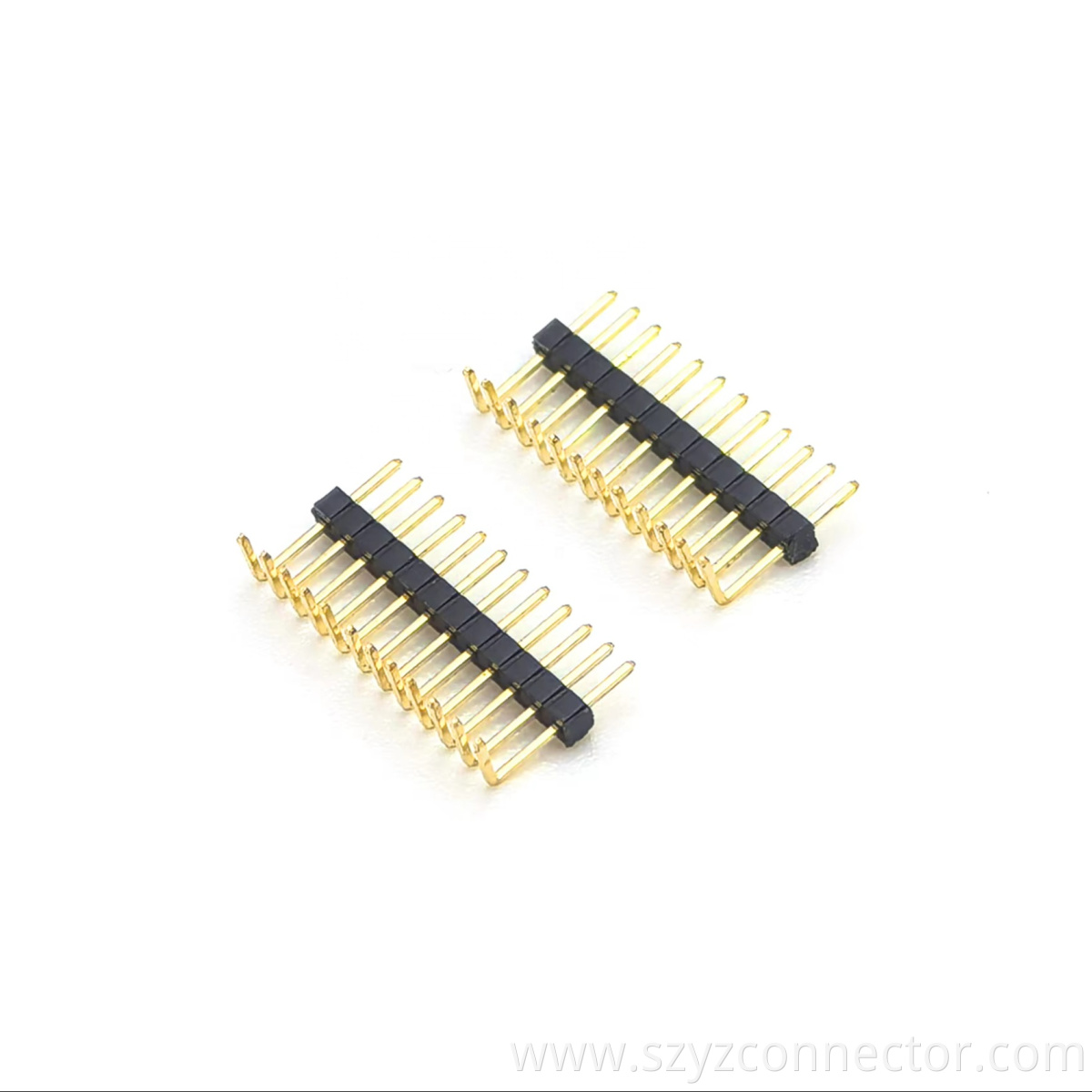

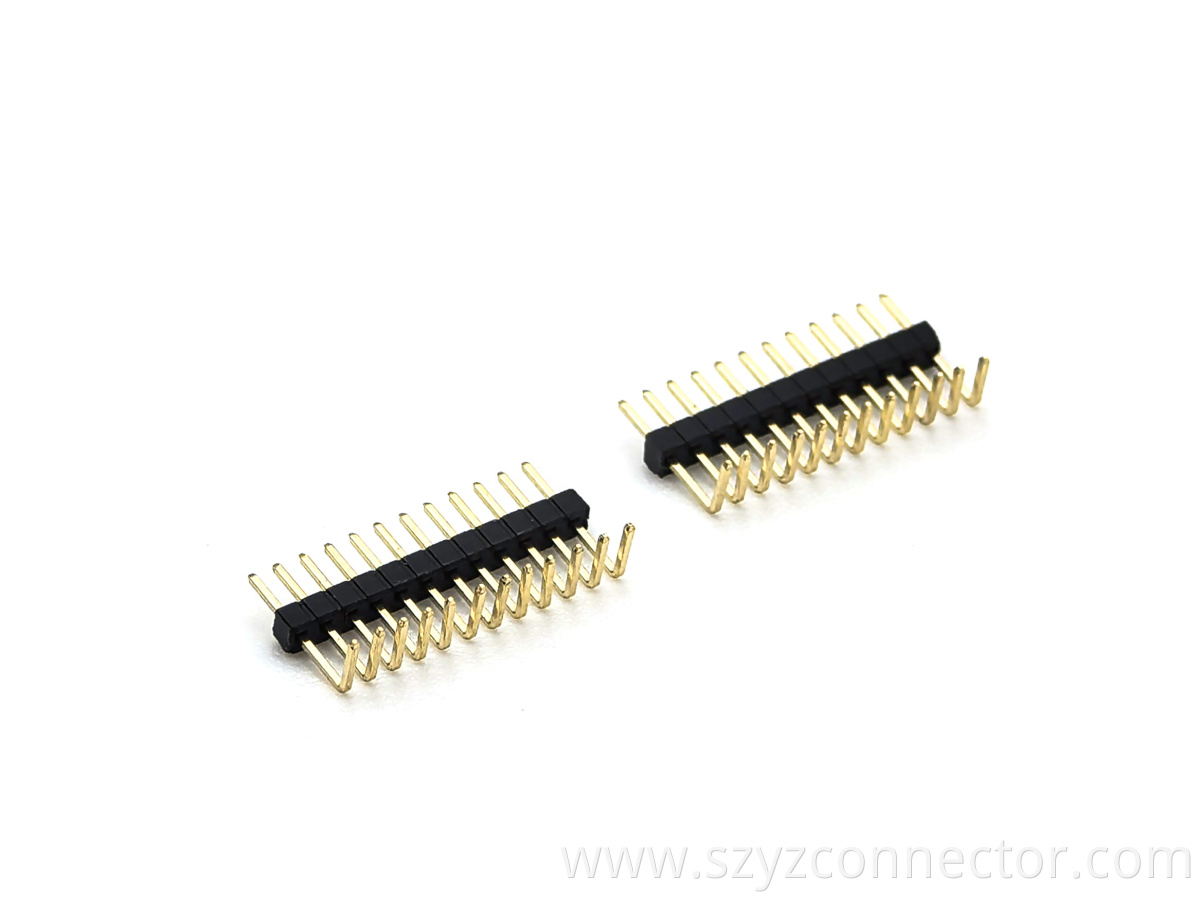

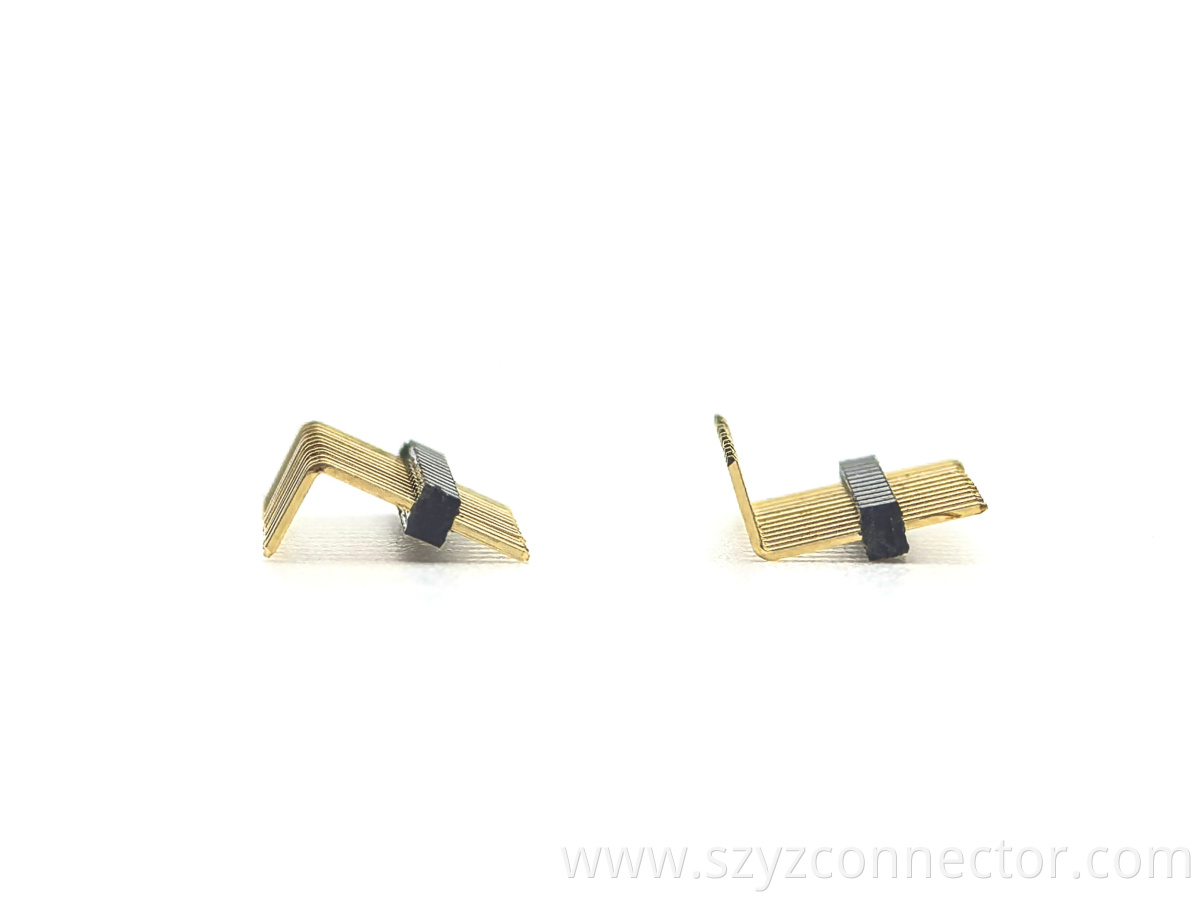

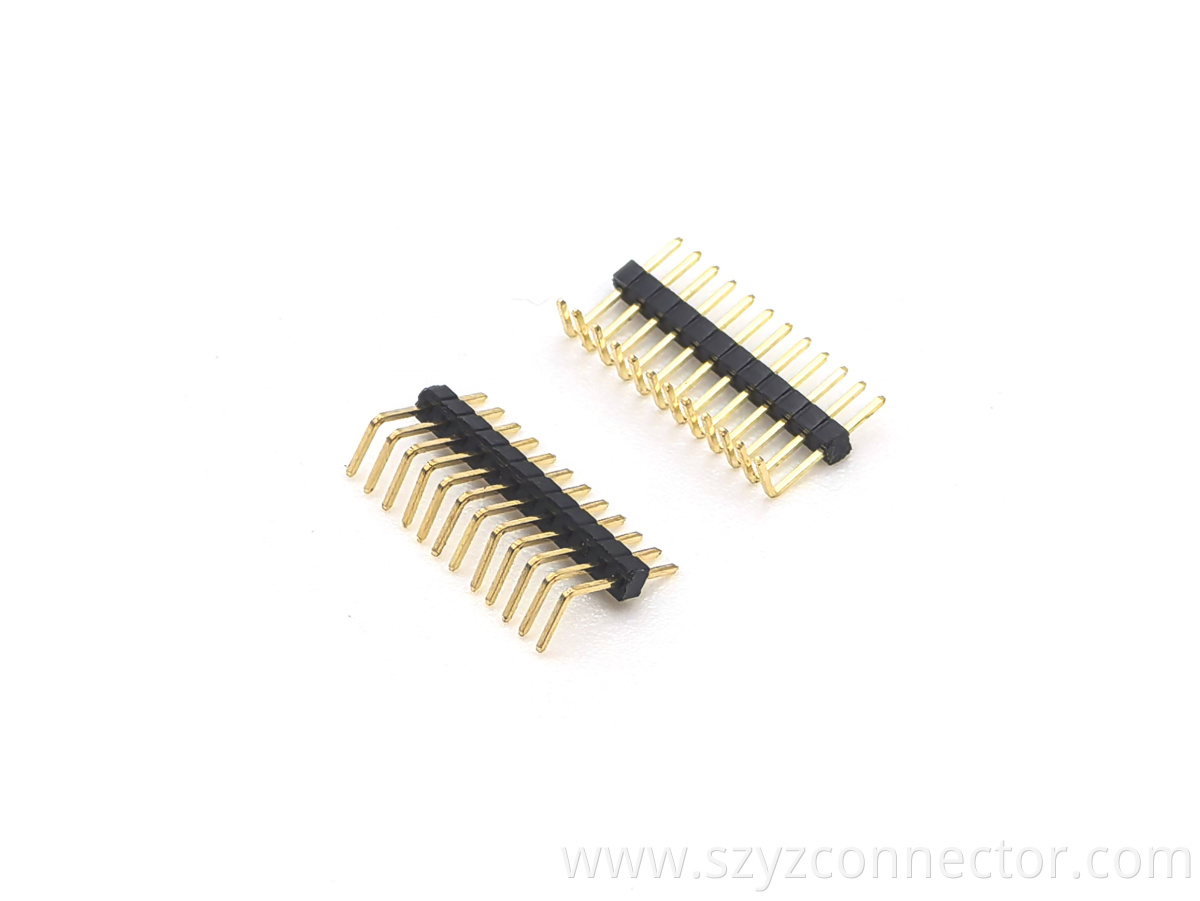

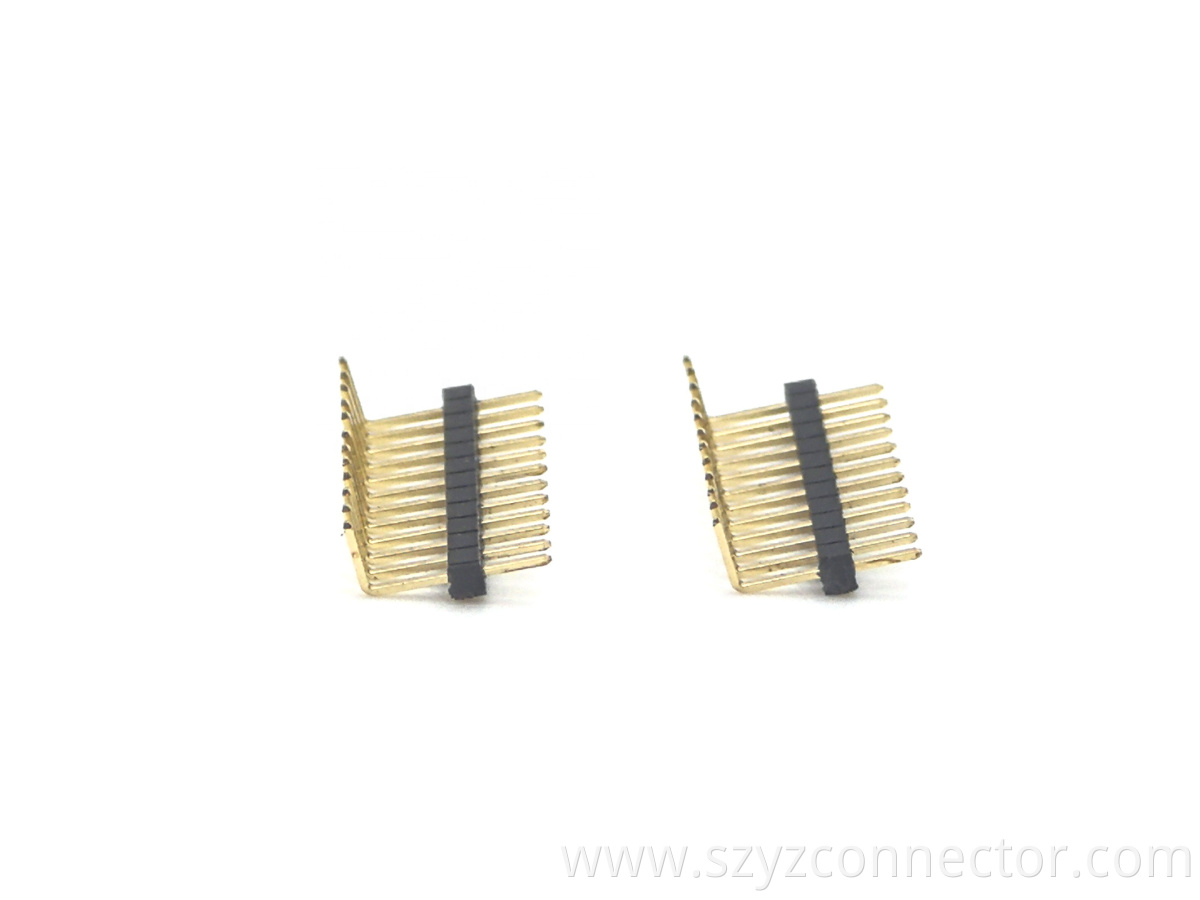

1.0mm Pin header Single Row Right Angle

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 12P

Contact Now

Product Description

Product Attributes

Model No.: 1101.100R-1*12P-F-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

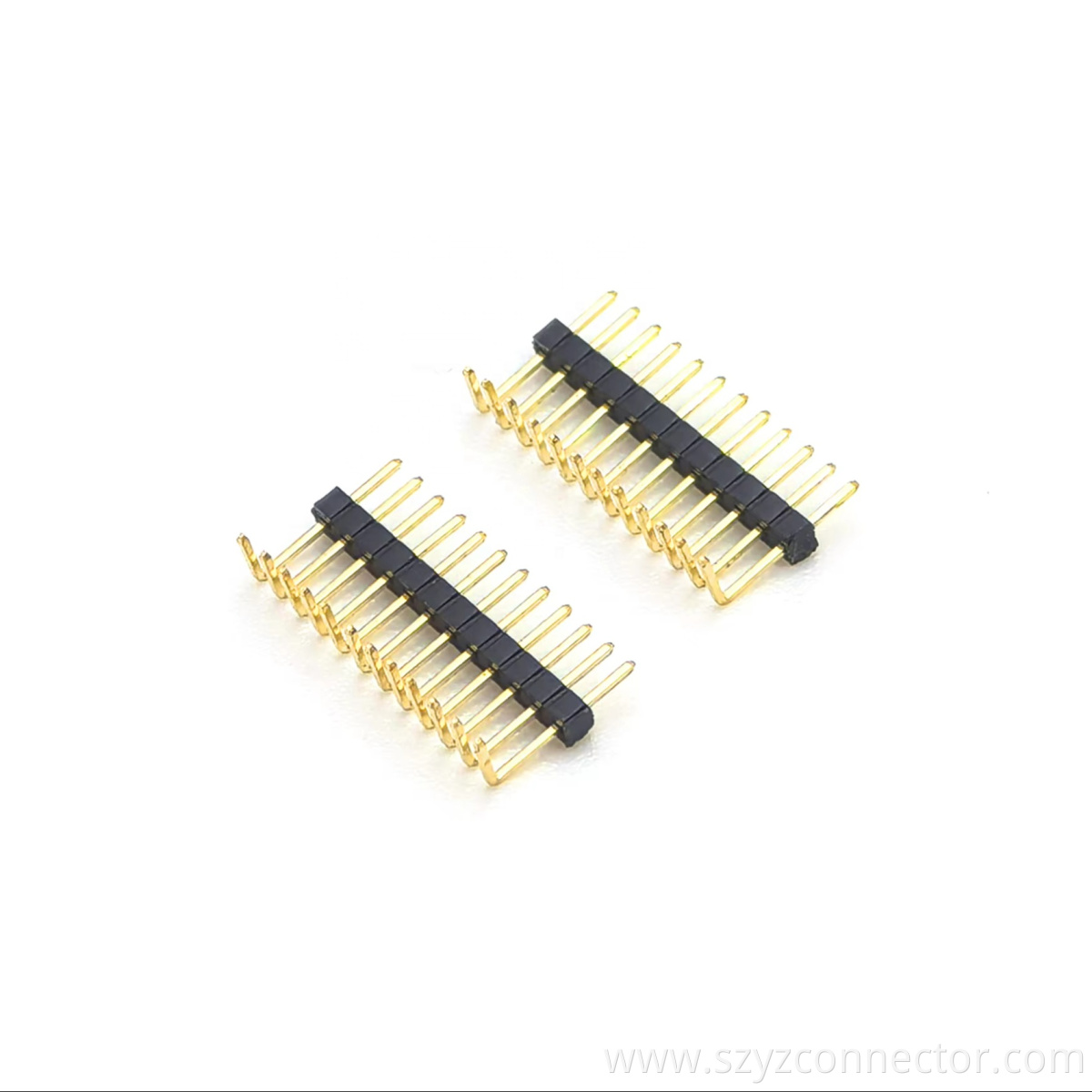

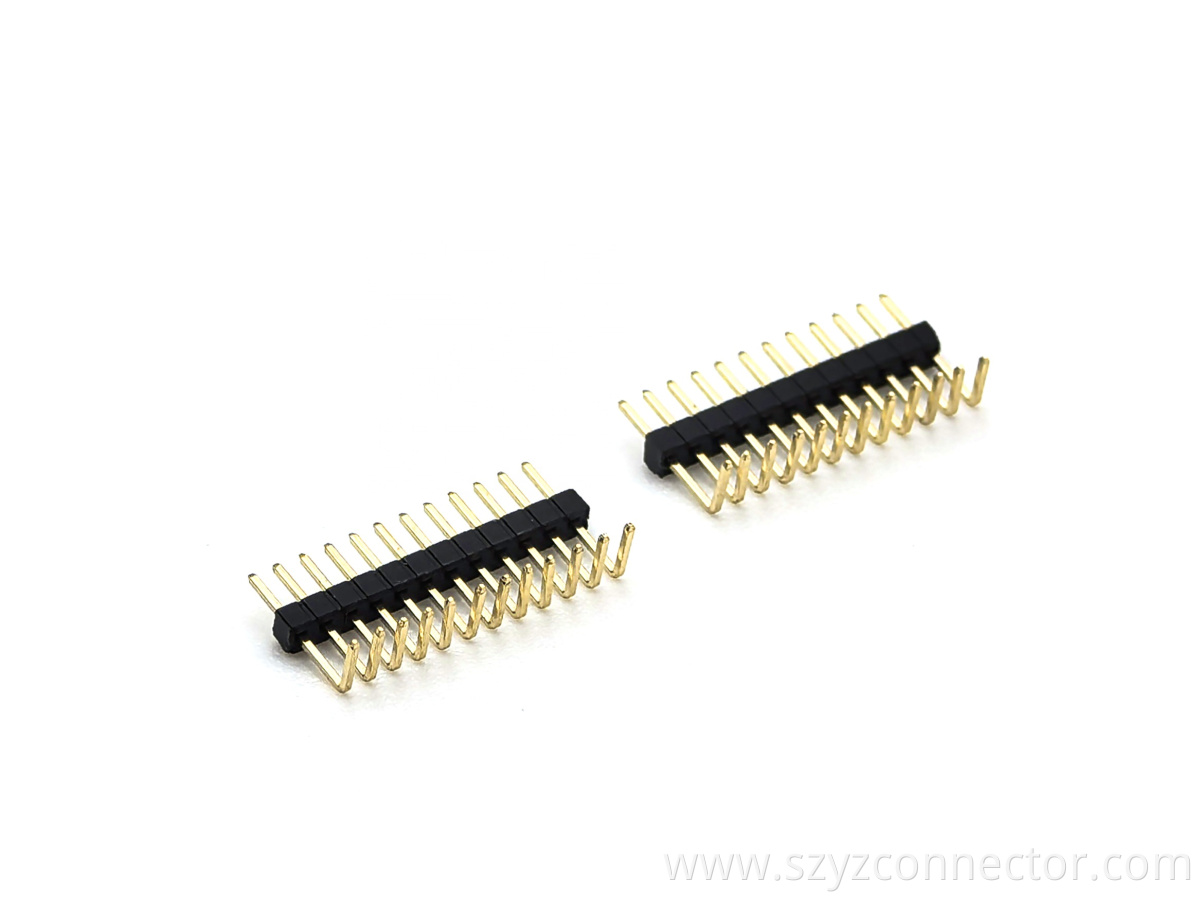

1.0mm Pitch Pin header Connector Right Angle H1.0/1.5mm 1*12P



Product Description

1.0mm Pin Header Single Row Right Angle

YZTECH 1.0mm Pin Header Single Row Right Angle offers a compact and reliable interconnection solution for modern PCB designs. Designed in a bending plug type with 12 positions, this 1.0mm pin header H1.0mm features a rectangular shape and complies with DIN standards. It is constructed with a brass contact material and gold-plated coating, ensuring stable electrical performance with a rated current of 0.75A and voltage of 600V. The housing made of high-temperature-resistant PA6T provides excellent mechanical strength and insulation. Operating temperatures range from -40℃ to +105℃, making it suitable for challenging environments.

This right-angle pin header connector is ideal for space-saving applications across industries such as industrial automation, automotive electronics, consumer appliances, and communication devices. Its bending plug design allows smooth PCB mounting where vertical clearance is limited. The 1.0mm pin header 12p supports efficient wave soldering processes with a maximum tolerance of 220°C for 10 seconds, simplifying production and reducing assembly time.

YZTECH emphasizes quality and durability, making this 1.0mm pin header a smart choice for engineers seeking efficient and dependable connectivity. Packed in secure box packaging, it ensures excellent condition during storage and transportation.Whether used in control systems, power supplies, or IoT modules, this 1.0mm pin header PA6T material delivers consistent signal transmission and mechanical stability in a versatile form factor.
