1.0mm Pin header Single Row Straight

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1101.100S-1*10P-0046-F1-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.0mm Pitch Pin header Connector Straight H1.0mm 1*10P



Product Description

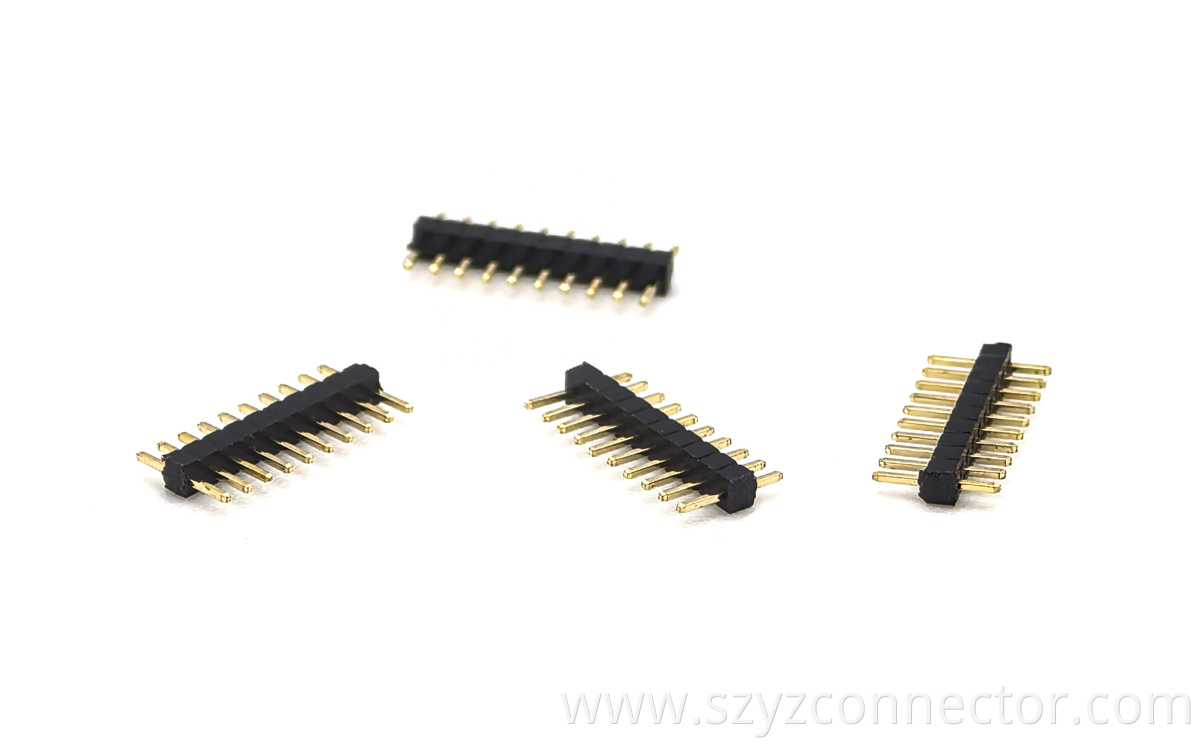

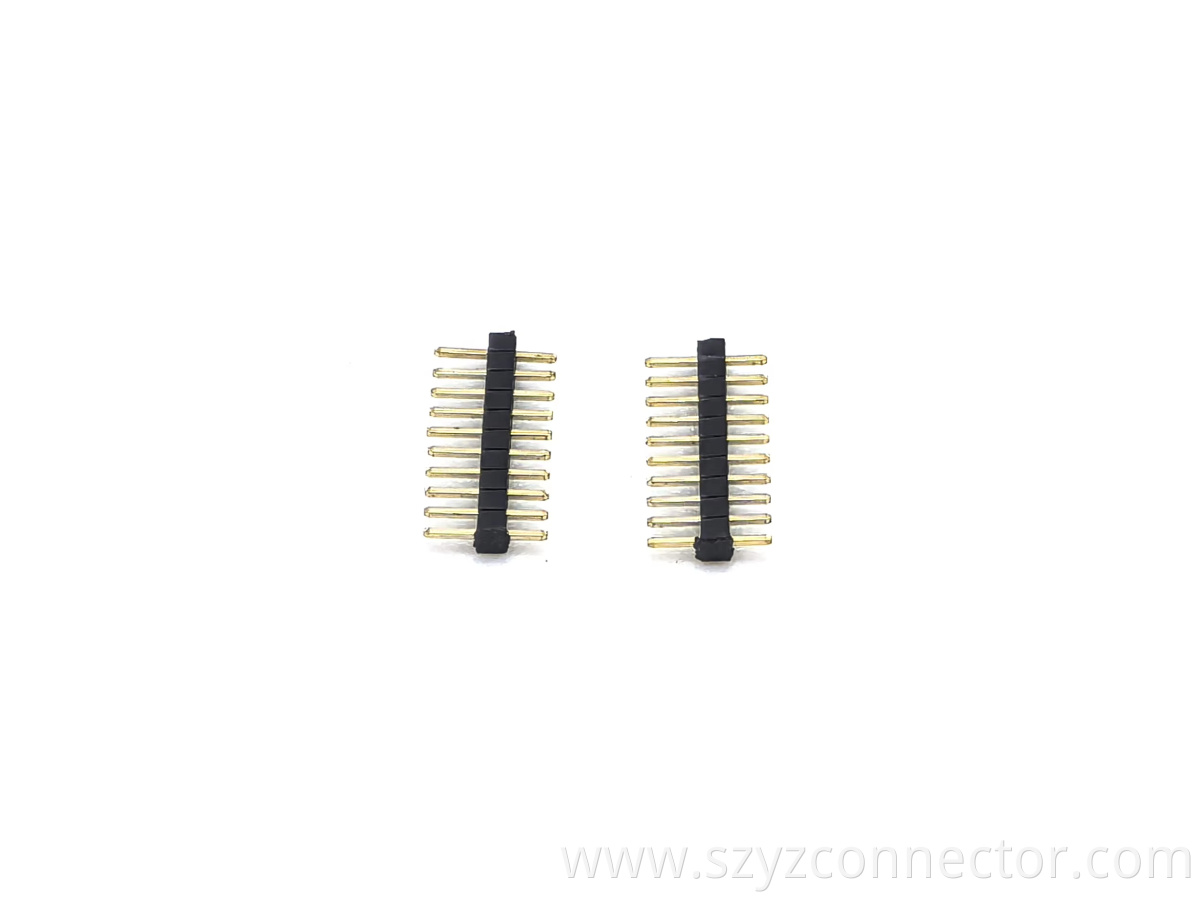

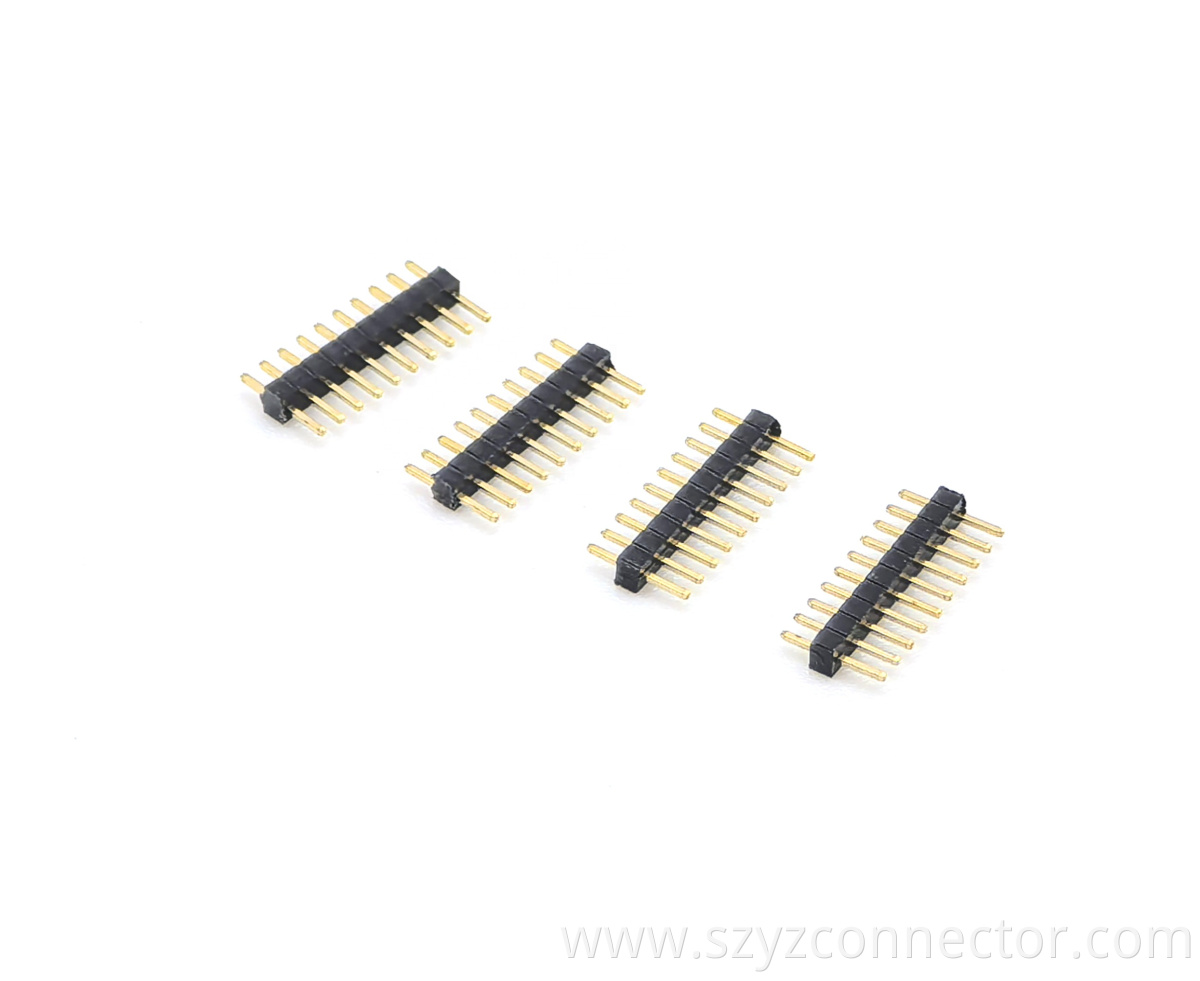

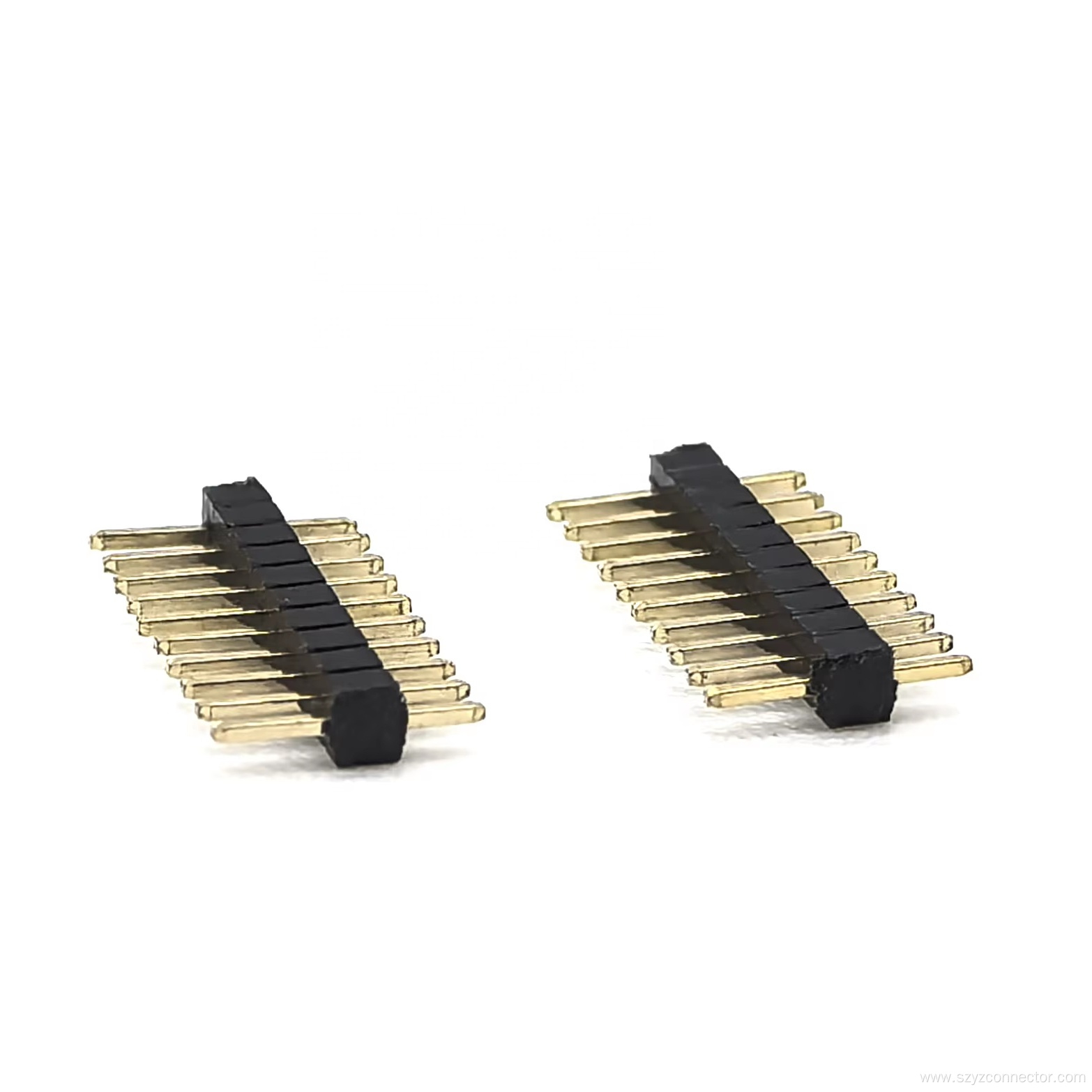

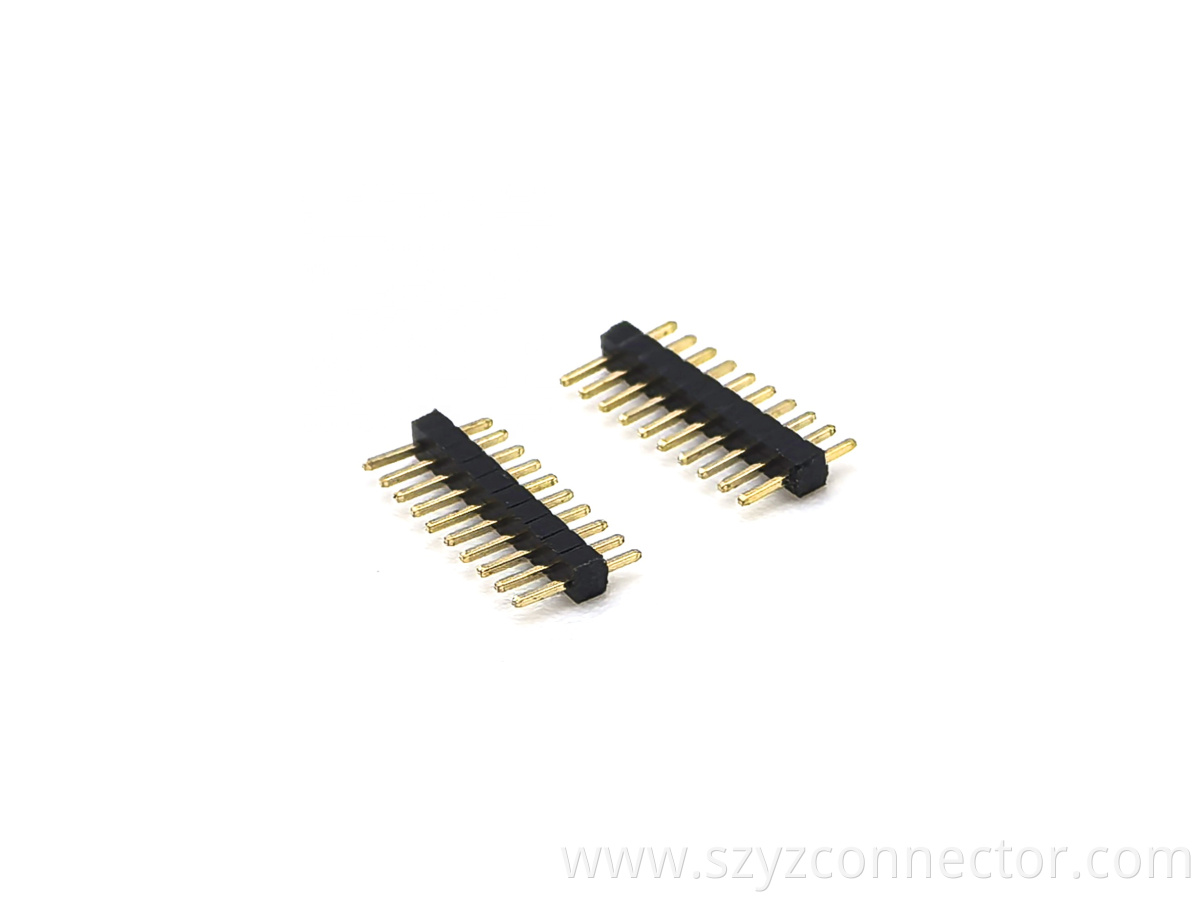

1.0mm Pin Header Single Row Straight

YZTECH presents a high-performance 1.0mm Pin Header Single Row Straight with straight plug installation, engineered for reliability and efficiency in compact PCB designs. Featuring a male rectangular interface and 10 contact positions per row, this 1mm pin header connector H1.0mm supports a rated current of 0.75A and voltage up to 600V. Crafted from brass contacts with selective gold plating, it ensures stable conductivity and corrosion resistance. The housing made of PA6T material offers high heat resistance, supporting an operating temperature from -40°C to +105°C. With a peak soldering tolerance of 220°C for 10 seconds, it suits reflow processes seamlessly.

Ideal for space-sensitive and high-density electronic assemblies, this 1.0mm pitch pin header PA6T is widely used in industrial control systems, automotive electronics, telecommunications hardware, and consumer devices. Its straight-plug design simplifies PCB layout and maximizes assembly efficiency. You’ll find it inside motor drives, sensor modules, power supplies, and IoT gadgets—any application demanding robust connections in a minimal footprint. It’s a go-to solution for engineers designing modern, reliable tech.

Built to meet international standards including DIN requirements, YZTECH’s 1.0mm pitch pin header connector 10p is trusted across industries for consistent performance in challenging environments. Whether for automation equipment, medical devices, or renewable energy systems, it delivers durability and signal integrity. Packed in reusable boxes for safe shipping and storage, it’s tailored for global supply chains and manufacturing partners who value quality and ease of integration.
