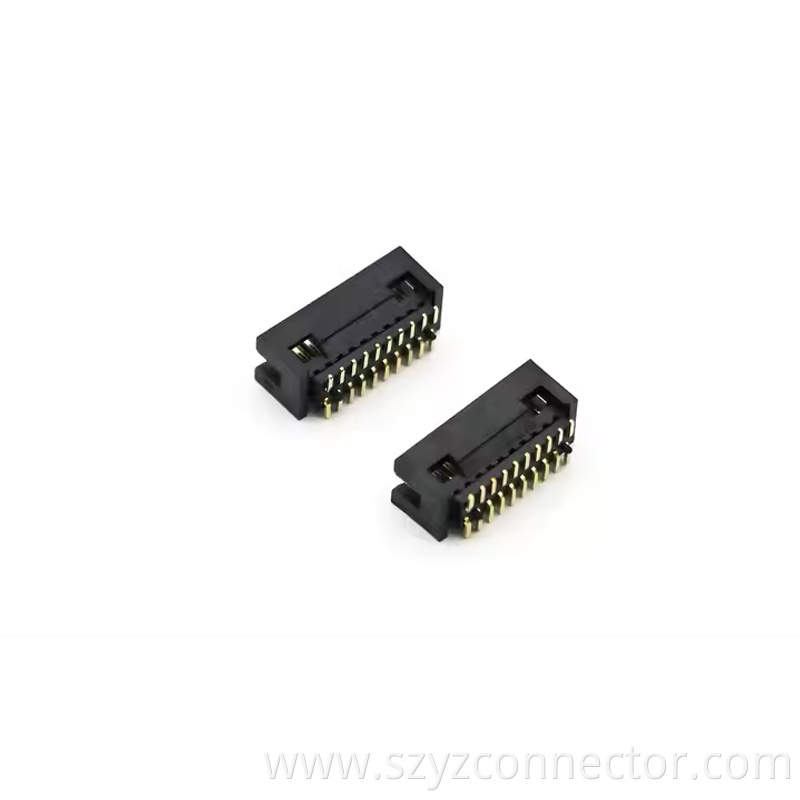

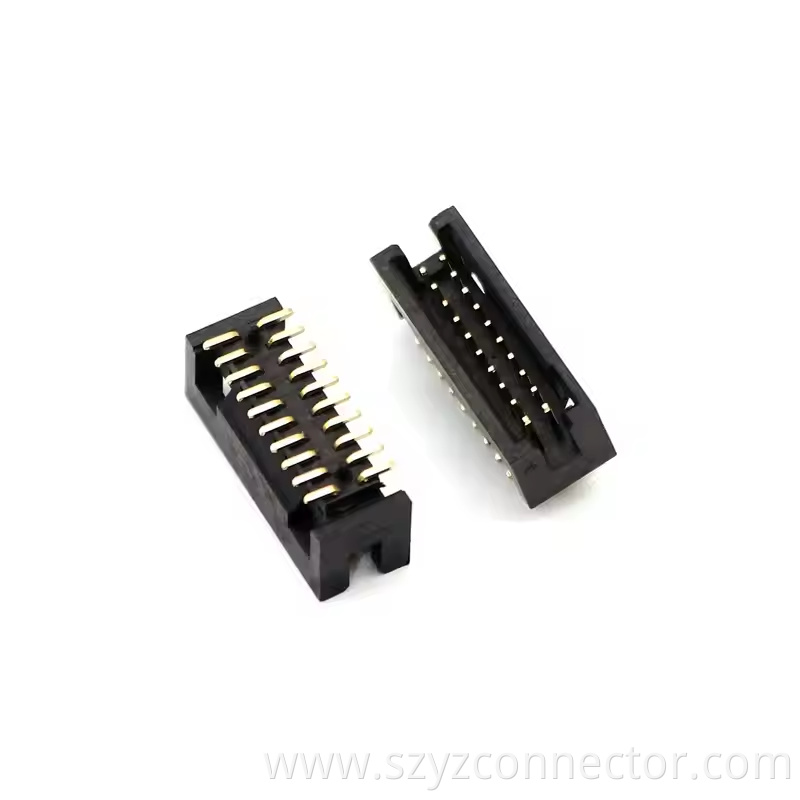

1.27mm Pitch Box Header SMT H5.7mm

yztech’s meticulously crafted 1.27mm Pitch box header SMT H5.7mm is specially designed for electronic devices with strict requirements for spatial layout and signal transmission. As a featured product in the smt box header series, the standard 1.27mm pitch and precise 5.7mm height design perfectly meet the three-dimensional wiring needs of PCB boards, standing out in the 1.27 mm box header category for its excellent space adaptability and stable performance.



This box header features high-quality C2680 phosphor bronze terminals (finely gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulators, soldered via advanced SMT technology. It can stably transmit signals at a rated current of 3A/pin in environments ranging from -40°C to +105°C, with contact resistance controlled within 18mΩ. The 5.7mm height design allows for flexible combination with Right Angle Box Header, meeting the three-dimensional cross-wiring needs of complex circuits and being highly compatible with idc box header connector. The flexible 10 - 50 PIN configuration is widely used in communication base stations, industrial control motherboards, etc. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging supports customized services, providing reliable connection solutions for both conventional applications and special scenario requirements of box header.
