1.27mm Box Header Connector Dual Row Straight

1.27mm Box Header Connector Dual Row Straight

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 40P

Contact Now

Product Description

Product Attributes

Model No.: 1103.1S/A-40P-H5,7-F1-00

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Package: Tray

Supply Type: Original Manufacturer

Place Of Origin: China

Species: Headers And Pcb Receptacles

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tray&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.27*2.54mm Pitch Box Header Connector 40P Tray Middle Notch Straight 5.6mm Brass Contact Material Nylon Housing for PCB



Product Description

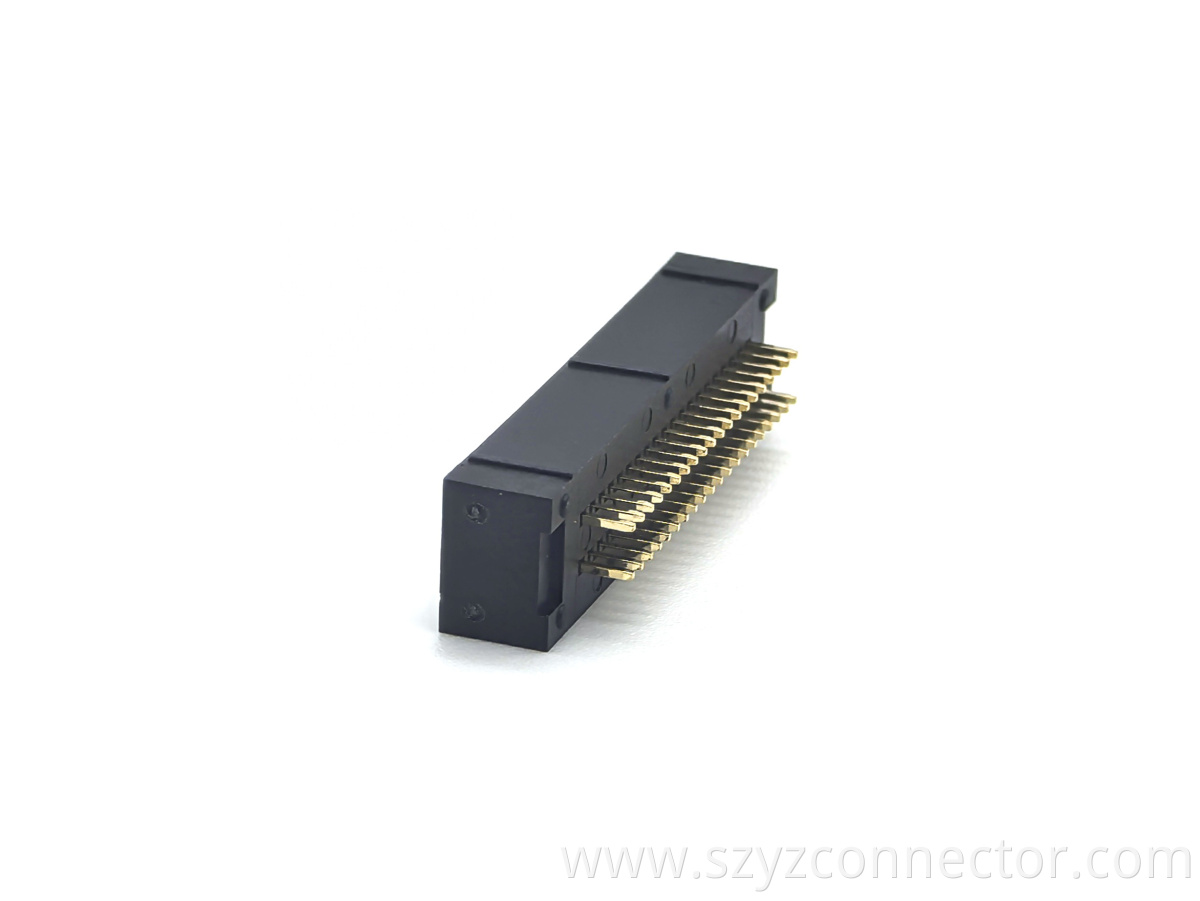

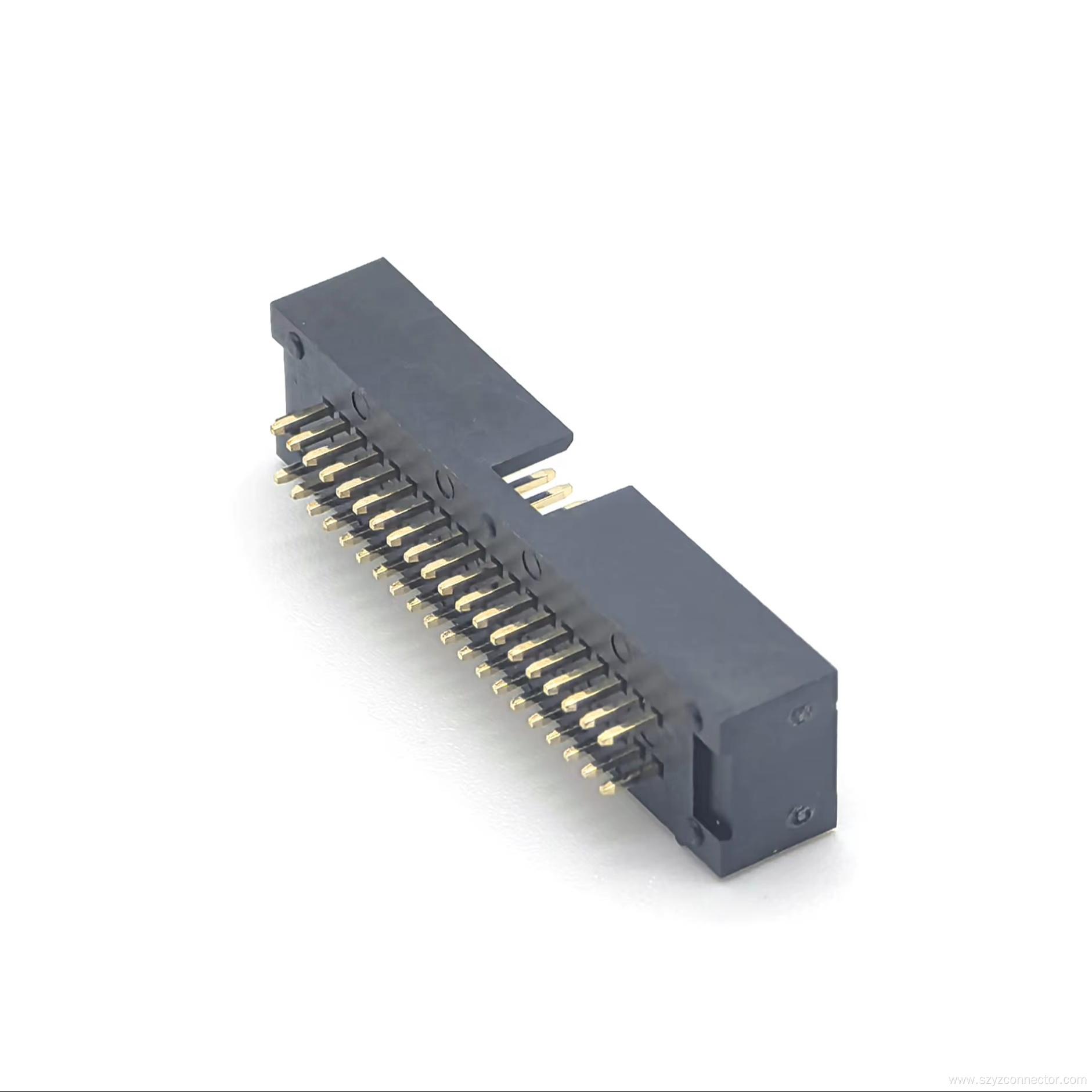

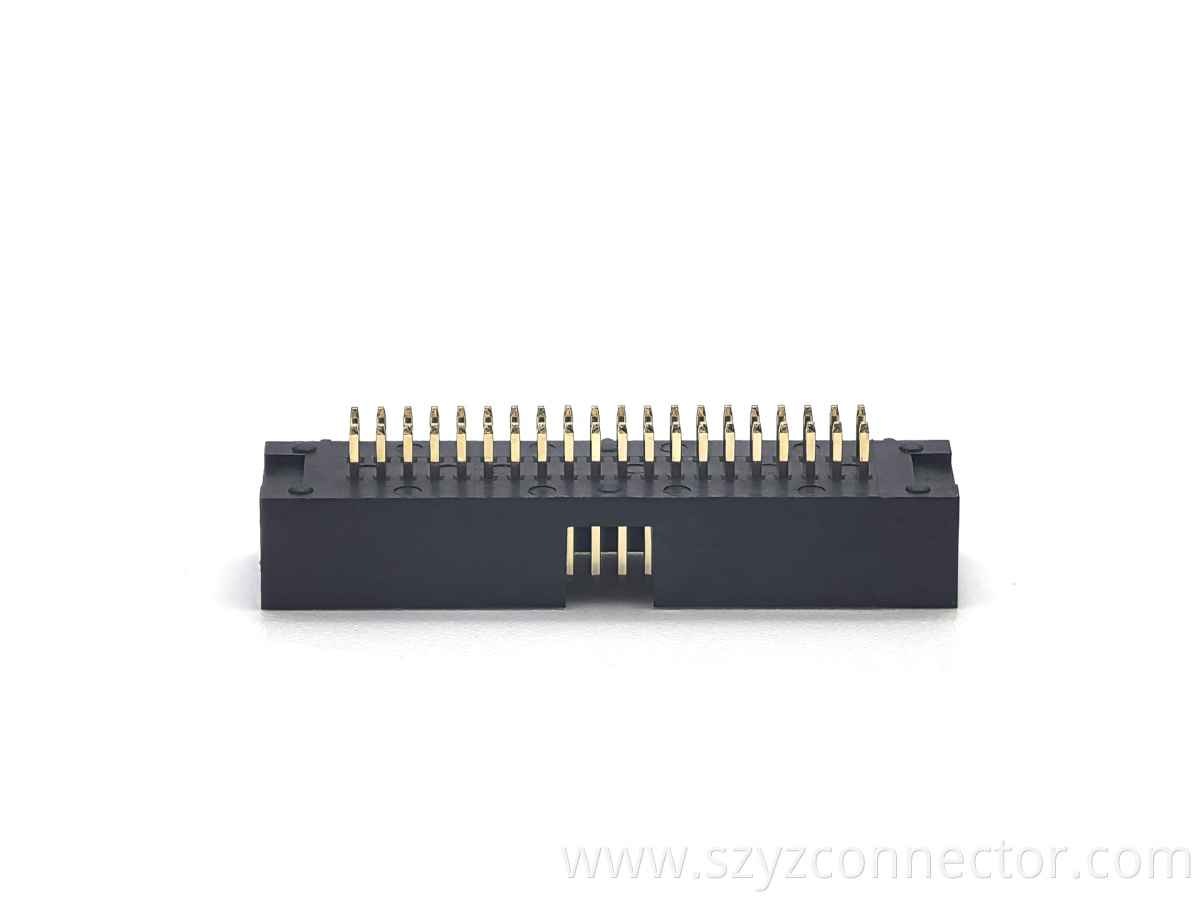

1.27mm Box Header Connector Dual Row Straight
Engineered for precision and durability, the YZTECH 1.27mm Box Header Connector Dual Row Straight redefines high-reliability PCB connections. This male-gender 1.27mm box header connector 40p features 20P per row in a dual-row configuration, supporting 300V rated voltage and 1A current for industrial power systems, medical devices, and telecommunications equipment. Its straight plug installation method ensures seamless integration with PCB footprints, while the gold-plated brass contacts provide low contact resistance and superior conductivity. The PA6T colloidal material offers exceptional thermal stability -45℃~+105℃and mechanical resilience, making the 1.27mm box header connector H5.6mm ideal for harsh environments.

Constructed with premium PA6T colloidal material and gold-plated brass contacts, this connector delivers unmatched electrical performance and eco-friendly assembly processes.The gold plating ensures corrosion resistance and long-term reliability, while the PA6T material provides flame retardancy and thermal stability. The tray packaging enhances storage efficiency and supports Industry 4.0 automation, reducing production cycle times. This 1.27mm box header pa6t material’s rectangular shape and dual-row layout accommodate diverse board geometries, making it suitable for consumer electronics, industrial control systems, and renewable energy applications.

Certified for global trade, the YZTECH 1.27mm Box Header integrates seamlessly into international supply chains. Its DIN-type design ensures compatibility with standard PCB footprints, supporting high-speed data transfer and stable electrical connections.With a focus on user-centric design, YZTECH provides comprehensive technical documentation, including soldering profiles and mechanical drawings, to support seamless adoption. The connector’s ROHS certification and sustainable materials make it a trusted choice for eco-conscious manufacturers worldwide.
