1.27mm Pitch Box header Connector Straight H5.4mm

1.27mm Pitch Box header Connector Straight H5.4mm

Name: 1.27mm Pitch Box header Connector Straight H5.4mm 2*5P
Uploaded: 2025-08-20T09:15:36+08:00
Description: YZTECH produced a high-performance box header connector engineered to address sophisticated interconnection

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Contact Now

Product Description

Product Attributes

Model No.: 1103.1S/B-2*5P-H5,4-0063-04

Brand: YZTECH

Species: Contact Connector

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

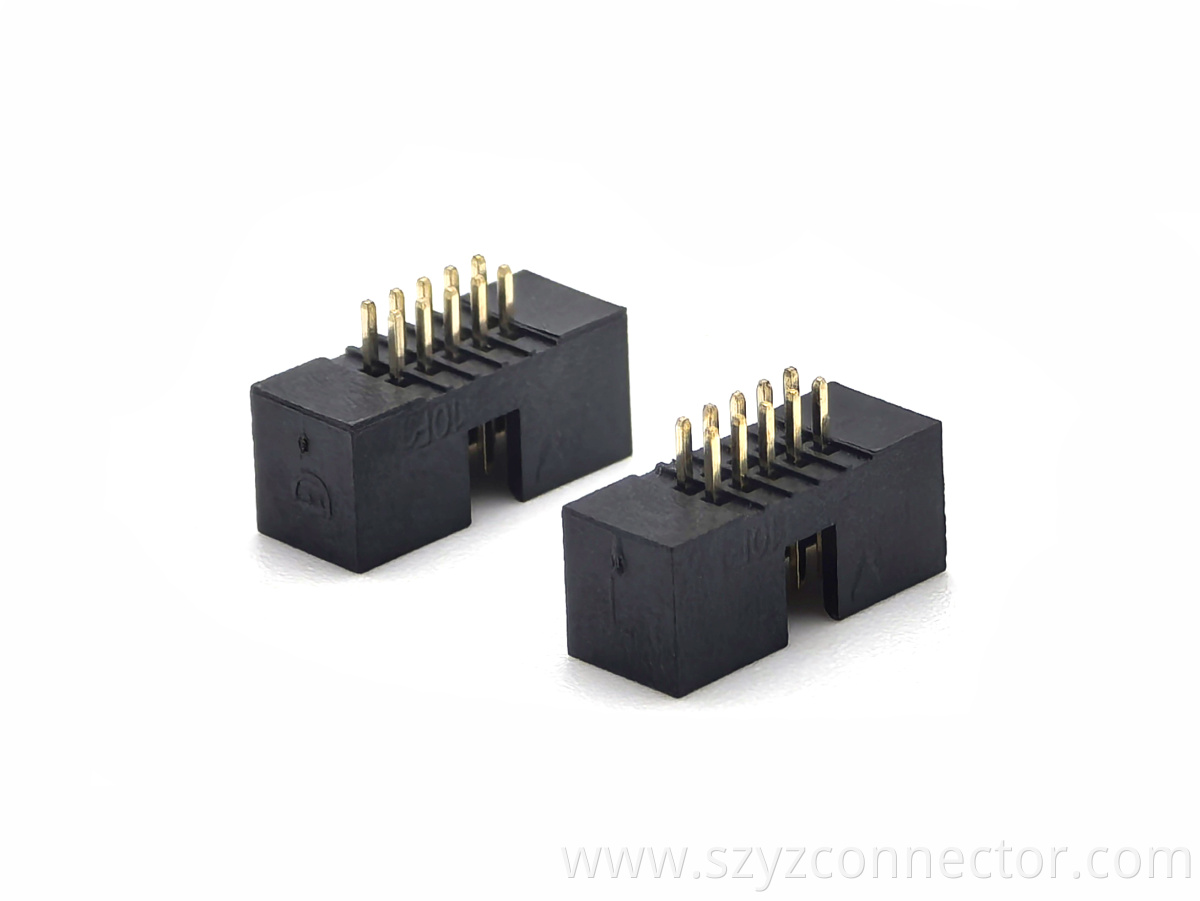

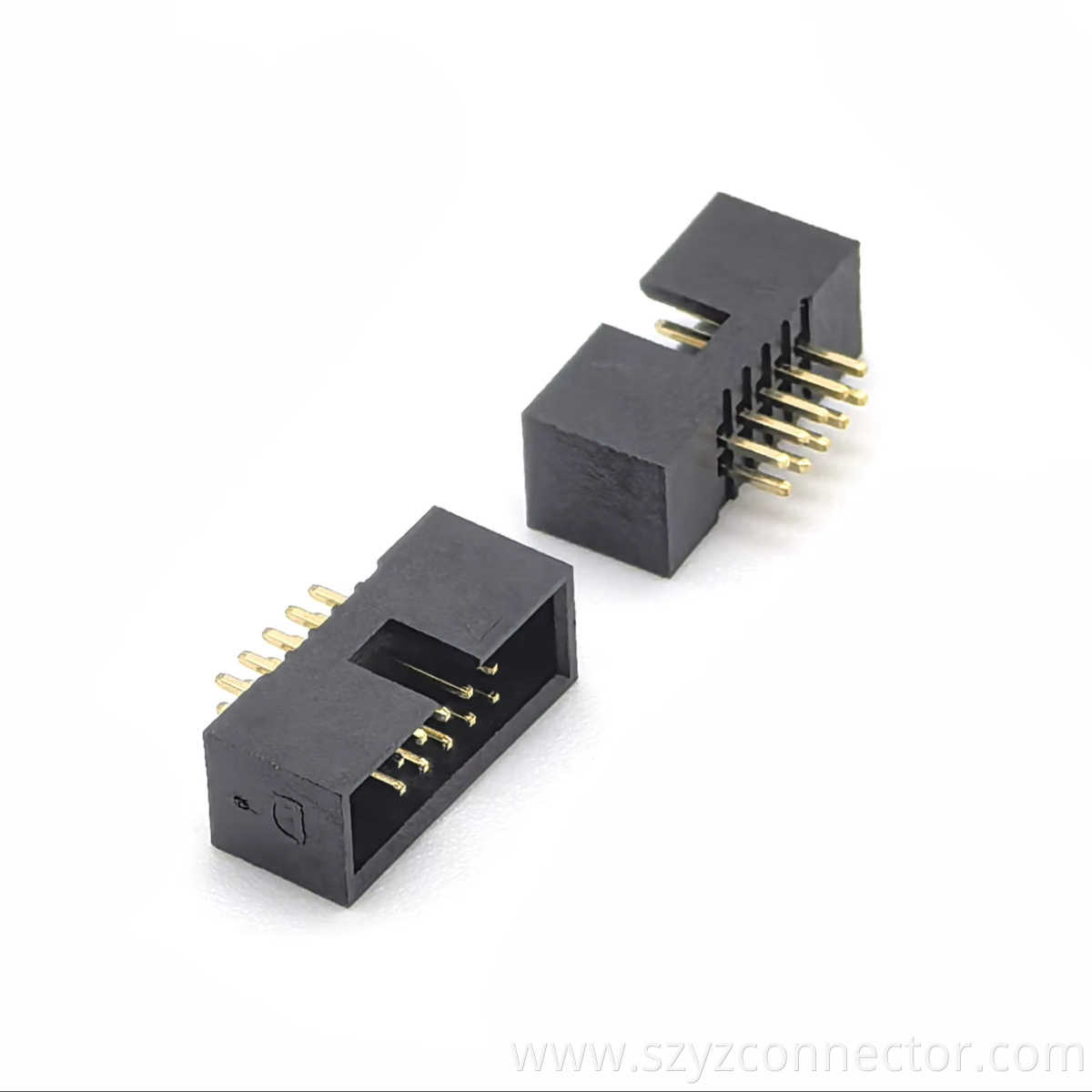

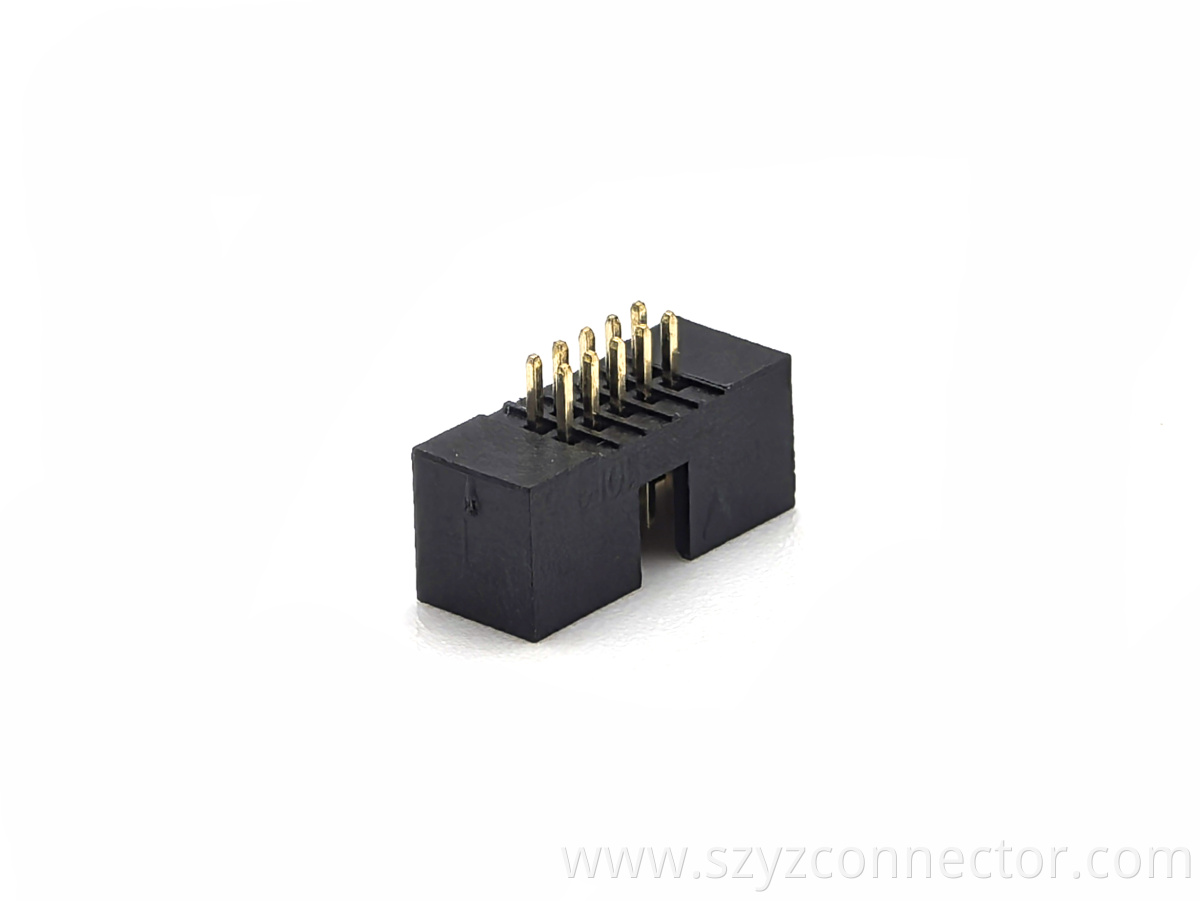

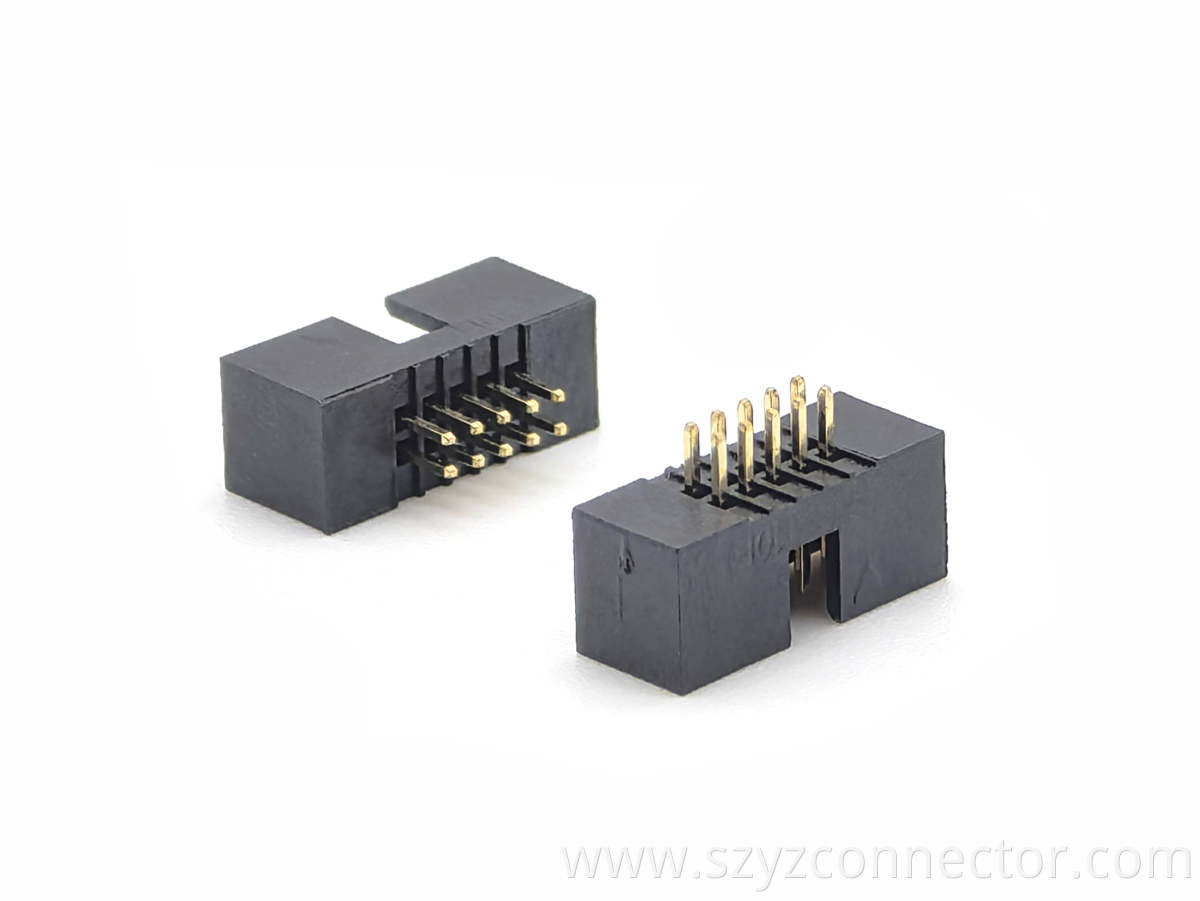

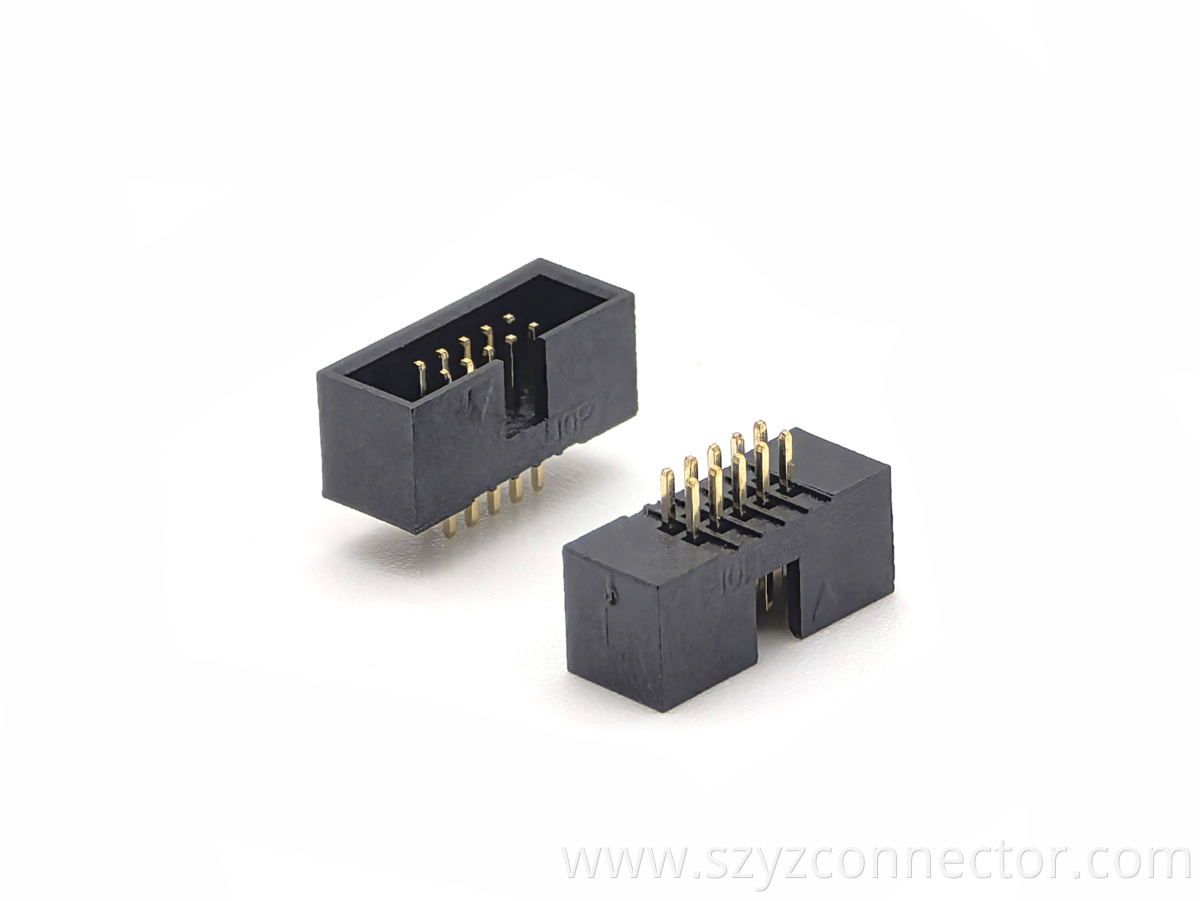

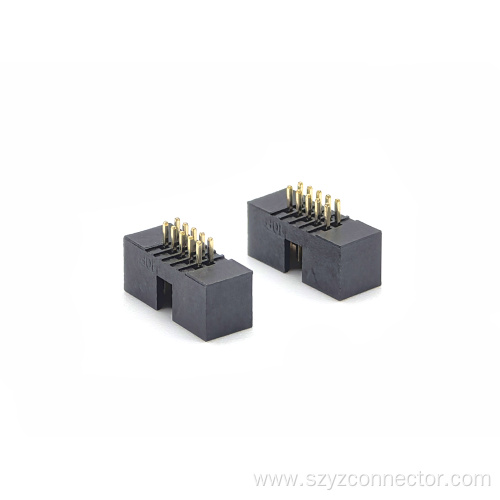

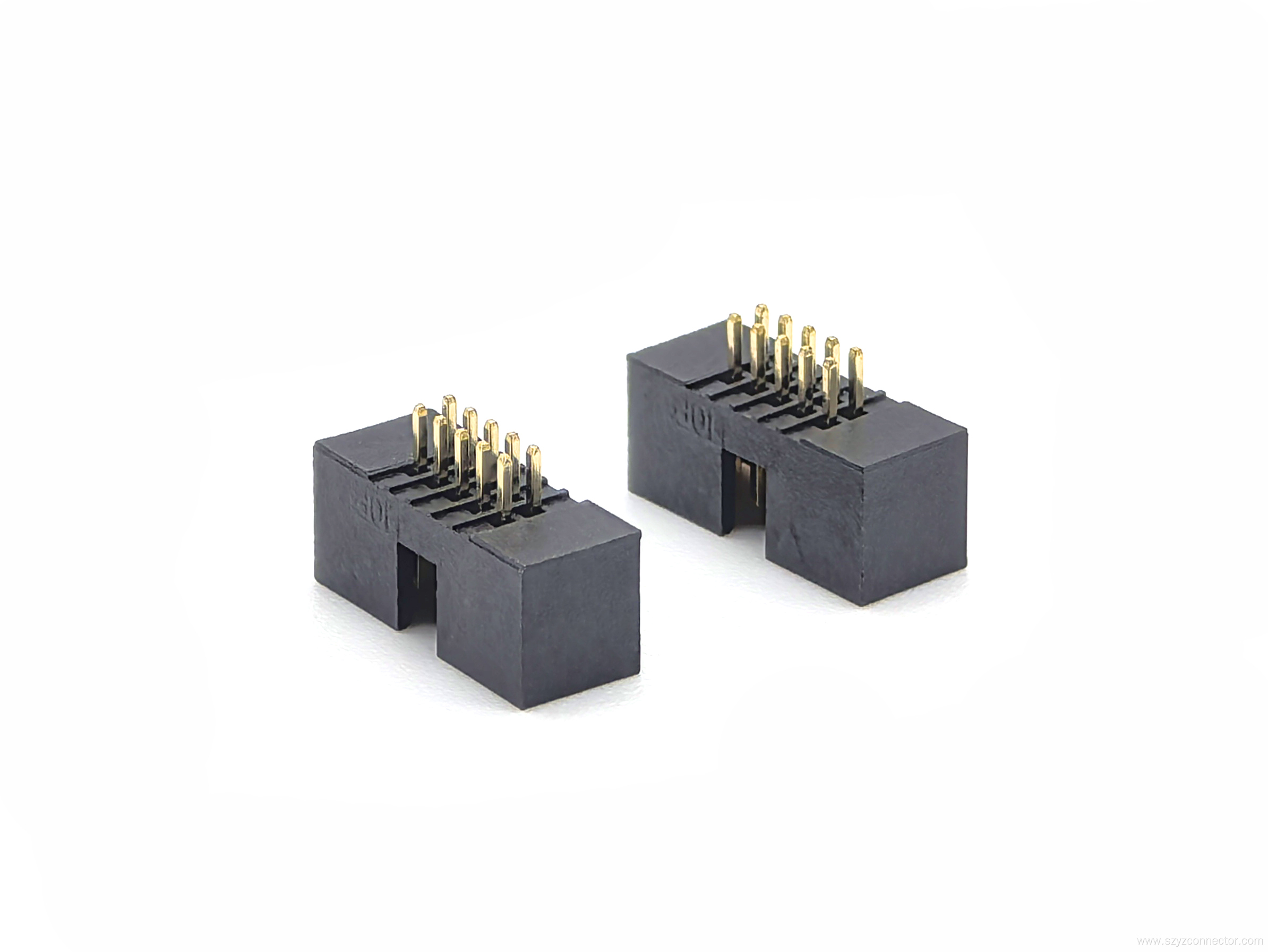

1.27mm Pitch Box header Connector Straight H5.4mm 2*5P



Product Description

YZTECH produced a high-performance Box Header Connector engineered to address sophisticated interconnection requirements in advanced electronic systems. The 1.27mm pitch box header connector configuration with dual-row 10-position (5×2) arrangement demonstrates exceptional design precision, while maintaining an optimized H5.4mm profile height for space-constrained applications. Utilizing gold-plated brass contacts, this connector ensures superior electrical characteristics and consistent mating reliability. The reinforced box-style architecture offers enhanced mechanical stability and precise alignment capability, establishing this solution as an optimal choice for critical infrastructure in industrial automation, telecommunications, and high-performance computing environments.

This header connector component is rated for 1A current transmission and 1000V operational voltage, maintaining electrical integrity across an extensive operational temperature spectrum from -40℃ to +105℃. The gold-plated contact interface ensures minimal contact resistance and provides exceptional corrosion resistance properties. The straight pin configuration facilitates efficient PCB mounting procedures and secure interconnection. With compatibility for automated reflow processes up to 260℃ maximum temperature tolerance, this header guarantees sustained mechanical and electrical reliability under demanding operational conditions.

The product is supplied in protective tube packaging that ensures integrity preservation during automated assembly processes and streamlined production integration. Compliant with RoHS environmental standards, YZTECH's box header connector represents a synthesis of high-voltage performance capability, precision manufacturing excellence, and operational reliability - delivering exceptional value for applications requiring compact form factors, high-density interconnections, and uncompromising durability standards.
