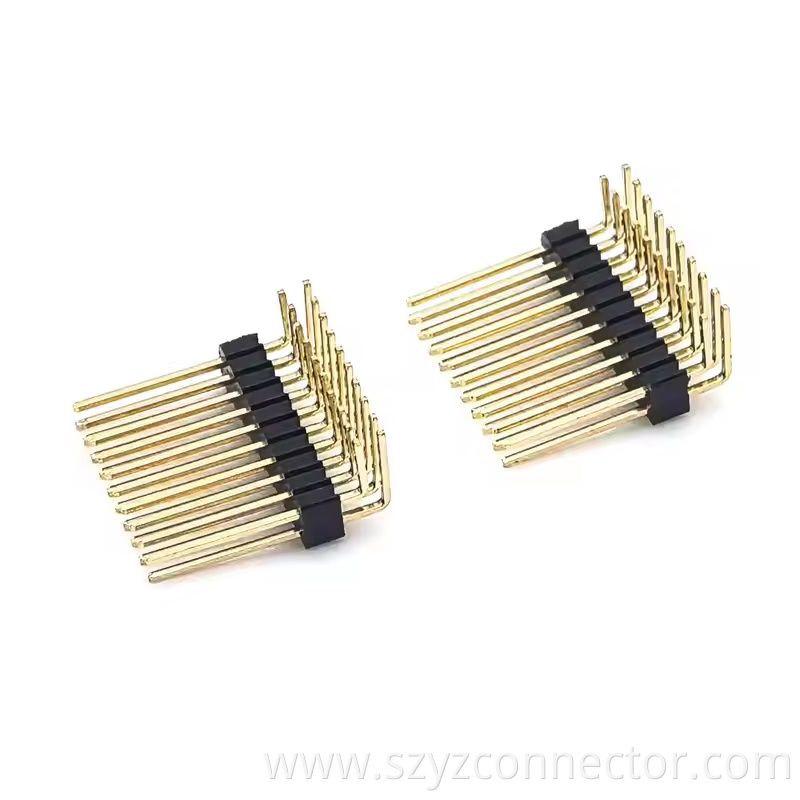

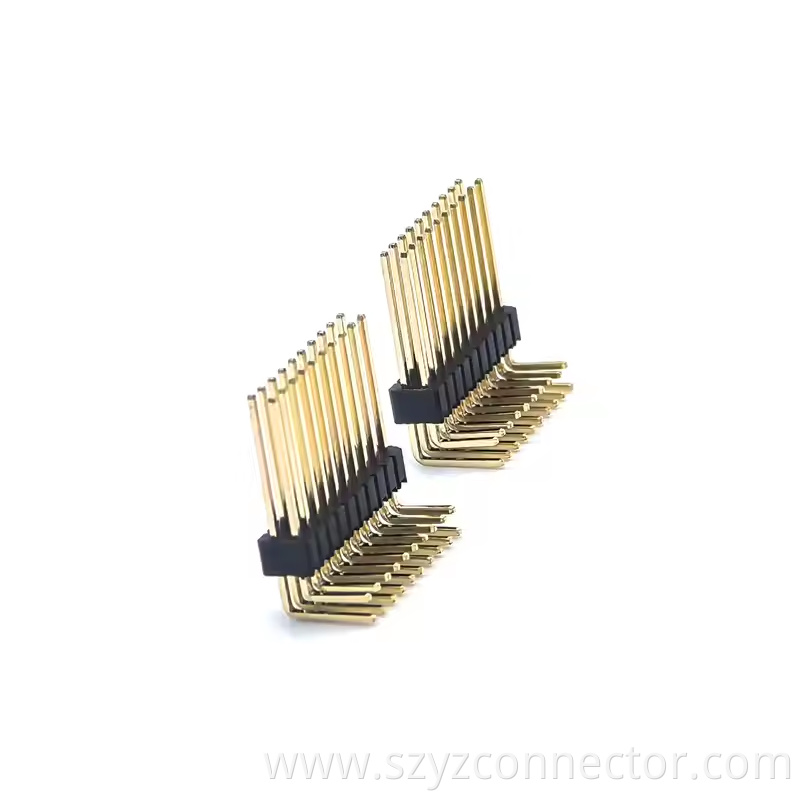

1.27mm Pin Header Right Angle SQ0.4mm

yztech’s newly developed 1.27mm Pin Header Right Angle SQ0.4mm is an innovative connection solution that breaks through space limitations. As a cutting-edge product in the Pin Header series, its combination of a standard 1.27mm pitch, 0.4mm square pins, and right-angle structure perfectly meets the compact wiring requirements of PCB Pin Header. The unique pin design enhances contact stability, making it a model of balancing space efficiency and performance in the 1.27mm pitch header category.



This connector supports various soldering types, including SMT and through - hole, adapting to different production processes. With high-quality C2680 terminals paired with black LCP (UL94V - 0) insulators, it operates stably at a rated current of 3A/pin in environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly controls the contact resistance within 20mΩ, ensuring low-loss signal transmission. The flexible 6 - 64 PIN configuration meets the needs of diverse fields such as consumer electronics and industrial control and is highly compatible with Female Header Pins. Certified by ISO9001, ISO14001 and RoHS-compliant, it comes in standard anti-static tray + carton packaging. Customized ODM and OEM services are available, precisely adapting to both conventional applications of 1.27mm pin Header and complex scenario requirements.
