1.27mm Pin header Dual Row SMT 20P

Name: 1.27mm Pitch Imitative SENTAL Pin header Connector Dual Row SMT SQ0.64mm H2.5mm 2*10P
Uploaded: 2025-08-21T02:53:25+08:00
Description: YZTECH's 1.27mm 20-pin dual row male pin header is a surface-mount connector designed for high-density PCB

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Land,Ocean,Air,Express,Others

Contact Now

Product Description

Product Attributes

Model No.: 1101.1SMD/B-2*10P-0078-F-04

Brand: YZTECH

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

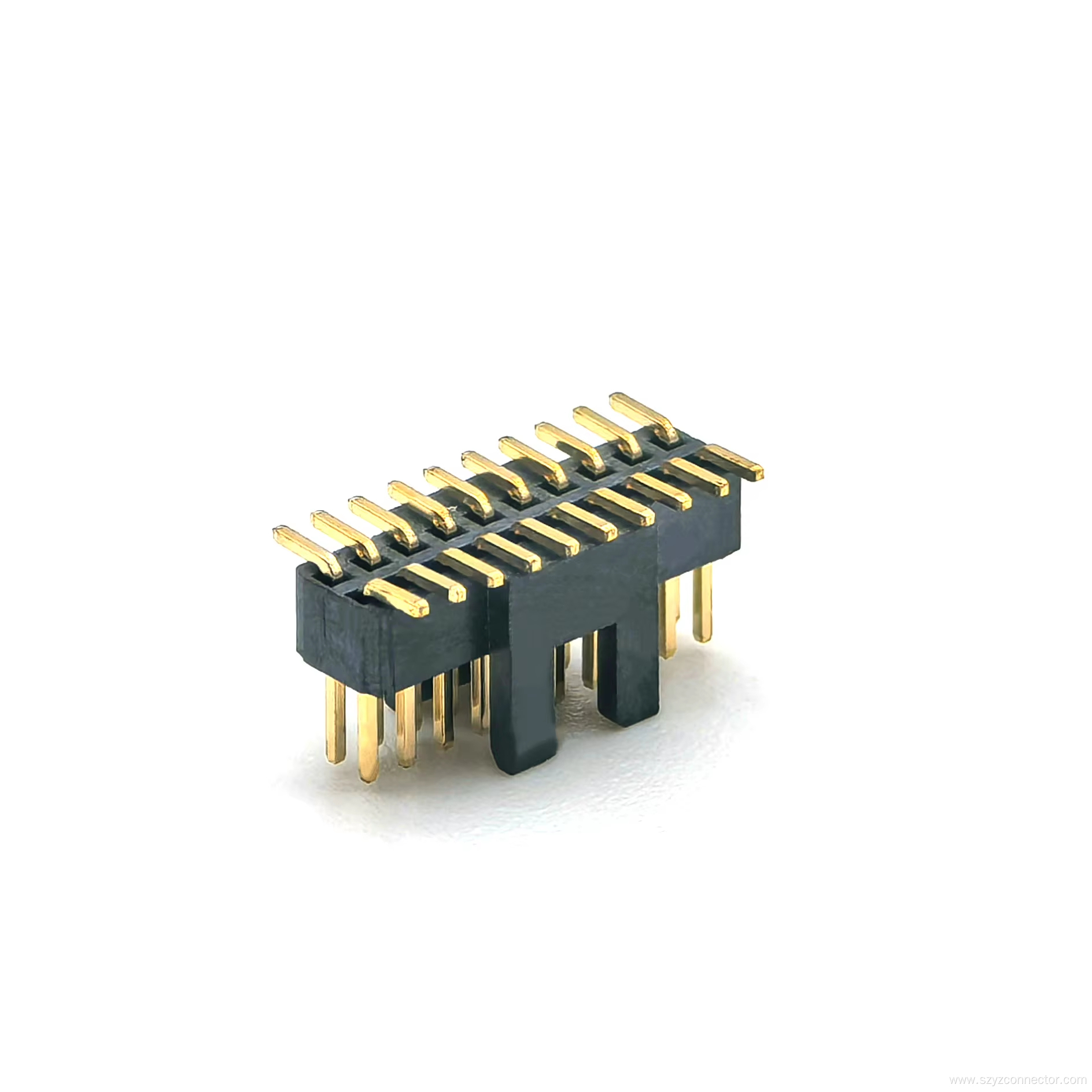

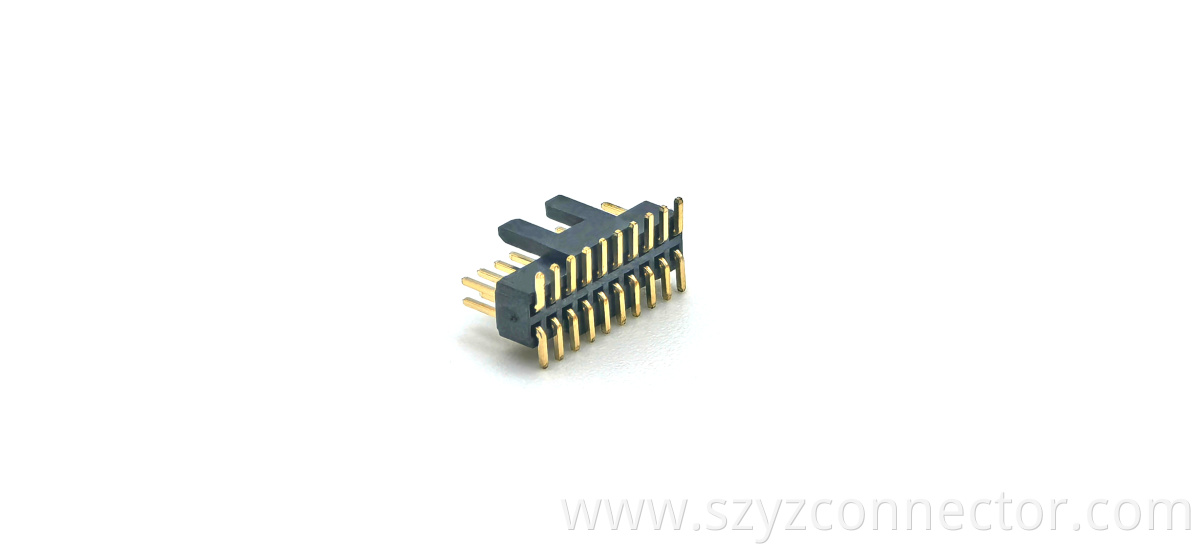

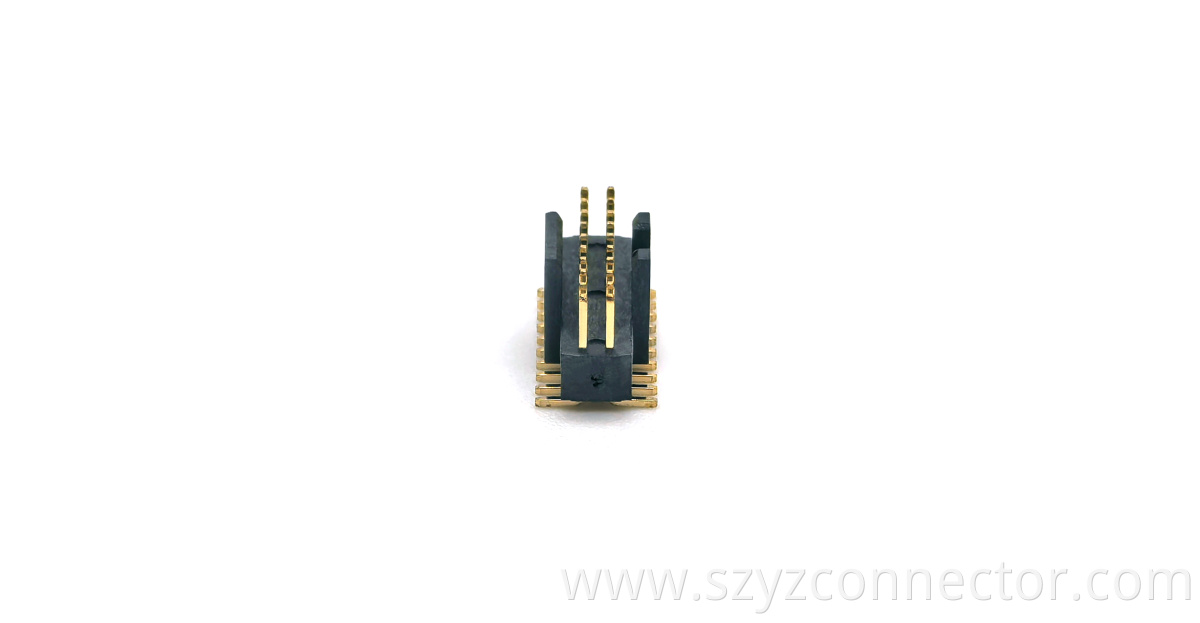

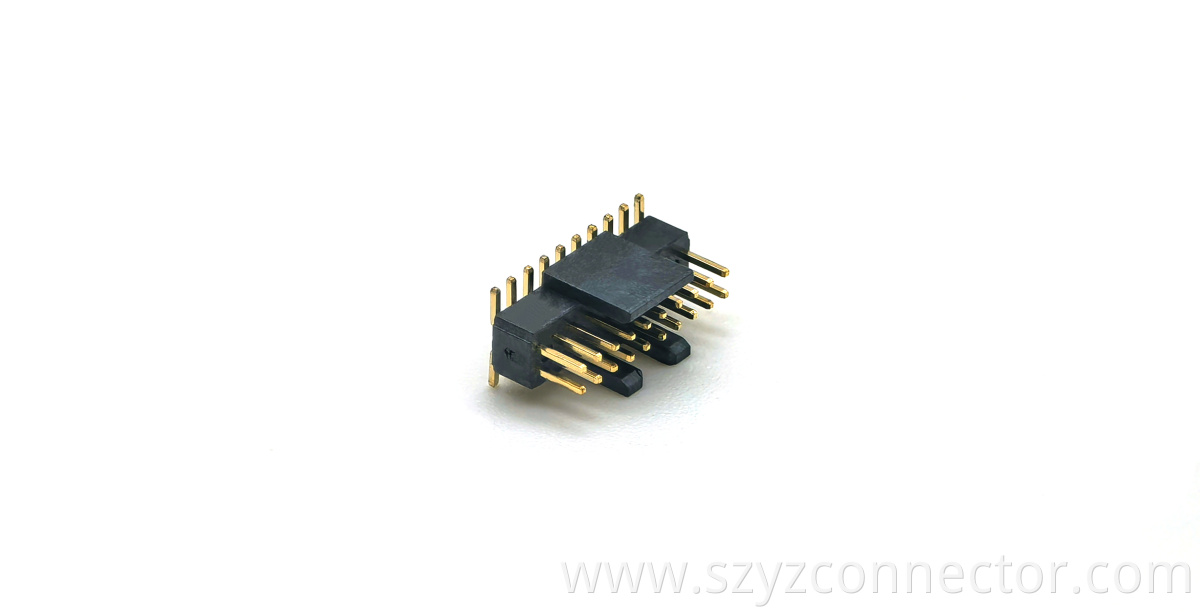

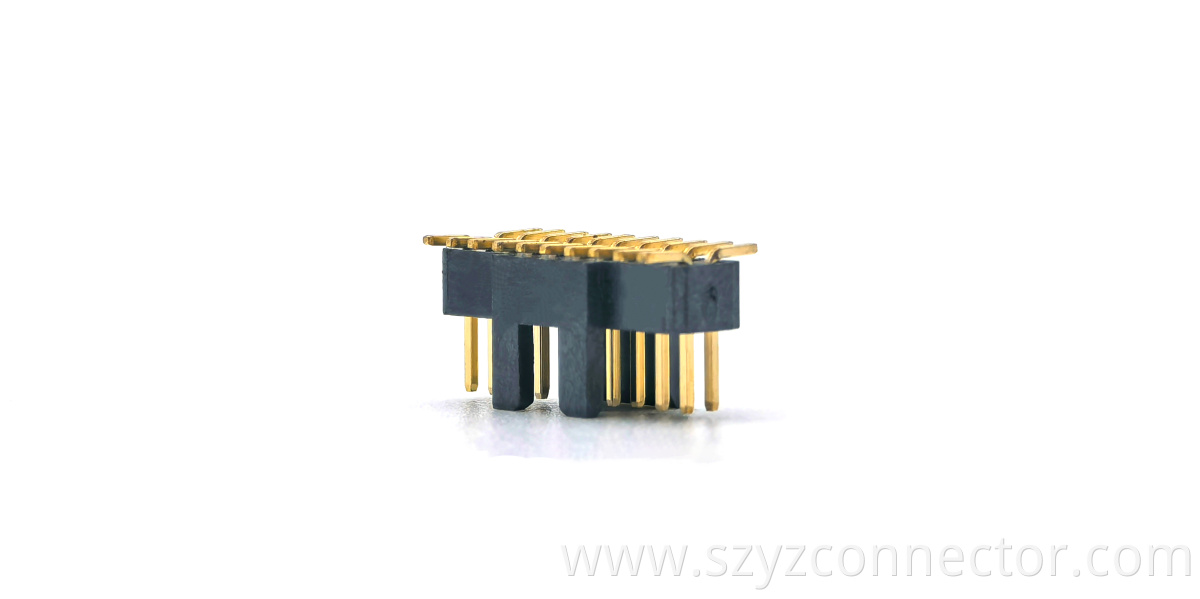

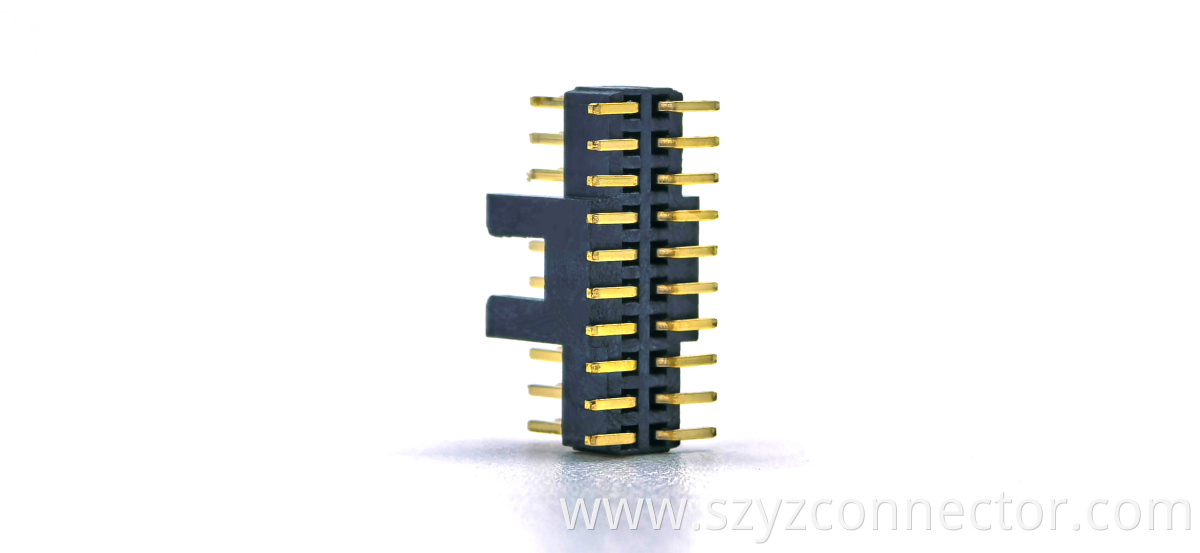

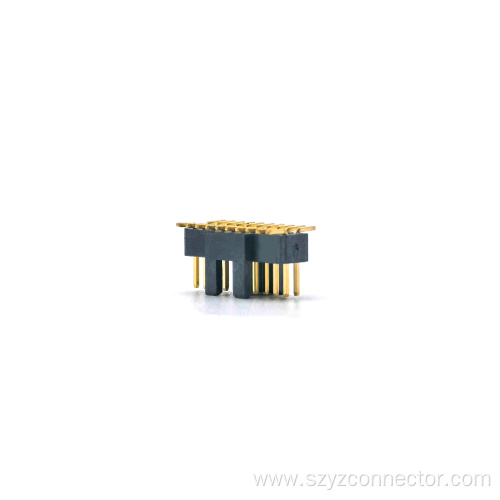

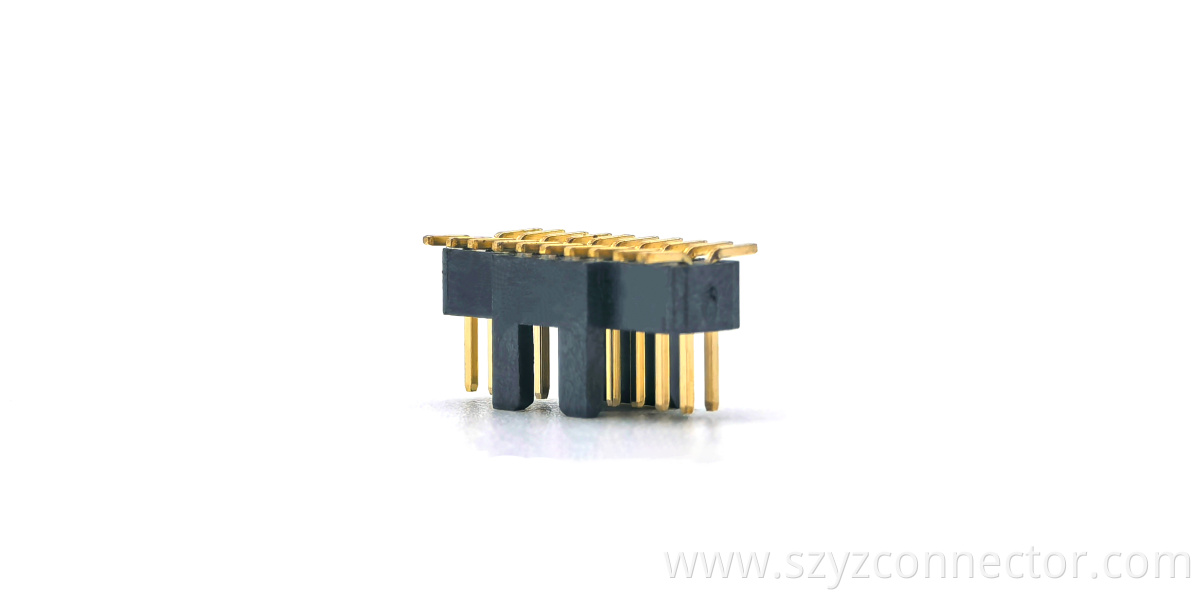

1.27mm Pitch Imitative SENTAL Pin header Connector Dual Row SMT SQ0.64mm H2.5mm 2*10P



Product Description

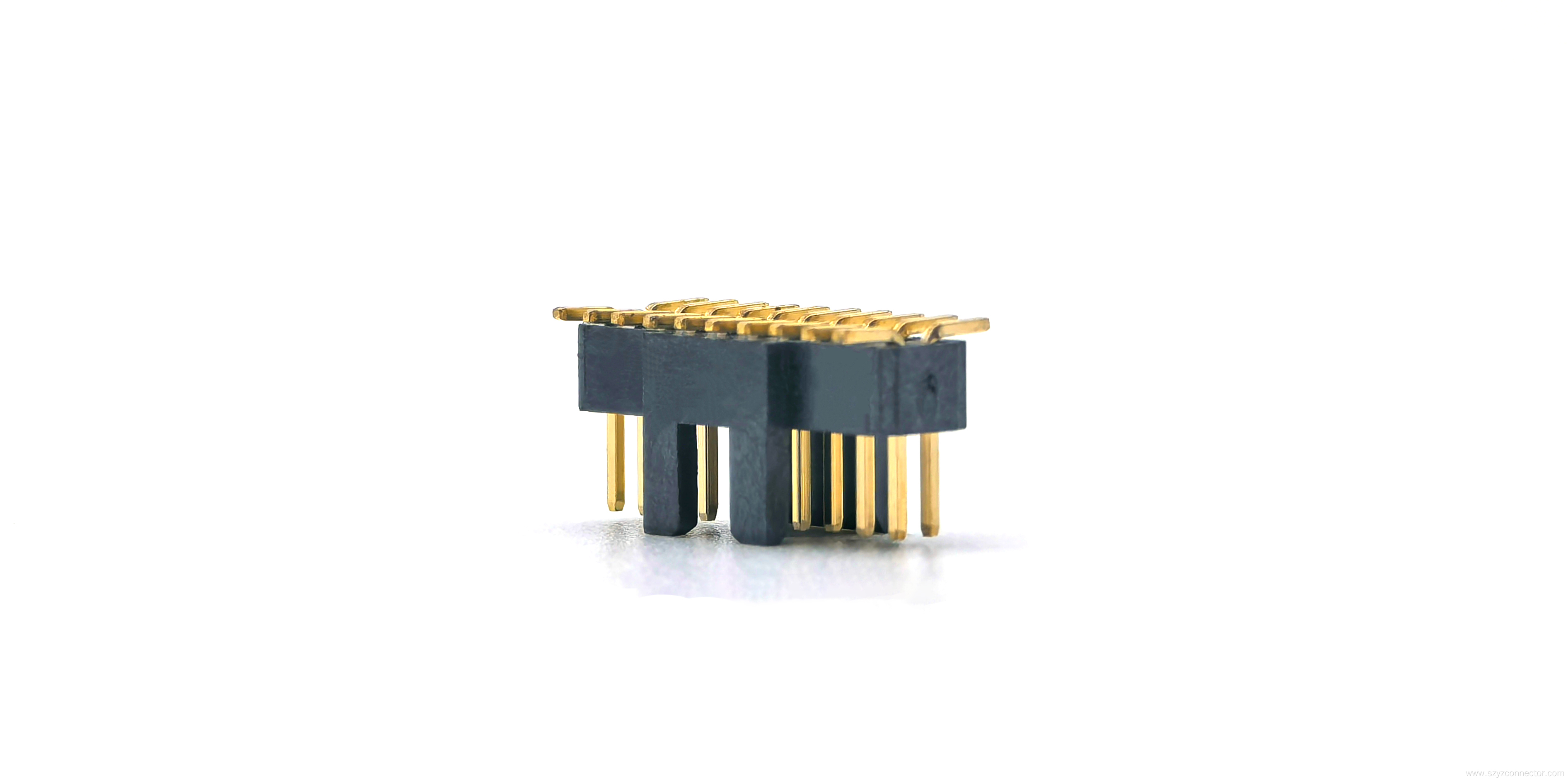

YZTECH's 1.27mm 20-pin dual row male Pin Header is a surface-mount connector designed for high-density PCB applications. Built with gold-plated brass contacts, it ensures reliable performance under a 1A current and 300V rating. Its vertical mount type saves space and supports automated assembly.he gold-plated contacts minimize oxidation and maintain low contact resistance over time, supporting repeated mating cycles without loss of integrity.

This 1.27mm Pin Header performs reliably in temperatures from -40°C to +105°C, making it ideal for industrial, automotive, and communication equipment. The SMT design provides strong solder joint integrity and vibration resistance. Tube packaging ensures damage-free shipping and simplifies reel-free handling.

Compliant with reflow soldering profiles (peak 220°C/10s), this header connector offers a compact and durable interconnection solution for modern electronic manufacturing.YZTECH ensures consistent quality and performance, making this header connector a trusted choice for global manufacturers seeking efficient, high-performance interconnect solutions in a compact form factor.
