Name: Dual Row SMT Pin Header Connector 1.27mm Pitch SQ0.4/0.46mm H2.5+2.5mm 2*15P
Uploaded: 2025-09-20T05:37:15+08:00
Description: Engineered for high-density PCB applications,YZTECH’s 1.27mm dual-row SMT pin header offers outstanding reliability

Get Latest Price

Min. Order:	1 Piece/Pieces
Transportation:	Air,Land,Ocean,Express,Others

Option:

Black 2-core 30P

Contact Now

Product Description

Product Attributes

Model No.: 1101.1SMD/B-DL-2*2*15P-0112-F1-02

Brand: YZTECH

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

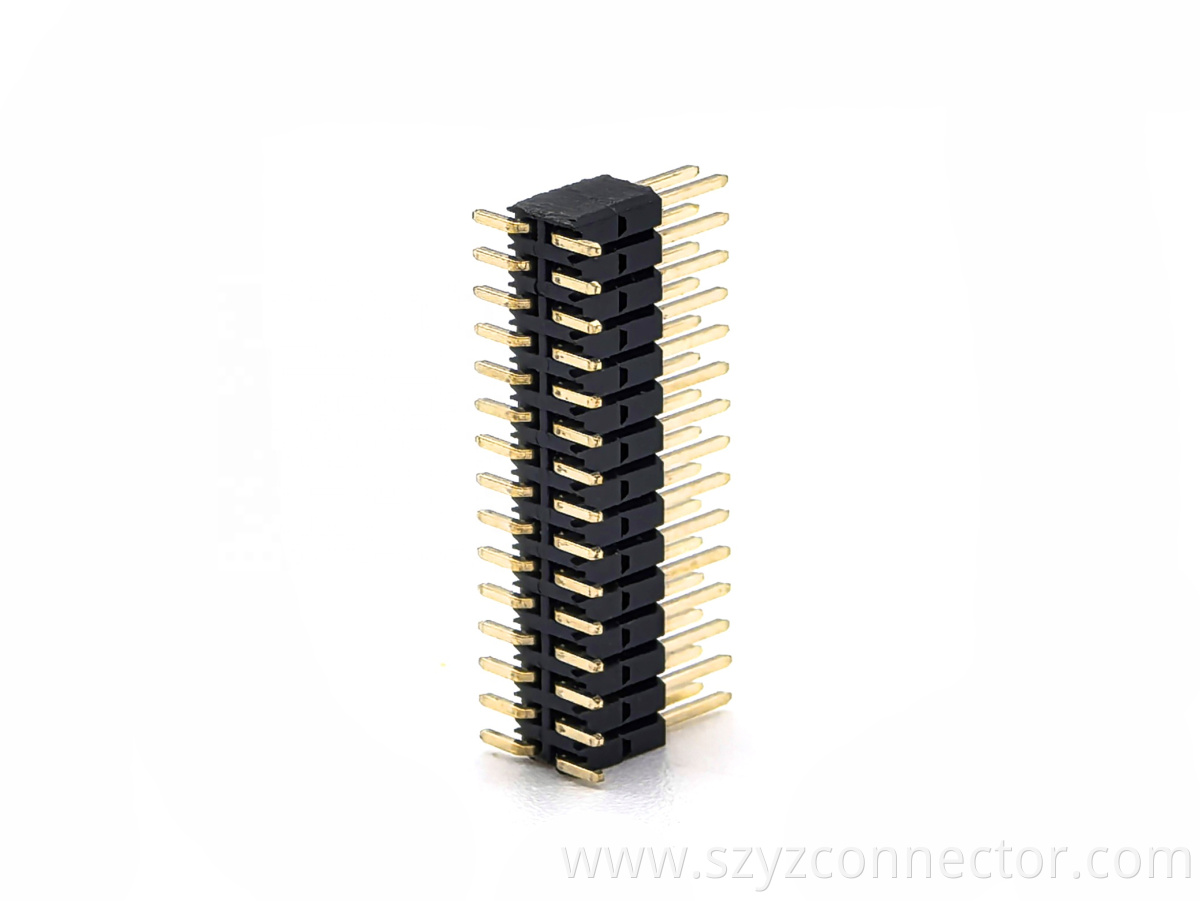

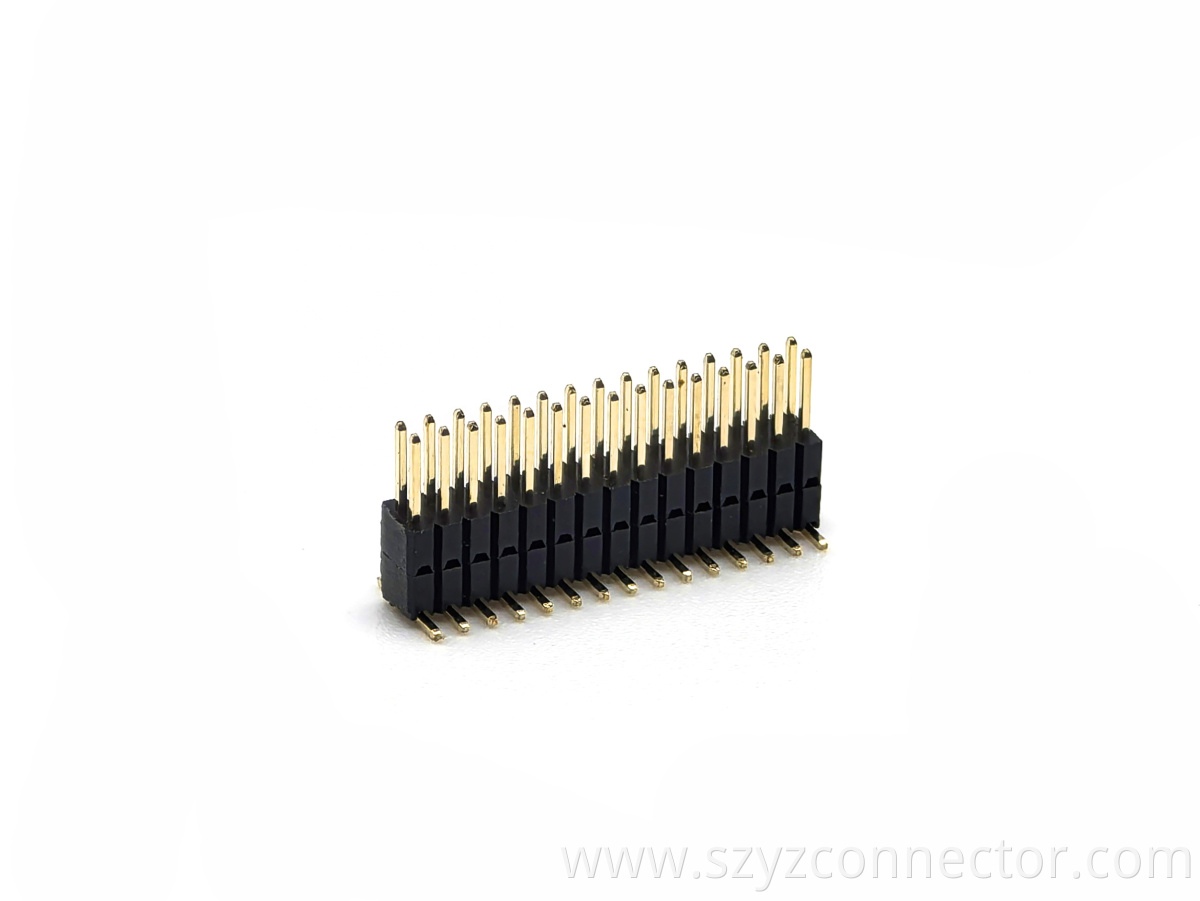

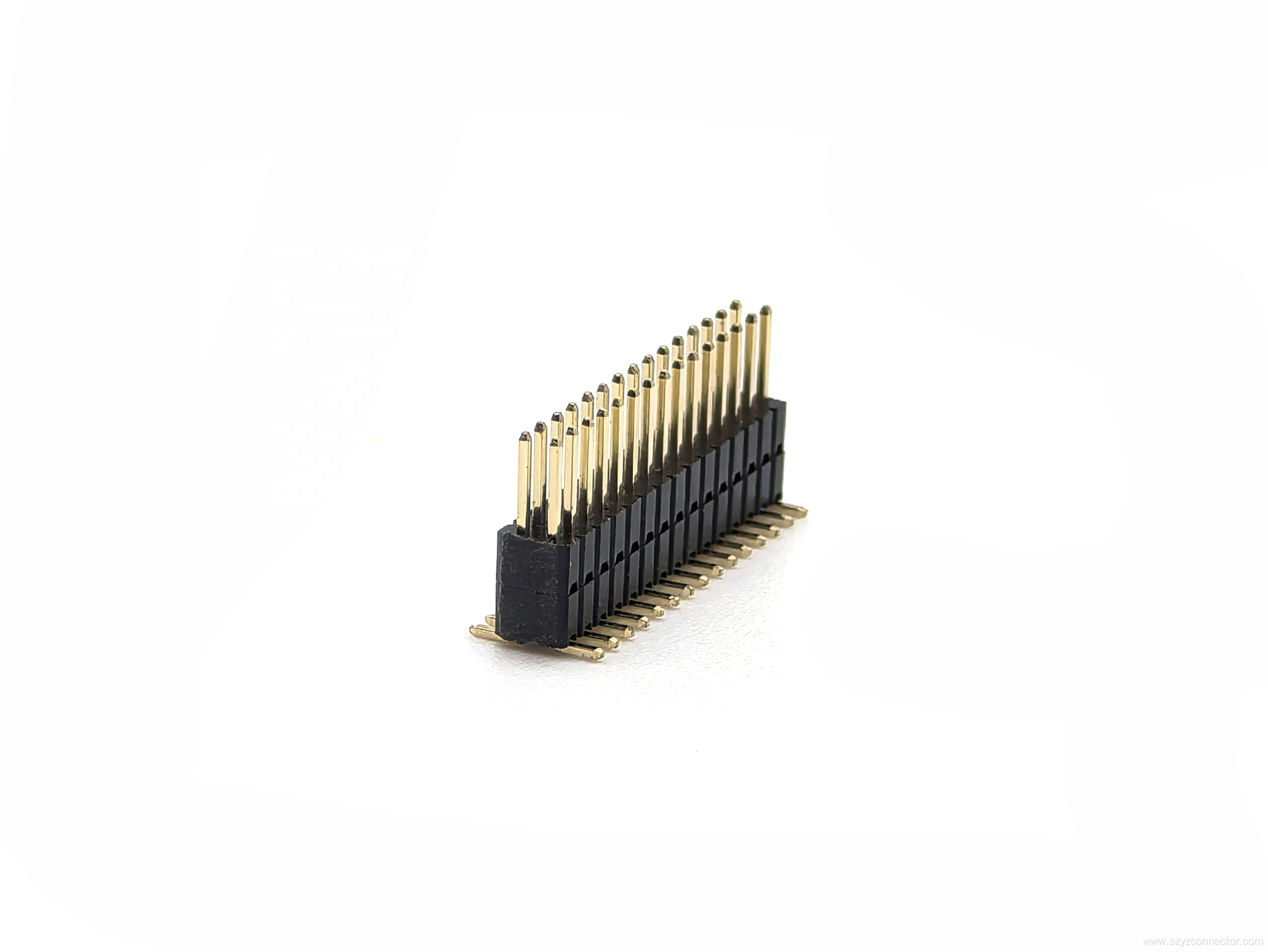

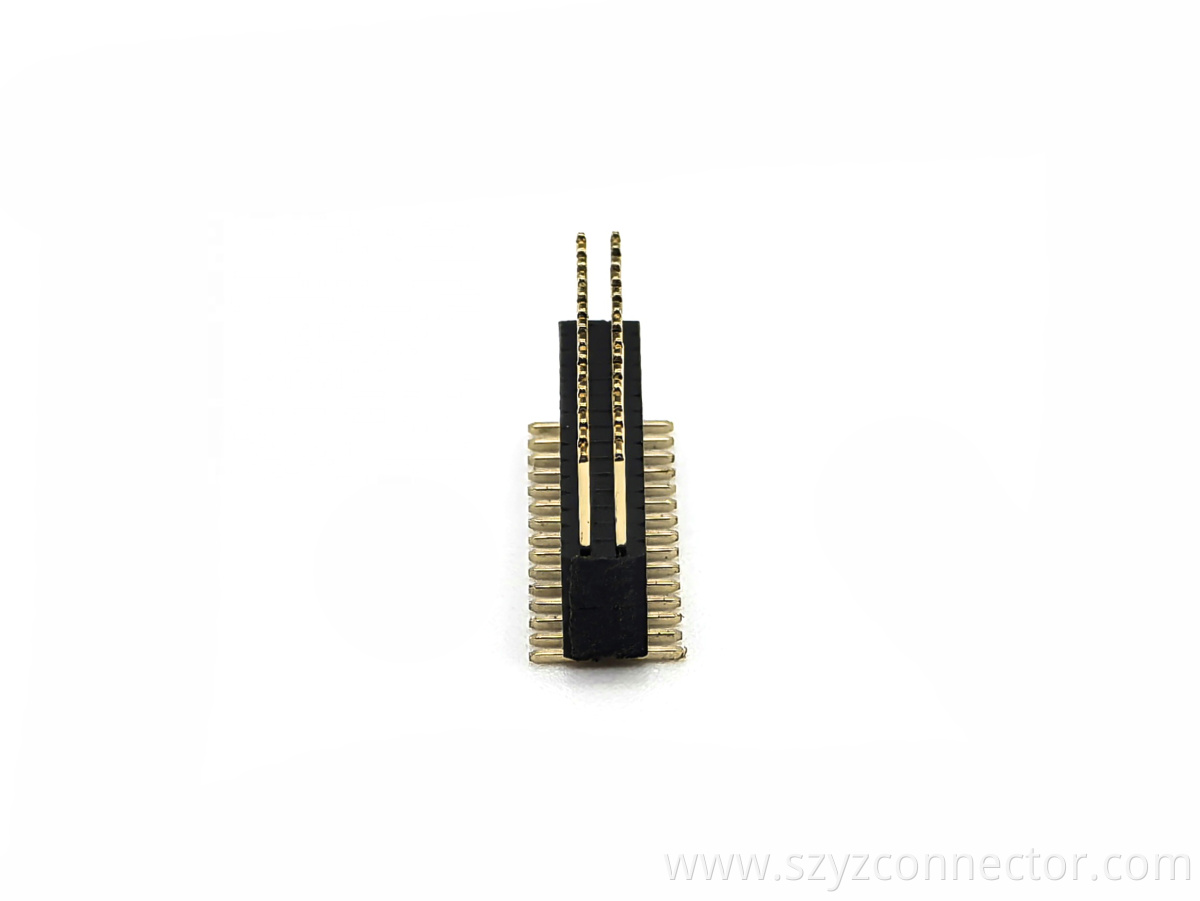

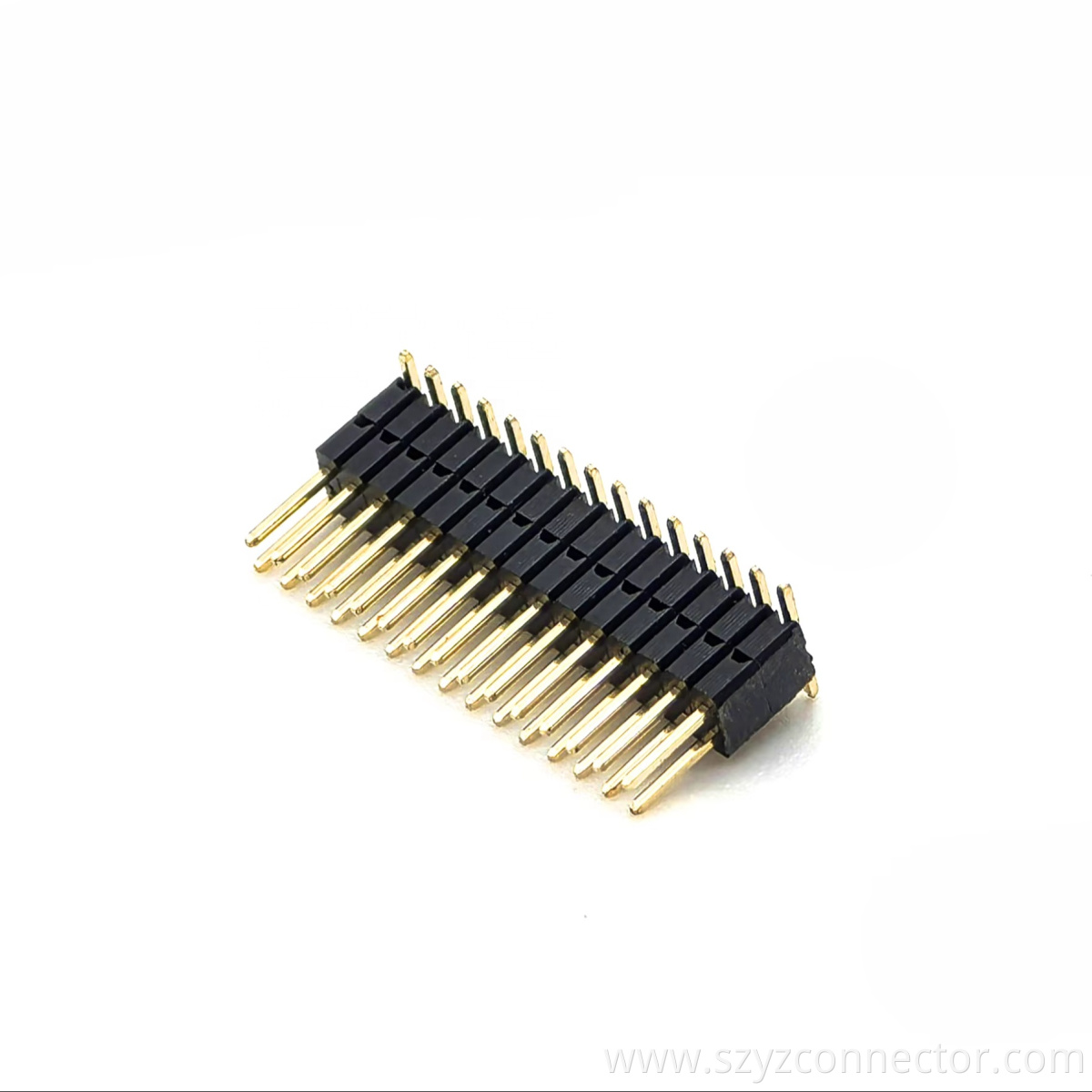

Dual Row SMT Pin Header Connector 1.27mm Pitch SQ0.4/0.46mm H2.5+2.5mm 2*15P



Product Description

Engineered for high-density PCB applications,YZTECH’s 1.27mm dual-row SMT Pin Header offers outstanding reliability and space-saving performance.This vertical-mount DIN-style header connector features a 15P per row dual-row layout,ensuring stable electrical performance in compact designs. Built with gold-plated brass contacts and PA6T insulation material, it provides excellent corrosion resistance,low contact resistance,and a rating of up to 300V/1A.The male header operates reliably across a wide temperature range (-40℃ to +105℃) ,making it suited for industrial automation, automotive electronics,and medical devices.Packaged in tubes for automated assembly,it supports a maximum soldering temperature of 200°C for 10 seconds,ensuring compatibility with reflow processes.The precision-molded insulator and reinforced sidewalls offer secure mating and reduce signal loss in high-speed data transmission.

YZTECH’s 1.27mm Pin Header is designed for demanding environments where reliability is critical.In automotive electronics,it supports power distribution and sensor connections in ECUs,withstanding vibration and thermal cycles.For industrial applications, its dual-row SMT design enables stackable board-to-board connections in PLCs and robotics systems.Consumer electronics applications include smartphone mainboards and IoT modules,where the narrow pitch and gold-plated contacts maintain signal integrity.The connector is compatible with female receptacles and stackable headers,supporting flexible design layouts,while its SMT footprint simplifies high-volume PCB assembly. Dual Row SMT Pin Header Connector 1.27mm Pitch SQ0.4/0.46mm H2.5+2.5mm 2*15P
