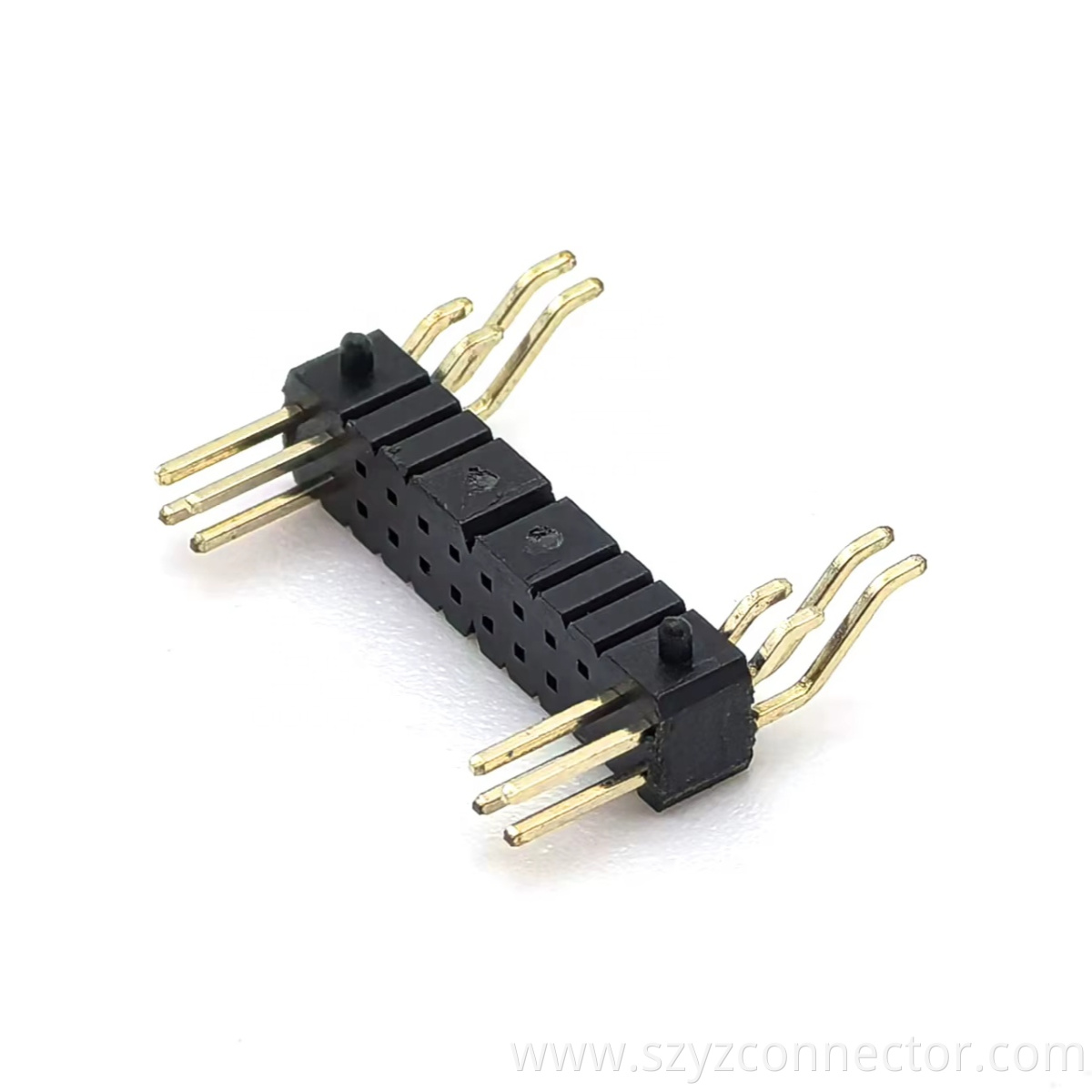

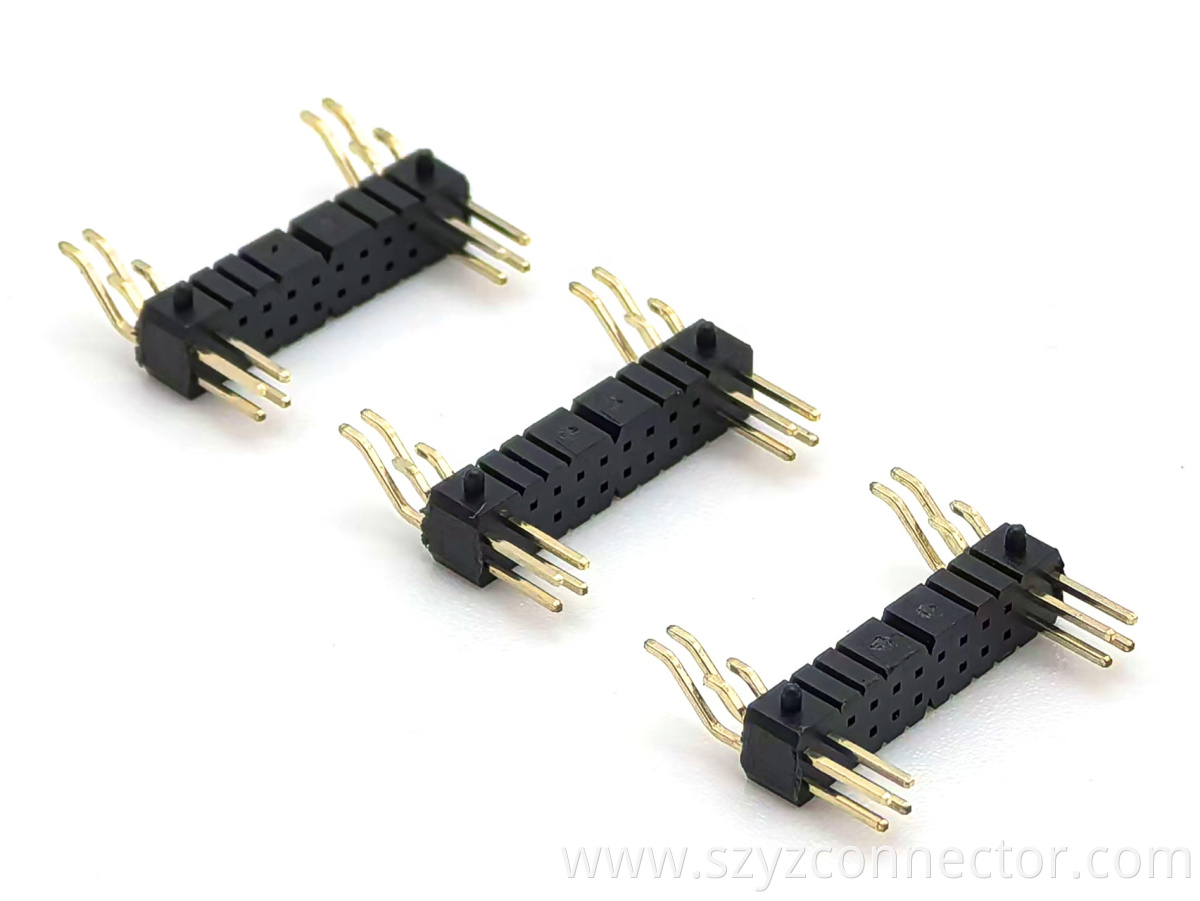

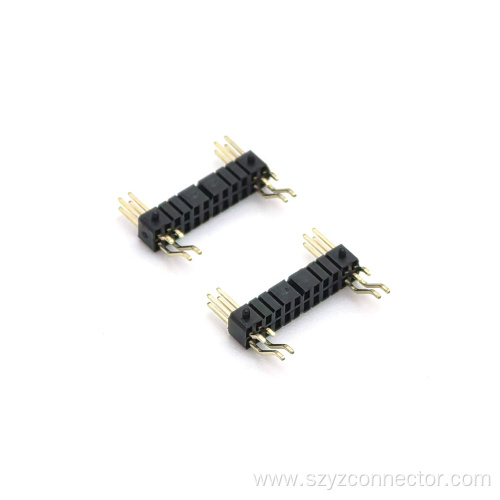

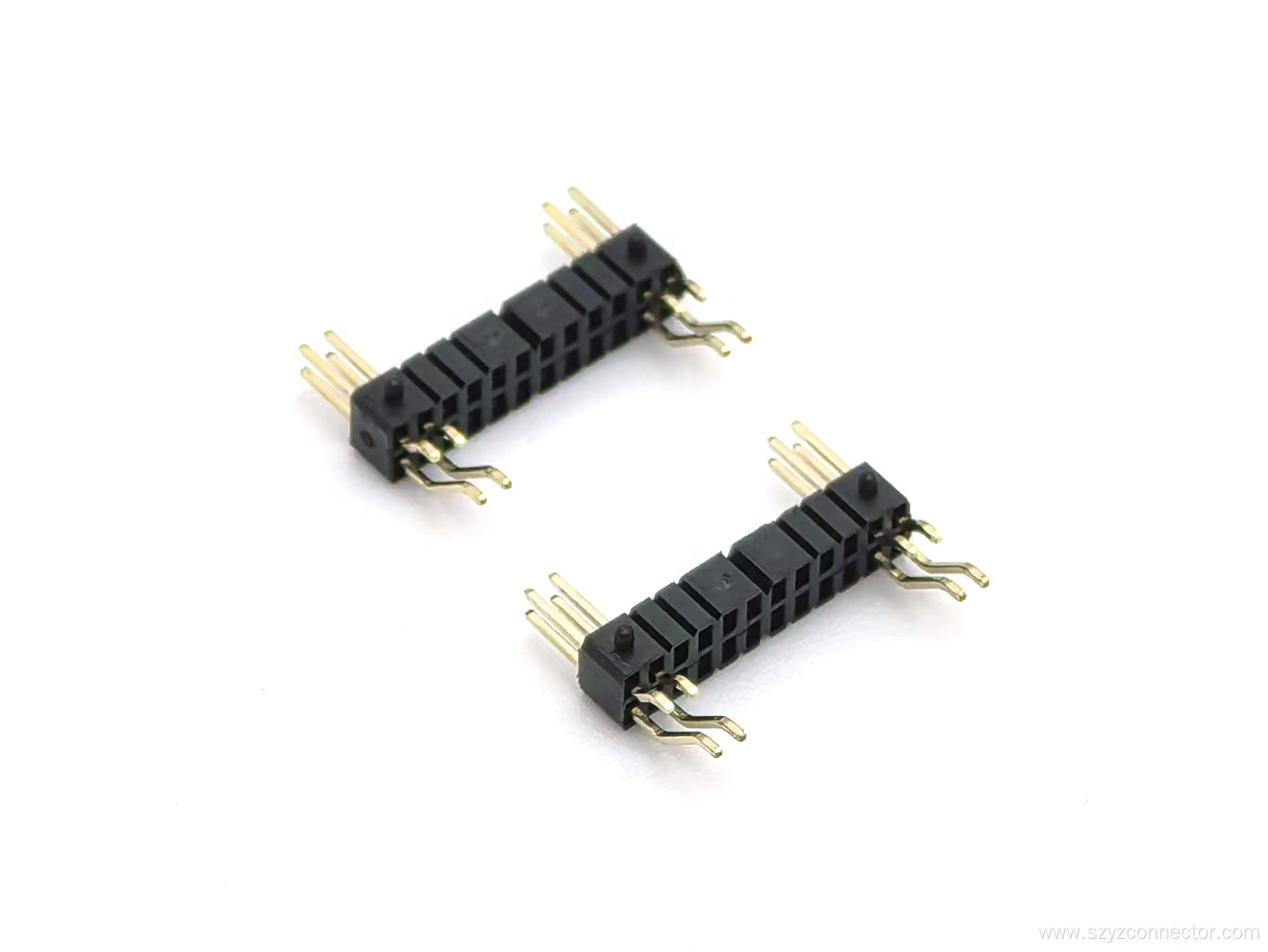

1.27mm Pin Header Right Angle 2-core

YZTECH presents a high-density interconnection solution with its 1.27mm Pitch Dual Row Pin Header,engineered for space-optimized PCB designs.This 12-pin-per-row male connector features a right-angle SMT configuration,enabling low-profile,horizontal mounting that maximizes board space efficiency.Its compact rectangle profile and precise 1.27mm pitch are ideal for high-density applications where saving vertical real estate is critical.Rated for 1A current and 300V voltage,it ensures consistent and reliable performance for signal transmission and low-power applications in advanced electronics.



Crafted for resilience in demanding manufacturing processes,this header connector boasts a robust material composition.The contacts are made from brass with a high-reliability gold plating, ensuring excellent conductivity,corrosion resistance,and a stable mating interface.The insulator is molded from PA6T,a high-performance engineering plastic known for its exceptional thermal resistance,mechanical strength,and low moisture absorption.This construction guarantees the connector's structural integrity and electrical insulation across a broad operating temperature range of -40°C to +105°C,and can withstand peak reflow soldering temperatures up to 260°C for 10 seconds.



Supplied in reel packaging,this right-angle 1.27mm Pin Header is fully compatible with high-speed automated pick-and-place equipment,streamlining the assembly process and ensuring manufacturing consistency.This makes it an indispensable component for modern production lines focused on efficiency and yield.It is perfectly suited for applications in telecommunications hardware, compact embedded systems,and sophisticated consumer devices.
