1.27mm Pitch Pin header Connector H:1.5mm 4P

1.27mm Pitch Pin header Connector H:1.5mm 4P

Name: 1.27mm Pitch Pin header Connector Single Row SMT H:1.5mm 1*4P
Uploaded: 2025-12-18T07:47:15+08:00
Description: Engineered for reliability in compact DIN-standard systems,the YZTECH 1.27mm Male Pin Header delivers high-density PCB

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

Black 1-core 4P

Contact Now

Product Description

Product Attributes

Model No.: 1101.1SMD-1*4P

Brand: YZTECH

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

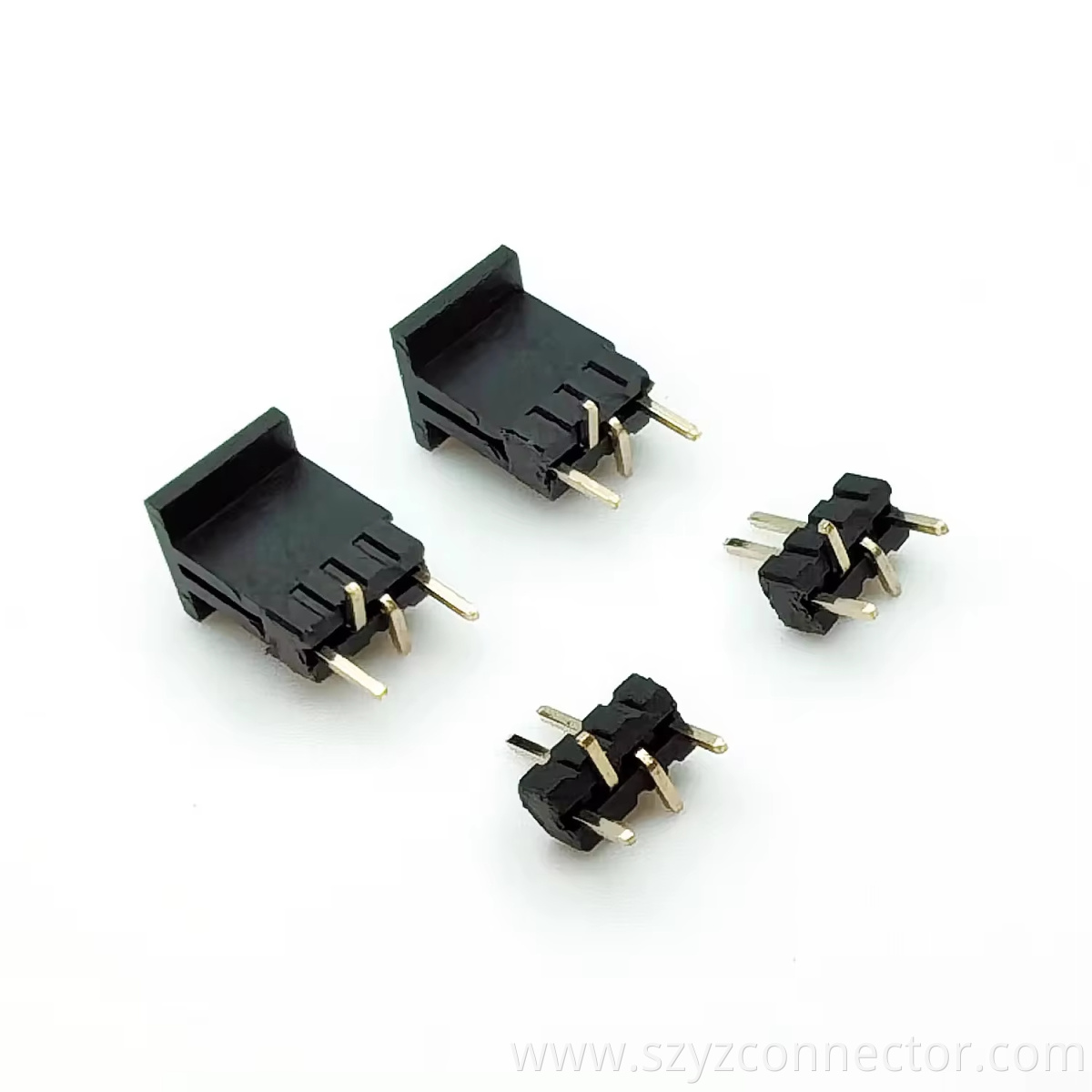

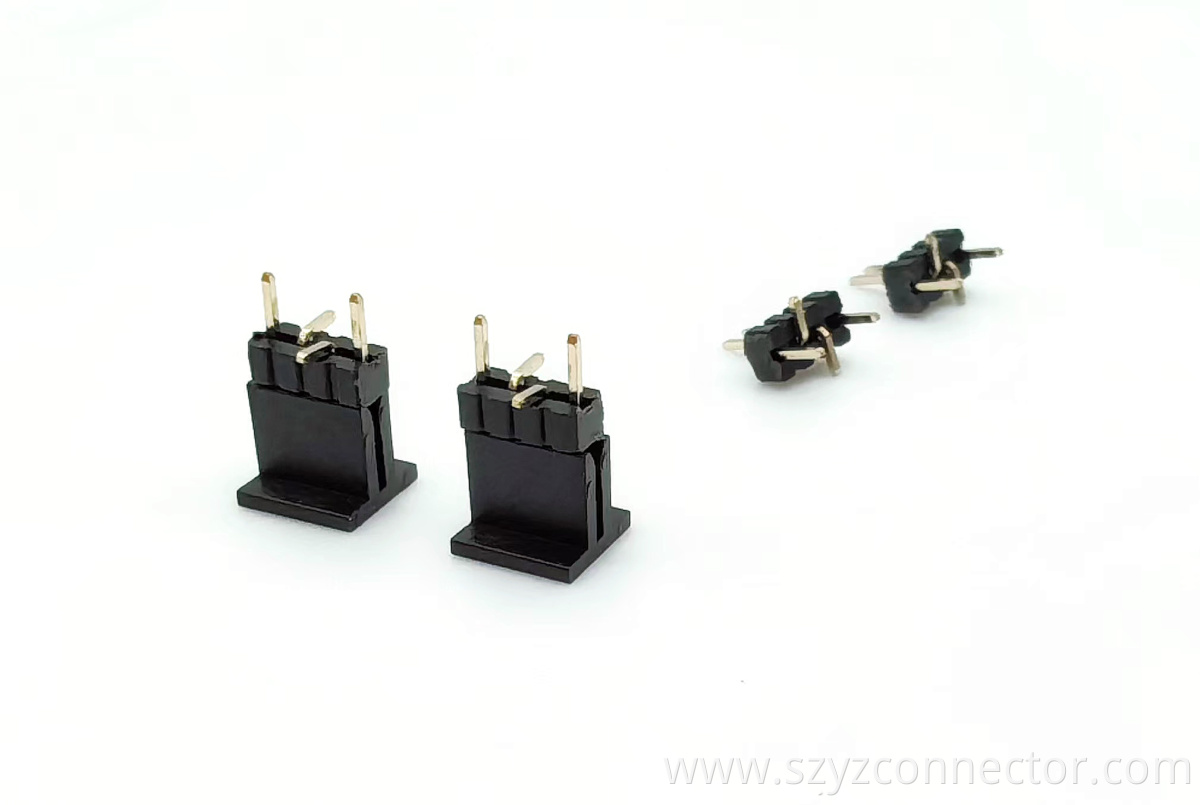

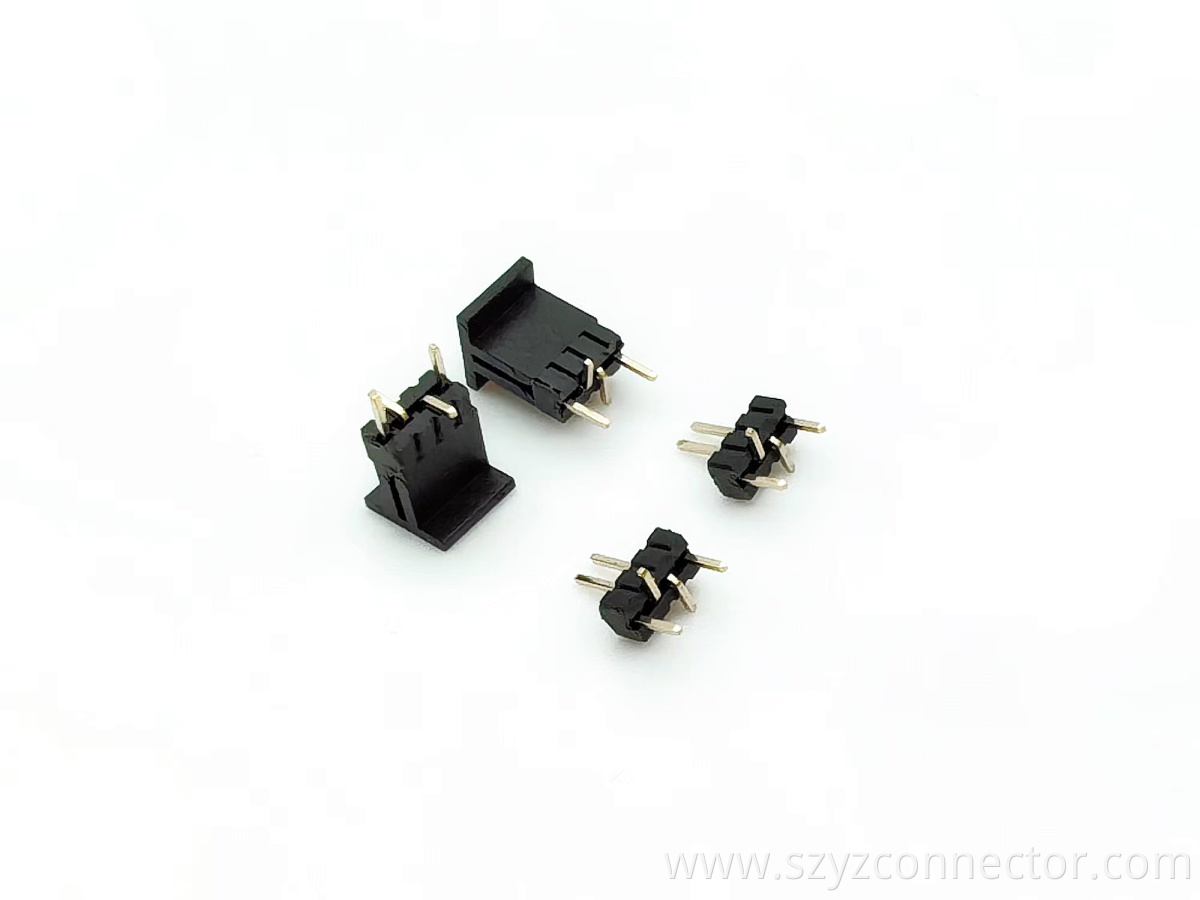

1.27mm Pitch Pin header Connector Single Row SMT H:1.5mm 1*4P



Product Description

Engineered for reliability in compact DIN-standard systems,the YZTECH 1.27mm Male Pin Header delivers high-density PCB connectivity through its single-row,4-position vertical mount design.Its ultra-fine pitch configuration maximizes space efficiency while maintaining robust electrical performance,making it ideal for modern electronics requiring miniature footprints.The rectangular housing ensures secure mating and stable mechanical retention during operation across industrial control boards,instrumentation,and embedded systems where space optimization is critical.

Featuring corrosion-resistant brass contacts with 0.8µm gold plating for optimal signal integrity and low contact resistance,this pin header connector withstands rigorous operating conditions.Encased in UL94-rated PA6T thermoplastic housing offering exceptional thermal stability and flame retardancy,it supports 2A continuous current and 300V AC/DC ratings.Engineered to endure thermal cycling from-40°C to+105°C and withstand wave soldering at 220°C for 10 seconds,its material synergy ensures longevity in automotive,telecommunications,and outdoor equipment exposed to moisture,dust,and thermal stress.

UL-certified for safety compliance and shipped in crush-resistant box packaging,this 1.27mm Pin Header meets international standards for industrial deployment.The vertical orientation simplifies automated PCB assembly while enhancing heat dissipation in confined spaces.Its gold-on-brass contact system prevents fretting corrosion in high-vibration settings,delivering>1,000 mating cycles for maintenance-free operation.GlobalTradePass-ready with complete documentation,this electronic connector reduces supply chain complexity for manufacturers exporting to North American,European,and APAC markets requiring certified components.
