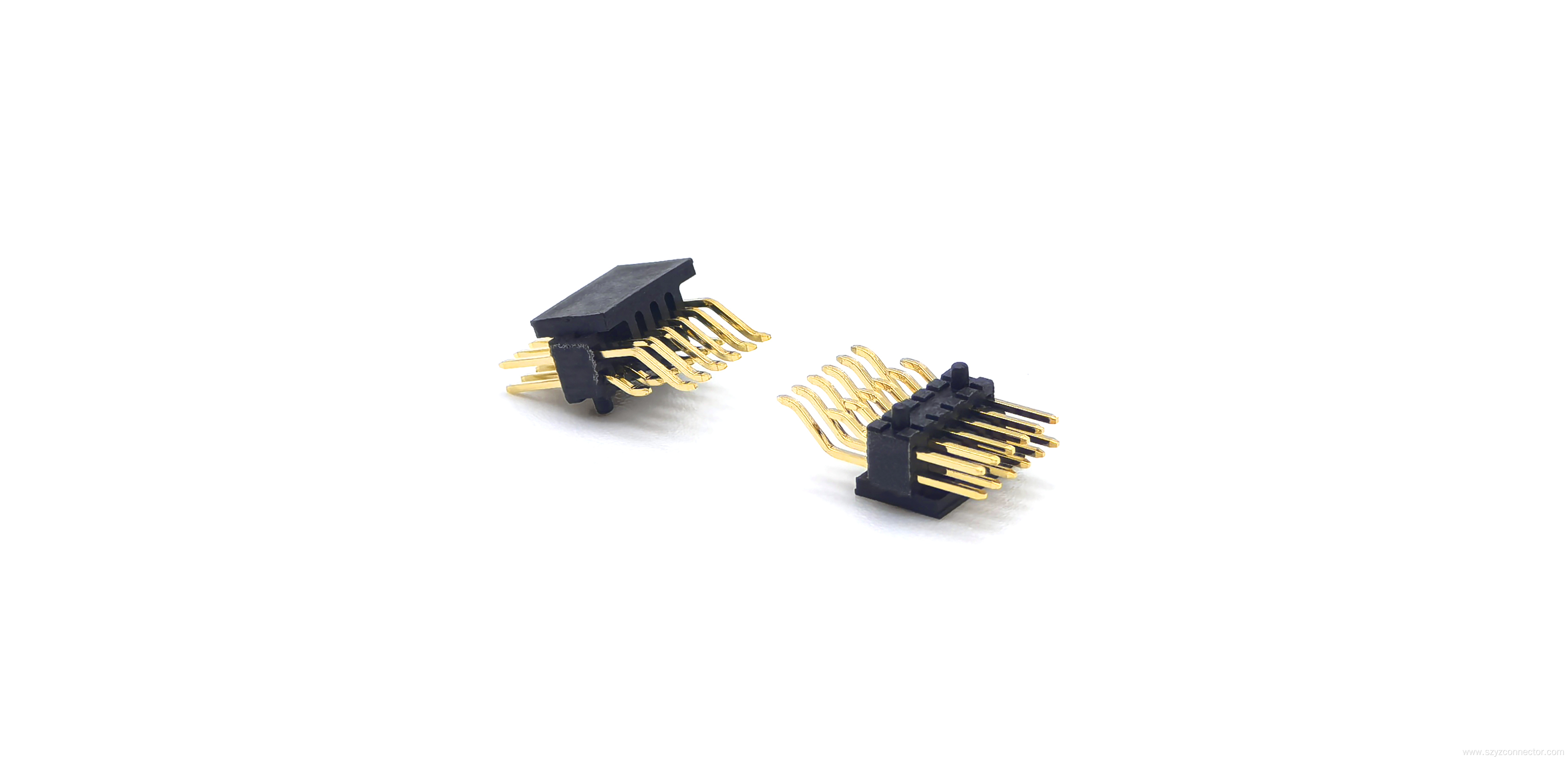

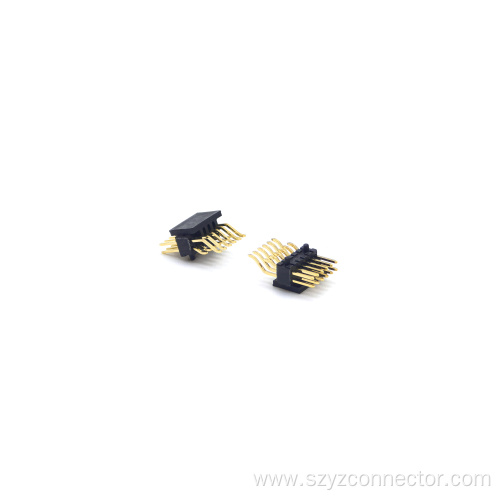

1.27mm Pin header Dual Row 12P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 12P

Contact Now

Product Description

Product Attributes

Model No.: 1101R.127SMD.2*6P

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

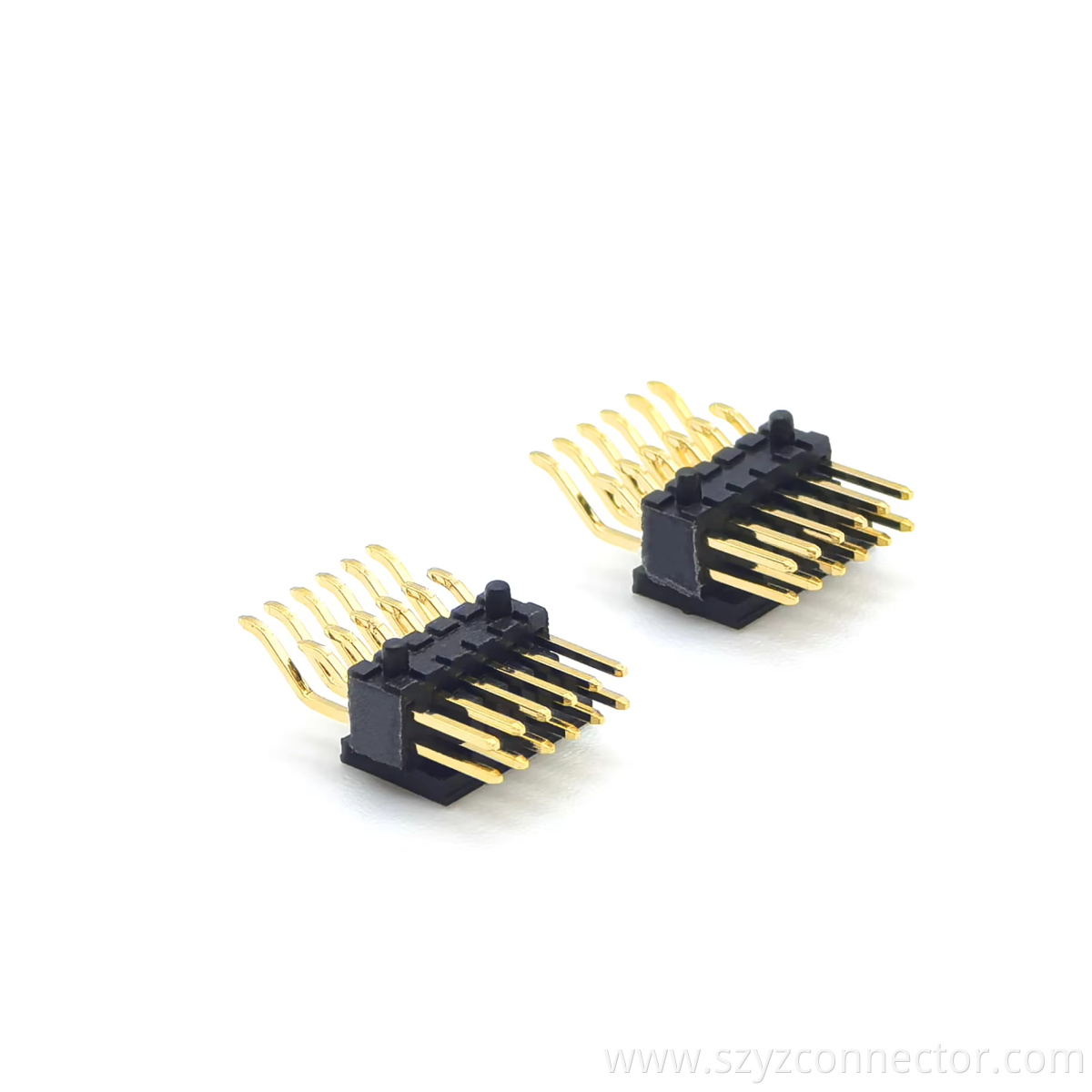

1.27mm Pitch Pin header Connector With Side Posts Dual Row Right Angle SMT SQ0.4/0.46mm H2.5mm 2*6P



Product Description

1.27mm Pin Header Dual Row 12P

YZTECH's 1.27mm Pin Header Dual Row 12P redefines reliability in PCB applications with its 1.27mm pitch design. Engineered for horizontal mount installation, this DIN-standard 1.27mm pitch header with side posts features brass contacts with gold plating, ensuring optimal conductivity ≤3mΩ contact resistance and corrosion resistance up to 300V AC at 1A current.Designed for automated SMT assembly, the 220°C@10s soldering temperature compatibility aligns with lead-free reflow processes, while reel packaging ensures efficient pick-and-place operations. The dual-row 8P configuration provides 16 contact points for signal/power distribution in compact spaces, making this pin header 1.27mm right angle smt ideal for industrial control systems, IoT devices, and consumer electronics.

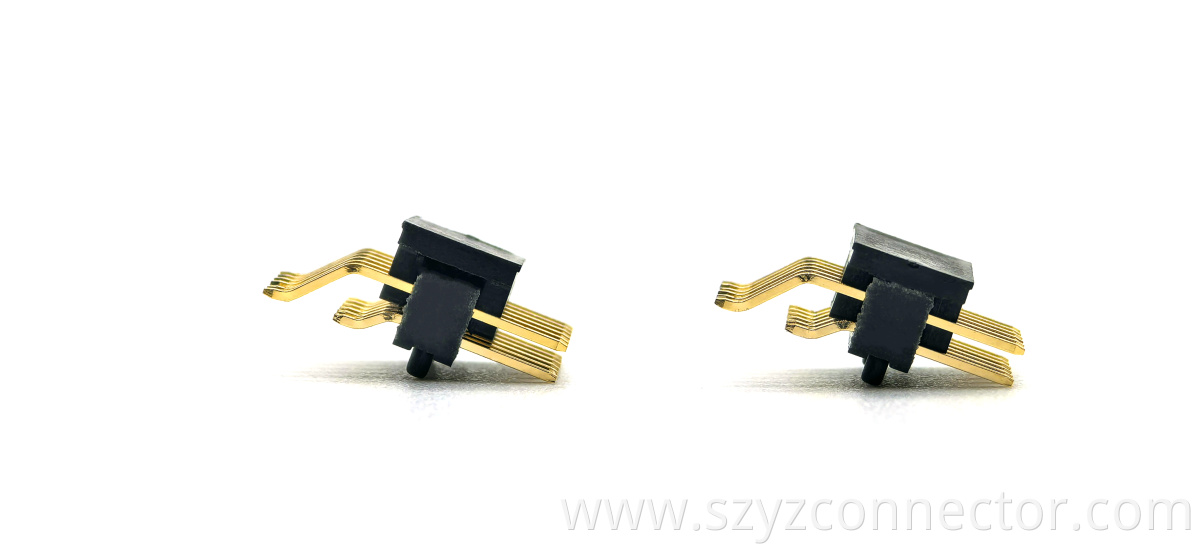

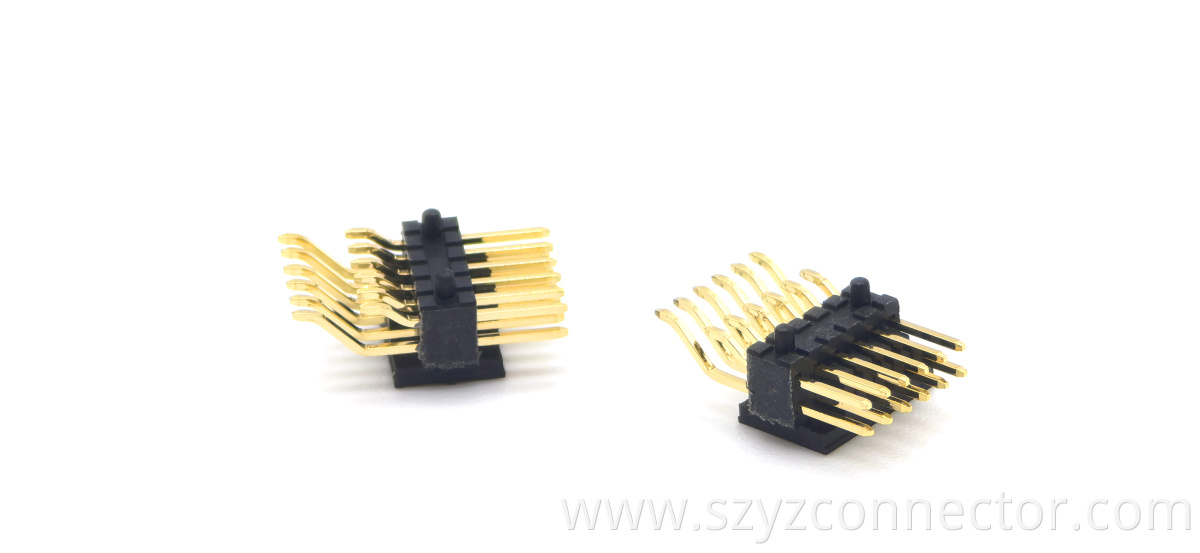

1.27mm Pitch Pin header Connector With Side Posts Dual Row Right Angle SMT SQ0.4/0.46mm H2.5mm 2*6P

The YZTECH pin header 1.27mm pitch h2.5mm distinguishes itself through advanced material science and precision manufacturing. Brass contacts with gold plating offer 50% higher conductivity than standard tin-plated alternatives, reducing signal loss in high-speed circuits. PA6T housing material maintains dimensional stability across -45°C to +105°C, preventing warping during thermal cycling.The horizontal mount design enables flush PCB integration,minimizing profile height for space-constrained applications.RoHS certification ensures seamless entry into global markets,while the reel packaging supports JIT manufacturing workflows.The gold-plated contacts provide 200+ mating cycles without degradation,ensuring long-term reliability in vibration-prone environments.

Beyond PCB applications, this 1.27mm pin header excels in automotive electronics , telecommunications, and medical devices. The 1.27mm pitch accommodates fine-pitch PCB layouts, while the dual-row design supports daisy-chaining for complex circuit integration.The reel packaging reduces shipping costs by 30% compared to tray packaging, optimizing supply chain efficiency.
