1.27mm Pitch Pin Header Connector LCP SMT

1.27mm Pitch Pin Header Connector LCP SMT

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 10P

Contact Now

Product Description

Product Attributes

Model No.: 1101.1SMD/B-2*5P-0078-F-05

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.27mm Pitch Pin Header Connector 2*5P



Product Description

1.27mm Pitch pin header connector LCP SMT
YZTECH presents a high-reliability 1.27mm Pitch Pin header connector LCP SMT featuring a dual-row, 5-pin-per-row configuration designed for vertical PCB mounting.This DIN-standard male 1.27mm pitch header with fence delivers enhanced circuit density without compromising on robustness. Engineered for stability, the contacts are crafted from brass and feature a selective half-gold, half-tin plating. This hybrid coating ensures superior corrosion resistance and a highly reliable connection interface, while the overall design supports a 1A current and 300V voltage rating.

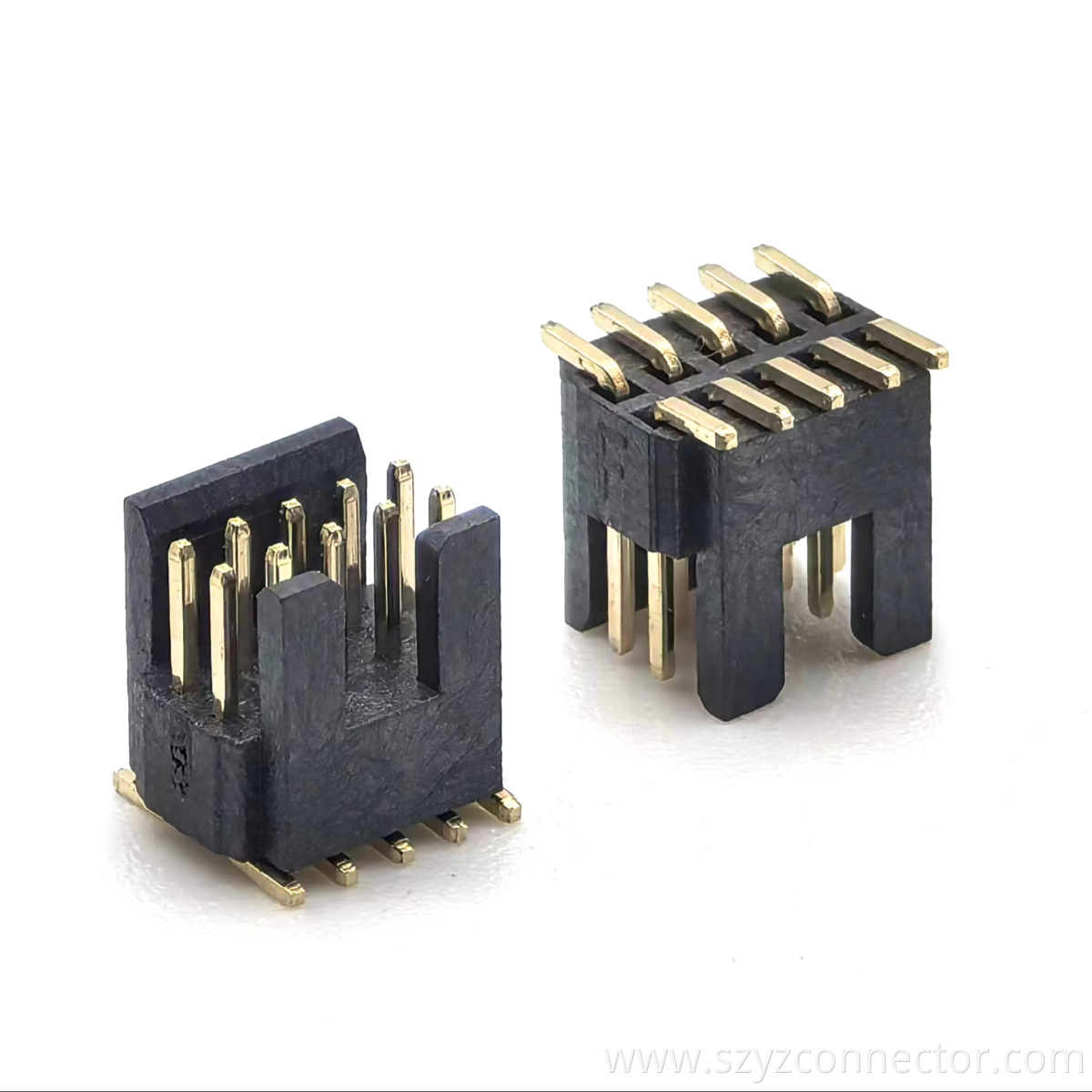

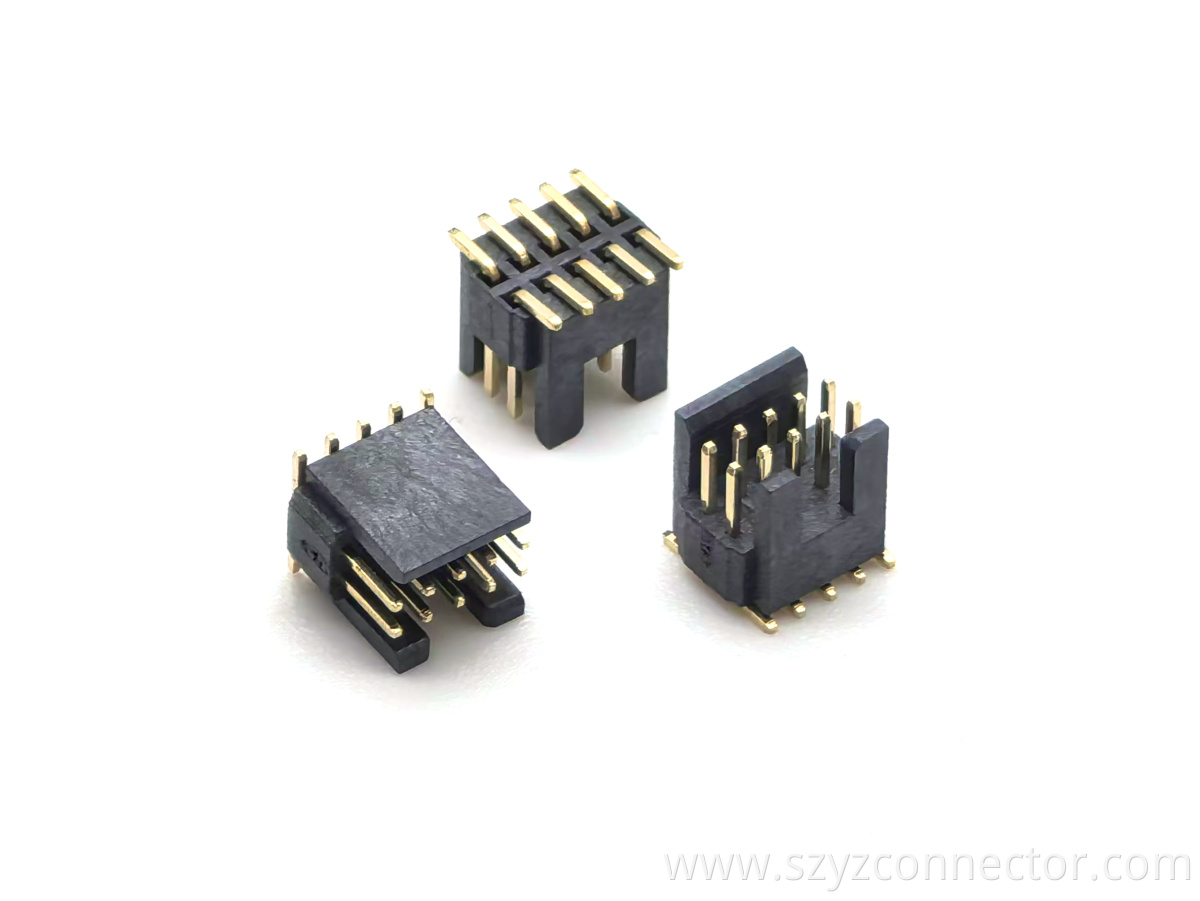

1.27mm Pitch Pin Header Connector With Fence LCP SMT H2.5mm 2*5P

Precision-engineered for modern surface-mount technology,this pin header 1.27mm h2.5mm guarantees outstanding performance in automated manufacturing environments.Its vertical orientation optimizes board real estate, facilitating efficient airflow and component placement in compact designs.The LCP colloidal material provides exceptional resistance to warping during reflow soldering,with a proven ability to withstand peak welding temperatures of up to 260°C for 10 seconds,allowing the connector to perform reliably in a broad operating temperature range from -45℃ to +105℃. Delivered in protective reel packaging, the pin header 1.27mm pitch 10p ensures seamless integration into high-speed pick-and-place equipment, maximizing production efficiency, minimizing handling, and reducing the risk of assembly defects.

This versatile 1.27mm Pin Header is an optimal solution for demanding applications where space,reliability,and thermal performance are critical.It is exceptionally suited for industrial control systems, automotive electronics, advanced telecommunications infrastructure, and high-density data acquisition modules.The combination of its durable LCP housing,selective contact plating, and dual-row design offers a formidable interconnection that excels in harsh operating conditions.
