1.27mm Pin header Right Angle SMT

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

2P Single-Core Black

Contact Now

Product Description

Product Attributes

Model No.: 1101.1-R-SMD-1*2P-0083-F-06

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Pin

Species: Headers And Pcb Receptacles

Package: Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.27mm Pitch Pin header Connector Single Row Right Angle SMT SQ0.46mm H2.5mm 1*2P



Product Description

1.27mm Pin Header Right Angle SMT
YZTECH's 1.27mm Pin Header Right Angle SMT provides an ultra-compact and precisely engineered interconnection solution tailored for high-density PCB designs. This male 1.27mm pitch header pa6t material, featuring gold-plated brass contacts and a surface-mount configuration, ensures exceptional signal integrity, reliable soldering performance, and space-efficient integration. Its slim rectangular profile and SMT design render it ideal for advanced electronics, miniaturized devices, and applications where board space is of utmost importance.

Rated for a current capacity of 1A and a voltage of 300V, this pin header 1.27mm h1.5mm 2p operates reliably within a broad temperature range of -45℃ to +130℃. The gold-plated brass contacts offer low resistance and superior corrosion resistance, while the SMT termination facilitates reflow soldering processes with a maximum welding tolerance of 260℃ for 10 seconds. This combination of electrical and thermal stability ensures durability in challenging environments.

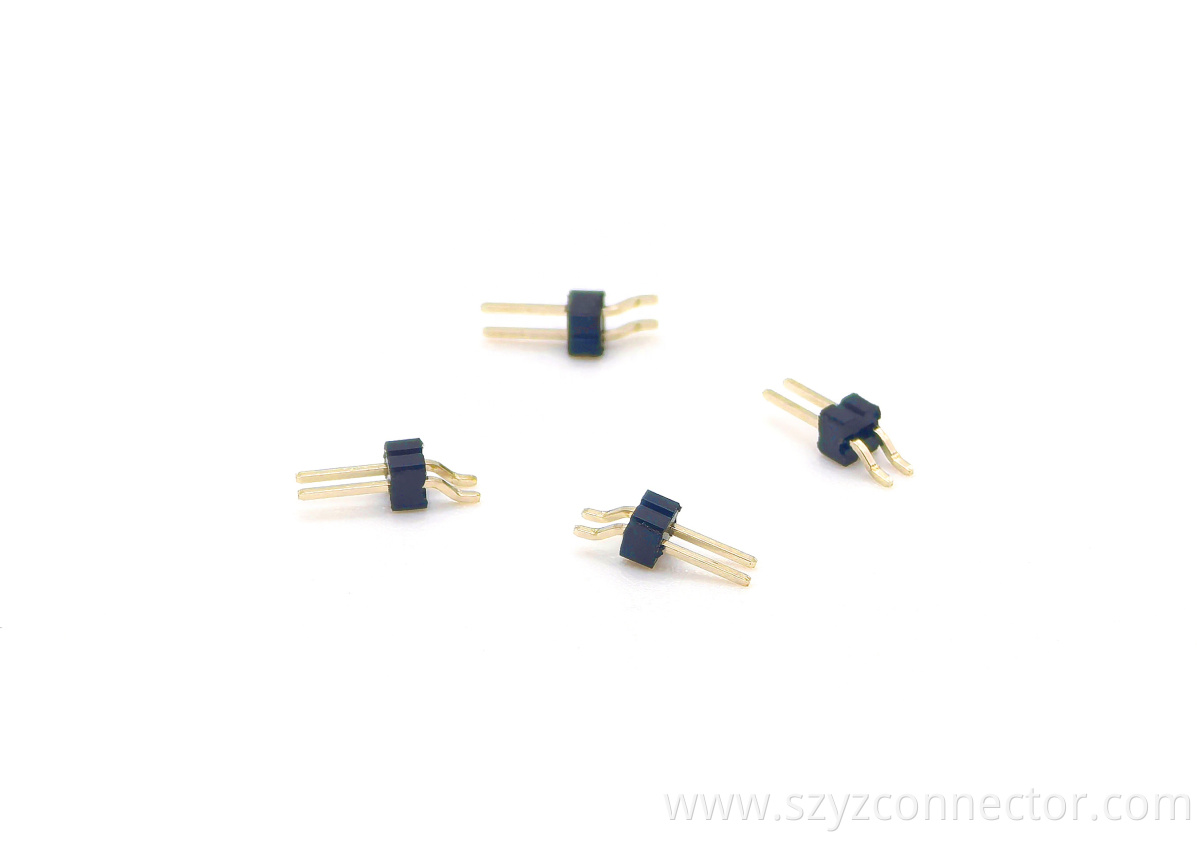

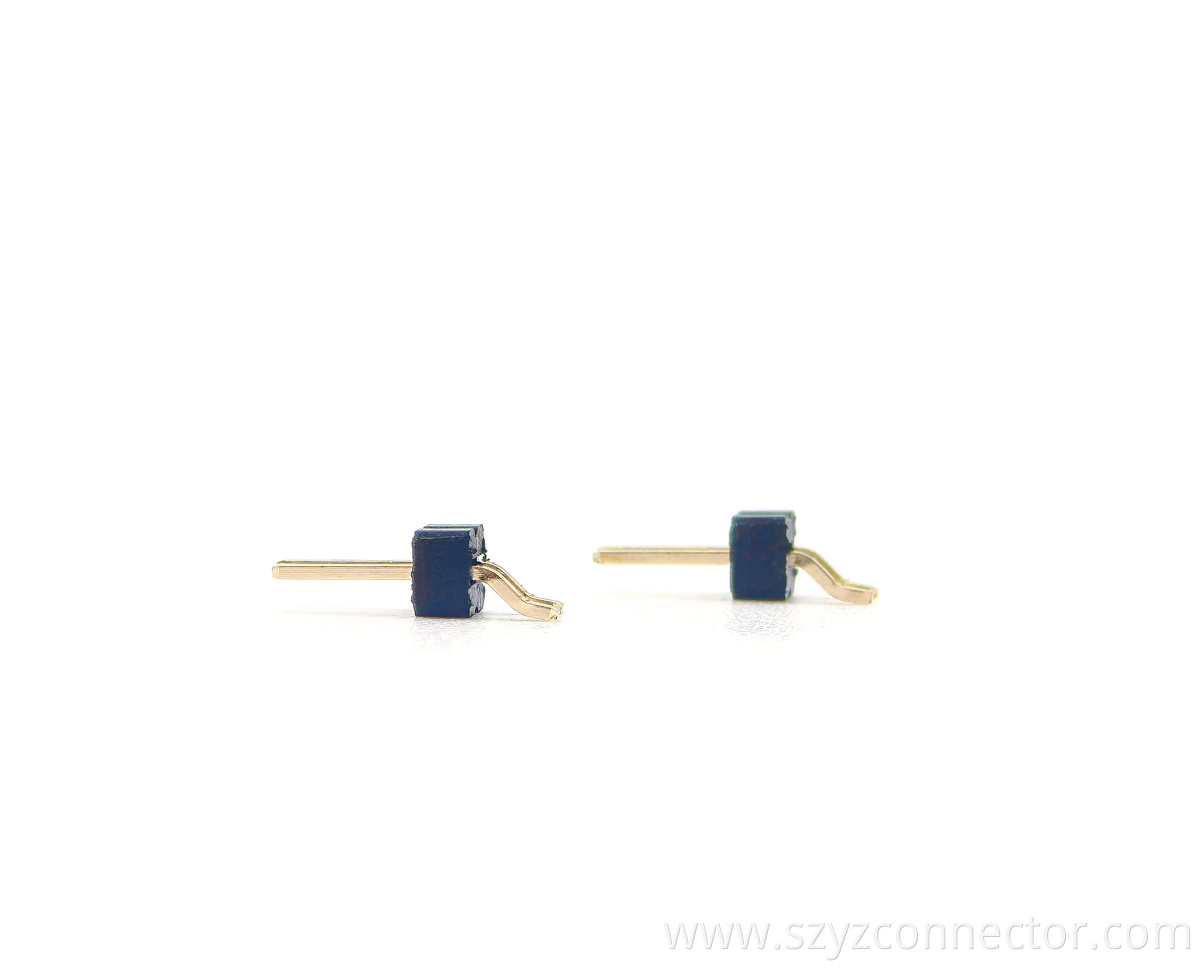

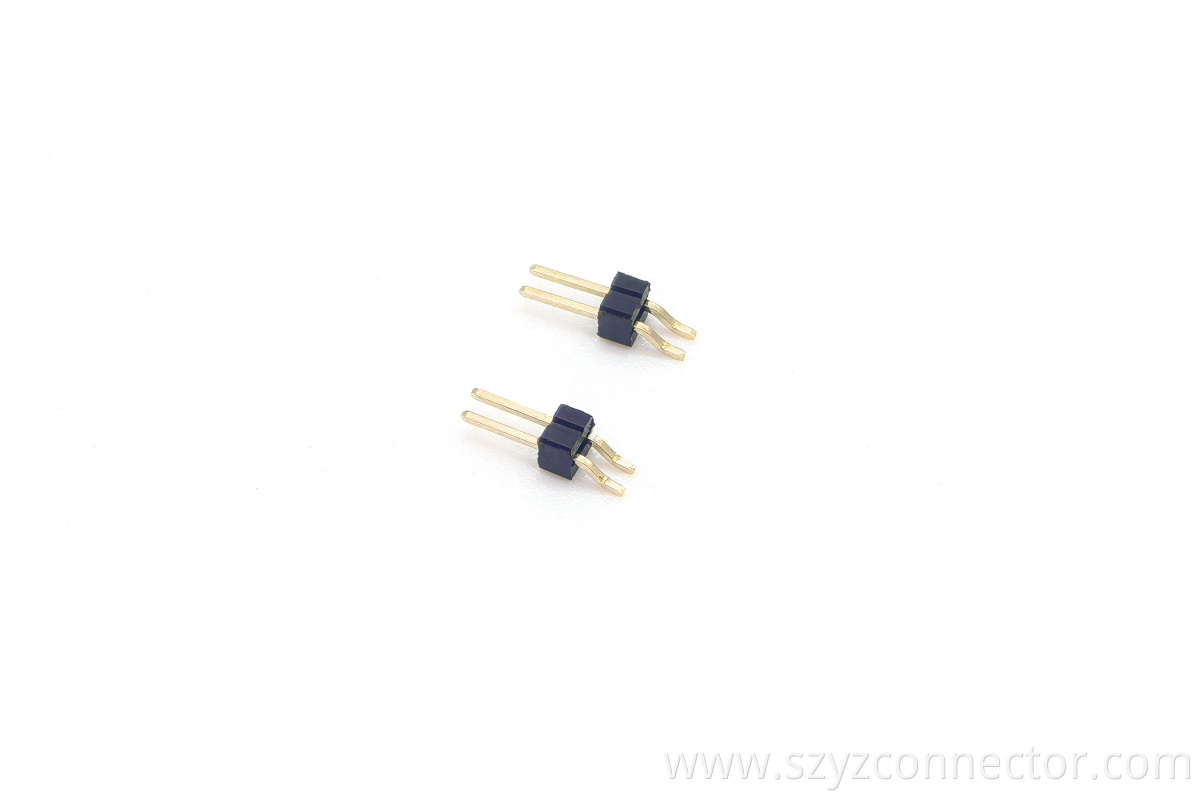

1.27mm Pitch Pin header

Packaged in anti-static bags for safe storage and handling, this pin header 1.27mm pitch single row is optimized for automated assembly and high-volume production. Compliant with industry standards, YZTECH's 1.27mm pin header delivers a reliable, high-performance solution for contemporary PCB applications, including micro-sensors, communication modules, and portable electronics.
