1.27mm Machined Pin header Right Angle

Name: 1.27mm Pitch Machined Pin header Connector
Uploaded: 2025-09-16T02:51:10+08:00
Description: Meet the YZTECH 24P Machined DIN Pin Header—a compact powerhouse designed for PCB integration. Engineered with a

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Model No.: 18101.361422124RG110101

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

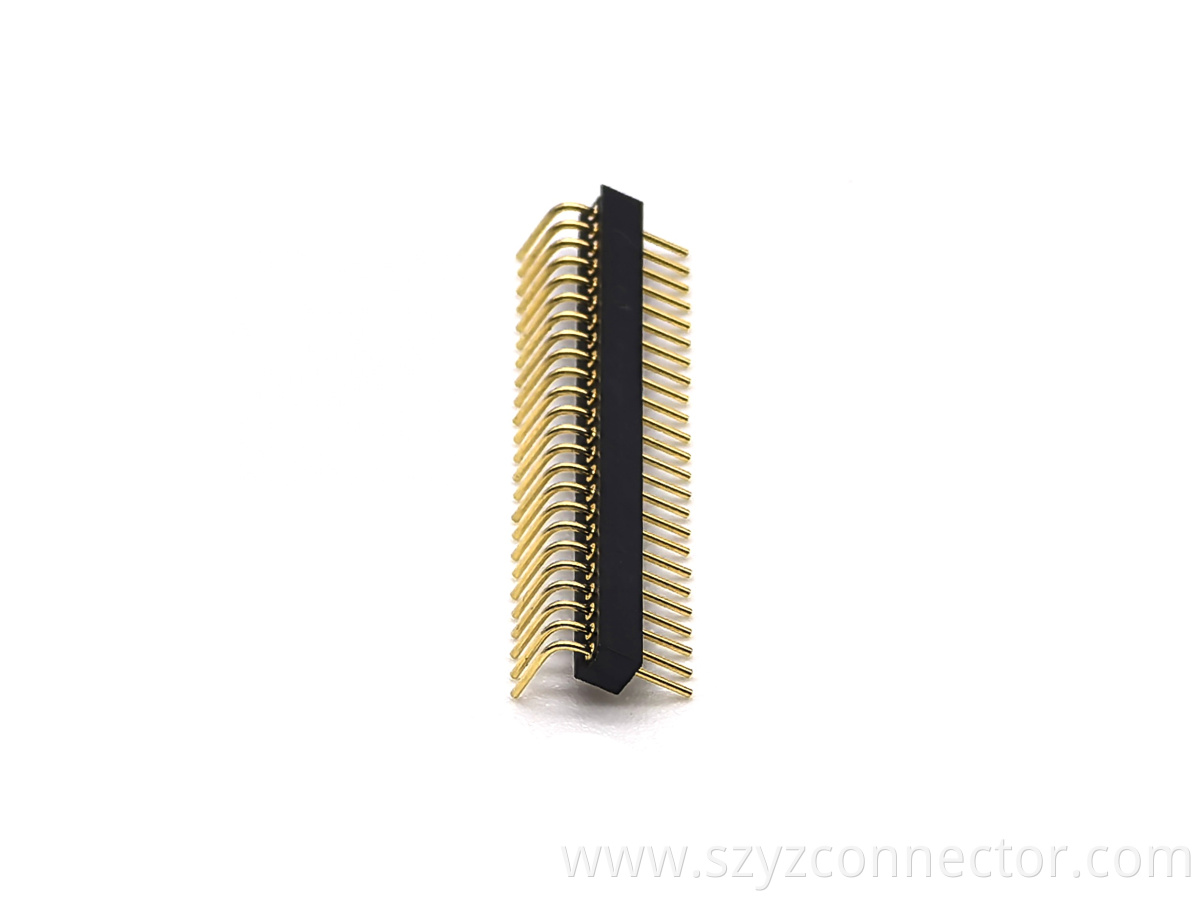

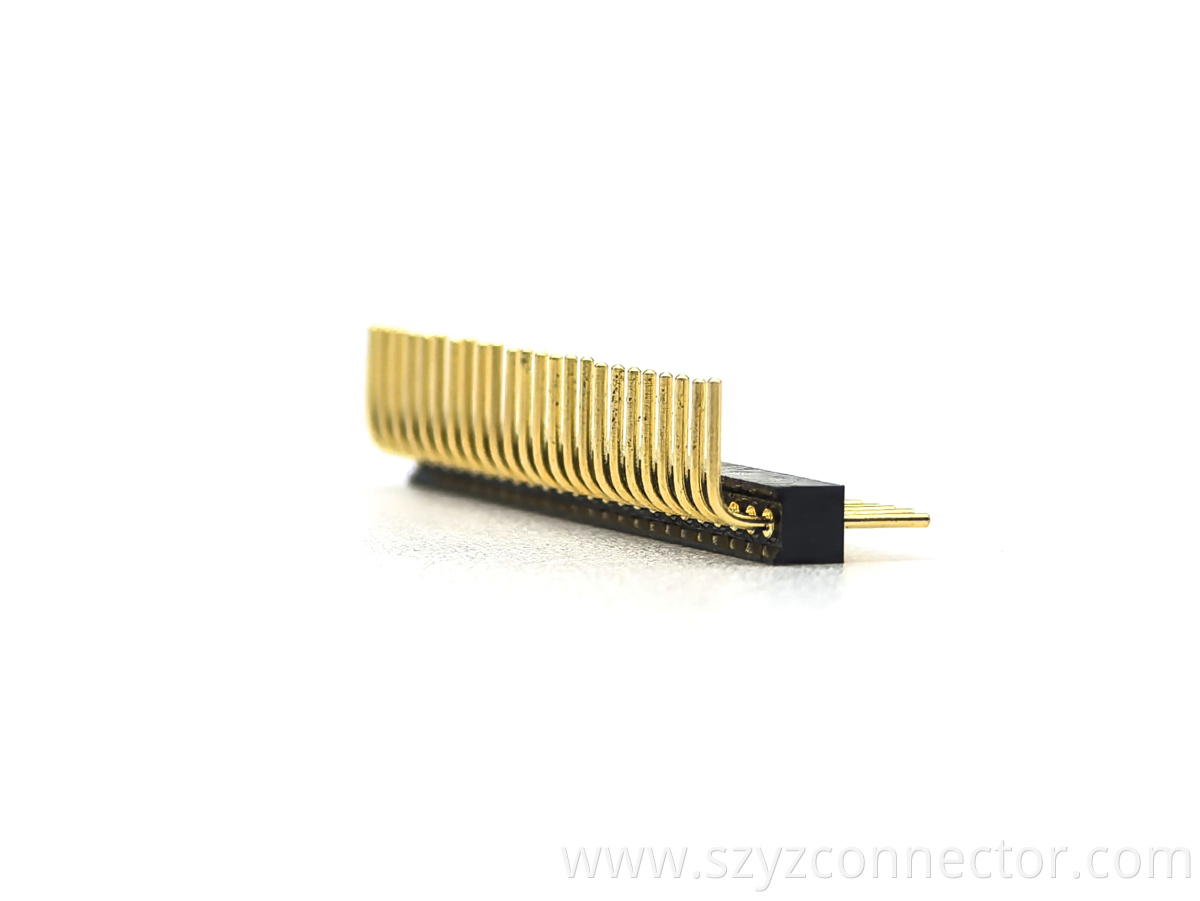

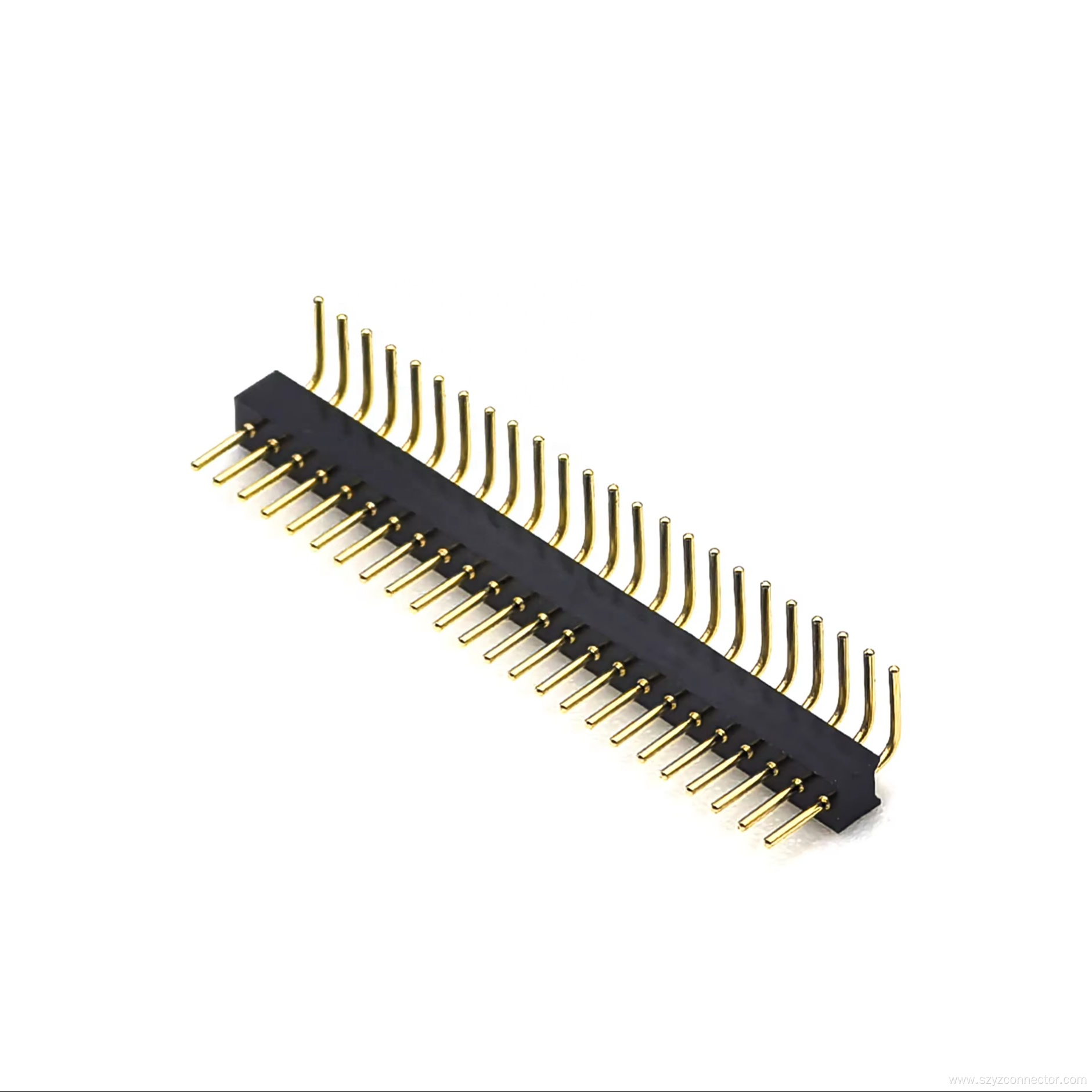

1.27mm Pitch Machined Pin header Connector



Product Description

Meet the YZTECH 24P Machined DIN Pin Header—a compact powerhouse designed for PCB integration. Engineered with a 1.27mm pitch and machined brass contacts plated in gold, this connector delivers reliable electrical conductivity while resisting corrosion and wear. Its right-angle bending plug design ensures seamless PCB mounting without compromising signal integrity, making it ideal for industrial automation, automotive control modules, and consumer electronics. The round-shape male header connector operates flawlessly from -40°C to +105°C, with a 500V rated voltage and 1A current capacity ensuring safety in high-stress environments. Unlike traditional connectors, its PPS colloidal material guarantees flame resistance and dimensional stability, while the tube packaging streamlines inventory management for high-volume production lines.

This DIN-standard pin header redefines durability with its 260°C/10s max welding temperature tolerance.The single-row configuration optimizes PCB real estate utilization, while the gold-plated contacts ensure low contact resistance and high signal fidelity. Its brass contact material strikes the perfect balance between mechanical strength and cost efficiency, and the PPS housing maintains structural integrity under thermal cycling. With a 500V AC/DC rated voltage and 1A current handling, it’s engineered for both low-power signaling and moderate power delivery, adapting to diverse circuit requirements.

From smart factory sensors to automotive infotainment systems, this 1.27mm pin header connector thrives in environments where reliability is paramount. For global manufacturers, its compliance with DIN standards ensures cross-compatibility with existing infrastructure, while the gold plating extends maintenance intervals. Whether deployed in renewable energy controllers, robotics, or premium consumer gadgets, this pin header delivers future-proof connectivity—built to outlast trends and outperform expectations.
